Checkpoint 156-315.81 - Check Point Certified Security Expert R81.20

Hybrid Emulation Mode is a mode of operation that allows load sharing of emulation between an on premise appliance and the cloud. Emulation is a process that analyzes files for malicious behavior by running them in a virtual sandbox. Hybrid Emulation Mode enables you to optimize the performance and scalability of your Threat Emulation solution by distributing the emulation workload between your local SandBlast appliance and the Check Point cloud service. References: Check Point Security Expert R81 Course, Threat Emulation Administration Guide

The Sticky Decision Function in ClusterXL is primarily used in Load Sharing implementations. In Load Sharing, the pivot member is responsible for determining the destination of new connections and ensures that traffic from the same source IP address is directed to the same cluster member. This ensures session stickiness for the same source IP, improving load sharing efficiency.

References: Check Point Certified Security Expert R81 documentation and learning resources.

The most recommended way to install patches and hotfixes is CPUSE (Check Point Update Service Engine). CPUSE is a tool that automates the process of upgrading and installing software packages on Check Point devices. CPUSE can work in online mode or offline mode. Online mode requires an Internet connection to download the packages from Check Point servers. Offline mode allows you to download the packages manually from another device and transfer them to the target device using a USB drive or SCP. References: Check Point Security Expert R81 Course, CPUSE Administration Guide

The correct command to store the GAIA configuration in a file is save configuration 1. This will create a file with the current system level configuration in the home directory of the current user1. The other commands are incorrect because they either do not exist or do not save the configuration to a file. References: 1: Backing up Gaia system level configuration(https://supportcenter.checkpoint.com/supportcenter/portal?eventSubmit_doGoviewsolutiondetails= &solutionid=sk102234)

When John detects a high load on the sync interface, the recommended solution is to implement a delay in the sync process for short-lived connections like HTTP. Here's an explanation of each option:

A. Delaying the sync for 2 seconds for short connections like HTTP services is a common practice to reduce the load on the sync interface. This allows the interface to handle the incoming connections more effectively.

B. Adding a second interface to handle sync traffic might be a viable solution, but it can be more complex and costly compared to implementing a delay for short connections.

C. Not syncing short connections like HTTP services is not a recommended approach because it may lead to synchronization issues and potential data inconsistencies between cluster members.

D. Delaying the sync for ICMP (ping) services is not a common practice and may not effectively address the high load issue on the sync interface.

Therefore, option A is the most recommended solution as it addresses the issue by introducing a delay for short-lived connections, optimizing the sync process without causing synchronization problems.

References: Check Point Certified Security Expert (CCSE) R81 documentation and learning resources.

The directory /opt/CPsuite-R81/fw1/log contains the log files for the Security Gateway, such as firewall, VPN, IPS, and anti-virus logs1. These log files can be viewed and analyzed using SmartConsole or SmartView2. The other directories are not correct because:

A. The directory /opt/CPSmartlog-R81/log contains the log files for the SmartLog server, which is a separate component that indexes and searches the logs from multiple Security Gateways3.

B. The directory /opt/CPshrd-R81/log contains the log files for the shared components of the Check Point suite, such as cpwd, cpca, cpd, and cpwatchdog4.

D. The directory /opt/CPsuite-R81/log does not exist by default and is not used for logging purposes.

References: Logging and Monitoring R81 Administration Guide, SmartConsole R81 Help, SmartLog R81 Help, Check Point Processes and Daemons

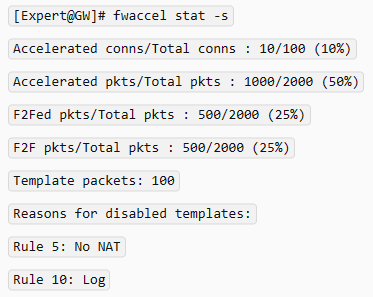

 The fwaccel stat command on the gateway shows the status of SecureXL acceleration, including the number of accelerated and non-accelerated connections, and the reason for non-acceleration. The reason for non-acceleration can be either a rule that disables templating, or a feature that is not supported by SecureXL. To determine which rule disables templating, the administrator can use the -s option to show the rule numbers and names. For example:

Capsule Connect is a full layer 3 VPN client that provides secure and seamless remote access to corporate networks from iOS and Android devices. It supports all VPN authentication methods, such as certificates, passwords, tokens, and challenge-response. It also supports split tunneling and seamless roaming. References: Capsule Connect Datasheet, Capsule Connect Administration Guide

 SecureXL templates are a mechanism to accelerate the rate of connection establishment by grouping connections that match a particular service and whose sole differentiating element is the source port. SecureXL templates enable even the very first packets of a TCP handshake to be accelerated, without waiting for the Firewall kernel to create a connection entry. The first packets of the first connection on the same service will be forwarded to the Firewall kernel, which will then create a template of the connection. The template will contain all the relevant information for the connection, such as source and destination IP addresses, destination port, NAT information, policy decision, etc. The template will be used by SecureXL to handle subsequent connections on the same service, without involving the Firewall kernel. This reduces the CPU load and increases the throughput.

There are three types of SecureXL templates: Accept, Drop, and NAT. Accept templates are used for connections that are allowed by the Firewall policy. Drop templates are used for connections that are blocked by the Firewall policy. NAT templates are used for connections that require NAT translation. Deny templates are not a valid type of SecureXL template.

References: SecureXL NAT Templates in R80.20 and lower, Part 3 - SecureXL, Security Gateway Performance Optimization - Part 5 - SecureXL

In SmartEvent, the administrator can configure different types of automatic reactions, which include:

Mail notifications

Blocking the source of the event

Blocking the event activity

Running an external script

Sending an SNMP trap

So, the correct answer is "Mail, Block Source, Block Event Activity, External Script, SNMP Trap."

References: Check Point documentation or training materials related to SmartEvent configuration and automatic reactions.

Check Point SandBlast Zero-Day Protection offers flexibility in implementation to meet individual business needs. One of the deployment options for Check Point SandBlast Zero-Day Protection is:

Smart Cloud Services (Option A): Smart Cloud Services allow organizations to leverage cloud-based threat intelligence and protection services provided by Check Point.

The other options, Load Sharing Mode Services (Option B), Threat Agent Solution (Option C), and Public Cloud Services (Option D), may also be components of a security strategy, but they are not specific deployment options for Check Point SandBlast Zero-Day Protection.

References: Check Point Certified Security Expert (CCSE) R81 training materials and documentation.

The Correlation Unit in Check Point Security Management performs several actions, but it does not assign a severity level to the event. The Correlation Unit is responsible for identifying patterns in logs, marking logs that are part of larger patterns, generating events based on the Event policy, and adding new log entries to ongoing events. However, assigning a severity level to an event is typically done through the Event policy configuration, not by the Correlation Unit.

References: Check Point Certified Security Expert R81 Study Guide

The purpose of a SmartEvent Correlation Unit is to evaluate logs from the log server component to identify patterns/threats and convert them to events. The SmartEvent Correlation Unit is a software module that runs on the SmartEvent server or on a dedicated server. It applies correlation rules and logic to the logs received from various sources, such as security gateways, endpoints, or third-party devices. It then generates events that represent security incidents or trends that require attention or action. References: Check Point Security Expert R81 Course, SmartEvent Administration Guide

 SecureXL is a technology that accelerates the performance of the Check Point Security Gateway by offloading CPU-intensive operations from the Firewall kernel to the SecureXL device. SecureXL can handle various types of traffic, such as TCP, UDP, ICMP, non-IP, VPN, NAT, etc. SecureXL can also work with various features, such as CoreXL, ClusterXL, QoS, etc.

One way to indicate that SecureXL is enabled is to use the fwaccel commands in clish. Clish is a command-line shell that provides a user-friendly interface for configuring and managing Check Point products. The fwaccel commands are used to control and monitor SecureXL operations, such as enabling or disabling SecureXL, viewing SecureXL statistics, managing SecureXL templates, etc. For example, the command fwaccel stat shows the status of SecureXL, such as whether it is on or off, how many packets are accelerated or not accelerated, etc.

The other options are not valid indicators of SecureXL being enabled:

A. Dynamic objects are available in the Object Explorer: Dynamic objects are objects that represent IP addresses that change over time, such as VPN clients, DHCP clients, etc. Dynamic objects are available in the Object Explorer regardless of whether SecureXL is enabled or not.

B. SecureXL can be disabled in cpconfig: Cpconfig is a command-line tool that allows you to configure various settings of Check Point products, such as administrator password, GUI clients, SNMP extension, etc. SecureXL can be disabled in cpconfig only if it was enabled before. Therefore, this option does not indicate that SecureXL is enabled.

D. Only one packet in a stream is seen in a fw monitor packet capture: Fw monitor is a command-line tool that allows you to capture and analyze network traffic passing through the Security Gateway. Fw monitor shows the traffic at different inspection points in the Firewall kernel. If SecureXL is enabled, some packets may be accelerated by SecureXL and bypass the Firewall kernel inspection. Therefore, fw monitor may not see all packets in a stream. However, this does not mean that only one packet in a stream will be seen by fw monitor. Some packets may still go through the Firewall kernel inspection and be seen by fw monitor. Therefore, this option does not indicate that SecureXL is enabled.

Therefore, the correct answer is C.

References: How to enable/disable Check Point SecureXL via CLI, Part 3 - SecureXL, What is SecureXL?, Clish - Command Line Interface Shell, sk30583: What is FW Monitor?

To use SmartConsole R81 for managing SmartEvent R81, you need to have the following ports open:

Port 19009 for communication over HTTPS (443)

Port 19009 for communication over HTTP (80)

These ports are necessary for the SmartConsole to communicate with SmartEvent for management and monitoring purposes.

References: Check Point Certified Security Expert R81 documentation and learning resources.
