Citrix 1Y0-403 - Citrix Virtual Apps and Desktops 7 Assessment Design and Advanced Configurations

Citrix 1Y0-403 Premium Access     Download Demo
Page: 2 / 3
Total 99 questions

Scenario: An infrastructure team has stated that the new Citrix Virtual Apps and Desktops virtualization host will have the specifications shown in the exhibit.

Click the Exhibit button to view the specifications.

The design document calls for the VMs to have 2 CPUs and 4 GB RAM. Approximately how many virtual desktops can be hosted an each physical server?

A.

190

B.

240

C.

120

D.

60

Scenario: A Citrix Architect is designing a Citrix Virtual Desktops environment. The Graphic Designers Group uses graphic-intensive applications. Graphic designers will be provided with a Windows 10-hosted assigned desktop, with NVIDIA graphics hardware acceleration. HDX 3D Pro mode was selected during the installation of the Virtual Delivery Agent (VDA).

What is the maximum number of monitors supported for the Graphic Designers Group?

A.

4

B.

1

C.

2

D.

8

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The environment consists of 4 Citrix Hypervisor hosts, each running 10 virtual machines (VMs). To meet company security standards for the environment, the IT team will need to perform routine VM snapshots, data backups, and threat scans.

Which two matters should the architect consider when securing a backup plan for the company? (Choose two.)

A.

Administrative access to the storage location that maintains backups and archived data should be monitored

B.

There are various delegated administrator roles that will have permissions to perform VM snapshots

C.

RAID technology is supported for secure VM backups and snapshots when using local host storage

D.

VM snapshots and data backups are NOT required for backup purposes if an enterprise-grade, geo- replicated, high-security storage solution is deployed

E.

Running simultaneous security scans on different VMs can reduce host resource utilization

Scenario: A Citrix Consultant is designing a new Citrix Virtual Desktops environment. During the user segmentation process, a Citrx Architect collected a small amount of data about user requirements, but was NOT able to create well-defined user groups.

Which user-segmentation actions should the consultant pursue?

A.

Collect user data, define user groups, and identify user requirements.

B.

Collect user data, confirm user groups, and identify user requirements.

C.

Analyze existing data, define user groups, and confirm user requirements.

D.

Analyze existing data, confirm user groups, and identify user requirements

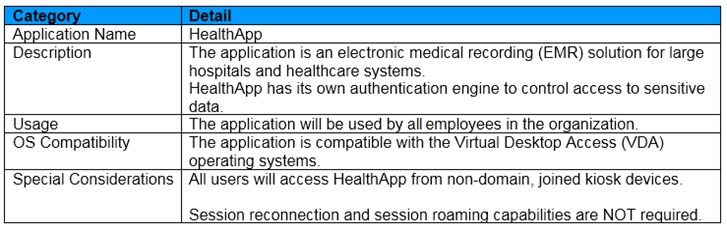

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Based on some initial discussions about the business goals and objectives of the company, the architect collected the information shown in the exhibit.

Click the Exhibit button to view the information.

What should the architect recommend to meet customer requirements?

A.

Have users connect to an unauthenticated store through the Citrix Workspace app for Web sites.

B.

Have users connect to an authenticated store through Citrix Workspace app for Web sites.

C.

Have users connect using a Desktop Appliance site created in the StoreFront console.

D.

Have users connect to an authenticated store through the Citrix Virtual Apps Services URL.

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Citrix Provisioning (PVS) has been selected for image management. The PVS vDisk store requires high fault tolerance and the ability to support dual drive failure.

Which RAID level could the architect use for the PVS vDisk store?

A.

RAID 5

B.

RAID 6

C.

RAID 0

D.

RAID 1

Scenario: A Citrix Architect is implementing a new Citrix Virtual Apps and Desktops environment. The IT team has purchased 1,000 Citrix Virtual Apps and Desktops Advanced licenses.

Moving forward, the company requires the IT team to produce a report of all unsuccessful connections of Citrix Virtual Apps during the previous 12 months.

Which two actions does the architect need to take to support these requirements? (Choose two.)

A.

Configure ‘GroomSessionsRetentionDays' to 365 days.

B.

Upgrade to Citrix Virtual Desktops Premium licenses.

C.

Configure ‘GroomFailuresRetentionDays’ to 365 days.

D.

Upgrade to Citrix Gateway Universal licenses.

E.

Implement Citrix Application Delivery Management.

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. While performing the capabilities assessment for the existing infrastructure, the architect discovered substantial issues with packet loss and latency, and no current Quality-of-Service (QoS) technology is in place to manage these issues.

Which capability risk will the architect need to investigate to address these issues?

A.

Access infrastructure

B.

Disaster recovery (DR) plan and implementation

C.

Network architecture

D.

Windows Server and Active Directory (AD) environments

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Two Control Layer security requirements have been identified:

For security reasons, it is unacceptable to use default ports for FlexCast Management Architecture (FMA) services.

Management access to PowerShell and Citrix Studio should be restricted to management workstations by granular firewall rules.

Which combination of ports can the architect assign to the listed Citrix services to meet the Control Layer security requirements?

A.

VDA Registration Port: 80 XML SSL Port: 80

SDK Port: 8083

B.

VDA Registration Port: 8081 XML SSL Port: 443

SDK Port: 80

C.

VDA Registration Port: 8081 XML SSL Port: 8082

SDK Port: 8083

D.

VDA Registration Port: 8081 XML SSL Port: 8083

SDK Port: 8083

Scenario: A Citrix Architect designed an active-passive Citrix Virtual Apps and Desktops environment, where the passive data center serves as the disaster recovery (DR) data center for all users.

Twelve items have been configured:

    Citrix ADC Global Server Load Balancing (GSLB) to provide single URL direction to the active data center.

    GSLB has health monitors configured for the load balanced servers.

    Citrix Gateways are on both data centers.

    Citrix ADC load balancing occurs for StoreFront and Delivery Controller XML services.

    A single Citrix Virtual Apps and Desktops Site exists.

    Four Delivery Controllers are members of the Site.

    Two Delivery Controllers are members of the Primary Zone in the active data center.

    Two Delivery Controllers are members of the Satellite Zone in the passive data center.

    SQL is deployed in the active data center.

    Local Host Cache is enabled.

    Two StoreFront servers are deployed in each data center aggregating resources from the Delivery Controllers in the respective data center.

    Virtual Delivery Agent (VDA) machines are deployed in both data centers and configured to register with Delivery Controllers in their zone.

What would happen if the Delivery Controllers in the primary data center were turned off?

A.

VDA machines from the primary data center would register with the Delivery Controllers in the passive data center.

B.

StoreFront in the primary data center would still be able to launch sessions.

C.

GSLB will start redirecting connections to the secondary data center.

D.

GSLB will NOT identify that the Delivery Controllers are down and sessions CANNOT launch.
