Oracle 1z0-1104-25 - Oracle Cloud Infrastructure 2025 Security Professional

Since I can’t create resources or retrieve OCIDs directly in your OCI environment, I’ll provide a step-by-step solution based on verified OCI documentation and best practices as of 02:30 PM BST on Thursday, June 12, 2025. Follow these instructions precisely in the OCI Console or CLI, using the preconfigured PBI_Vault_SP vault and the PBT-CERT-CA-01 Certificate Authority created in the previous task. Replace with your actual username (e.g., 99008677-lab.user01), ensuring special characters are removed.

Task 5: Create a Certificate

Step 1: Access the OCI Vault

Log in to the OCI Console.

Navigate toIdentity & Security>Vault.

Select the root compartment.

Locate and click on the vault named PBI_Vault_SP.

Step 2: Create the Certificate

In the PBI_Vault_SP vault details page, underResources, clickCertificates.

ClickCreate Certificate.

Enter the following details:

Name: Replace with your username (e.g., if your username is 99008677-lab.user01, remove special characters like - and . to get 99008677labuser01, then use PBT-CERT-0199008677labuser01).

Common Name: Enter PBT-CERT-OCICERT-01.

Certificate Authority: Select the PBT-CERT-CA-01 CA created in Task 4 (e.g., PBT-CERT-CA-0199008677labuser01).

Subject: Leave as default or adjust (e.g., Organization, Country) if required.

Validity Period: Set as needed (e.g., 1 year), or use the default.

Compartment: Ensure it’s set to the root compartment.

ClickCreate Certificateand wait for the certificate to be issued.

Step 3: Verify the Certificate

After creation, go to theCertificatessection under PBI_Vault_SP.

Confirm the certificate PBT-CERT-01 (e.g., PBT-CERT-0199008677labuser01) is listed and its status is active.

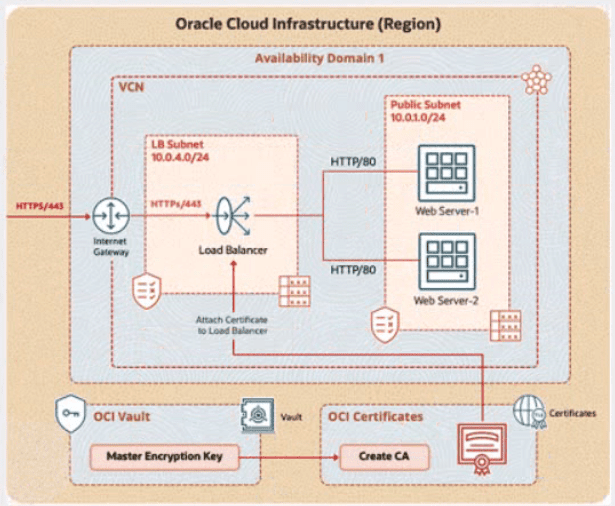

Challenge 1: Integrate TLS Certificate Issued by the OCI Certificates Service with Load Balancer

Task 1: Create and Configure a Virtual Cloud Network (VCN)

Step 1: Create the Virtual Cloud Network (VCN)

Log in to the OCI Console.

Navigate toNetworking>Virtual Cloud Networks.

ClickCreate Virtual Cloud Network.

SelectVCN with Internet Connectivity(to include an Internet Gateway by default).

Enter the following details:

Name: PBT-CERT-VCN-01

Compartment: Select your assigned compartment.

VCN CIDR Block: 10.0.0.0/16

Leave other settings as default (e.g., create a new public subnet and route table).

ClickCreate Virtual Cloud Network. Wait for the VCN to be created.

Step 2: Create Subnet 1 (Compute-Subnet-PBT-CERT)

In the VCN details page for PBT-CERT-VCN-01, clickSubnetsunderResources.

ClickCreate Subnet.

Enter the following details:

Name: Compute-Subnet-PBT-CERT

Subnet Type: Regional

CIDR Block: 10.0.1.0/24

Route Table: Select the default route table created with the VCN.

Subnet Access: Public Subnet (to allow internet access).

DNS Resolution: Enabled.

ClickCreate.

Step 3: Create Subnet 2 (LB-Subnet-PBT-CERT-SNET-02)

In the VCN details page, clickSubnetsunderResources.

ClickCreate Subnet.

Enter the following details:

Name: LB-Subnet-PBT-CERT-SNET-02

Subnet Type: Regional

CIDR Block: 10.0.2.0/24

Route Table: Select the default route table created with the VCN.

Subnet Access: Public Subnet (to allow internet access for the load balancer).

DNS Resolution: Enabled.

ClickCreate.

Step 4: Verify Internet Gateway

In the VCN details page, underResources, clickInternet Gateways.

Ensure an Internet Gateway is listed and attached to PBT-CERT-VCN-01. If not created, clickCreate Internet Gateway, name it (e.g., PBT-CERT-IGW), and attach it.

Step 5: Configure Route Table

In the VCN details page, underResources, clickRoute Tables.

Select the default route table or create a new one named PBT-CERT-RT-01.

ClickAdd Route Rule. 4 -Destination CIDR Block: 0.0.0.0/0

Target Type: Internet Gateway

Target: Select the Internet Gateway created (e.g., PBT-CERT-IGW).

ClickAdd Route Ruleand save.

Step 6: Create Security List for Subnet 1 (Compute-Subnet-PBT-CERT)

In the VCN details page, underResources, clickSecurity Lists.

ClickCreate Security List.

Enter the following:

Name: PBT-CERT-CS-SL-01

Compartment: Your assigned compartment.

Add the following ingress rule:

Source CIDR: 0.0.0.0/0 (allow from any source, adjust as per security needs)

IP Protocol: TCP

Source Port Range: All

Destination Port Range: 22 (for SSH)

Allows: Traffic

ClickCreate.

Step 7: Create Security List for Subnet 2 (LB-Subnet-PBT-CERT-SNET-02)

In the VCN details page, underResources, clickSecurity Lists.

ClickCreate Security List.

Enter the following:

Name: PBT-CERT-LB-SL-01

Compartment: Your assigned compartment.

Add the following ingress rule:

Source CIDR: 0.0.0.0/0 (allow from any source, adjust as per security needs)

IP Protocol: TCP

Source Port Range: All

Destination Port Range: 443 (for HTTPS)

Allows: Traffic

ClickCreate.

Step 8: Retrieve and Enter VCN OCID

Go to the VCN details page for PBT-CERT-VCN-01.

Copy theOCIDfrom the VCN information section.

Enter the OCID in the provided text box.

Task 3: Create a Master Encryption Key

Step 1: Access the OCI Vault

Log in to the OCI Console.

Navigate toIdentity & Security>Vault.

Select the root compartment.

Locate and click on the vault named PBI_Vault_SP.

Step 2: Create the Master Encryption Key

In the PBI_Vault_SP vault details page, underResources, clickKeys.

ClickCreate Key.

Enter the following details:

Name: Replace with your username (e.g., if your username is 99008677-lab.user01, remove special characters like - and . to get 99008677labuser01, then use PBT-CERT-MEK-0199008677labuser01).

Key Shape: SelectRSAwith4096 bits.

Protection Mode: SelectHSM(Hardware Security Module) if available, orSoftwareif HSM is not required (based on vault capabilities).

Compartment: Ensure it’s set to the root compartment (where PBI_Vault_SP resides).

Leave other settings (e.g., key usage) as default unless specified.

ClickCreate Keyand wait for the key to be generated.

Step 3: Retrieve and Enter the OCID

After the key is created, go to theKeyssection under PBI_Vault_SP.

Click on the key named PBT-CERT-MEK-01 (e.g., PBT-CERT-MEK-0199008677labuser01).

Copy theOCID(a long string starting with ocid1.key., unique to your tenancy) from the key details page.

Enter the copied OCID exactly as it appears into the provided text box.

Task 4: Create a Certificate Authority (CA)

Create a certificate authority, where:

CA name: PBT-CERT-CA-01-

For example, if your username is 99008677-lab.user01, then the certificate authority name should be PBT-CERT-CA-01990086771abuser01

Ensure you eliminate special characters from the user name.

Common name: PBT-CERT-OCICA-01

Master Encryption Key: PBT-CERT-MEK-01 (created in the previous task)

Answer: See the solution below in Explanation.

Task 4: Create a Certificate Authority (CA)

Step 1: Access the OCI Vault

Log in to the OCI Console.

Navigate toIdentity & Security>Vault.

Select the root compartment.

Locate and click on the vault named PBI_Vault_SP.

Step 2: Create the Certificate Authority

In the PBI_Vault_SP vault details page, underResources, clickCertificate Authorities.

ClickCreate Certificate Authority.

Enter the following details:

Name: Replace with your username (e.g., if your username is 99008677-lab.user01, remove special characters like - and . to get 99008677labuser01, then use PBT-CERT-CA-0199008677labuser01).

Common Name: Enter PBT-CERT-OCICA-01.

Master Encryption Key: Select the PBT-CERT-MEK-01 key created in Task 3 (e.g., PBT-CERT-MEK-0199008677labuser01).

Subject: Leave as default or adjust (e.g., Organization, Country) if required by your setup.

Validity Period: Set as needed (e.g., 10 years), or use the default.

Compartment: Ensure it’s set to the root compartment.

ClickCreate Certificate Authorityand wait for the CA to be provisioned.

Step 3: Verify the Certificate Authority

After creation, go to theCertificate Authoritiessection under PBI_Vault_SP.

Confirm the CA PBT-CERT-CA-01 (e.g., PBT-CERT-CA-0199008677labuser01) is listed and its status is active.

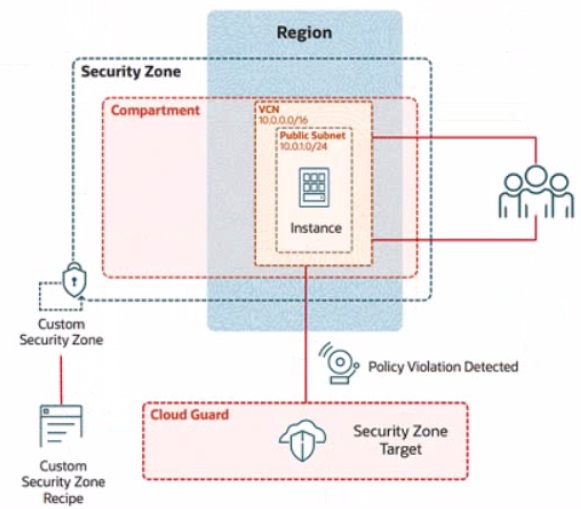

To create a Security Zone named IAD_SAP-PBT-CSZ-01 in your assigned compartment and associate it with the Custom Security Zone Recipe IAD-SP-PBT-CSP-01 created in the previous task, follow these steps based on the Oracle Cloud Infrastructure (OCI) Security Zones documentation.

Step-by-Step Solution for Task 2: Create a Security Zone

Log in to the OCI Console:

Use your OCI credentials to log in to the OCI Console (https://console.us-ashburn-1.oraclecloud.com ).

Ensure you have access to the assigned compartment.

Navigate to Security Zones:

From the OCI Console, click the navigation menu (hamburger icon) on the top left.

UnderGovernance and Administration, selectSecurity Zones.

Create a New Security Zone:

In the Security Zones dashboard, click theCreate Security Zonebutton.

Configure the Security Zone Details:

Name:Enter IAD_SAP-PBT-CSZ-01.

Compartment:Select the assigned compartment provided.

Description:(Optional) Add a description, e.g., "Security Zone for public subnet compute instances."

Associate the Custom Security Zone Recipe:

In theRecipesection, select the custom recipe IAD-SP-PBT-CSP-01 created in Task 1 from the dropdown list.

Ensure the recipe is correctly associated to enforce the policy allowing compute instances in the public subnet.

Define the Security Zone Scope:

UnderResources to Protect, select the compartment or specific resources (e.g., the VCN with CIDR 10.0.0.0/16 and public subnet 10.0.10.0/24) to apply the security zone.

Check the box to include all resources in the selected compartment if applicable.

Create the Security Zone:

ClickCreateto finalize the security zone creation.

Once created, note theOCIDof the security zone from the security zone details page. The OCID will be a unique identifier starting with ocid1.securityzone.

Verify the Security Zone:

Go to theSecurity Zonestab and locate IAD_SAP-PBT-CSZ-01.

Confirm the associated recipe (IAD-SP-PBT-CSP-01) and the applied policies.

OCID of the Created Security Zone

The exact OCID will be generated upon creation (e.g., ocid1.securityzone.oc1..). Please enter the OCID displayed in the OCI Console after completing Step 7.
