Cisco 200-901 - DevNet Associate (DEVASC)

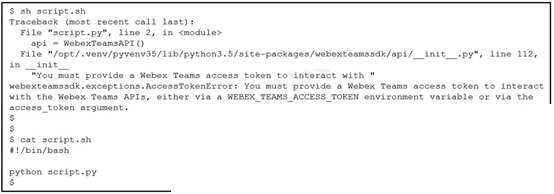

To ensure the Python code runs successfully, the environment variable WEBEX_TEAMS_ACCESS_TOKEN must be set. This can be done using the export command in a Bash script.

A. define WEBEX_TEAMS_ACCESS_TOKEN=your_access_token_here - Incorrect. define is not a valid Bash command for setting environment variables. B. export WEBEX_TEAMS_ACCESS_TOKEN=your_access_token_here - Correct. This command correctly sets the environment variable for the current session. C. set WEBEX_TEAMS_ACCESS_TOKEN=your_access_token_here - Incorrect. set is not used in this context for setting environment variables in Bash. D. WEBEX_TEAMS_ACCESS_TOKEN=your_access_token_here - Incorrect. This command sets the variable but does not export it to be available to child processes.

References:

Setting Environment Variables in Bash

A containerized application environment meets the requirements of being hardware-independent and allows for the installation and management of the environment to be fully automated. Containers package the application and its dependencies together, ensuring consistency across different environments. This method is also highly compatible with automation tools and orchestrators like Kubernetes, making deployment and management easier and more efficient.

References:

Cisco DevNet Associate Study Guide: Understanding Application Deployment (Chapter 4, Section: Containers and Their Benefits).

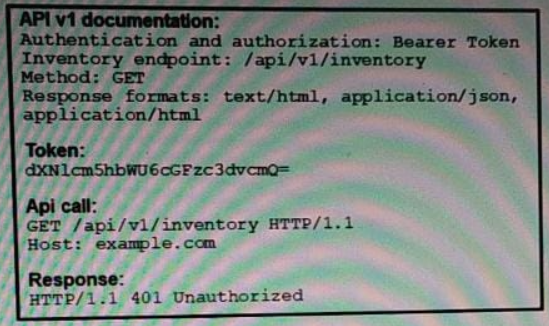

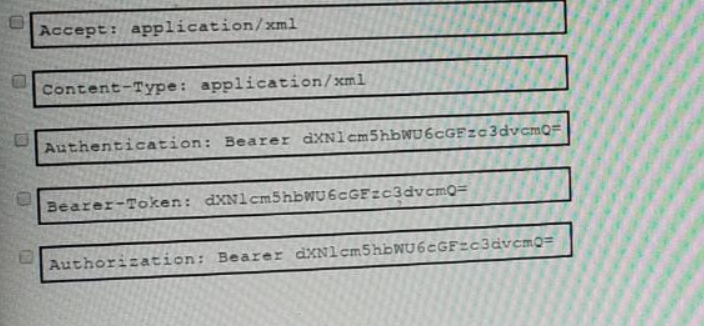

The 401 Unauthorized response indicates that the API call lacks proper authentication. To authenticate a request using a Bearer token, the correct headers must be included. The "Authorization: Bearer " header is the correct format for including a Bearer token in an API request. Additionally, specifying the correct content type can also be important, but in this case, the critical headers are related to authorization.

References:

Cisco DevNet Associate Study Guide: API Authentication (Chapter 7, Section: Authentication Methods for REST APIs).

JSON and XML are both used for data interchange, but they have differences in functionality:

JSON: JavaScript Object Notation natively supports arrays and other data structures like objects (dictionaries in Python). JSON is known for being lightweight and easy to parse and is often considered more human-readable due to its simple syntax.

XML: eXtensible Markup Language does not natively support arrays in the same straightforward manner as JSON. Instead, arrays in XML need to be represented using repeated elements, which can be more verbose and complex. XML is highly flexible and supports defining custom tags, but it is generally more complex and less human-readable compared to JSON.

Therefore, JSON's native support for arrays makes it simpler and more efficient for certain data structures compared to XML.

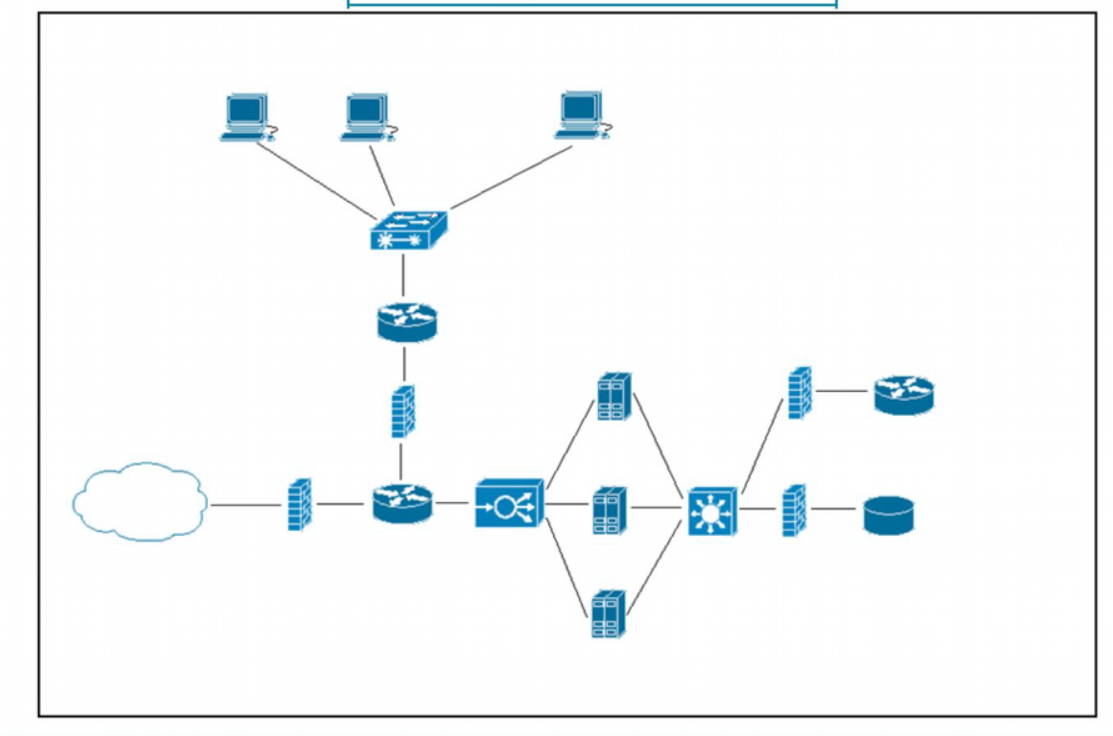

In the given network topology, the load balancer's primary role is to distribute incoming requests to the application servers. This ensures that no single server is overwhelmed, and it helps in providing high availability and reliability for the hosted applications.

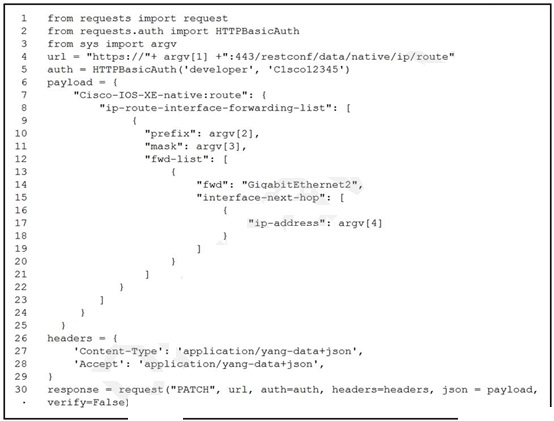

The Python script shown in the exhibit collects CLI arguments, organizes data according to the Cisco-IOS-XE-native YANG model, and utilizes Cisco REST APIs to make configuration changes. The workflow being automated by the script is adding a new route to a device.

A. updating an existing route on the device - Incorrect. The script is adding a new route, not updating an existing one. B. adding a new route to a device - Correct. The script adds a new route using the provided prefix, mask, and IP address. C. including a route on the device and overwriting the current routes - Incorrect. The script does not indicate it overwrites existing routes. D. deleting the route that is passed through the command-line variables - Incorrect. The script is adding a route, not deleting one.

References:

Cisco IOS XE YANG Data Models

Cisco REST API Documentation

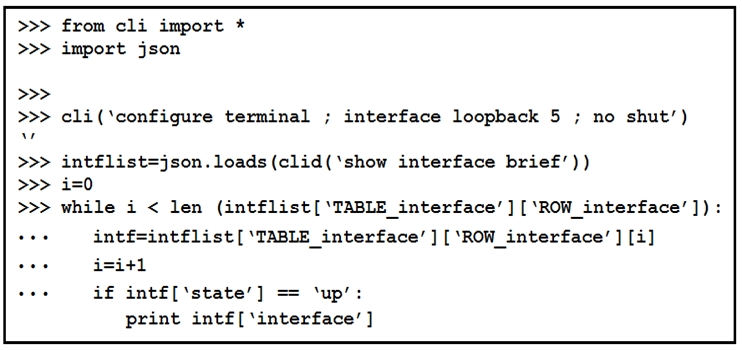

The script provided in the exhibit shows the following steps:

It configures a loopback interface (interface loopback 5; no shut).

It retrieves the interface details and parses the JSON output to list interfaces that are up.

Therefore, the correct answers are: A. Configure interface loopback 5. C. Show only the interfaces in the up status.

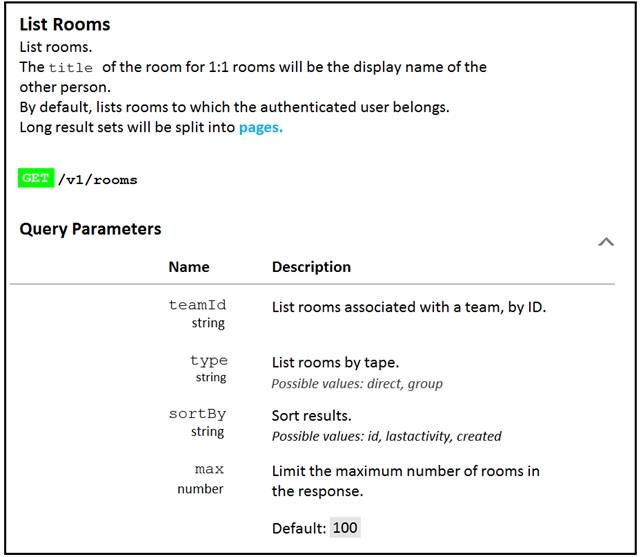

To ensure the result set is returned in reverse chronological order based on when messages were entered, we need to use the sortBy parameter with the value lastactivity. This parameter sorts the rooms by their last activity timestamp, ensuring the most recent rooms are listed first.

Example:

GET /v1/rooms?sortBy=lastactivity

References:

Cisco Webex Teams API Documentation (explains query parameters and their usage in API calls)

Cisco DevNet Associate Exam Topics: APIs and Automation (understanding how to utilize query parameters to retrieve data)
