CompTIA 220-1201 - CompTIA A+ Core 1 Exam (2026)

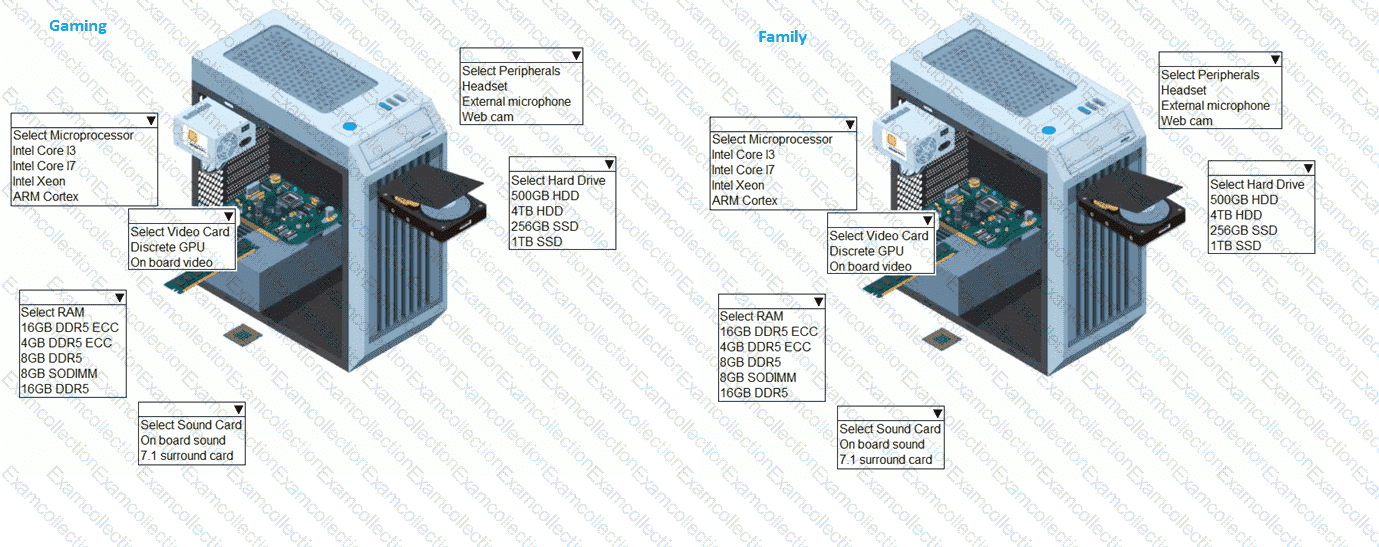

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

The correct answer is A. Duplex .

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration , duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half , which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies .

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage .

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage , but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

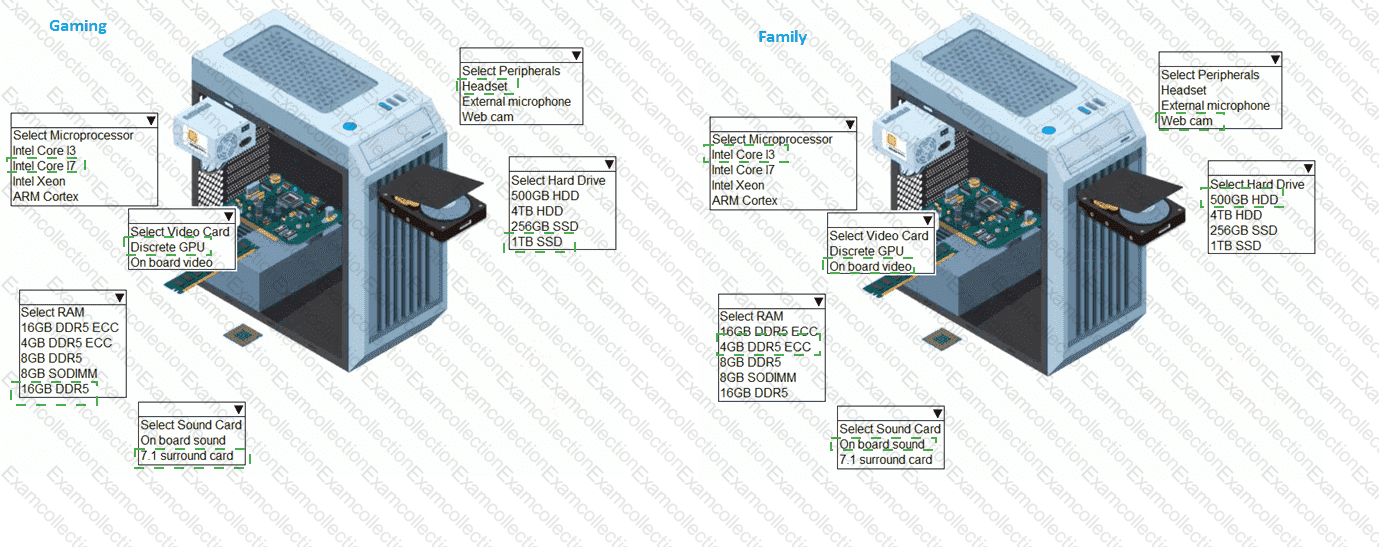

Answer of both steps below.

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is D. WLAN (Wireless Local Area Network) .

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is D. Replace the failed drive .

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is D. Verify the audio output assignment .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals . If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The correct answer is B. Change the resolution .

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop : This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop : Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source : Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

The correct answer is D. Router .

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller : Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge : Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub : Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.
