Cisco 300-410 - Implementing Cisco Enterprise Advanced Routing and Services (300-410 ENARSI)

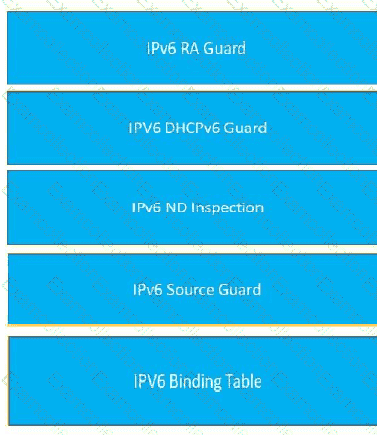

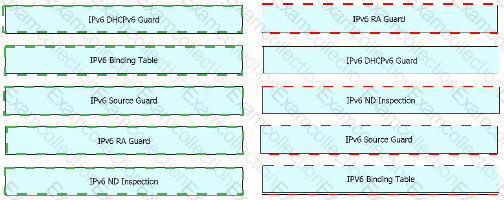

IPv6 ND inspection learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables. IPv6 ND inspection analyzes neighbor discovery messages in order to build a trusted binding table database, and IPv6 neighbor discovery messages that do not have valid bindings are dropped. A neighbor discovery message is considered trustworthy if its IPv6-to-MAC mapping is verifiable.

This feature mitigates some of the inherent vulnerabilities for the neighbor discovery mechanism, such as attacks on duplicate address detection (DAD), address resolution, device discovery, and the neighbor cache.

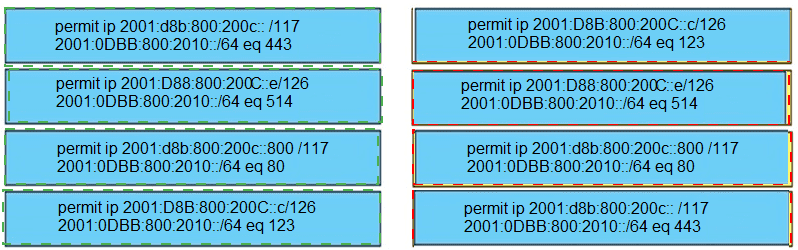

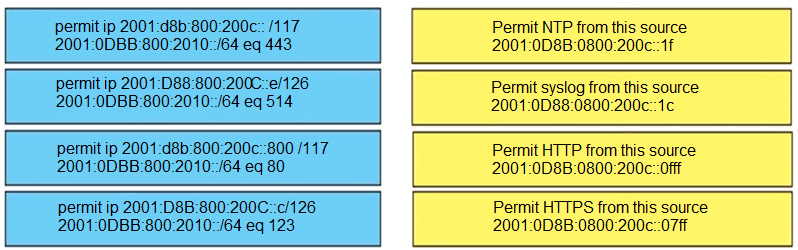

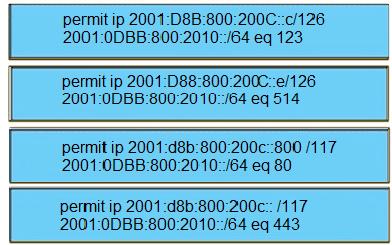

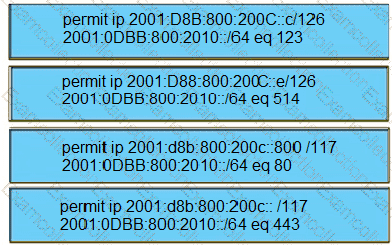

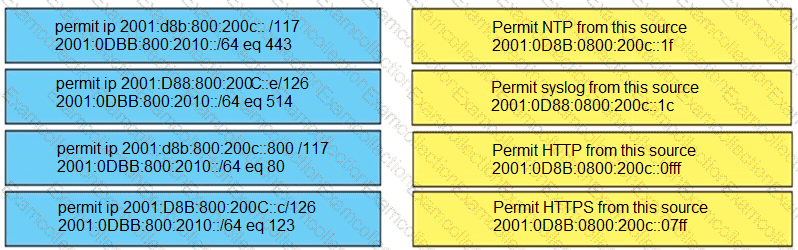

HTTP and HTTPs run on TCP port 80 and 443, respectively and we have to remember them.

Syslog runs on UDP port 514 while NTP runs on UDP port 123 so if we remember them we can find out the matching answers easily. But maybe there is some typos in this question as 2001:d88:800:200c::c/126 only ranges from 2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f (4 hosts in total). It does not cover host 2001:0D88:0800:200c::1f. Same for 2001:D88:800:200c::e/126, which also ranges from 2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f and does not cover host 2001:0D88:0800:200c::1c.

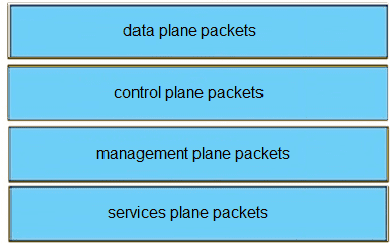

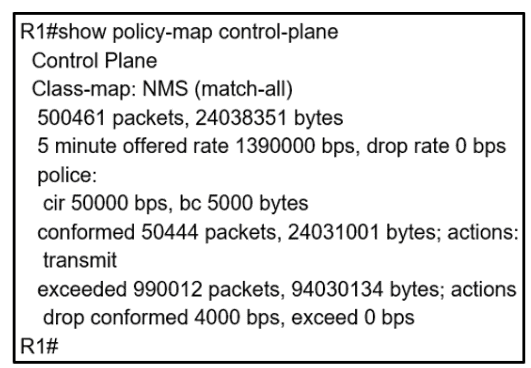

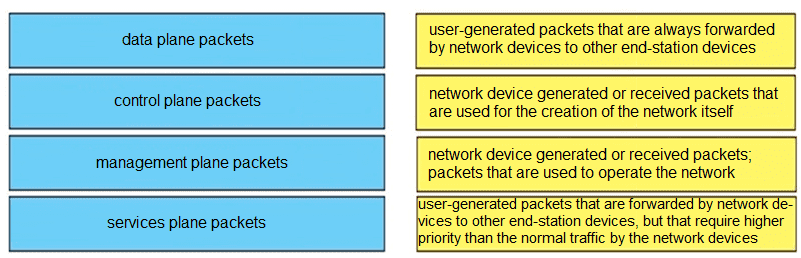

Unlike legacy network technologies such as ISDN, Frame Relay, and ATM that defined separate data and control channels, IP carries all packets within a single pipe. Thus, IP network devices such as routers and switches must be able to distinguish between data plane, control plane, and management plane packets to treat each packet appropriately.From an IP traffic plane perspective, packets may be divided into four distinct, logical groups:1. Data plane packets – End-station, user-generated packets that are always forwarded by network devices to other end-station devices. From the perspective of the network device, data plane packets always have a transit destination IP address and can be handled by normal, destination IP address-based forwarding processes.2. Control plane packets – Network device generated or received packets that are used for the creation and operation of the network itself. From the perspective of the network device, control plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as ARP, BGP, OSPF, and other protocols that glue the network together.3. Management plane packets – Network device generated or received packets, or management station generated or received packets that are used to manage the network. From the perspective of the network device, management plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as Telnet,Secure Shell (SSH), TFTP, SNMP, FTP, NTP, and other protocols used to manage the device and/or network.4. Services plane packets – A special case of data plane packets, services plane packets are also user-generated packets that are also forwarded by network devices to other end-station devices, but that require high-touch handling by the network device (above and beyond normal, destination IP address-based forwarding) to forward the packet. Examples of high-touch handling include such functions as GRE encapsulation, QoS, MPLS VPNs, and SSL/IPsec encryption/decryption, etc. From the perspective of the network device, services plane packets may have a transit destination IP address, or may have a receive destination IP address (for example, in the case of a VPN tunnel endpoint).

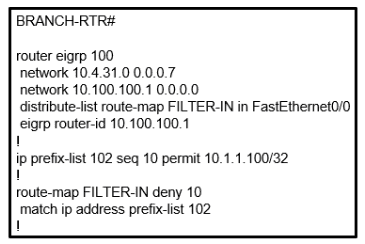

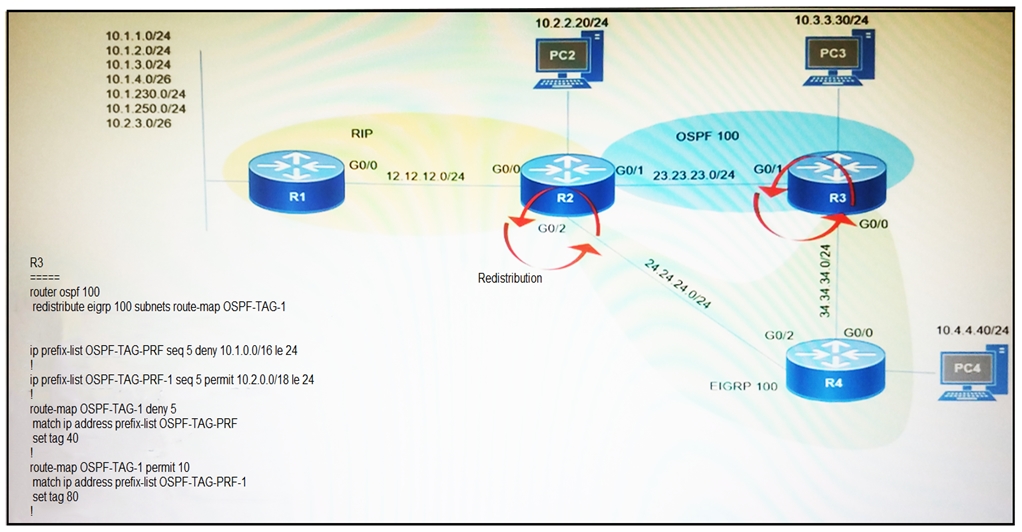

By using “deny” keyword in a route-map, we can filter out the prefix specified in the prefix-list.

But there is an implicit “deny all” statement in the prefix-list so we must permit other prefixes

with “permit” keyword in the route-map.

If you use tags to filter the templates, you must apply the same tags to the device to which you want to apply the templates. Otherwise, you get the following error during provisioning: ―Cannot select the device. Not compatible with template.‖

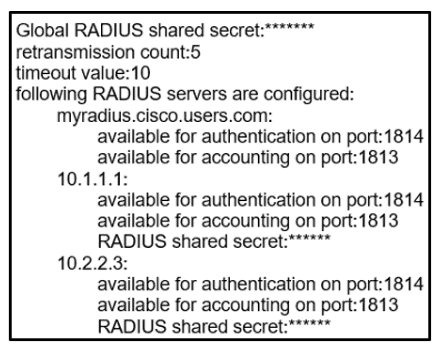

Command Default

Accounting port: 1813

Authentication port: 1812

Accounting: enabled

Authentication: enabled

Retransmission count: 1

Idle-time: 0

Server monitoring: disabled

Timeout: 5 seconds

Test username: test

Test password: test

By default, Catalyst switches add a simple uptime timestamp to logging messages. This is a cumulative counter that shows the hours, minutes, and seconds since the switch has been booted up

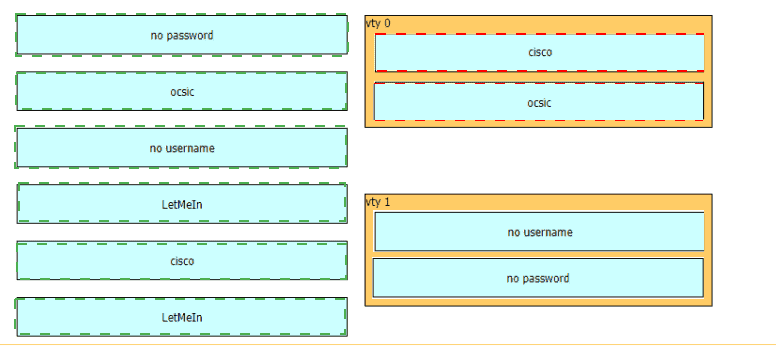

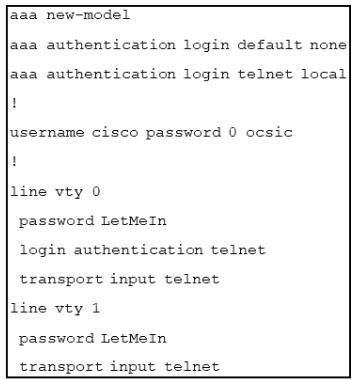

vty 0:

+ cisco

+ 0csic

vty 1:

+ no username

+ no password

The command “aaa authentication login default none” means no authentication is required when

access to the device via Console/VTY/AUX so if one interface does not specify another login

authentication method (via the “login authentication …” command), it will allow to access

without requiring username or password. In this case VTY 1 does not specify another

authentication login method so it will use the default method (which is “none” in this case).
