Cisco 300-415 - Implementing Cisco SD-WAN Solutions (300-415 ENSDWI)

Cisco 300-415 Premium Access     Download Demo
Page: 3 / 14
Total 441 questions

Which type of lists are used to group related items via an application-aware routing policy under the policy lists command hierarchy on vSmart controllers?

A.

data prefix, she. and VPN

B.

OSCP value, application, and VPN

C.

data prefix, application, and SLA class

D.

DSCP value, site, and VPN

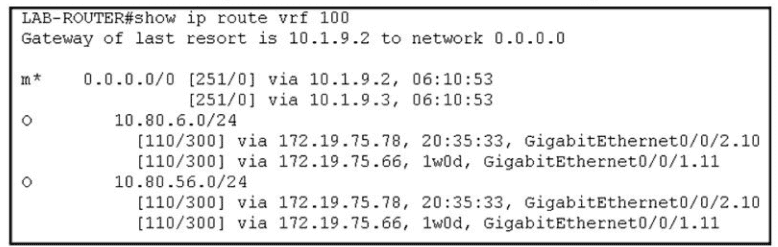

Refer to the exhibit. The network administrator has configured a centralized topology policy that results in the displayed routing table at a branch office. Which two configurations are verified by the output? [Choose two.)

A.

The routing table is for the transport VPN.

B.

The default route is learned via OMP.

C.

This routing table is from a cEdge router.

D.

The default route is configured locally.

E.

The configured policy is adding a route tag of 300 to learned routes.

What are the two functions of vSmart? (Choose two)

A.

It orchestrates connectivity between WAN Edge routers using policies to create network topology

B.

It ensures that valid WAN Edge routers can build the control pane connectivity

C.

It uses TLOCs to uniquely identify the circuit interface to control plane and data plane information

D.

It validates that the WAN Edge trying to join the overlay is authorized to join.

E.

It builds control plane connections with WAN Edge routers using ILS or UILS

What do receivers request to join multicast streams in a Cisco SO-WAN network?

A.

IGMP membership reports directly with a multicast router.

B.

Multicast service routes with the vSmart controller

C.

IGMP membership reports directly with the vBond orchestrator.

D.

PIM messages with the nearest neighboring multicast router.

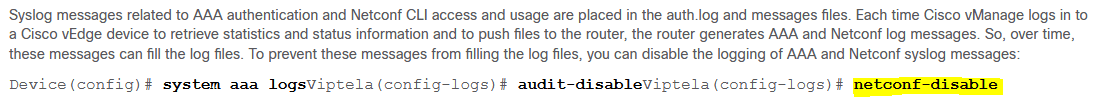

Refer to the exhibit. Which configuration stops Netconf CLI logging on WAN Edge devices during migration?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which protocol is used for the vManage to connect to the vSmart Controller hosted in Cloud?

A.

PnP Server

B.

ZTP

C.

NETCONF

D.

HTTP

Which type of connection is created between a host VNet and a transit VNet when configuring Cloud OnRamp for laaS?

A.

Azure private endpoint

B.

GRE tunnel

C.

IPsec tunnel

D.

Azure peer link

How is multicast routing enabled on devices in the Cisco SD-WAN overlay network?

A.

The WAN Edge routers originate multicast service routes to the vSmart controller via OMP, which then forwards joins for requested multicast groups based on IGMP v1 or v2 toward the source or PIM-RP as specified m the original PIM join message.

B.

The vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins for requested multicast groups cased on IGMP v1 or v2 toward the source or PlM-RP as specified m the original PIM join message

C.

The vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins (or requested multicast groups based on IGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message

D.

The WAN Edge routers originate multicast service routes to the vSmart controller via OMP. which then forwards joins for requested multicast groups based on iGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message

Which configuration step is taken on vManage after WAN Edge list is uploaded?

A.

Send the list to controllers

B.

Enable the ZTP process

C.

Verify the device certificate

D.

Set the device as valid

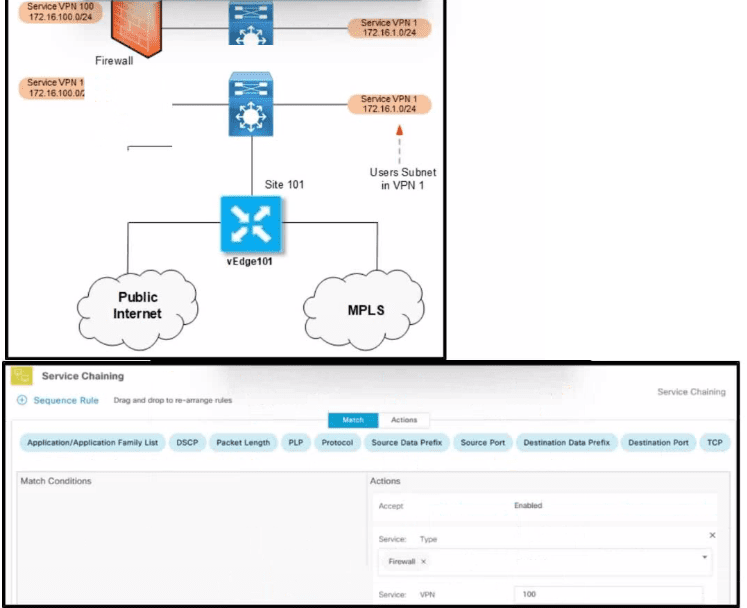

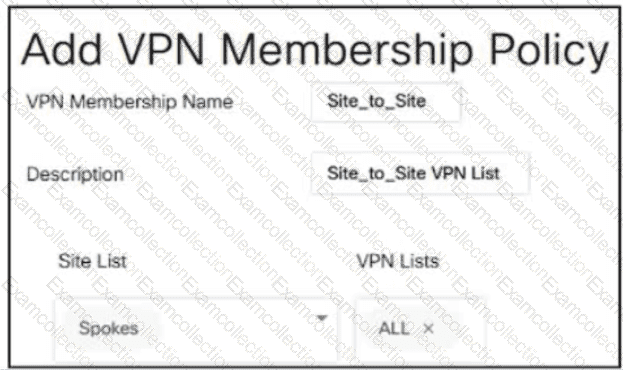

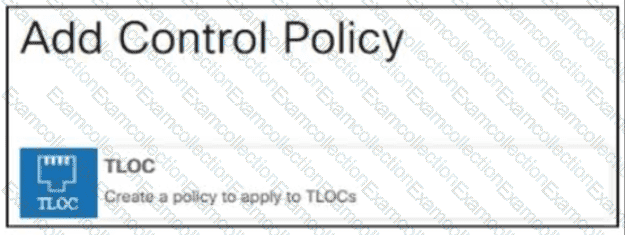

A network engineer must configure all branches to communicate with each other through the Service Chain Firewall located at the headquarters site. Which configuration allows the engineer to accomplish this task?

A)

B)

C)

D)

A.

Option A

B.

Option B

C.

Option C

D.

Option D
