Cisco 300-445 - Designing and Implementing Enterprise Network Assurance (300-445 ENNA)

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , understanding the visibility gap in SD-WAN environments is essential. While SD-WAN controllers provide native visibility into the overlay network (the logical IPsec tunnels and fabric health), they often lack granular insight into the physical transport or underlay network provided by ISPs or MPLS circuits.

According to the ENNA architecture guidelines, the most suitable method for measuring true SD-WAN performance is to install an agent on the underlay network (Option D). By deploying ThousandEyes Enterprise Agents directly on the transport-facing interfaces (Transport VPN0 in Cisco SD-WAN terminology), engineers can perform hop-by-hop path visualization and measure metrics like packet loss, latency, and jitter across the actual provider path. This is critical because performance degradation in the overlay is almost always a symptom of an issue in the underlay, such as BGP routing instabilities or physical link congestion at an ISP peering point.

Deploying agents on the overlay (Option A) only measures the performance of the tunnel itself, which may hide specific hop-level failures occurring in the public internet. Installing an agent on the LAN (Option C) or DMZ (Option B) adds local network noise to the metrics, making it harder to isolate if a problem exists within the corporate office or the service provider network. By focusing on the underlay , the engineer ensures they have the " internet intelligence " required to hold service providers accountable to SLAs and quickly resolve connectivity issues that impact the SD-WAN fabric.

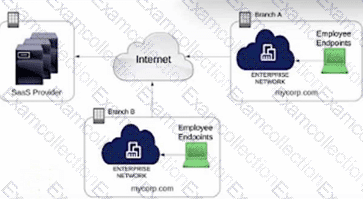

In the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , selecting the appropriate ThousandEyes agent type is critical to balancing visibility requirements with infrastructure constraints. For Branch A, the primary objective is to gain network-layer metrics (such as latency, packet loss, and jitter) and path visualization for a SaaS application while strictly avoiding any performance impact on employee endpoints.

The Enterprise Agent (Option C) is the correct choice because it is designed for " inside-out " monitoring from within the corporate network environment. These agents are lightweight software probes that can be deployed on existing network infrastructure, such as Cisco Catalyst 9300/9400 switches or Catalyst 8000 Edge Platforms , using Docker containers or virtual machines. By hosting the agent on the branch router or a dedicated local server, the engineer can execute synthetic tests to the SaaS provider ' s destination. This approach provides the necessary network vantage point from Branch A without requiring any software installation or resource consumption on the individual employee workstations (endpoints).

Other agent types do not satisfy the specific constraints of this scenario:

Endpoint Agents are installed directly on user devices (Windows/macOS) to provide " last-mile " visibility. However, they use the endpoint ' s CPU and memory, which contradicts the requirement to not affect endpoint performance.

Cloud Agents are maintained by Cisco in global ISP data centers. While they provide " outside-in " visibility, they cannot capture internal branch network characteristics or the specific path from Branch A ' s internal local area network.

Application Agent is a non-standard term and does not exist as a standalone agent type within the ThousandEyes architecture.

Therefore, deploying an Enterprise Agent within the branch infrastructure ensures that the network engineer obtains high-fidelity network metrics while keeping employee devices entirely unburdened.

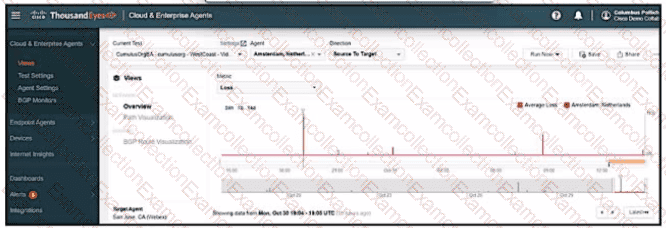

Introduction to ThousandEyes

This video provides an essential overview of how ThousandEyes agents function within a CCNP-level enterprise network assurance strategy.

For the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) exam, understanding enterprise-scale deployment of the Endpoint Agent (EPA) is vital for ensuring comprehensive user-centric visibility. When an organization utilizes a Microsoft Domain Controller to manage its internal domain, the standard mechanism for automated software distribution is Group Policy Objects (GPOs) (Option B).

Deploying the ThousandEyes Endpoint Agent via GPO allows a network administrator to push the .msi installer package to all Windows-based workstations joined to the domain. This method is highly effective for large-scale environments because it ensures that the agent is installed automatically upon machine startup or user login, without requiring manual intervention from the end-user or the IT staff at each individual machine. The GPO can be configured to perform a " silent installation, " which runs in the background, ensuring a seamless experience for the employees while providing the IT team with the necessary performance metrics.

While Microsoft Intune (Option A) is a modern cloud-based endpoint management solution, the question specifically references a Microsoft Domain Controller , making GPO the most direct and traditional choice for that specific infrastructure. JAMF (Option C) is specifically for Apple (macOS/iOS) device management and would not be used for a Windows domain deployment. 8 PowerShell (Option D) can be used for scripting, but it lacks the centralized policy enforcement and automatic compliance checking provided by GPOs in an Active Directory environment. Therefore, Group Policy Objects is the verified deployment method for this scenario.

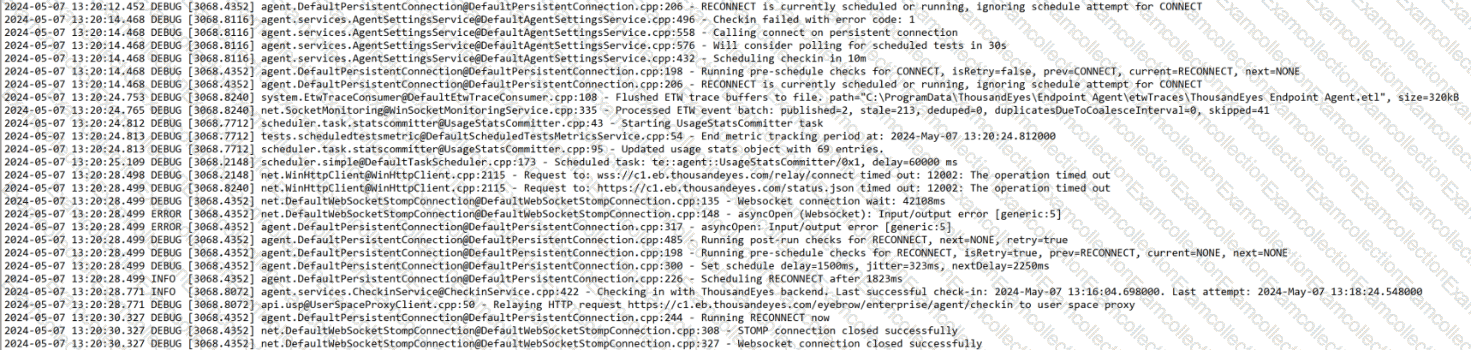

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, troubleshooting endpoint connectivity requires a systematic analysis of local device logs and network environment changes. According to the log message provided in Exhibit there was a specific timeout error when the agent attempted to reach the ThousandEyes backend. The logs explicitly state: Request to: wss://c1.eb.thousandeyes.com/relay/connect timed out: 12002: The operation timed out.

Since the endpoint was relocated to a new network utilizing static IP assignment , and other endpoints on the same network are functioning correctly, the issue is highly localized to this specific device ' s configuration. In a static IP environment, human error during the manual entry of the IP address, subnet mask, default gateway, or DNS server is a common root cause of connectivity failure. If the gateway is incorrect, the agent cannot reach the internet; if the DNS is incorrect, it cannot resolve c1.eb.thousandeyes.com. Therefore, the best way to bring the endpoint online is to verify the accuracy of the IP settings and test direct connectivity to the ThousandEyes relay URL.

The alternative options do not address the technical evidence found in the logs:

Option A: Moving the device back is a regressive step that does not resolve the need for the device to function in its new location.

Option B: Reinstalling software is a " brute force " method that rarely fixes underlying network-layer misconfigurations like an incorrect static IP.

Option C: A timeout error (12002) indicates a persistent connectivity blockage that will not resolve itself without administrative intervention.

Checking the static IP credentials ensures the device has a valid path to the internet to establish its secure websocket (WSS) connection to the ThousandEyes platform.

Troubleshooting intermittent performance issues is a core component of the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum. When a transaction test using Basic Authentication fails randomly, the engineer must employ a multi-layered diagnostic approach to determine if the fault lies with the credentials, the network path, or the application server.

The first step is to verify the correctness of credentials (Option B). Because Basic Authentication encodes credentials in the header, any change in user permissions or account lockouts will trigger immediate failures. Performing manual logins from various geographical locations helps rule out location-based access control lists (ACLs) or regional IdP sync issues.

The most data-rich diagnostic step is to analyze the ThousandEyes waterfall charts and HTTP response codes (Option C). The waterfall view allows the engineer to see if the failure happens during the initial 401 Unauthorized challenge or after the credentials are sent. If the charts show high " Wait Time " or 5xx errors, the issue is likely server-side latency or instability. If the " Connect Time " is high, the problem may be network-layer congestion.

Finally, if the telemetry indicates that the network path is healthy but the server is intermittently returning errors or timing out, the engineer should contact the web application vendor (Option D). Providing the vendor with the specific ThousandEyes " Share Link " allows them to see the exact same packet-level and browser-level data, proving that the issue is not with the client ' s network but with the server-side infrastructure. Disabling authentication (Option A) is not a valid troubleshooting step for a test designed specifically to monitor an authenticated workflow.

Detailed Explanation:

This analysis requires extracting two specific browser-rendering metrics from the IT Operations Dashboard. By placing the cursor over the latest metrics data points:

Page Load time: 1479.6 ms.

DOM load time: 1354.3 ms.

By subtracting the DOM time from the Page Load time ($1479.6\text{ ms} - 1354.3\text{ ms} = 125.3\text{ ms}$), the engineer identifies the duration spent rendering the page after the initial document structure was established.

Detailed Explanation:

The IT Operations Dashboard includes a section at the beginning that explicitly displays active alert rules and their status. According to the dashboard configuration, the reason for the current alert trigger is Network packet loss. This indicates that the underlying network path for the application is experiencing packet drops exceeding the defined threshold, even if the application layer remains partially functional.

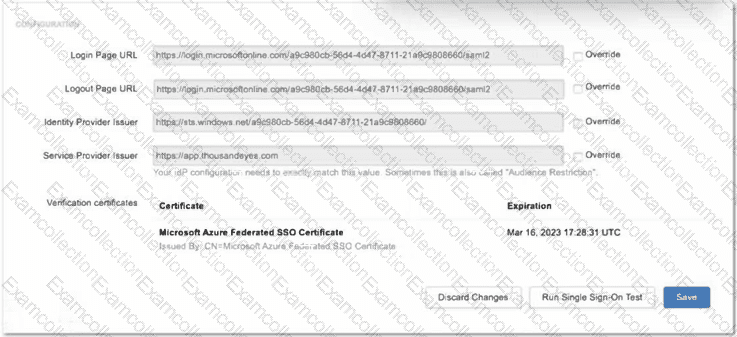

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, secure administrative access via Single Sign-On (SSO) is a critical component of platform governance. The exhibit illustrates the ThousandEyes SSO configuration panel being integrated with Microsoft Entra ID (formerly Azure AD). When configuring SAML-based authentication, the " Identity Provider Issuer " (Option D) is a unique identifier provided by the IdP (Microsoft) that must match exactly between the two systems.

According to ENNA implementation guidelines, ThousandEyes populates default fields based on standard SAML metadata. However, Microsoft Entra ID often utilizes a specific GUID-based format for the Issuer URL (e.g., https://sts.windows.net/tenant-id/) that may differ from the generic URL format expected by the platform ' s initial auto-fill. To ensure a successful SAML handshake, the engineer must select the " Override " checkbox next to the Identity Provider Issuer field. This action unlocks the field, allowing the engineer to manually paste the exact string provided in the Entra ID Federation Metadata document. If this value is not overridden and matched precisely, the SAML assertion will be rejected, resulting in a failed authentication attempt.

While the Login and Logout URLs (Options B and C) are also critical, they are typically correctly identified during the initial setup or metadata import; the Identity Provider Issuer is the most frequent point of mismatch requiring an manual override in Entra ID environments due to its strict " Audience Restriction " requirements. The Service Provider Issuer (Option A) is generally a fixed value (https://app.thousandeyes.com) that rarely requires overriding as it defines ThousandEyes ' own identity to the IdP.

Therefore, selecting the override for the Identity Provider Issuer is the necessary step to complete the integration and allow enterprise users to authenticate securely using their corporate credentials.
