Cisco 300-510 - Implementing Cisco Service Provider Advanced Routing Solutions
Refer to the exhibit.

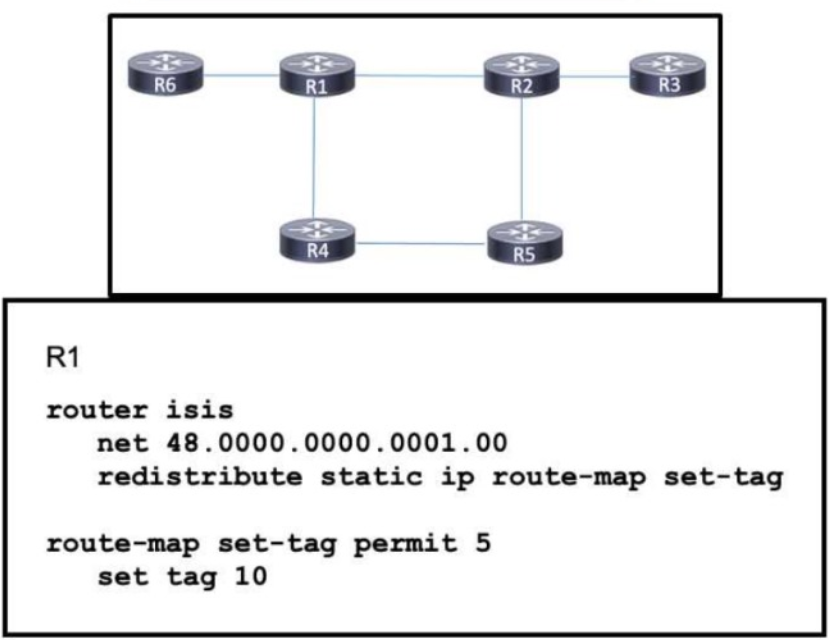

IS-IS runs in the network and all routers are in the same area R1 statically routes to distribute traffic with R6 and the networking team has redistributed the static routes on R1 into IS-IS Hosts on R3 need access to servers connected to R6 A tag has been applied to the routes to manipulate routes along the path but routers running IS-IS are still unable to reach the redistributed routes Which action must the team take to resolve the issue?
Refer to the exhibits.

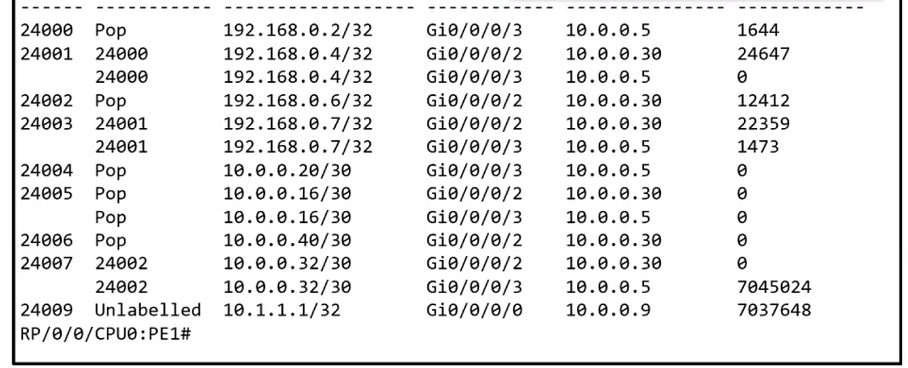

A network operator is troubleshooting packet loss seen from the R1 loopback interface to the R2 loopback interface over the core network. The operator is attempting to identify the next leg in the path from PE1. Which interface and label path should the operator investigate next?

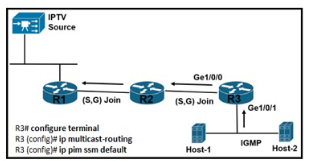

Refer to the exhibit. A network engineer is configuring router R3 to handle multicast streams, but Host-2 cannot send subscriptions messages to the IPTV source. Which configuration must the engineer apply to router R3 so it passes the IPTV stream to Host-2?
Which type of BGP attribute does a route reflector attach to routes learned from iBGP peers that allows them to be accepted by other iBGP peers, thereby eliminating the need for a full-mesh BGP topology?

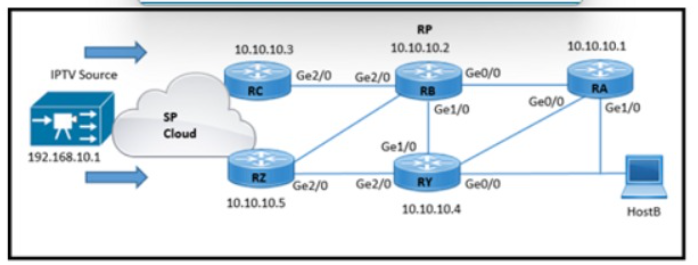

Refer to the exhibit. HostB receives an IPTV traffic stream from the multicast source at 192.168 10.1. When router RB is powered down, it impacts multicast traffic forwarding to downstream peers. The RA and RB routers reside in the same physical location. Which two configurations must be implemented so that HostB receives the multicast stream even when RB is powered down? (Choose two )
Refer to the exhibit.

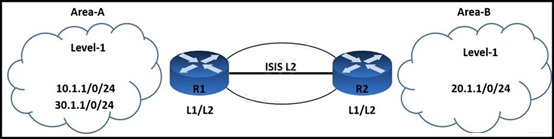

An engineer is troubleshooting IS-IS configuration between two areas. IS-IS Area-A network 30.1.1.0/24 is leaked into IS-IS Area-Ð’. R2 is failing to filter the route updates from network 10.1.1.0/24. Which configuration must the engineer apply to resolve the issue?
Refer to the exhibit.

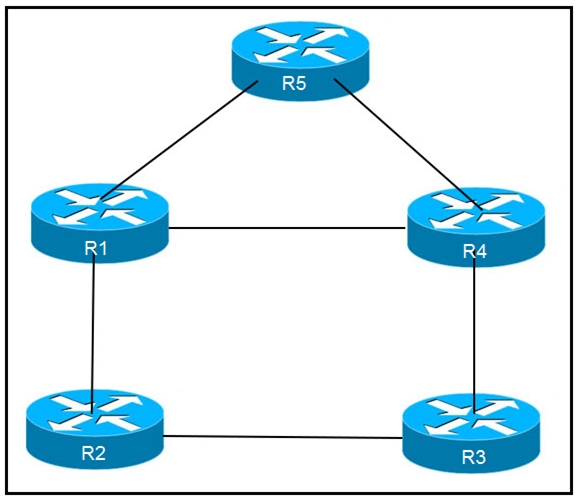

An engineer is addressing an IS-IS design issue which is running within the topology. All
links are running on FastEthernet, except the link between R5 and R4, which is Gigabit Ethernet. Which statement about the design is true?
Refer to the exhibit.

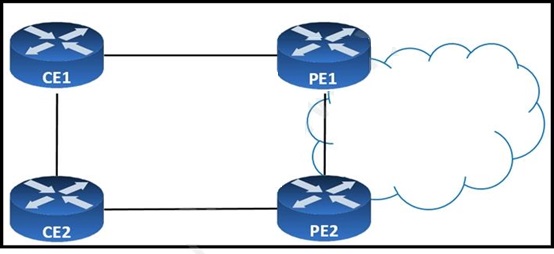

CE1 and CE2 are iBGP neighbors in AS 65516. All traffic that exits AS 65516 must use the link from CE1 to PE1. CE1 is advertising a higher local preference to CE2, but traffic from CE2 still prefers the PE2 link. Which action corrects the problem?
Refer to the exhibit Dedicated MPLS Layer 3 services for VRF customer A are configured on the MPLS network for FTP access OSPF with area 0 configuration is used as the interior routing protocol between the routers, and LDP is up and running on the MPLS network. After recent maintenance work on the MPLS network. IP address 172.16 100 1 cannot access the FTP server with IP address 172.16 192.21 All loopbacks are reachable on the network Which configuration must the engineer apply to correct the problem?
Refer to the exhibit.

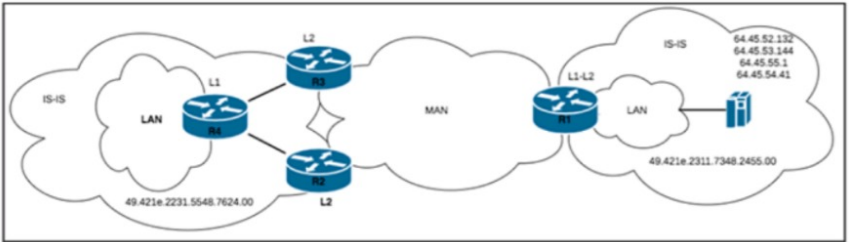

Company_A hosts multiple online VoD platforms. R3 is connected to MAN with a 100 Mbps link R2 has only a 10 Mbps connection, but it has the lowest number of hops to R1 A network engineer must allow users in area 49.421e.2331 5548.7624 00 to access online library resources, using the best possible route toward the online platforms to guarantee the highest connection quality. After the engineer implements the requirements, they notice an excessive number of routes in the R4 routing table and high memory consumption on the router. Which two actions must the engineer take to resolve the issue? (Choose two.)
