Cisco 300-615 - Troubleshooting Cisco Data Center Infrastructure (DCIT)

Cisco 300-615 Premium Access     Download Demo
Page: 2 / 5
Total 167 questions

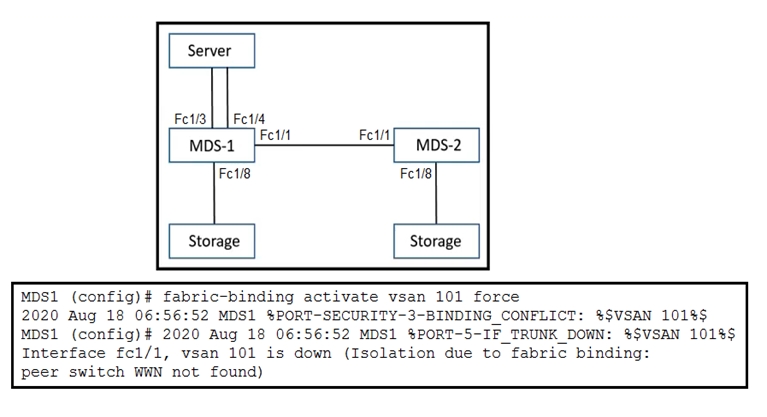

Refer to the exhibits. An engineer is implementing the SAN based on the Cisco MDS 9000 Series Switches. When operating the environment, the engineer encounters the error shown. Which action resolves the issue?

A.

Copy VSAN 101 to the fabric binding database on the MDS-1 switch

B.

Add the World Wide Name of the neighboring switch to the MDS-1 switch

C.

Configure the port security feature on the MDS-1 switch

D.

Enable VSAN 101 on the peer MDS 2 switch fabric interconnect

Refer to the exhibit.

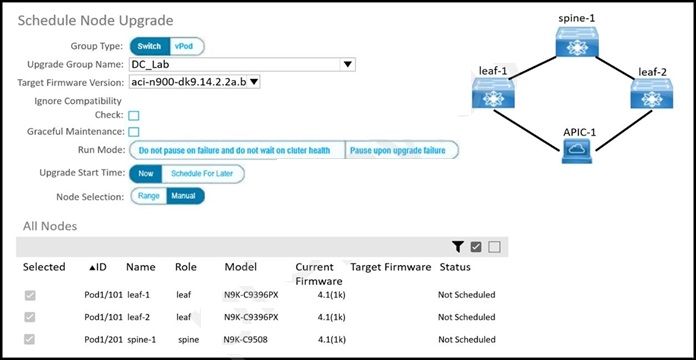

A client configures an upgrade of its Cisco Nexus switches that are connected to the Cisco ACI controller, such that the switches are upgraded one at a time. After the upgrade is run, it is discovered that both Cisco Nexus switches were upgraded simultaneously. Which two actions ensure that the switches upgrade one at a time? (Choose two.)

A.

Configure the *Do not pause on failure and do not wait on cluster health" Run Mode

B.

Choose the 'Pause upon upgrade failure" Run Mode

C.

Select the "Graceful Maintenance" checkbox

D.

Place each leaf switch in a different upgrade group

E.

Check the Ignore Compatibility" checkbox

A request to activate the port security database is rejected. Which action do you perform to investigate the cause of the issue?

A.

Enable the auto-learning feature.

B.

Use the force option to identify rejected devices.

C.

Find conflicting entries between the active and configuration databases.

D.

Verify that devices are fully attached to the active database.

Refer to the exhibit.

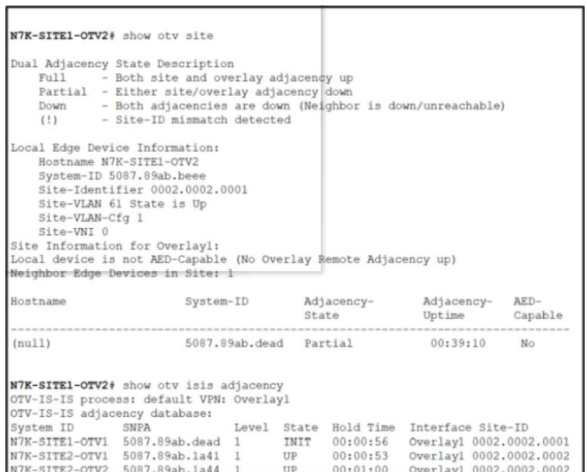

The OTV overlay is deployed in multicast mode. After an unexpected reload of N7K-SITE1-OTV1, the network administrator observed that on N7K-SITE1-OTV2 the OTV site adjacency went into the partial state. Which

action resolves the issue?

A.

Configure the Site-Identifier on N7K-SITE1-OTV1 to 0002.0002.0002.

B.

Enable IP IGMP version 3 on the join interface on N7K-SITE1-OTV1.

C.

Change the Site-VLAN on N7K-SITE1-OTV2 to VLAN 1.

D.

Modify the multicast data-group on N7K-SITE1-OTV1 to match N7K-SITE1-OTV2.

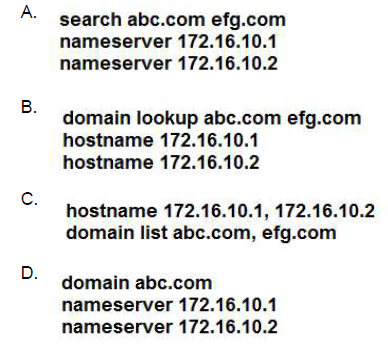

A network engineer discovers a DNS resolution problem on a device that is using the Cisco Nexus Bash shell.

The device name is app with an IP address of 10.10.10.1. The primary server IP address is 172.16.10.1 and

the secondary server IP address is 172.16.10.2. When the abc.com resolution fails, it should attempt to use

efg.com. Which settings must be added to resolv.conf file to resolve the issue?

A.

Option A

B.

Option B

C.

Option B

D.

Option D

Refer to the exhibit.

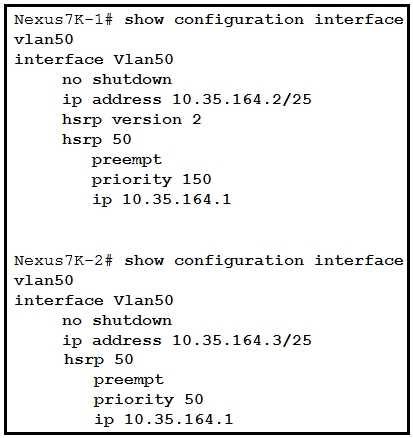

HSRP adjacency fails to form between Nexus7K-1 and Nexus7K-2. Which action should be taken to solve the problem?

A.

Configure preempt on one of the switches in the HSRP group.

B.

Configure the same HSRP priority between the two switches.

C.

Configure the correct subnet mask on Nexus7K-1.

D.

Configure HSRP version 2 on Nexus7K-2.

Refer to the exhibit.

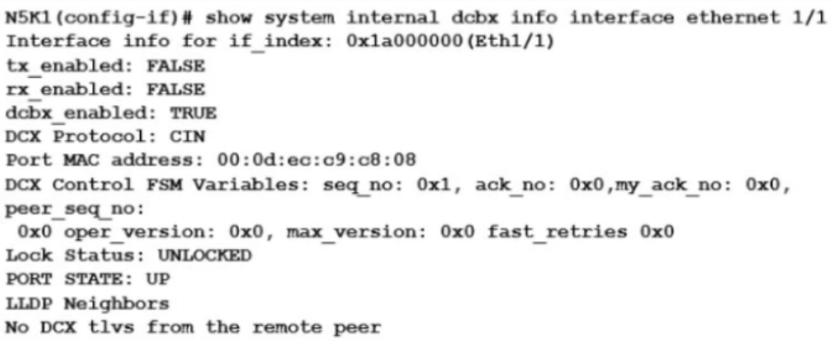

A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?

A.

Apply flowcontrol receive on the interface.

B.

Apply flowcontrol transmit on the interface.

C.

Enable priority flow control on the interface.

D.

Disable priority flow control on the interface.

An engineer is implementing a storage VDC, but fails. Which two prerequisites must be in place before a storage VDC is implemented? (Choose two.)

A.

M-Series module

B.

ESSENTIALS license

C.

STORAGE-ENT license

D.

FCoE license

E.

F-Series module

An upgrade of protected RPMs from the Bash shell did not take effect. Which action is required for the changes to take effect?

A.

Restart the Bash shell.

B.

Reload the switch.

C.

Upgrade the RPMs from the Guest shell.

D.

Disable and reenable the Bash feature.

Refer to the exhibit.

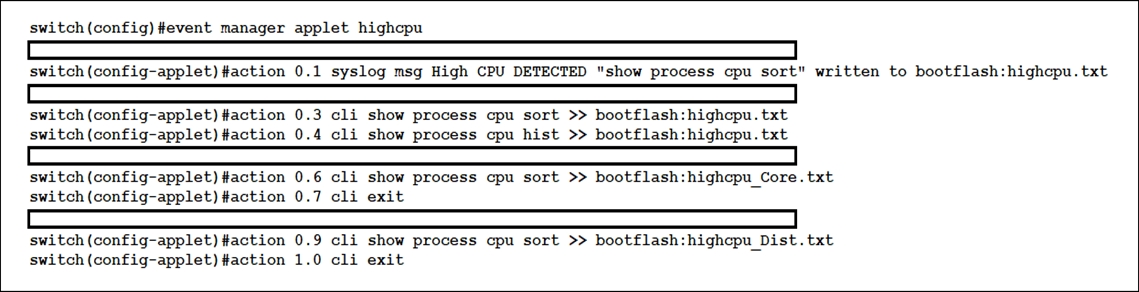

The EEM script is applied in the default VDC to collect the outputs during high CPU utilization on the Cisco Nexus 7000 Series Switch for all VDCs. Which configuration set must be added to the script to fix the issue?

A.

switch(config-apple)# event snmp 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1

switch(config-apple)# action 0.2 cli enable

switch(config-apple)# action 0.5 cli switchto vdc Core

switch(config-apple)# action 0.8 cli switchto vdc Distribution

B.

switch(config-apple)# event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1

switch(config-apple)# action 0.2 cli enable

switch(config-apple)# action 0.5 cli switchto vdc Core

switch(config-apple)# action 0.8 cli switchto vdc Distribution

C.

switch(config-apple)# event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1

switch(config-apple)# action 0.2 cli config t

switch(config-apple)# action 0.5 cli switchto vdc Core

switch(config-apple)# action 0.8 cli switchto vdc Distribution

D.

switch(config-apple)# event snmp 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1

switch(config-apple)# action 0.2 cli config t

switch(config-apple)# action 0.5 cli switchto vdc Core

switch(config-apple)# action 0.8 cli switchto vdc Distribution
