Cisco 300-620 - Implementing Cisco Application Centric Infrastructure (300-620 DCACI)

For the new nodes in a Cisco ACI Multi-Pod deployment to be discoverable by the existing Cisco APICs, DHCP relay should be enabled on all links that are connected to Cisco ACI spines on Inter-Pod Network (IPN) devices. This allows the APICs to dynamically assign IP addresses to the new nodes, facilitating their discovery and integration into the fabric.

References :=

Cisco ACI Multi-Pod Configuration Guide

Cisco ACI Best Practices Guide

 After ARP flooding is enabled in Cisco ACI Multi-Pod, broadcast frames are forwarded within the pod and across the Inter-Pod Network (IPN) using the multicast address associated with the bridge domain. If the setting is ‘Flood’, the leaf switch floods to the Group IP (GIPo) multicast group allocated for the bridge domain, ensuring that both local and remote pods receive a flooded copy

To prevent packet loss between the distributed virtual switch and the ACI fabric in a company’s ESXi infrastructure hosted on Cisco UCS-B Blade Servers, the vSwitch policy must implement MAC Pinning. This setting ensures that each virtual interface card (vNIC) on the UCS servers is pinned to an uplink Ethernet port, providing a stable and consistent path for traffic and preventing packet loss due to path changes.

To migrate the gateway address out of the ACI fabric for an endpoint group (EPG), the bridge domain configuration must ensure that routing is contained within the ACI fabric and that ARP requests are managed efficiently. The correct configuration set is:

L2 Unknown Unicast: Set to Hardware Proxy. This setting allows the ACI fabric to use the spine proxy function to handle unknown unicast traffic, which helps to reduce flooding within the fabric.

Unicast Routing: Set to Disabled. Since the gateway is being migrated out of the ACI fabric, unicast routing should be disabled to prevent the ACI fabric from attempting to route traffic for the EPG.

ARP Flooding: Set to Enabled. This allows ARP requests to be flooded within the bridge domain, which is necessary when the unicast routing is disabled, to ensure that ARP requests can still be resolved.

References :=

Cisco ACI Bridge Domain Configuration Guide

Cisco ACI Best Practices Guide

In a Cisco ACI Multi-Pod environment, Pods use over Layer 3 IPN connectivity via spines to allow Pod-to-Pod communication6.

https://www.cisco.com/c/ en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-737855.html

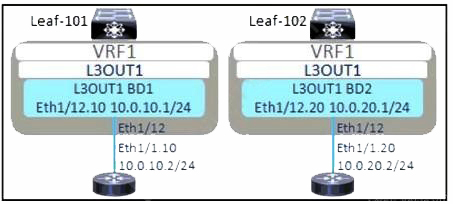

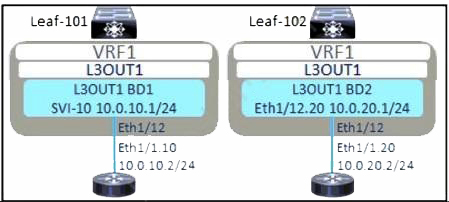

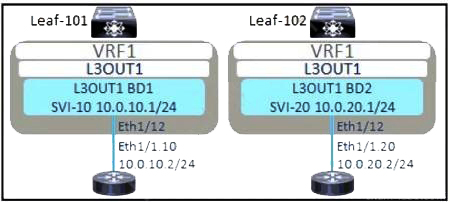

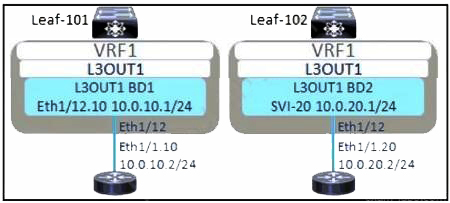

For a redundant interconnection that routes both unicast and multicast traffic, the L3Out (Layer 3 Outside) implementation in Cisco ACI should include the following:

Redundant Connections: Ensure there are at least two connections from the ACI fabric to the external network for redundancy. These connections should be to different leaf switches if possible.

Routing Protocols: Configure a routing protocol that supports both unicast and multicast routing. OSPF or EIGRP can be used for unicast, and PIM (Protocol Independent Multicast) should be configured for multicast.

Route Redistribution: Set up route redistribution between the ACI fabric and the external network to ensure that routes are shared across both networks.

Multicast Configuration: Enable multicast routing within the ACI fabric and configure the necessary multicast policies.

Contract and Policy Configuration: Define contracts and policies that allow the required unicast and multicast traffic to flow between the ACI fabric and the external network.

References :=

Cisco documentation on configuring L3Outs in ACI

Cisco white paper on ACI Multicast Routing

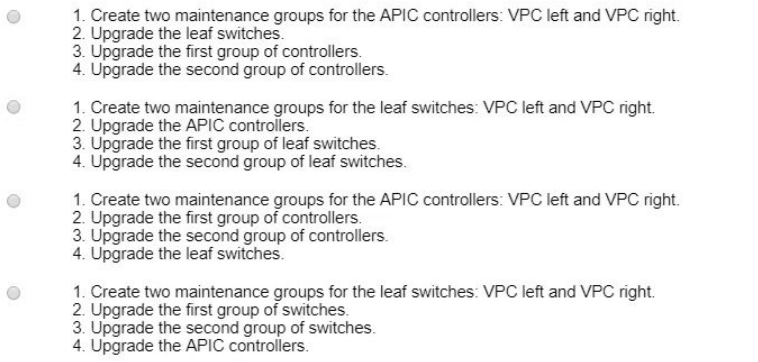

To minimize possible traffic impact during the upgrade of an ACI fabric with 3 APIC controllers and servers dual-homed to pairs of leaf switches configured in VPC mode, the fabric should be upgraded following Option A2. This option involves creating two maintenance groups for the APIC controllers, upgrading one group at a time, and then proceeding with the leaf switches2. This staged approach helps ensure that not all paths are affected simultaneously, thereby reducing the potential for traffic disruption2.

 The statement about the MTU value of MP-BGP EVPN control plane packets in Cisco ACI that is true for communication between spine nodes in different sites is that by default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets2. This ensures that the control plane traffic, which is not VXLAN encapsulated, can be properly handled across the sites2.

In Cisco ACI, when a packet is routed between two endpoints on different leaf switches, the VXLAN VNID that is applied to the packet corresponds to the Bridge Domain (BD). The BD VNID is used to encapsulate the packet for Layer 2 transport across the fabric. This VNID ensures that the packet is delivered to the correct bridge domain, maintaining the segmentation and policy enforcement required by the ACI fabric.

References :=

Cisco ACI Fabric Forwarding White Paper

Cisco ACI Basic Configuration Guide

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.
