Cisco 300-815 - Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

Cisco 300-815 Premium Access     Download Demo
Page: 2 / 7
Total 221 questions

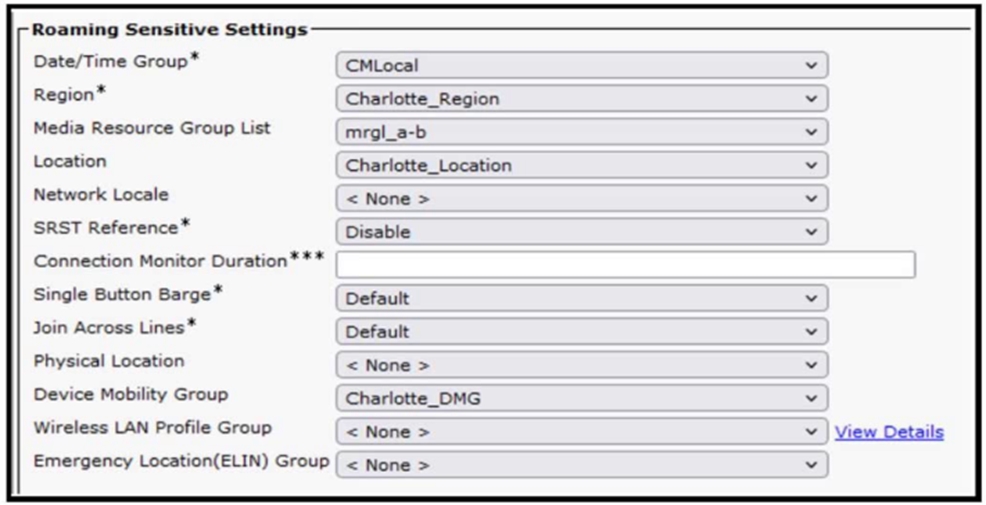

Refer to the exhibit. An administrator configured Device Mobility but is receiving reports that local calls are failing when a user takes their device from the RTP location to the Charlotte location. The administrator confirmed that the correct subnet is configured under the Device Mobility info page. In addition, the roaming device pool has the correct Device Mobility calling search space selected. Which configuration change resolves the issue?

A.

Join across lines is not supported with Device Mobility and must be disabled.

B.

The network locale must be changed from none to the Charlotte locale.

C.

The physical location must be updated from none to the appropriate location.

D.

The device must be added to the Device Mobility group.

CollabCorp is a global company with two clusters, emea.collab corp and apac.collab.corp. URI dialing is implemented and working in each cluster. The company configured routing between clusters to make inter-cluster calls via URI. but this is not working as expected. Which two configuration elements should be checked to resolve this issue? (Choose two.)

A.

directory URI partition

B.

SIP route pattern

C.

intercluster trunk

D.

calling search space and partition

E.

SIP trunk

Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?

A.

Cisco Extended Functions, Cisco Extension Mobility, and Cisco AXL Web Service

B.

Cisco CallManager, Cisco TFTP, and Cisco CallManager SNMP Service

C.

Cisco CallManager, Cisco TFTP, and Cisco Extension Mobility

D.

Cisco TAPS Service, Cisco TFTP, and Cisco Extension Mobility

An engineer configures several calling party transformation patterns in Cisco UCM so that calling numbers are shown in the +E.164 format. The route patterns match seven-digit internal numbers and prefix the numbers with 1408. The SIP trunk matches 1408XXXXXXX and prefixes the number with +. When users make outbound calls, the calling number still shows as seven digits. What is the cause of this problem?

A.

The calling transformation on the SIP trunk is applied first, and then the calling transformation on the route patterns is applied.

B.

Calling transformations cannot be configured on both route patterns and a SIP trunk.

C.

The calling transformation on the route patterns is ignored because there is already a calling transformation on the SIP trunk.

D.

The engineer must also apply a calling transformation at the route group details level.

A user in location X dials an extension at location Y. The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio. What is the cause of this issue?

A.

missing Call Admission Control

B.

codec mismatch

C.

ptime mismatch

D.

phone class of service issue

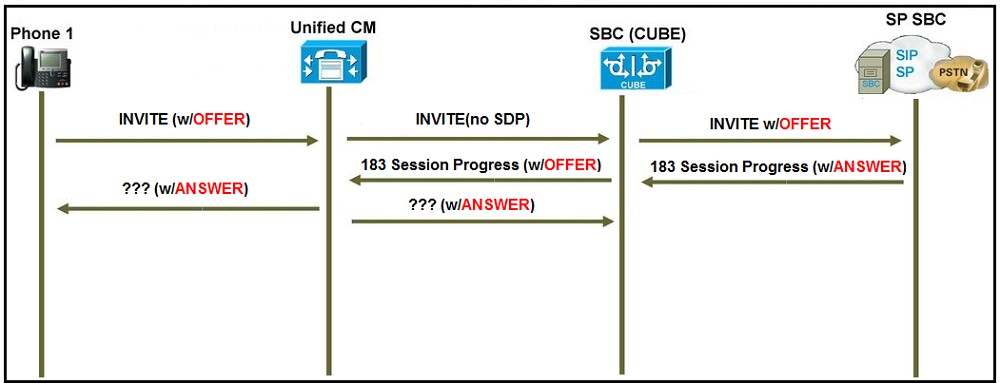

Refer to the exhibit.

A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?

A.

Allow Passthrough of Configured Line Device Caller Information must be enabled.

B.

Accept Audio Codec Preferences in Received Offer must be set to On.

C.

On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.

D.

Early Offer for G Clear Calls must be enabled.

The company Cisco UCM cluster has two different gateways for off-net calls. The current configuration uses 9 as a prefix to get to the main gateway. The secondary gateway is for any calls that start with 9713, but this is not yet configured. The admin does not want to add more route patterns other than the current 9 prefix for the gateway to the Cisco UCM. How must the Cisco UCM be configured to meet the requirements?

A.

Configure two CSSs. then add a translation pattern with the secondary CSS to send calls with 9713 to the secondary gateway.

B.

Configure two partitions and two CSSs, then add a translation pattern with the secondary CSS to send all calls with 9713 to the secondary gateway.

C.

Create a Standard Route Group to dynamically route calls with prefix 9713 to the secondary gateway.

D.

Configure a Route Group and a Route List to send calls with prefix 9713 to the secondary gateway.

Which action is correct with respect to toll fraud prevention configuration in the Cisco Unified Communications Manager Express?

A.

Configure Direct Inward Dial for Incoming ISDN Calls with overlap dialing.

B.

Configure IP Address Trusted Authentication for Incoming VoIP Calls.

C.

Configure the command no ip address trusted authenticate under “voice service voip”.

D.

Enable Secondary Dial tone on Analog and Digital FXO Ports.

Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?

A.

Analysis Manager > Inventory > Trace File Repositories

B.

System > Tools > Trace and Log Central

C.

Voice/Video > Session Trace Log View > Real Time Data

D.

Voice/Video > Session Trace Log View > Open From Local Disk

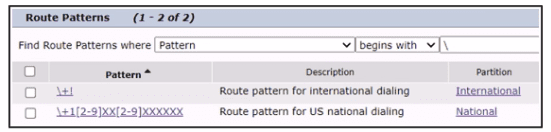

Refer to the exhibit.

Users report high delays when calling national numbers in the United States. An engineer analyzes the route patterns in Cisco UCM. What must be done to resolve this issue?

A.

Change the Cisco UCM routing logic to the longest-match algorithm.

B.

Select Allow Overlap Sending for the \+! route pattern.

C.

Mark the \+ [2-9JXX[2-91XXXXXX route pattern with urgent priority.

D.

Set the interdigit timeout service parameter value to 0.
