Cisco 300-815 - Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)
Refer to the exhibit.
An administrator is troubleshooting a problem in which some outbound calls from an internal network to the Internet telephony service provider are not getting connected, but some others connect successfully. The firewall team found that some call attempts on port 5060 came from an unrecognized IP that has not been defined in the firewall rule. What should the administrator configure in the Cisco Unified Border Element to fix this issue?
What is a function of the metadata carried in SIP sessions between the recording client and the recording server?
An administrator sees the voice register pool 1 command in a Cisco UCME configuration. Which configuration is occurring in this section?
A company has users that are logged in to hunt groups. However, there is a requirement for hunt group configurations to provide an option to turn on audible ringtones when calls to a line group arrive at a phone that is logged out and on a break. This ringtone alerts a logged-out user that there is an incoming call to a hunt list to which the line is a member, but the call does not ring at the phone of that line group member because of the logged-out status. Which action meets this requirement?
Calls are not working when sent from a Cisco Unified Border Element to a service provider. After investigating the logs, the engineer notes that the Cisco Unified Border Element is sending the extension only. How is the issue addressed in the configuration?
Calls to a particular extension are not routing to voicemail. The user reaches the voicemail system from the handset by pressing the Messages button Which configuration parameter causes this problem?
Refer to the exhibit.

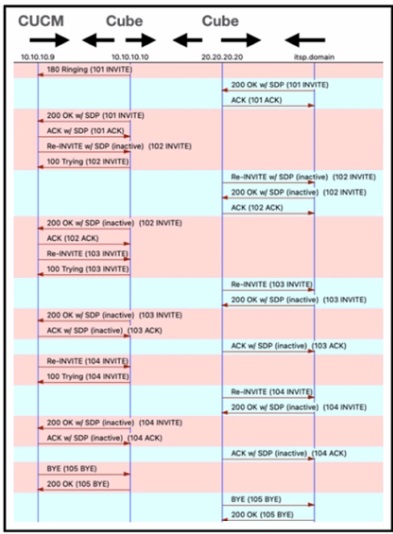

A no-way audio situation was experienced after the calling party on an outbound call placed the call on hold and then resumed from hold. Which action will resolve the issue?
An engineer is configuring a call park feature in Cisco Unified Communications Manager Express. Which command does the engineer use to ensure that the call is reverted to the user after 60 seconds?
Refer to the exhibit.

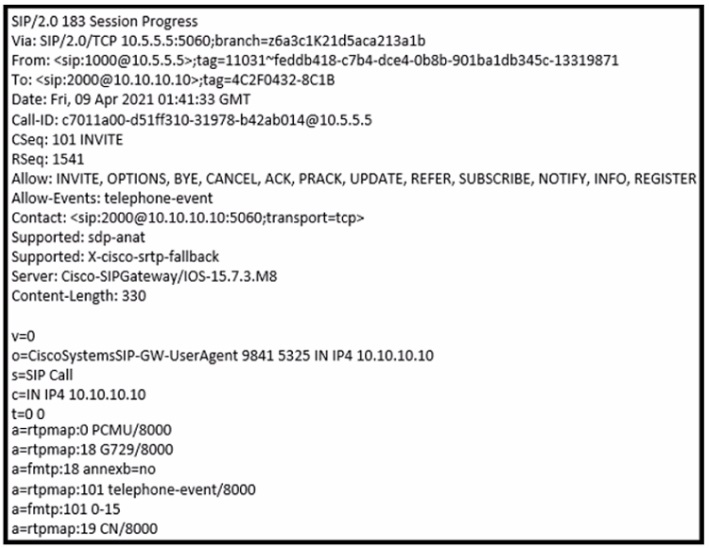

An administrator received reports that users do not hear a ringback when they dial specific external numbers. For example, the Cisco Unified Border Element receives a delayed offer invite from Cisco UCM and responds with the 183 session progress in the exhibit. Assume that thePSTN is responsible for generating ringback in these problematic scenarios. Which action resolves the issue?

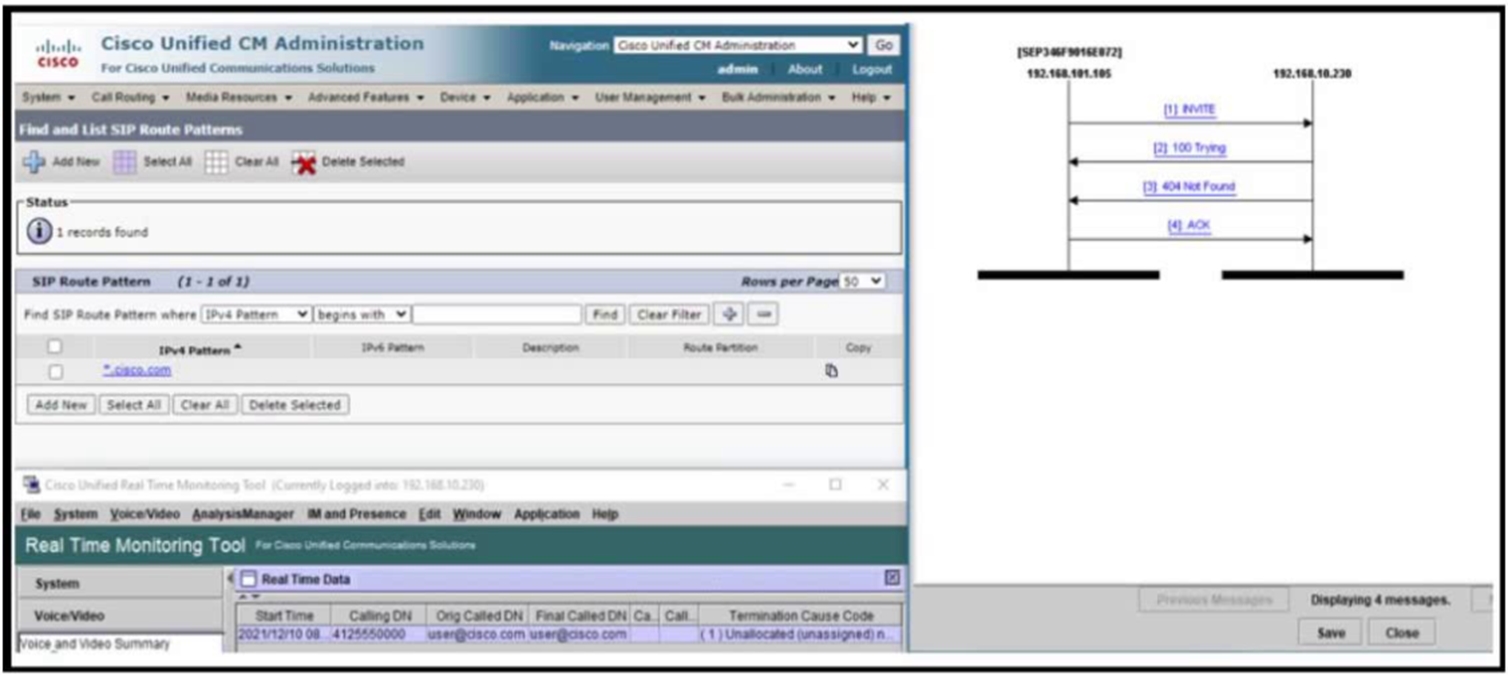

Refer to the exhibit. A collaboration engineer is troubleshooting a Cisco UCM issue where users report that calls placed to the domain cisco.com are failing and calls to sip.cisco.com are working. Which action resolves the issue?
