Cisco 300-820 - Implementing Cisco Collaboration Cloud and Edge Solutions (300-820 CLCEI)
An Expressway pairs deployed for Mobile and Remote Access. An administrator installs a new server certificate on the Expressway-E. After installing the new certificate, the UC Traversal zone between Expressway-C and Expressway-E is active. Still, Jabber Mobile and Remote Access clients cannot log in over the Expressway. The certificate Common Name is the FQDN of Expressway-E, “expe01 example.comâ€, and the certificate contains no additional names. Which Subject Alternate Name must be added to the certificate to allow Jabber Mobile and Remote Access clients to log in successfully?
An engineer learns from an end user that calls from outside the company are not being received. Calls are being made to other businesses outside of the company on video using URL addresses. The change management log shows no changes in the configuration of the collaboration solutions. The engineer examines the endpoint, which seems to be registered to the Cisco UCM, and the SIP trunk between the Cisco UCM and sees that the Expressway is also up. In addition, the traversal link shows no errors between the Expressways. Which action must the engineer take to troubleshoot this issue?

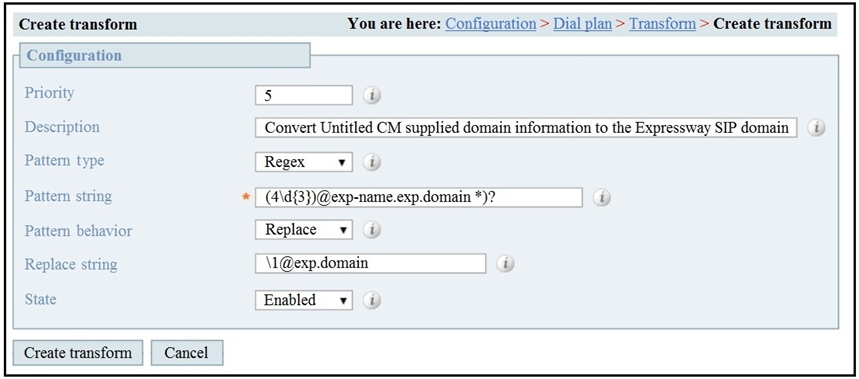

Refer to the exhibit.
Which description of the transformation is true?

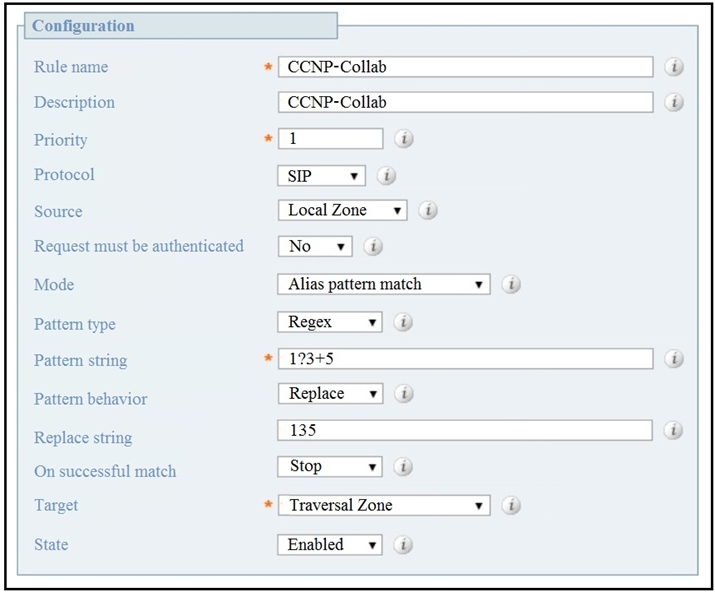

Refer to the exhibit.
When configuring a search rule that routes calls to a zone, what occurs when 13358 is dialed?
An engineer reviews the configuration of a pair of Expressway servers for a company with the domain example.com. The company allows toll fraud calls to reach the Cisco UCM only when it expects externally registered devices to call internal 5-digit extensions. The search history shows that the fraudulent calls have a destination URI of 8 or more digits and several domains. What must the engineer configure to prevent all toll fraud calls from going past the Expressway-E to the internal network?

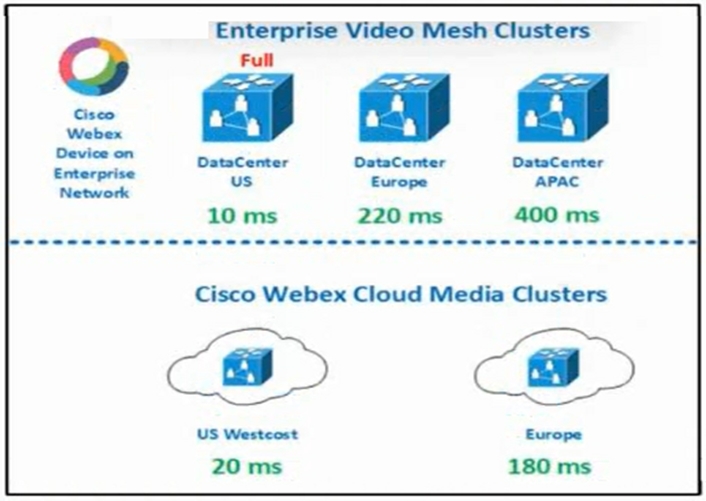

Refer to the exhibit. A Cisco Webex device on an enterprise network has identified the given STUN round-trip delays in milliseconds to the enterprise Video Mesh clusters and two Webex Cloud Media clusters during the call setup. Which correct sequence of clusters is the client connecting to?
Which media encryption mode can be configured on an Expressway zone?
An administrator is configuring a new Cisco Webex Hybrid Message Service deployment, and the Expressway-C Message Connector is successfully registered in the Control Hub. After the server information of the IM and Presence server is added to the Expressway-C, an error “Connectivity to IM and Presence AXL Service could not be established†is displayed in the Control Hub. The Cisco AXL Web Service is enabled on the IM and Presence Service publisher, and the main administrator account enabled for AXL API permission is being used. Which configuration change must be made to resolve this error?
When the network requirements are configured for a new Video Mesh deployment, which firewall ports are required so that Video Mesh cascade signaling succeeds?

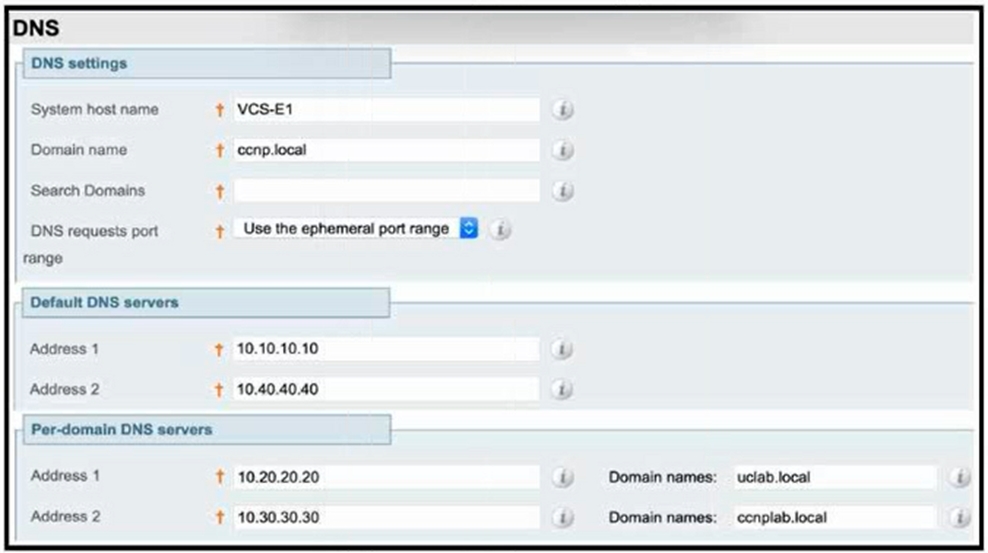

Refer to the exhibit. When Expressway-E routes a call with URI 4040@uclab.local to a DNS zone, which DNS server does the Expressway query for the SIP SRV records?
