Cisco 350-801 - Implementing Cisco Collaboration Core Technologies (350-801 CLCOR)
-
Guidelines
-
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

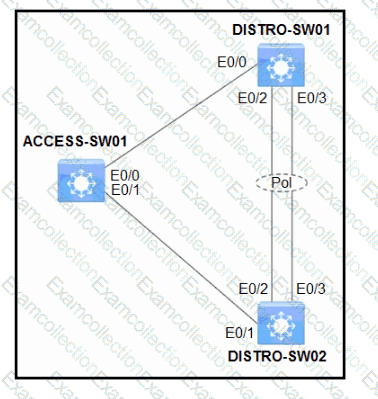

Topology
Tasks
-
The operations team started configuring network devices for a new site.
Complete the configurations to achieve these goals:

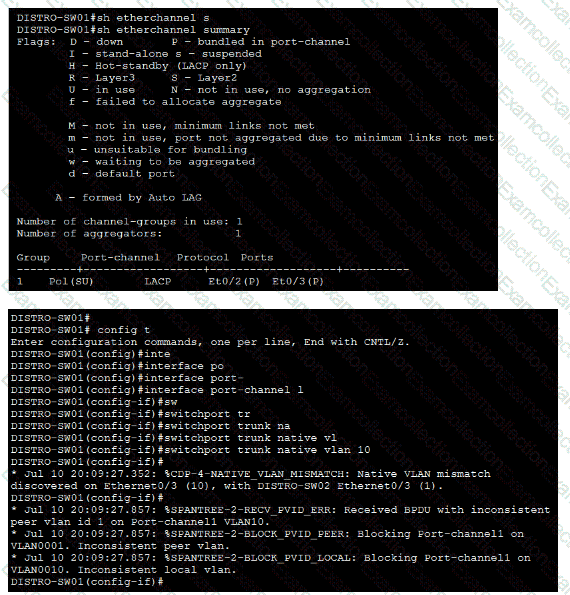

1. Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01.

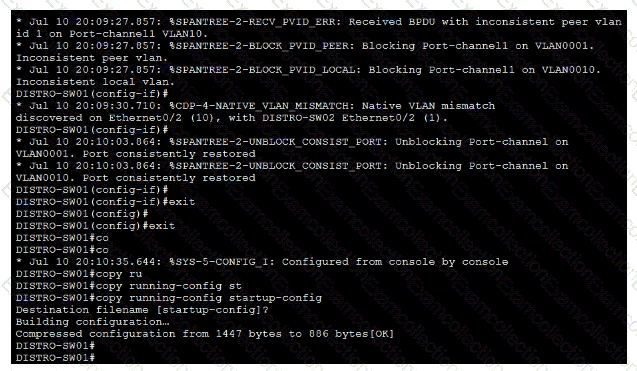

2. Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02.

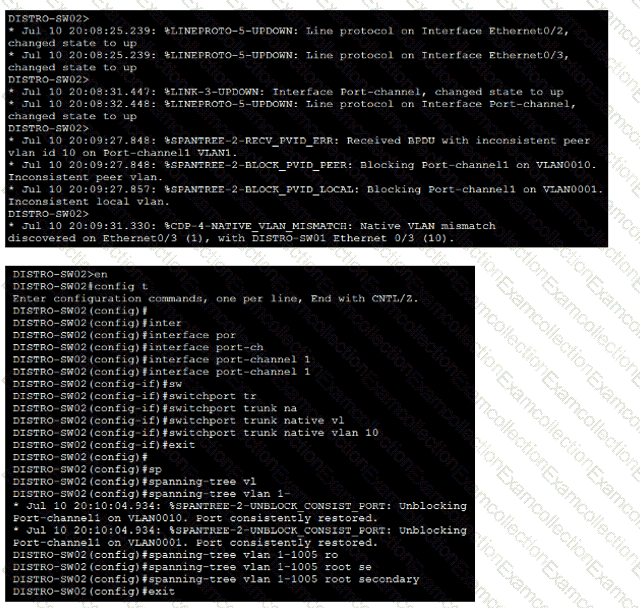

3. Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it it the secondary root switch for all VLANs in the range of 1 to 1005.
DISTRO-SW01

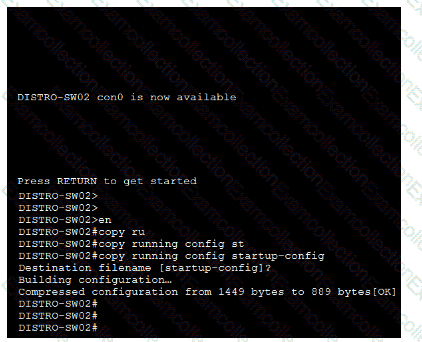

DISTRO-SW02
-
Which DiffServ value must be used to identify and classify audio and video from Cisco Telepresence endpoints according to the Cisco dual video queue approach?

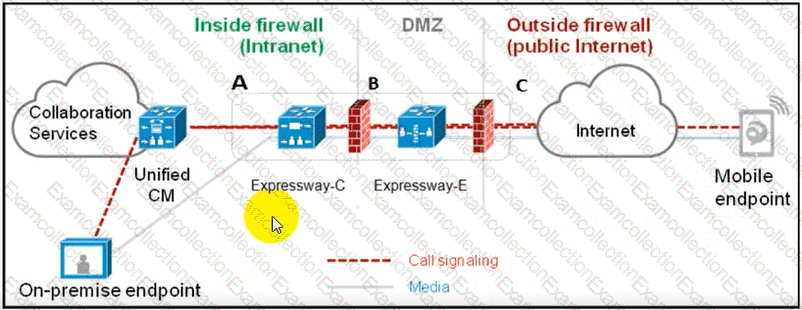

Refer to the exhibit. When making a call to a Mobile and Remote Access client, what are the combinations of protocol on each of the different sections A-B-C?

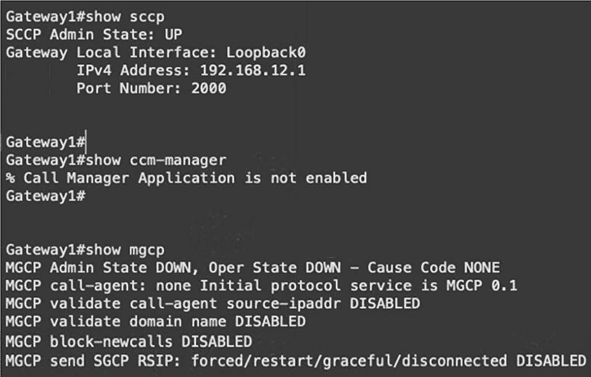

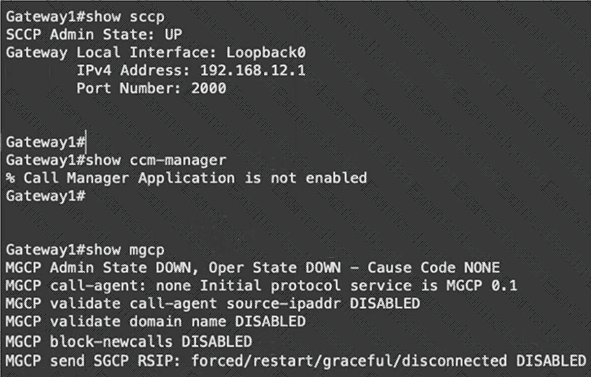

Refer to the exhibit. A collaboration engineer adds an analog gateway to a Cisco UCM cluster. The engineer chooses MGCP over SCCP as the gateway protocol. Which two actions ensure that the gateway registers? (Choose two.)
Which two steps are required for bulk configuration transactions on the Cisco UCM database utilizing BAT? (Choose two.)
An engineer encounters third-party devices that do not support Cisco Discovery Protocol. What must be configured on the network to allow device discovery?
An engineer is going to redesign a network, and while looking at the QoS configuration, the engineer sees that a portion of the network is marked with AF42. Which type of traffic is marked with this tag?

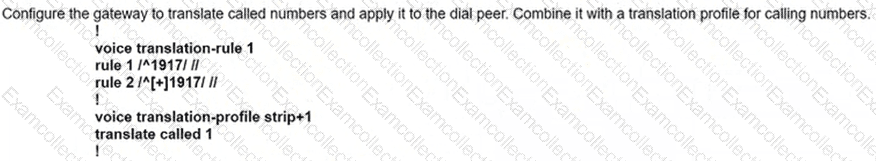

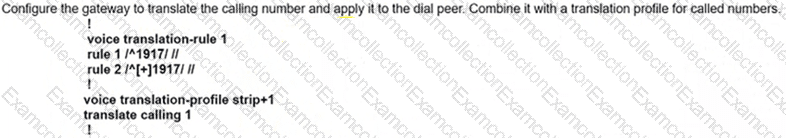

Refer to the exhibit. The translation rule is configured on the voice gateway to translate DNIS. What is the outcome if the gateway receives 0255-343-1234 as DNIS?

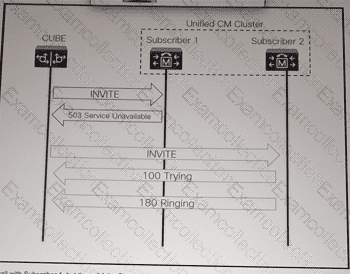

Refer to the exhibit. Cisco Unified element is attempting to establish a call with Subcribers1, but the call fails. Cisco Unified Border Element then retries the same call with Subcribers2, and the call proceeds normally.
Which action resolves the issue?

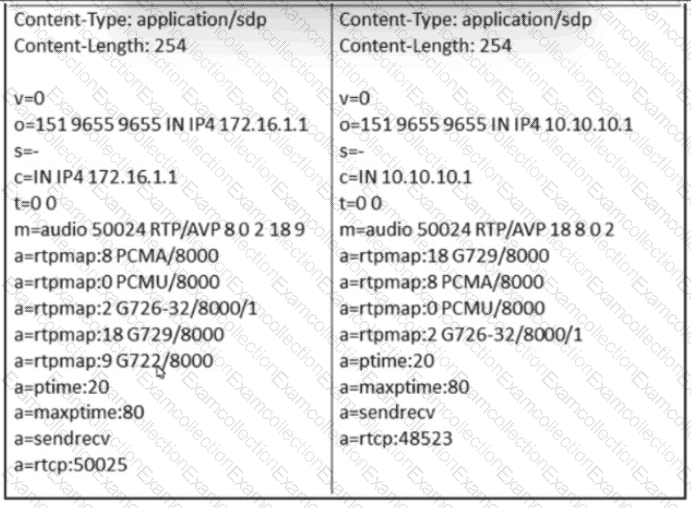

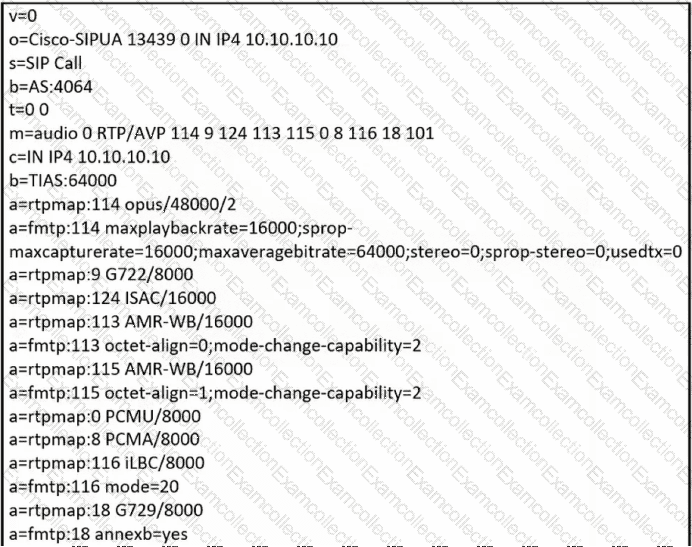

Refer to the exhibit An engineer is troubleshooting codec negotiation between two Cisco phones in different branch offices that connect over a WAN Which codec is used for the call?
