Nokia 4A0-101 - Alcatel-Lucent Interior Routing Protocols and High Availability

Nokia 4A0-101 Premium Access     Download Demo
Page: 4 / 10
Total 315 questions

Which function or component of the Alcatel-Lucent 7750 SR is in charge of supporting dynamic routing protocols and constructing the routing table?

A.

IOM

B.

CPM

C.

FIB

D.

SPF

Click on the exhibit.

The routers have an established IS-IS L2 adjacency on which IPv4 system addresses are exchanged. An operator successfully configures multi-topology IS-IS routing so that the IPv6 system addresses are also exchanged between routers.

After IPv6 has been configured, which of the following is TRUE?

A.

Router R2 has two IS-IS adjacencies and two LSPs

B.

Router R2 has two IS-IS adjacencies and three LSPs

C.

Router R2 has two IS-IS adjacencies and four LSPs

D.

Router R2 has three IS-IS adjacencies and three LSPs

E.

Router R2 has three IS-IS adjacencies and four LSPs

F.

Router R2 has three IS-IS adjacencies and six LSPs

Click on the exhibit.

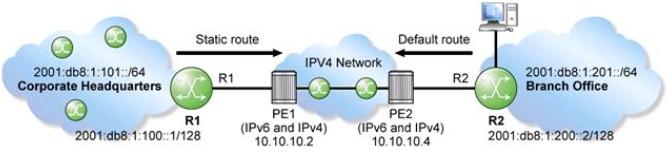

A service provider is deploying a 6 over 4 tunnel to connect a customer's corporate IPv6 network to all devices at the branch office as shown in the exhibit.

Which command is used to create the route to the branch office network on PE1?

A.

Configure router static-route 2001:DB8:1:201::/64 indirect 10.10.10.4

B.

Configure router static-route 2001:DB8:1:201:764 indirect 2001:DB8:1:200::2

C.

Configure router static-route 2001:DB8:1:200::/56 indirect 10.10.10.4

D.

Configure router static-route 2001:DB8:1:200:756 indirect 2001:DB8:1:200::2

Which of the following is FALSE regarding link-state protocols?

A.

Each router constructs its own link-state database with updates received from neighbors.

B.

When a router performs an SPF computation, it sends the results to its neighbors.

C.

An SPF computation is done by each router to determine the best path to destination prefixes

D.

The link-state database is identical for all routers in a single area routing domain.

Which LSA type is not found in point-to-point only OSPF networks?

A.

Type 1 Router LSA

B.

Type 2 Network LS A

C.

Type 3 Summary LSA

D.

Type 5 External LSA

A router running a link-state protocol sends an update to a neighbor. The neighbor sends an update back.

Why would the neighbor do this?

A.

The neighbor's link-state database has newer information than what it received in the update.

B.

The neighbor sends the update as an acknowledgement.

C.

The neighbor's update indicates that it has run out of space in its LSDB.

D.

The neighbor's update indicates that the sequence number received is the same as the one already in its link-state database.

Which field of an IPv6 header indicates an upper layer protocol carried in the packet?

A.

Next Header

B.

Traffic Class

C.

Flow Label

D.

Payload Length

E.

Options

Which of the following concerning OSPFv3 is TRUE?

A.

OSPFv3 uses MD5 Authentication.

B.

Router LSAs carry IPv6 prefix information.

C.

NSSA is supported in OSPFv3.

D.

OSPFv3 uses a 64-bit router ID.

Which of the following about IS-IS is FALSE?

A.

IS-IS uses the concept of Level 1 and Level 2 routers to implement hierarchy.

B.

An IS-IS router belongs to one or more areas.

C.

All Level 2 routers belong to the same area.

D.

A Level 1 router forwards traffic to other areas through the nearest Level 1/2 router.

Which of the following about Type 4 LSAs is FALSE?

A.

A Type 4 LSA is not generated in a single area AS.

B.

A Type 4 LSA is generated by the ABRs of the area that contains the ASBR.

C.

A Type 4 LSA advertises the external networks connected to the ASBR.

D.

A Type 4 LSA is not flooded in the area that contains the ASBR.
