Nokia 4A0-101 - Alcatel-Lucent Interior Routing Protocols and High Availability

Nokia 4A0-101 Premium Access     Download Demo
Page: 9 / 10
Total 315 questions

A default route for a client is also known as the:

A.

Default path

B.

Default gateway

C.

Gateway path

D.

Proxy ARP

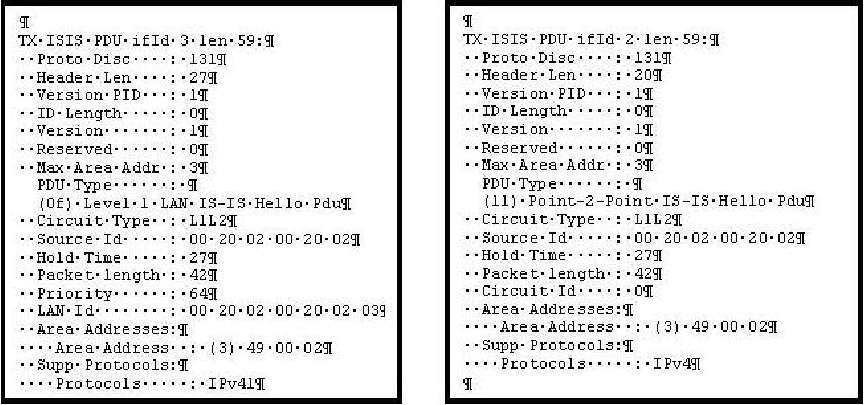

Exhibit

The following IS-IS packets have been exchanged between 2 adjacent IS-IS routers. What type of adjacency will be formed?

A.

An L1 adjacency will be formed.

B.

An L1/L2 adjacency will formed

C.

L2 adjacency will be formed

D.

No adjacency will be formed

What best describes the type of packets used by OSPF routers to exchange updates on a pointto-point link?

A.

IP packets sent to an IP multicast address.

B.

Ethernet frames sent to an Ethernet multicast address.

C.

IP packets sent to an IP unicast address.

D.

UDP packets sent to an IP multicast address.

From the list below identify two matching criteria supported for IP filters on the Alcatel-Lucent 7750 SR: (Choose two)

A.

DSCP marking

B.

Class of Service Marking

C.

DSAP marking

D.

ICMP type

Graceful Restart is supported by what IGPs?

A.

RIPv1 and RIPv2

B.

OSPF

C.

IS-IS

D.

BGP

NSSA LSA packets are what type within an NSSA area, and are converted to what other type at the ABR?

A.

They are type 7 within the area and are not modified at the ABR

B.

They are type 5 within the area and converted to type 3 at the ABR

C.

They are type 5 within the area and are not modified at the ABR

D.

They are type 7 within the area and converted to type 5 at the ABR

From the list below select the statements that describe the behavior of link state information aging. (Choose 2)

A.

The age for newly created link state information is set to 0 for OSPF and 1200 for IS-IS

B.

The age for newly created link state information is set to 1200 for OSPF and 0 for IS-IS

C.

The age is incremented or decremented as it is flooded from router to router and as it is held in the topological database.

D.

The age is incremented or decremented only as it is held in the topological database and not as it is flooded router to router.

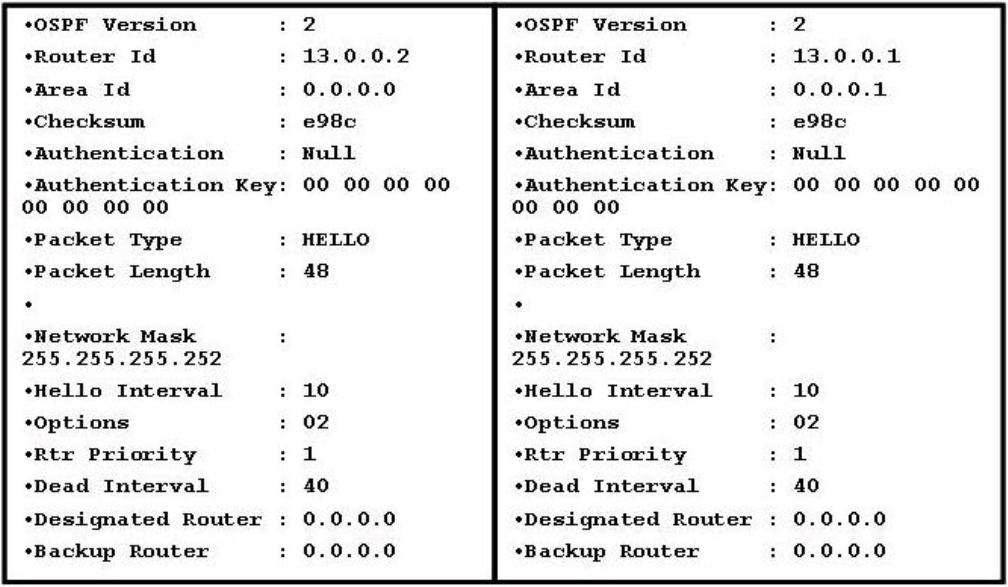

Click the exhibit button.

Two neighboring OSPF routers have exchanged the packets shown. What state is the adjacency in?

A.

Full; both routers are exchanging Helios to maintain the adjacency.

B.

The adjacency is down.

C.

The adjacency is in exstart state.

D.

The adjacency is in the exchange state.

A static route is created using the command "static-route 0.0.0.0/0 next-hop 3.3.3.1". What command could be used to test the static route on an Alcatel-Lucent 7750 SR?

A.

Ping static 3.3.3.1

B.

Ping static 0.0.0.0/0

C.

Ping 3.3.3.1

D.

Ping 0.0.0.0

The Alcatel-Lucent 7750 SR supports which two of the OSPF area types below?

A.

Not So Stubby Areas

B.

Level 1 Areas

C.

Stub Areas

D.

Partially Stubby Areas
