Nokia 4A0-103 - Alcatel-Lucent Multi Protocol Label Switching

Nokia 4A0-103 Premium Access     Download Demo
Page: 2 / 8
Total 249 questions

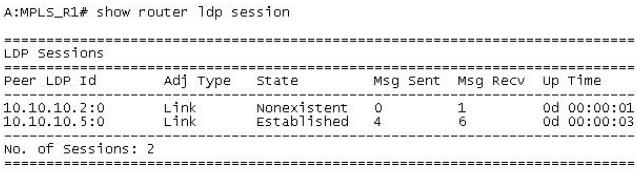

Click on the exhibit.

Under which condition might the peer entry with an LDP ID of 10.10.10.2:0 show the state "Nonexistent"?

A.

When the interface to the peer router is down.

B.

When router R1 has no route to the peer address 10.10.10.2.

C.

When LDP is not configured on the peer router's interface.

D.

When the targeted session is not configured.

An Alcatel-Lucent 7750 SR enabled with LDP has multiple equal cost paths to a given FEC. After ECMP is enabled, which of the following is FALSE?

A.

The router has new entries added for the given FEC in its LIB.

B.

The router has new entries added for the given FEC in its FIB.

C.

The router generates a single label for the given FEC and advertises it to all its peers,

D.

The router has multiple LSP tunnels for the given FEC.

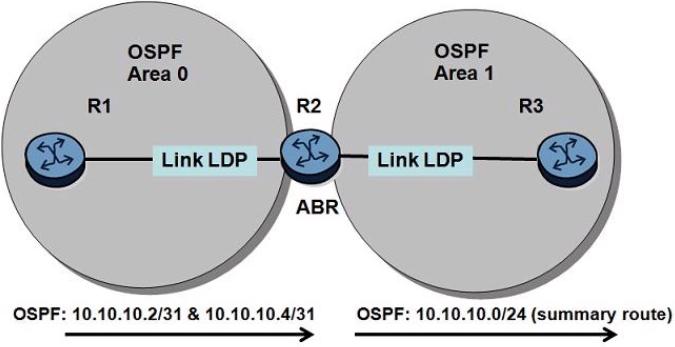

Click on the exhibit.

Router R2 advertises an OSPF summary route 10.10.10.0/24 into Area 1. Router R3 receives labels for individual FECs 10.10.10.2/32 and 10.10.10.4/32. These two FECs are installed in router R3's LIB but not in the LFIB. What needs to be done on router R3 to install these labels into its LFIB?

A.

Disable route summarization on router R3.

B.

Enable LDP aggregate prefix match.

C.

Create an import policy to accept 10.10.10.2/32 and 10.10.10.4/32.

D.

Disable LDP exact match on 10.10.10.2/32 and 10.10.10.4/32.

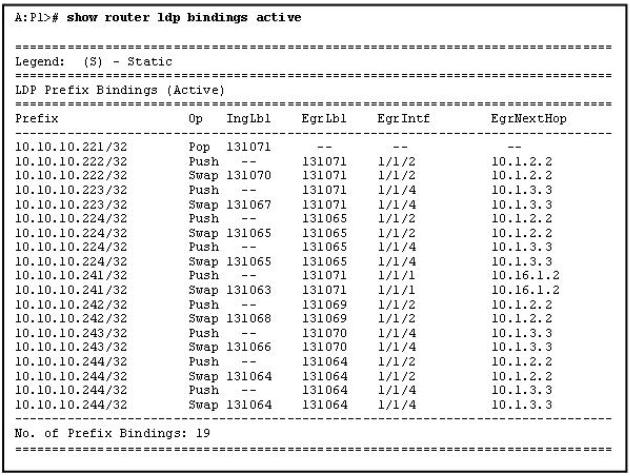

Click on the exhibit.

Given the output below, which of the following is FALSE?

A.

A packet arriving with label 131066 will be forwarded out interface 1 /1 /4 with label 131070.

B.

The router is an egress router for FEC 10.10.10.221/32.

C.

There are multiple LSPs to reach FEC 10.10.10.244/32.

D.

The router's system address is 10.10.10.242/32.

Which of the following about Alcatel-Lucent 7750 SR command "oam Isp-trace prefix" is FALSE?

A.

The router performs a unidirectional LSP test.

B.

The router collects hop information along the tunnel's path.

C.

The router uses MPLS Echo Request packets that are IP-routed,

D.

The MPLS TTL values are incremented at each request.

An Alcatel-Lucent 7750 SR label switches a packet it receives. The packet has an outer label TTL of 250 and an inner label TTL of 251. Which of the following is TRUE?

A.

The outer label TTL will be 249 and the inner label TTL will be 250.

B.

The outer label TTL will be 249 and the inner label TTL will be 251.

C.

The outer label TTL will be 251 and the inner label TTL will be 251.

D.

The outer label TTL will be 251 and the inner label TTL will be 252.

Which of the following timers can be adjusted to reduce the time a router waits between attempts to re-establish an LSP after it has failed?

A.

Isp retry-timer

B.

Isp retry-limit

C.

mpls resignal-timer

D.

rsvp refresh-time

E.

router rsvp keep-multiplier

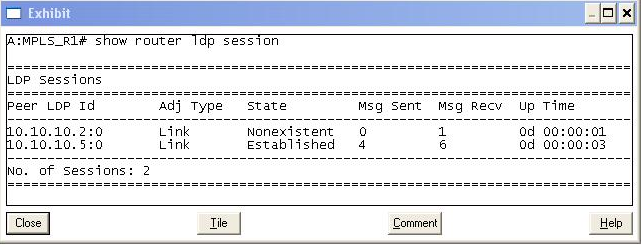

Click on the exhibit button below.

Under which condition might the peer LDP ID 10.10.10.2:0 entry show state "Nonexistent"?

A.

When the interface to the peer router is down.

B.

When router R1 has no route to the peer address 10.10.10.2.

C.

When the adjacency between the two routers fails.

D.

When the targeted session is not yet configured.

Router R3 signals an LSP, reserving 1Gbps bandwidth on a 10Gbps link. RSVP configuration limits reservable bandwidth to 20 percent on the egress interface. Which of the following statements is true?

A.

The egress RSVP interface has 80 percent bandwidth unreserved.

B.

LSPs can reserve an additional 9.9 Gbps bandwidth on this RSVP interface.

C.

The head end reserves 100Mbps for the LSP.

D.

The egress RSVP interface has 1Gbps bandwidth unreserved.

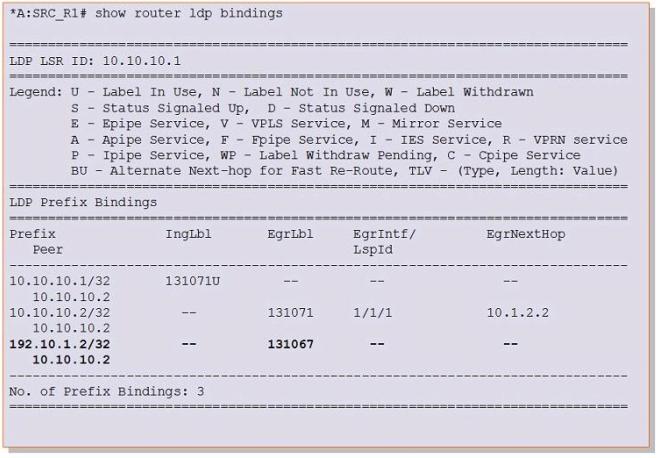

Click on the exhibit.

What is the possible reason that the label for prefix 192.10.1.2/32 is not active?

A.

The router does not have a route to reach to the peer 10.10.10.2/32.

B.

The router does not have a route to reach to the prefix 192.10.1.2/32.

C.

The router does not have an export policy defined to export the prefix 192.10.1.2/32 into LDP.

D.

The router receives an invalid label for the prefix 192.10.1.2/32 from its peer.
