Nokia 4A0-103 - Alcatel-Lucent Multi Protocol Label Switching
Click on the exhibit.

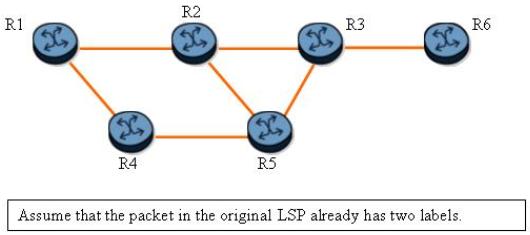

An LSP traverses R1-R2-R3-R6 and one-to-one fast reroute is enabled. If the protected LSP transports two labels, and router R2 has failed, how many labels will be on the detour path?
Which of the following about an established LDP session is TRUE?
Which of the following is a function of the control plane in an MPLS router?
Click on the exhibit.

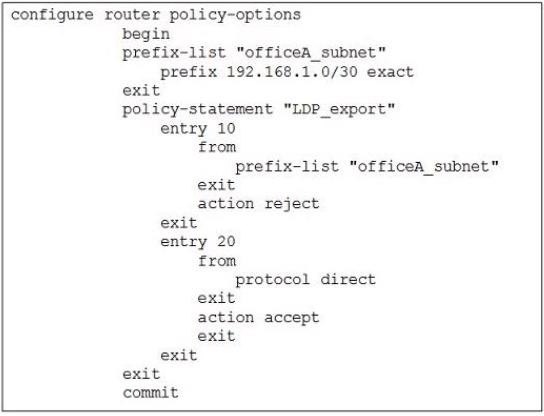

This policy is applied as an LDP export policy. In addition to the FECs learned from its neighbors, which FECs will appear in this router's LIB?
Click on the exhibit.

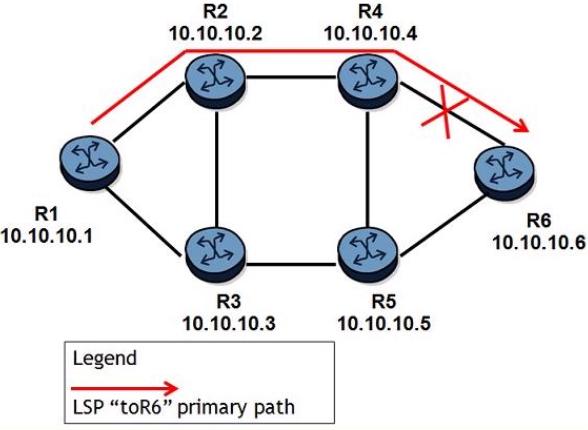

An LSP path is established on router R1 toward router R6. After router R4 detects that the link between routers R4 and R6 goes down, which of the following will affect the failure propagation time?
Which of the following about an LSP protected with one-to-one FRR is TRUE?
Click on the exhibit.

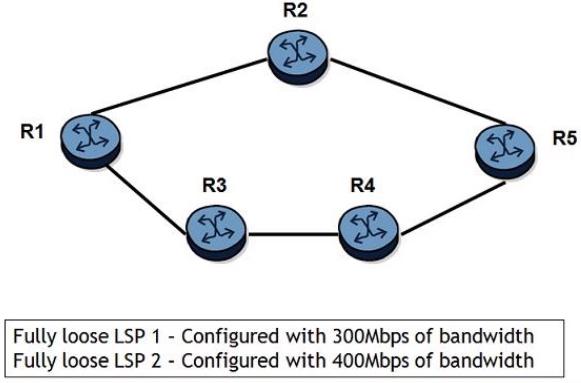

Initially, all links have 800Mbps of unreserved bandwidth. All links are of equal costs. Shared explicit reservation style is used. LSP 1 is signaled first with a setup and hold priority of 2. Then, LSP 2 is signaled with setup and hold priority of 5. Both LSPs go from R1 to R5. Which of the following is TRUE?
Click on the exhibit.

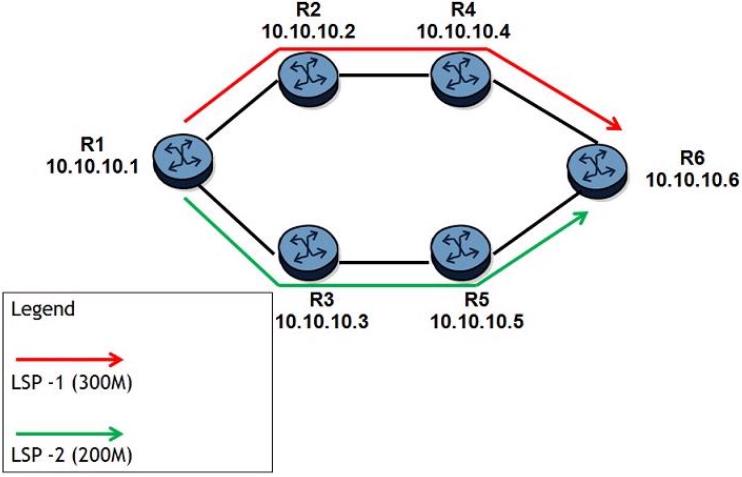

Initially, all links along the path R1-R2-R4-R6 have 400Mbps unreserved bandwidth and all links along the path R1-R3-R5-R6 have 800Mbps unreserved bandwidth. Shared Explicit reservation style is used and Make-Before-Break is enabled. Both fully loose LSPs have been signaled as shown. Later, the configured bandwidth for LSP-1 is changed to 400Mbps. Which of the following is TRUE?
Click on the exhibit.

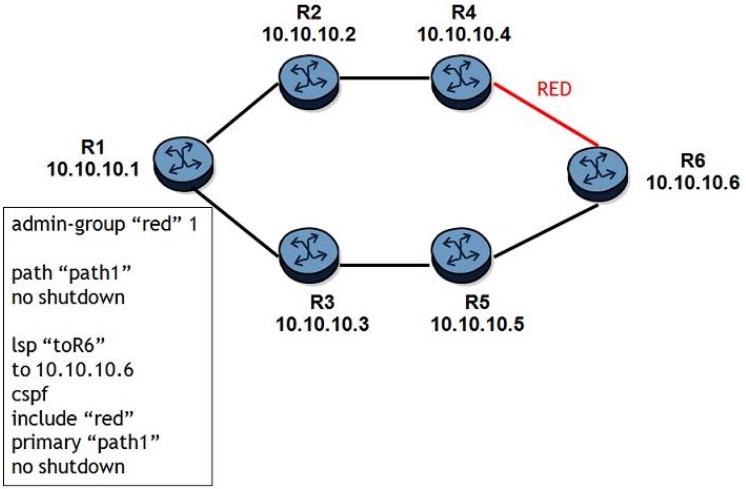

The link between routers R4 and R6 are configured with an admin group "red". What happens when the LSP is first signaled?
Click on the exhibit.

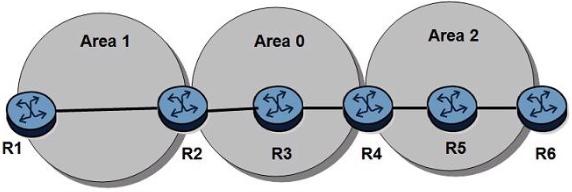

An LDP-over-RSVP tunnel is established between routers R1 and R6. There is a VPN service running between routers R1 and R6. Which of the following is TRUE?
