Nokia 4A0-105 - Nokia Virtual Private LAN Services
Click on the exhibit below.

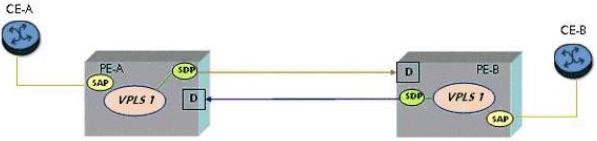

Assume PE-B expects avian tag as part of the RFC 4762 (Martini) encapsulation. How must PE-A be configured?
Click on the exhibit below.

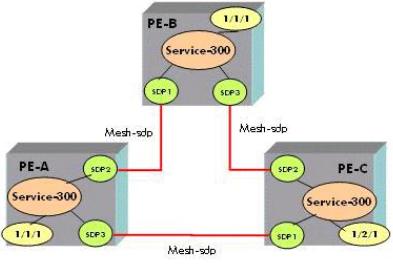

A new router named PE-D is to be directly connected to PE-C and is required to be added to the existing VPLS 300. The design requires the least amount of signaling, the least amount of configuration changes for existing sites and the new site has to have access to all existing sites. How should the new site be added to VPLS 300?
Click on the exhibit below.

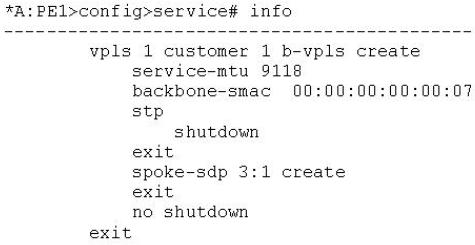

Based on the service-mtu of this B-VPLS, what is the maximum service-mtu of any connecting I-VPLS attached to this B-VPLS?
What function in IEEE 802.1 ah helps to limit the amount of MAC addresses learned in the core?
What action will be taken when an Ethernet switch receives a frame with a known DA and an outer Ethertype value of 0x0800 on a dot1q encapsulated port?
Which of the following must be true in order to add a port to a LAG? (Choose 2)
Click on the exhibit below.

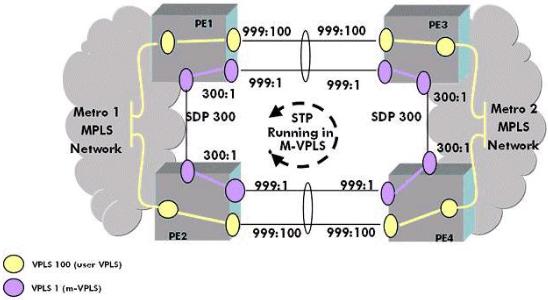

Based on the following configuration which VLANs will be managed by the management VPLS?
Click on the exhibit below.
Which SDP on R3 will MAC addresses be associated with for devices behind R2?
Click on the exhibit below.
You have been requested to add load balancing across the redundant spoke-SDPs in the network shown. What further configuration is required? (Choose 2)
The FDB has learned 2 MAC addresses. The first is from a device accessible via a locality defined SAP, the second is from a device accessible via an SDP. Both MAC addresses were learned at the exact same time. If all traffic from these hosts stops at the same time, which address will age out first from the FDB based on default settings?
