Nokia 4A0-C01 - Nokia NRS II Composite Exam

Page: 11 / 13
Total 852 questions

Which of the following items can NOT be used as a mirror source?

A.

A physical port.

B.

ASAP.

C.

Ingress MPLS frames with a specific label.

D.

Entries that match an IP filter.

E.

Entries that match a MAC filter.

F.

All of the above can be used as a mirror source.

Initially, all ports on an Alcatel-Lucent 7750 SR have 10Gbps bandwidth. RSVP configuration limits reservable bandwidth to 30 percent on all interfaces. An LSP is signaled reserving 1 Gbps bandwidth. How much unreserved bandwidth is left on the interface?

A.

10 Gbps

B.

7 Gbps

C.

3 Gbps

D.

2 Gbps

On Alcatel-Lucent 7750 SR OS, routing information between the CE and PE can be exchanged using the following methods.

A.

ISIS, RIP, OSPF, static routes

B.

BGP, ISIS, RIP, OSPF, static routes

C.

BGP, RIP, OSPF, static routes, OSPF3

D.

ISIS, RIP, OSPF, static routes, OSPF3

Which of the following about RSVP-TE is FALSE?

A.

It supports traffic protection using IGP equal cost paths.

B.

It supports CAC to prevent resource overbooking.

C.

It supports LSPs with traffic engineering constraints.

D.

It supports LSPs that follow the IGP best path.

If an LSP needs to use an admin group, which of the following configurations is NOT required on the Alcatel-Lucent 7750 SR?

A.

Assign an admin group to a MPLS interface.

B.

Configure CSPF on the LSP.

C.

Configure at least one strict hop on the LSP path.

D.

Configure an "include" or "exclude" statement on the LSP path.

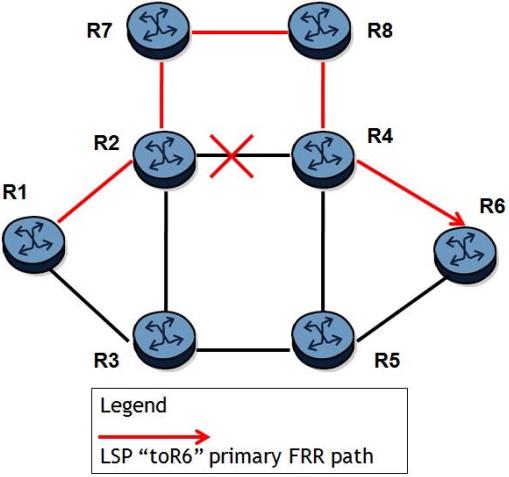

Click on the exhibit.

A fully loose LSP MtoR6" is enabled with FRR protection. All links have the same cost. After the link between R2 and R4 goes down, FRR protection repairs the LSP and traffic traverses on R1-R2-R7-R8-R4-R6. By default, which of the following about this LSP on an Alcatel-Lucent 7750 SR is FALSE?

A.

The LSP will switch to R1-R3-R5-R6 after the resignal timer expires.

B.

The old primary path and its detours are torn down after the new primary path is established.

C.

CSPF must be enabled to find a more optimal path.

D.

The traffic is switched to R1-R3-R5-R6 in an MBB fashion.

Which of the following best describes an IES?

A.

Layer 3 direct Internet access service.

B.

Layer 2 point-to-point service.

C.

Layer 2 multipoint-to-multipoint service.

D.

Layer 3 IP multipoint-to-multipoint VPN service.

Which of the following about label modes on the Alcatel-Lucent 7750 SR is FALSE?

A.

RSVP uses downstream on demand label distribution mode.

B.

LDP uses conservative label retention mode.

C.

LDP advertises label mappings to all peers for which it might be a next-hop for a given FEC.

D.

RSVP distributes a label mapping for a FEC when it has been requested to do so.

Which of the following encapsulation types on an Ethernet port support the provisioning of multiple SAPs? (Choose 2)

A.

Dot1Q

B.

Q-in-Q

C.

ATM

D.

NULL

E.

Nil

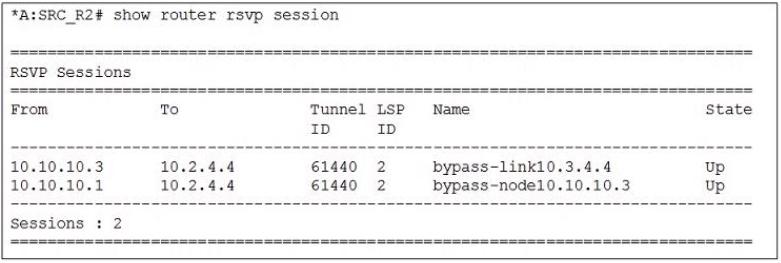

Click on the exhibit.

Which of the following about the bypass tunnel is FALSE?

A.

The router 10.10.10.1 is a PLR providing node protection for the router 10.10.10.3.

B.

One-to-one fast reroute protection is requested by an LSP.

C.

The bypass-link tunnel is used to avoid the link with the egress interface address 10.3.4.4.

D.

The bypass-node tunnel is used to avoid the next-hop downstream router 10.10.10.3.

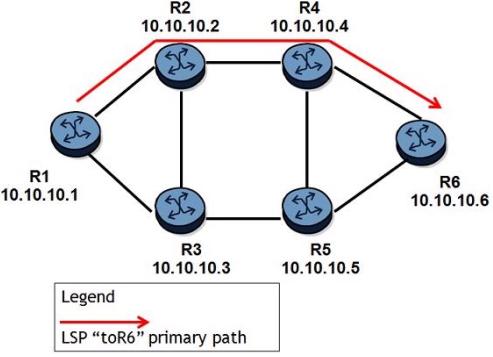

Click on the exhibit.

An LSP path is established on router R1 toward router R6. If there is a problem on router R4, but the link between R2 and R4 remains up, which of the following will affect the failure detection time?

A.

The time router R2 takes to receive a PATH Error message from router R4.

B.

The time router R2 takes to find out a number of RSVP Hello messages have been missed.

C.

The time router R2 takes to send a PATH Tear message to the head-end router.

D.

The time router R2 takes to receive a PATH message from router R4 after a PATH refresh interval.

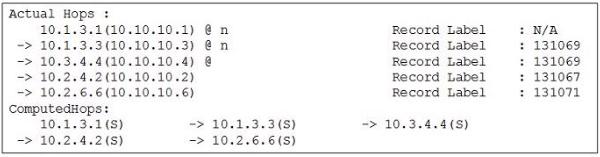

Click on the exhibit.

The partial command output from an Alcatel-Lucent 7750 SR is shown. Which of the following about this LSP path is TRUE?

A.

R4 (10.10.10.4) has established a link protection tunnel.

B.

R6 (10.10.10.6) has established a link protection tunnel.

C.

R2 (10.10.10.2) has established a node protection tunnel.

D.

R1 (10.10.10.1) has not established a node protection tunnel.

Which of the following best describes a VPWS?

A.

Layer 3 direct Internet access service.

B.

Layer 2 point-to-point service.

C.

Layer 2 multipoint-to-multipoint service.

D.

Layer 3 IP multipoint-to-multipoint VPN service.

Which of the following about CAC is FALSE?

A.

CAC is used when the LSP path has not been computed by CSPF.

B.

CAC is used when the LSP path has been computed by CSPF.

C.

CAC is used to perform a bandwidth check on each egress interface of the downstream router.

D.

CAC is used to perform a bandwidth check based on the router's LSDB.

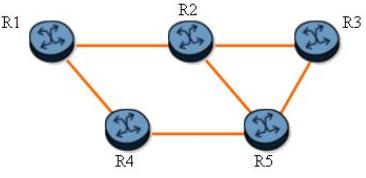

Click on the exhibit.

An LSP traverses the path R1-R2-R3. With one-to-one fast reroute enabled, which router becomes a DMP for the detour tunnels?

A.

Router R1

B.

Router R2

C.

Router R3

D.

Router R4

E.

Router R5

Which of the following messages is NOT used in T-LDP operation?

A.

Hello message

B.

Init message

C.

Keepalive message

D.

Label Mapping message

E.

ACK message

Which of the following best describes a distributed Epipe Service?

A.

An Epipe that has 2 or more SDPs configured.

B.

An Epipe that has 3 or more SAPs configured.

C.

An Epipe that has 2 SAPs on the same node but no SDPs configured

D.

An Epipe that is configured between two nodes, each having 1 SAP and 1 SDP configured.

What distinguishes a VPLS service from a VPWS service?

A.

VPLS supports point-to-point connections.

B.

VPLS supports multipoint-to-multipoint connections

C.

VPLS supports a distributed service

D.

VPLS supports a local service on a single node.

Which of the following is NOT an advantage of RSVP-TE compared to LDP?

A.

RSVP-TE supports Connection Admission Control (CAC).

B.

RSVP-TE enables simplified configuration of LSPs.

C.

RSVP-TE supports path calculations that do not use IGP cost.

D.

RSVP-TE provides support for traffic protection features.

Which of the following about an LSP protected with one-to-one FRR is TRUE?

A.

The LSP can use facility and one-to-one FRR simultaneously.

B.

The LSP is limited to node protection.

C.

A single protection tunnel is used for all LSPs with the same path.

D.

A detour protection tunnel is created for the LSP.
