Nokia 4A0-C01 - Nokia NRS II Composite Exam

Nokia 4A0-C01 Premium Access     Download Demo
Page: 4 / 13
Total 852 questions

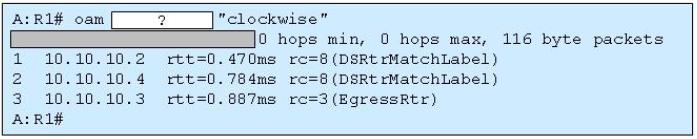

Click the exhibit.

Which OAM tool produced this output?

A.

vprn-ping

B.

sdp-ping

C.

traceroute

D.

Isp-trace

Which of the following about the Alcatel-Lucent 7750 SR sdp-ping is TRUE?

A.

It tests the IGP reachability of the far-end IP address of an SDP.

B.

It tests that the MTU settings of a service are correct.

C.

It tests in-band, uni-directional or round-trip connectivity of SDPs.

D.

It tests the reachability of hosts connected to an SDP.

Which of the following is TRUE when a service uses a GRE transport tunnel?

A.

The service takes a route determined by the IGP.

B.

The tunnel does not use a service label.

C.

The service label is swapped at each hop in the transport network.

D.

The tunnel is bidirectional and only requires configuration at one end of the service.

A CE is connected to an IES interface. Which of the following is TRUE?

A.

The CE must be an IGP peer of the IES.

B.

The CE must be on the same subnet as the IES.

C.

The CE must use an E-pipe to connect to the IES.

D.

The CE must fragment any frames that are too large for the IES.

How are LSPs acknowledged on IS-IS broadcast links?

A.

The LSP is acknowledged by sending a PSNP PDU.

B.

The LSP is acknowledged by sending an LSP PDU.

C.

The LSP is acknowledged by sending a Hello PDU.

D.

LSP are not acknowledged on broadcast links. The DIS sends periodic CSNPs to maintain database synchronization

What address is used when RIPv2 uses multicast to send its updates?

A.

224.0.0.5

B.

224.0.0.6

C.

224.0.0.9

D.

224.0.0.10

E.

RIPv2 does not have support for multicast

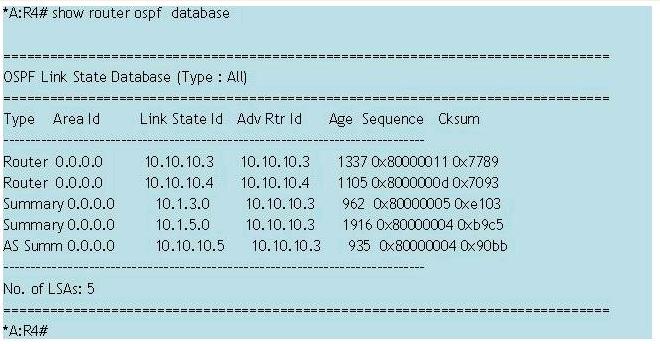

Click the exhibit button.

Assuming that the router ID of the router shown is 10.10.10.4, which of the following statements regarding the CLI output is true?

A.

The router with router ID 10.10.10.5 is an ASBR.

B.

The router with router ID 10.10.10.3 is an ASBR.

C.

The router with router ID 10.10.10.5 originated the AS summary LSA in its own area.

D.

The router with router ID 10.10.10.4 is in the same area as the router with router ID 10.10.10.5.

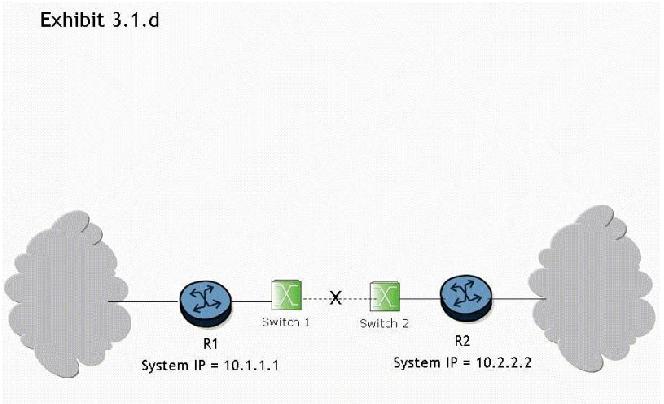

Click the exhibit button.

What triggers convergence of the routing protocol when the link between switch 1 and switch 2 goes down?

A.

Convergence is triggered when the adjacency between routers R1 and R2 drops as a result of Hello timeouts. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

B.

Convergence is triggered when the physical interfaces between routers R1 and R2 go down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

C.

Convergence will not be triggered because switches cannot run routing protocols between them.

D.

Convergence is triggered when the switches notify the routers about the link state information. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged

E.

Convergence is triggered when an LSA is sent from router R1 to router R2 to indicate that the link is down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

If a Router originates a type 1 router LSA with the E bit set what types of areas can it belong to? Select all that apply.

A.

Not So Stubby Area

B.

Stub Area

C.

Backbone Area

D.

Standard Area

What acts as the tie breaker on an Alcatel-Lucent 7750 SR if the priorities are the same when IS-IS is electing a DIS?

A.

The system ID

B.

The loopback address

C.

The sequence number of the hello packet

D.

The device that first initiated communication becomes the DIS

Which of the following best describes how IS-IS routers exchange updates on an Ethernet interface?

A.

IS-IS routers exchange updates by sending UDP packets to a multicast address.

B.

IS-IS routers exchange updates using IP multicast packets.

C.

IS-IS routers exchange updates using Ethernet multicast packets.

D.

IS-IS routers exchange updates by sending packets to the subnet broadcast address.

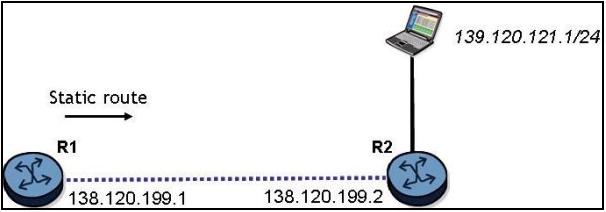

Click the exhibit button.

What is the command to configure a static route on the Alcatel-Lucent 7750 SR router R1 to reach the network behind router R2?

A.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.2

B.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.1

C.

configure router static-route 138.120.199.2/24 next-hop 138.120.199.1

D.

configure router static-route 139.120.121.0/24 next-hop 139.120.121.2

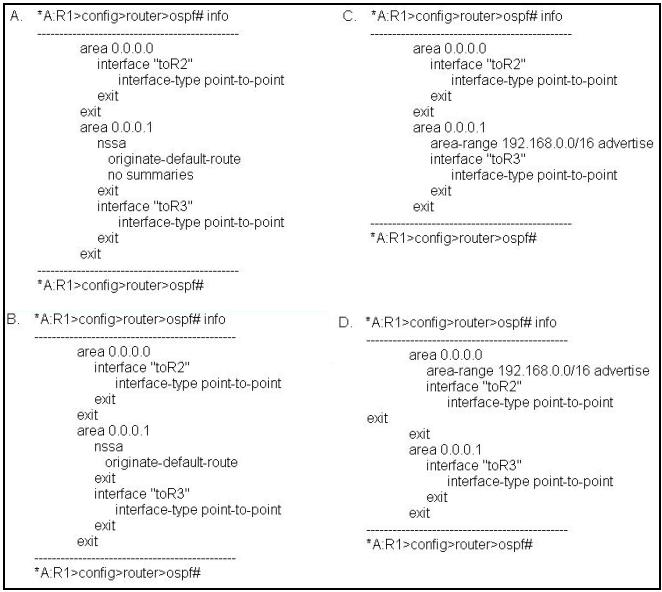

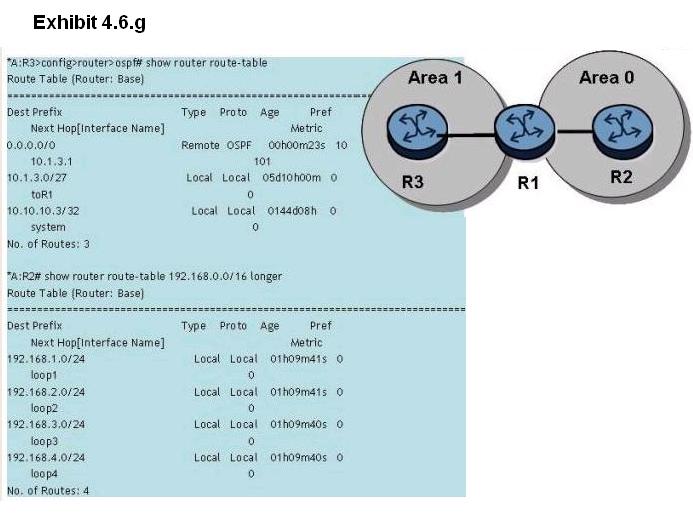

Click the exhibit button.

Given the topology and the show commands, and assuming that router R2 advertises all of its loopbacks into OSPF, what is the correct router R1 configuration?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

In an IP datagram, which field identifies the receiving application

A.

The protocol field of the transport layer header

B.

The port field of the transport layer header

C.

The protocol field of the network layer header

D.

The port field of the network layer address

How are IS-IS LSPs sent on point-to-point links?

A.

They are sent using multicast MAC addresses 0180:0200:0014.

B.

They are sent using multicast MAC addresses 0180:c200:0015.

C.

They are sent using a unicast address.

D.

None of the above.

In IS-IS database synchronization, each router compares each LSP described in the received CSNPs with the LSPs in its own database. Which of the following actions is taken if the database contains a newer copy of the LSP?

A.

The router sends a copy of the LSP from its database to its neighbor

B.

The router sends a PSNP to its neighbor describing the LSP in its database.

C.

The router updates its database with the LSP and floods a copy to its other neighbors.

D.

The router sends a PSNP to its neighbor to request the LSP.

What are the default Hello and Dead timer intervals for OSPF on the Alcatel-Lucent 7750 SR?

A.

5 and 15 seconds

B.

10 and 30 seconds

C.

5 and 20 seconds

D.

10 and 40 seconds

An operator configures an Alcatel-Lucent 7750 SR with a loopback interface and IPv6 address. The operator then configures a routing policy to redistribute the loopback prefix into OSPFv3. What type of LSA is used to advertise the route to other OSPFv3 routers in the same area?

A.

Router LSA

B.

AS External LSA

C.

Intra-Area Prefix LSA

D.

Inter-Area Prefix LSA

E.

Network LSA

F.

None of the statements are correct.

What type of OSPF router generates a type 2 LSA?

A.

Area Border Router

B.

Autonomous System Boundary Router

C.

Designated Router

D.

All routers within an OSPF area.

Which of the following statements regarding IS-IS Hello packets are true? Choose two answers.

A.

Different types of Hello packets are exchanged on point-to-point networks than on broadcast networks.

B.

L1/L2 Hello packets are exchanged on broadcast links.

C.

Different L1 and L2 Hello packets are exchanged on broadcast links.

D.

By default, Hello packets are sent every 5 seconds, and the timeout to declare a neighbor down is 15 seconds.
