Nokia 4A0-C04 - Nokia NRS II Composite Exam: OSPF version

Nokia 4A0-C04 Premium Access     Download Demo
Page: 3 / 9
Total 298 questions

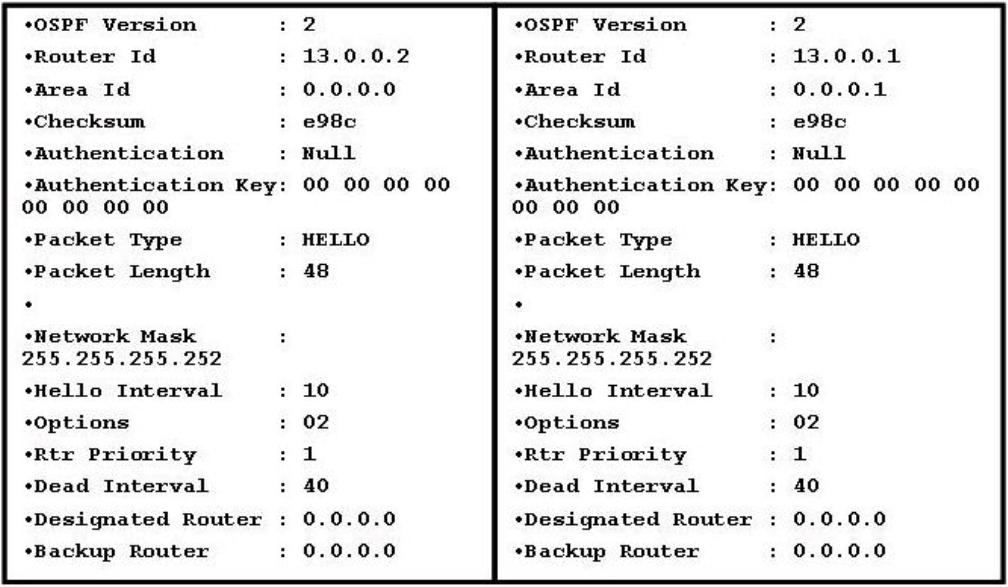

Click the exhibit button.

Two neighboring OSPF routers have exchanged the packets shown. What state is the adjacency in?

A.

Full; both routers are exchanging Helios to maintain the adjacency.

B.

The adjacency is down.

C.

The adjacency is in exstart state.

D.

The adjacency is in the exchange state.

Which of the following prefix-lists is the most specific match for prefix 172.31.2.1/24?

A.

Prefix 172.16.0.0/12 longer.

B.

Prefix 172.31.0.0/22 longer.

C.

Prefix 172.31.0.0/23 longer.

D.

Prefix 172.31.0.0/24 exact.

In an IP datagram, which of the following fields identifies the receiving application?

A.

The protocol field of the transport layer header.

B.

The port field of the transport layer header.

C.

The protocol field of the network layer header.

D.

The port field of the network layer address.

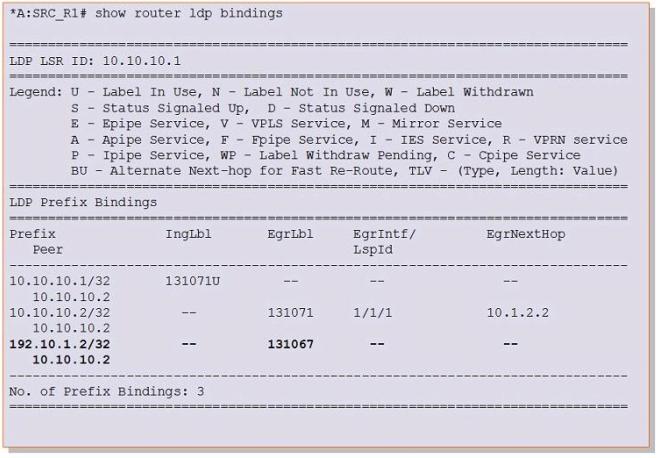

Click on the exhibit.

What is the possible reason that the label for prefix 192.10.1.2/32 is not active?

A.

The router does not have a route to reach to the peer 10.10.10.2/32.

B.

The router does not have a route to reach to the prefix 192.10.1.2/32.

C.

The router does not have an export policy defined to export the prefix 192.10.1.2/32 into LDP.

D.

The router receives an invalid label for the prefix 192.10.1.2/32 from its peer.

An IS-IS TE enabled router has an interface on a 500Mbps link and it is configured with a 25% subscription. If this interface is not used by any LSPs. what value will be shown in the Reservable Bandwidth sub-TLV?

A.

125 Mbps

B.

500 Mbps

C.

625 Mbps

D.

2000 Mbps

Which utility on the Nokia 7750 SR can be used to investigate an MPLS path?

A.

Isp-trace

B.

Idp-trace

C.

Sdp-ping

D.

Svc-ping

E.

Ping

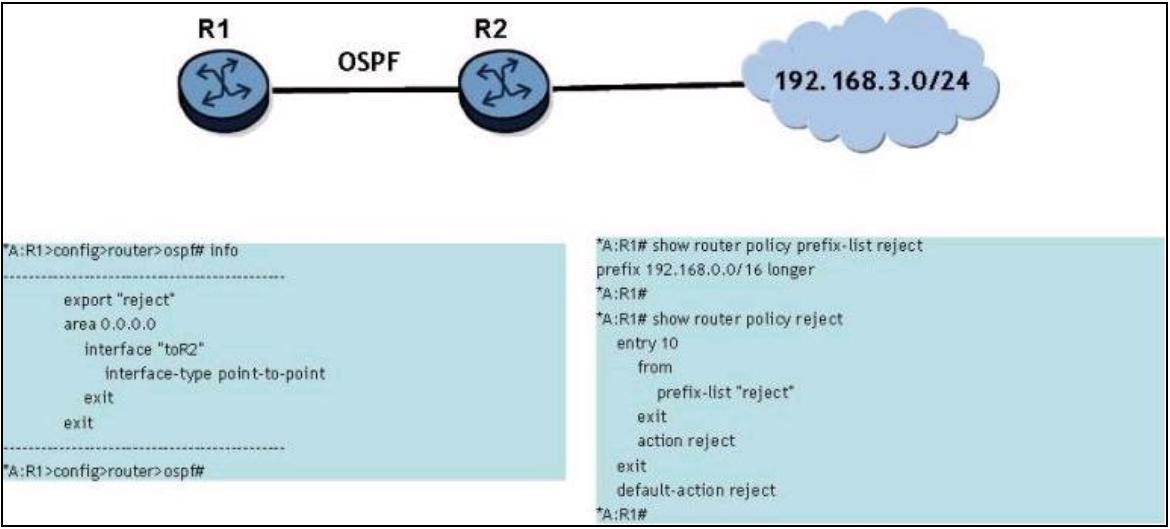

Click the exhibit button.

Router R2 advertises the network 192.168.3.0/24 to router R1 via OSPF. A route policy has been constructed to discard the route on router R1; however, it is not working. What is the problem?

A.

The prefix list reject should be "192.168.3.0/16 exact".

B.

Router R1 should be configured as an OSPF "asbr".

C.

The policy "reject" should be set for import rather than export.

D.

The policy was likely not "committed" after creation.

E.

This is not possible because OSPF cannot use import policies.

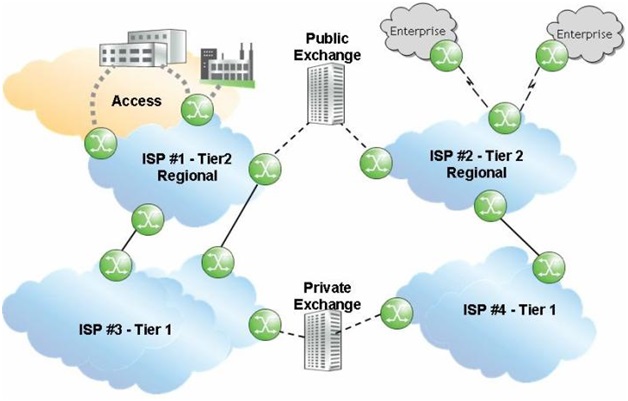

Click the exhibit.

Given that ISP 1 and ISP 2 are Tier 2 providers, and that ISP 3 and ISP 4 are Tier 1 providers, what is the most likely relationship between ISP 1 and the other ISPs?

A.

ISP 1 has a peering relationship with ISP 2 and ISP 4.

B.

ISP 1 has a peering relationship with ISP 2 and a transit relationship with ISP 3.

C.

ISP 1 has a peering relationship with ISP 2 and ISP 3.

D.

ISP 1 has a transit relationship with ISP 2 and ISP 4.

E.

ISP 1 has a transit relationship with ISP 2 and a peering relationship with ISP 3.

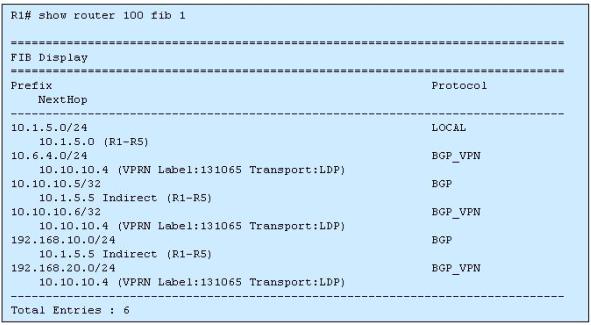

Click the exhibit.

Based on this output from PE router R1, how many other PEs are participating in the VPRN?

A.

0

B.

1

C.

2

D.

3

Which of the following is NOT required when configuring an LSP with an admin group constraint on an Nokia 7750 SR?

A.

Enable traffic engineering on all routers along the LSP path.

B.

Enable CSPF on the head-end router.

C.

Configure a path definition on all routers along the LSP path.

D.

Enable MPLS and RSVP on all routers along the LSP path.
