Microsoft AZ-204 - Developing Solutions for Microsoft Azure

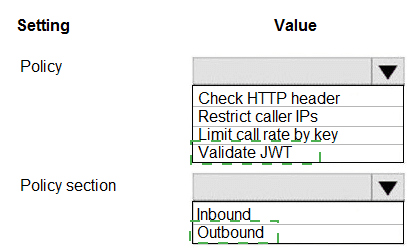

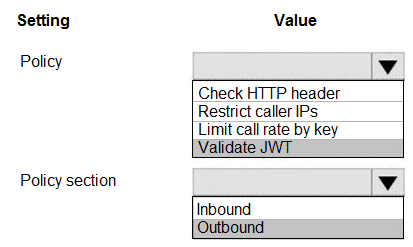

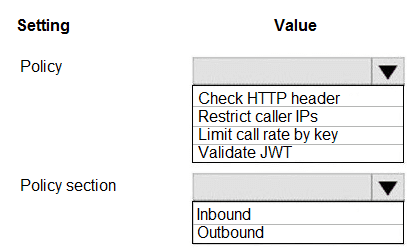

Box 1: Validate JWT

The validate-jwt policy enforces existence and validity of a JWT extracted from either a specified HTTP Header or a specified query parameter.

Scenario: User authentication (see step 5 below)

The following steps detail the user authentication process:

The user selects Sign in in the website.

The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.

The user signs in.

Azure AD redirects the user’s session back to the web application. The URL includes an access token.

The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience (‘aud’) claim in the access token.

The back-end API validates the access token.

Box 2: Outbound

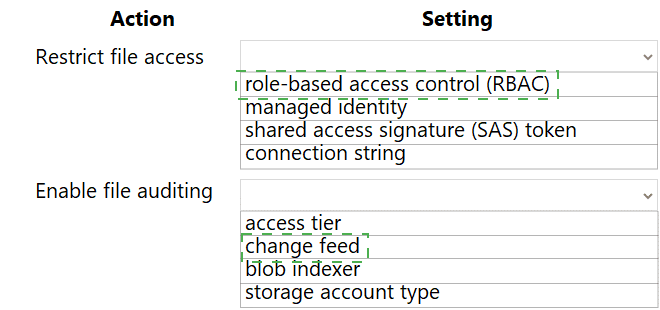

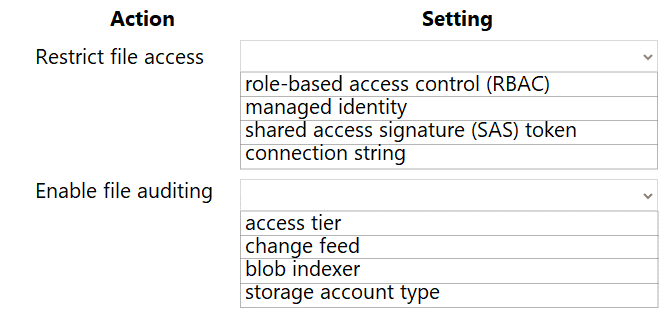

Box 1: role-based access control (RBAC)

Azure Storage supports authentication and authorization with Azure AD for the Blob and Queue services via Azure role-based access control (Azure RBAC).

Scenario: File access must restrict access by IP, protocol, and Azure AD rights.

Box 2: change feed

The purpose of the change feed is to provide transaction logs of all the changes that occur to the blobs and the blob metadata in your storage account.

The file updates must be read-only, stored in the order in which they occurred, include only create, update, delete, and copy operations, and be retained for compliance reasons.

Scenario: Corporate website

While testing the site, the following error message displays:

CryptographicException: The system cannot find the file specified.

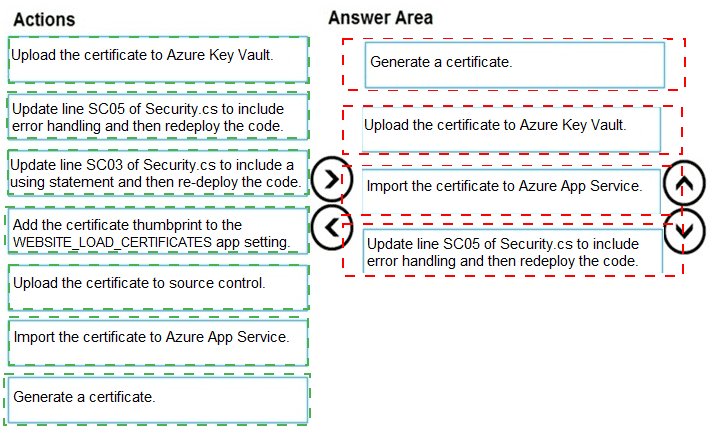

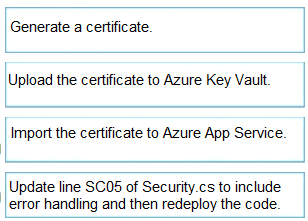

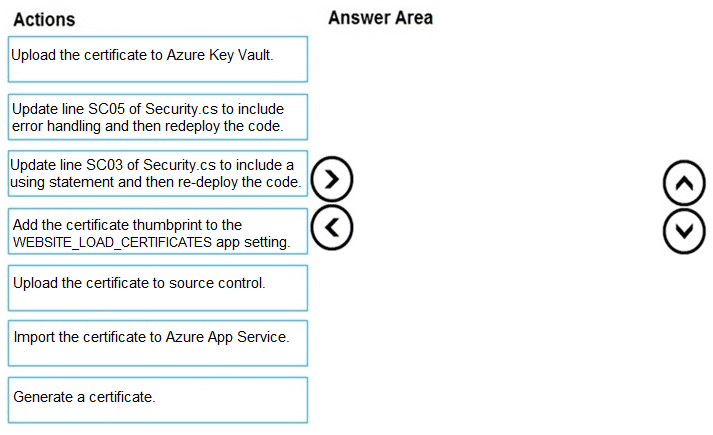

Step 1: Generate a certificate

Step 2: Upload the certificate to Azure Key Vault

Scenario: All SSL certificates and credentials must be stored in Azure Key Vault.

Step 3: Import the certificate to Azure App Service

Step 4: Update line SCO5 of Security.cs to include error handling and then redeploy the code

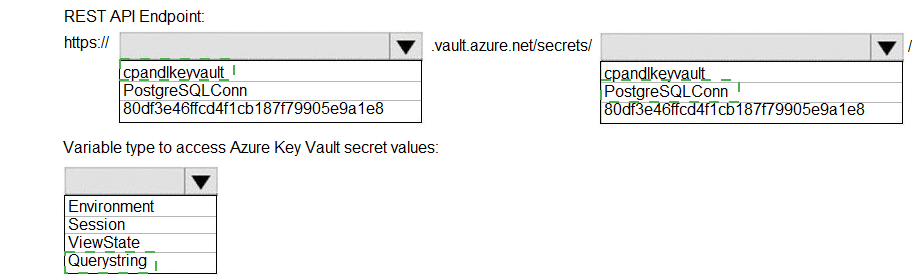

Azure database connection string retrieve REST API vault.azure.net/secrets/

Box 1: cpandlkeyvault

We specify the key vault, cpandlkeyvault.

Scenario: The database connection string is stored in Azure Key Vault with the following attributes:

Azure Key Vault name: cpandlkeyvault

Secret name: PostgreSQLConn

Id: 80df3e46ffcd4f1cb187f79905e9a1e8

Box 2: PostgreSQLConn

We specify the secret, PostgreSQLConn

Example, sample request:

https://myvault.vault.azure.net//secrets/mysecretname/4387e9f3d6e14c45986767 9a90fd0f79?api-version=7.1

Box 3: Querystring

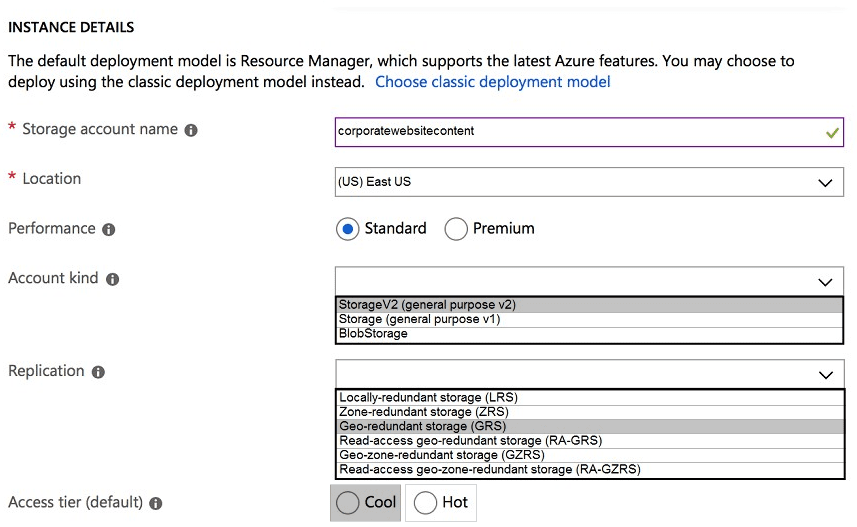

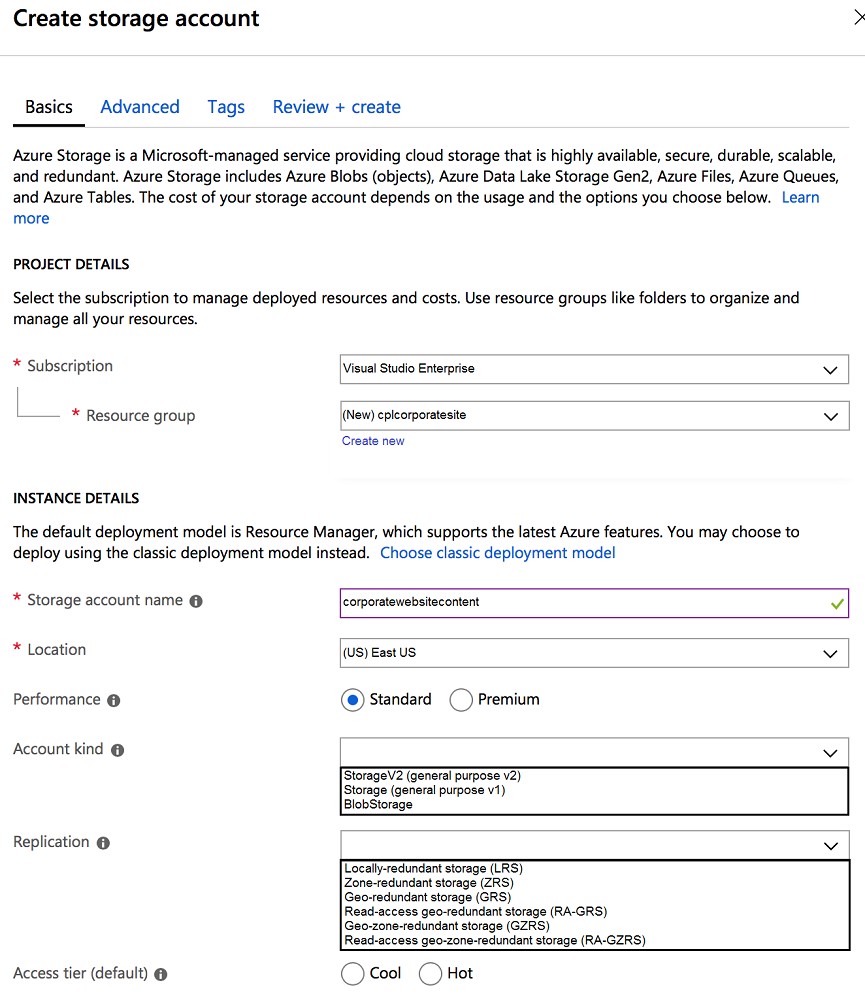

Account Kind: StorageV2 (general-purpose v2)

Scenario: Azure Storage blob will be used (refer to the exhibit). Data storage costs must be minimized.

General-purpose v2 accounts: Basic storage account type for blobs, files, queues, and tables. Recommended for most scenarios using Azure Storage.

Azure Functions offers built-in integration with Azure Application Insights to monitor functions.

The following areas of Application Insights can be helpful when evaluating the behavior, performance, and errors in your functions:

Live Metrics: View metrics data as it's created in near real-time.

Failures

Performance

Metrics

Scenario: You test the Logic app in a development environment. The following error message displays:

'400 Bad Request'

Troubleshooting of the error shows an HttpTrigger action to call the RequestUserApproval function.

Note: If the inbound call's request body doesn't match your schema, the trigger returns an HTTP 400 Bad Request error.

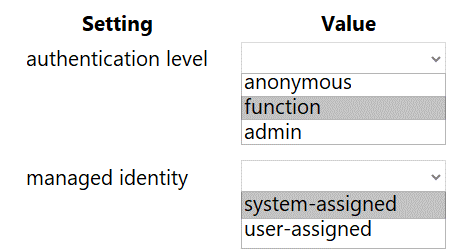

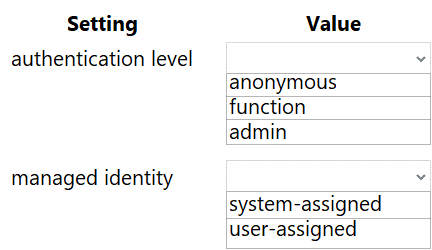

Box 1: function

If you have an Azure function where you want to use the system-assigned identity, first enable authentication for Azure functions.

Box 2: system-assigned

Your logic app or individual connections can use either the system-assigned identity or a single user-assigned identity, which you can share across a group of logic apps, but not both.

Claims in access tokens

JWTs (JSON Web Tokens) are split into three pieces:

Header - Provides information about how to validate the token including information about the type of token and how it was signed.

Payload - Contains all of the important data about the user or app that is attempting to call your service.

Signature - Is the raw material used to validate the token.

Your client can get an access token from either the v1.0 endpoint or the v2.0 endpoint using a variety of protocols.

Scenario: User authentication (see step 5 below)

The following steps detail the user authentication process:

The user selects Sign in in the website.

The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.

The user signs in.

Azure AD redirects the user’s session back to the web application. The URL includes an access token.

The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience (‘aud’) claim in the access token.

The back-end API validates the access token.

Async operation tracking

The HTTP response mentioned previously is designed to help implement long-running HTTP async APIs with Durable Functions. This pattern is sometimes referred to as the polling consumer pattern.

Both the client and server implementations of this pattern are built into the Durable Functions HTTP APIs.

Function app

You perform local testing for the RequestUserApproval function. The following error message displays:

'Timeout value of 00:10:00 exceeded by function: RequestUserApproval'

The same error message displays when you test the function in an Azure development environment when you run the following Kusto query:

FunctionAppLogs

| where FunctionName = = "RequestUserApproval"

As a solution architect/developer, you should consider using Service Bus queues when:

Your solution needs to receive messages without having to poll the queue. With Service Bus, you can achieve it by using a long-polling receive operation using the TCP-based protocols that Service Bus supports.
