Microsoft AZ-802 - Administering Windows Server

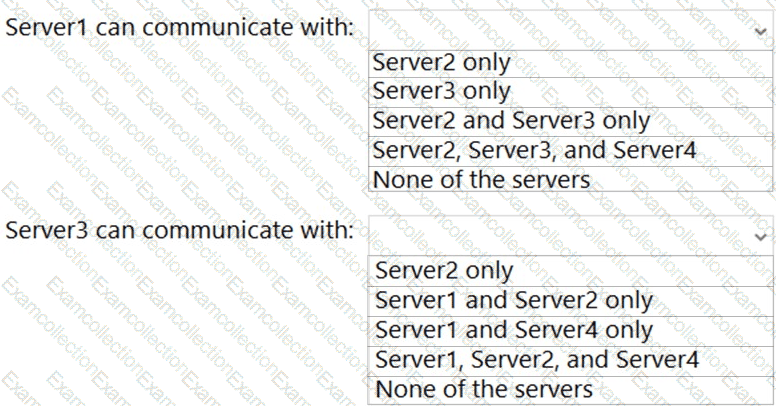

Server1 can communicate with: Server2, Server3, and Server4. Server3 can communicate with: Server1 and Server2 only.

Server4 has no isolation connection security rule configured at all, so it never attempts or performs IPsec authentication with any peer. Server1 ' s rule only requests IPsec in both directions rather than requiring it, meaning that if IPsec negotiation does not occur -- as with Server4, which has no IPsec capability configured -- the connection still falls back to succeed in the clear; Server1 can therefore reach Server2, Server3, and Server4. Server3 ' s rule requires IPsec in both directions, meaning a connection only succeeds if IPsec authentication is actually negotiated. Server3 can successfully negotiate IPsec with Server1 (whose " request " setting means it will still respond to and complete an IPsec negotiation when the peer requires it) and with Server2 (which requires inbound and requests outbound IPsec, and likewise supports negotiation), so both of those connections succeed. Server3 cannot successfully negotiate IPsec with Server4, since Server4 has no IPsec capability configured at all, and Server3 ' s " require " setting blocks any connection that cannot be authenticated via IPsec. Therefore, Server1 can communicate with Server2, Server3, and Server4, while Server3 can communicate with only Server1 and Server2.

Restoring deleted objects from the Active Directory Recycle Bin requires permission to view and restore objects inside the forest ' s Deleted Objects container, and by default that container ' s access control list denies access to everyone except the SYSTEM account and members of Domain Admins (and Enterprise Admins at the forest root) -- no delegation to any other built-in group exists out of the box. Among the four groups offered, only Domain Admins carries this permission by default, since Account Operators (which can manage most user, group, and computer objects but has no special access to the hidden Deleted Objects container), Schema Admins (which governs schema modifications, not object restoration), and Backup Operators (which can back up and restore files and the system state, but not perform an online Active Directory Recycle Bin object restore through the Active Directory Administrative Center) all lack the needed access. The case study ' s general instruction to use the principle of least privilege where possible does not change this outcome here, since none of the three lower-privileged alternatives actually has the required capability by default -- Domain Admins is not merely the most convenient choice but the only one of the four that functionally works. Therefore, User1 must be added to Domain Admins to be able to recover objects from the Active Directory Recycle Bin.

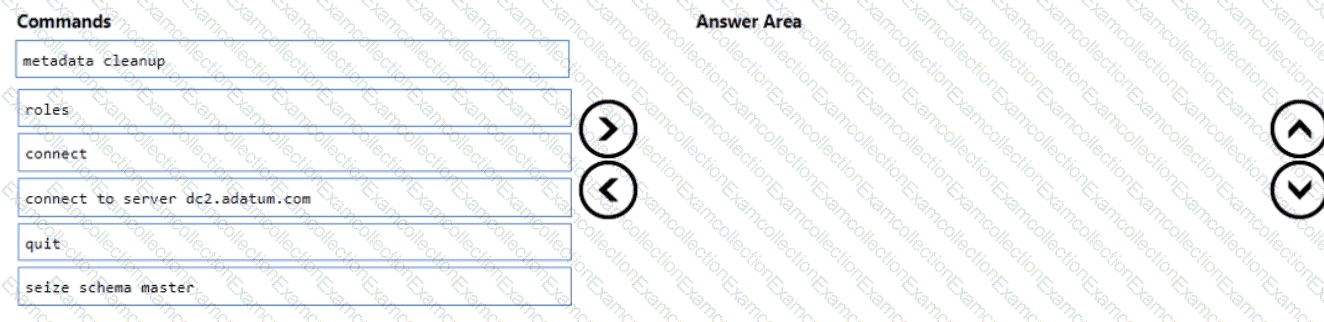

1. roles 2. connections 3. connect to server dc2.adatum.com 4. quit 5. seize schema master

Because DC1 has failed and cannot gracefully transfer the schema master role, DC2 must forcibly seize it using ntdsutil.exe. From the initial ntdsutil prompt, the first command is roles, which enters the Role Management submenu where FSMO role transfers and seizures are performed. From within that submenu, the command connections opens the Connections submenu, which is required before you can bind ntdsutil to a specific target domain controller. Inside the Connections submenu, connect to server dc2.adatum.com establishes the bind to DC2, the domain controller that will actually take over the schema master role. The quit command then exits the Connections submenu and returns to the Role Management submenu while keeping the established connection to DC2 active. Finally, seize schema master, executed from the Role Management submenu while bound to DC2, forces DC2 to take ownership of the schema master role even though DC1 (the previous holder) is offline and cannot be contacted to confirm the transfer. The unused command in the list, metadata cleanup, is a separate, later step used to remove the failed DC1 ' s leftover directory metadata once its roles have been reassigned; it is not part of seizing the schema master role itself, so it is correctly left out of this five-step sequence.

The requirement is that VMs must be configured to enable per-folder quotas. VM3 already has the File and Storage Services role installed, but native NTFS quotas only apply per volume and per user; they cannot restrict the amount of data stored inside an individual folder. File Server Resource Manager (FSRM) is the Windows Server feature that adds true folder-level quota management, letting an administrator define hard or soft quota limits (and quota templates) scoped to specific folders rather than entire volumes, which is exactly the granularity the requirement calls for. Enhanced Storage is an unrelated feature that supports certain storage devices with enhanced storage access (IEEE 1667), Windows Standards-Based Storage Management provides SMI-S/WMI-based management of storage arrays and has nothing to do with folder-level quotas, and the iSNS Server service is used for discovery of iSCSI targets and initiators on a network, also unrelated to quota enforcement. None of those three alternatives provide any per-folder capacity restriction capability, so installing FSRM is the necessary first step before per-folder quotas can be configured on VM3.

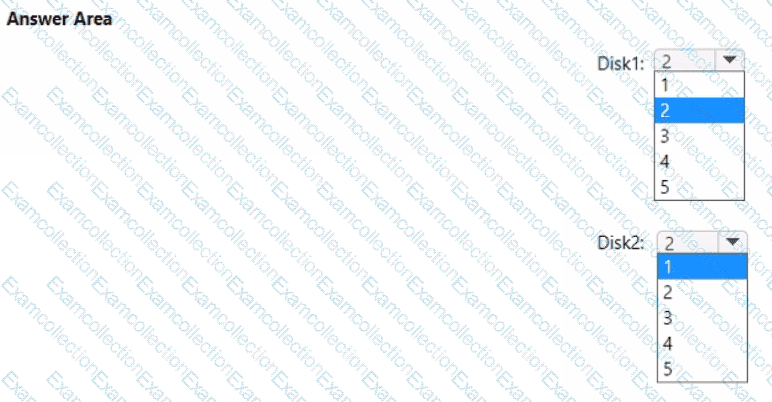

Disk1: 2. Disk2: 1.

The requirement is that data on SSPace1 must remain available at all times, meaning the storage pool ' s virtual disks must be able to tolerate physical disk failures without becoming unavailable or losing data. A three-way mirror keeps three copies of every block of data spread across different physical disks, so it remains available and readable even if any two of those disks fail simultaneously; the resiliency is fixed at tolerating two failures regardless of how many total disks (8, in Disk1 ' s case) make up the pool, as long as there are enough disks to support three-way mirroring, which eight comfortably provides. Disk2 uses parity resiliency, which stores a single parity block that can reconstruct data after one physical disk failure; unless dual parity is explicitly configured (which requires being set at virtual disk creation time and is not indicated here), a standard parity virtual disk tolerates only one physical disk failure before data becomes unavailable, regardless of the pool having twelve physical disks. Administrators sometimes assume more disks in a parity pool automatically means more fault tolerance, but the number of disks a parity space can lose is determined by the resiliency configuration (single vs. dual parity), not by the total disk count. Therefore Disk1 tolerates two disk failures and Disk2 tolerates one.

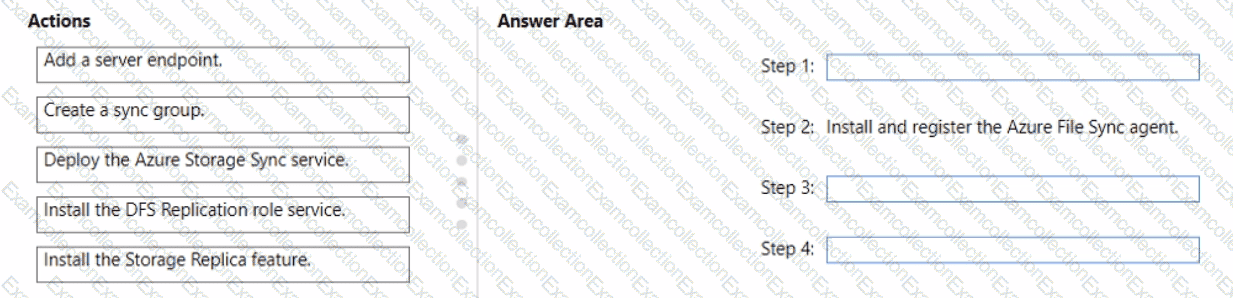

1. Deploy the Azure Storage Sync service. 2. Install and register the Azure File Sync agent. 3. Create a sync group. 4. Add a server endpoint.

Data1 is a file share on VM1 that must be synced to the Azure Files share1 using Azure File Sync. The documented deployment order starts in Azure: you must first deploy a Storage Sync Service resource, because the on-premises agent registration process needs an existing Storage Sync Service to register against. With that resource in place, the next step, already fixed in the sequence, is to install the Azure File Sync agent on VM1 and register the server with the Storage Sync Service, which establishes the server ' s identity and trust relationship with Azure. After registration, you create a sync group, the container that pairs one Azure file share (the cloud endpoint) with one or more on-premises folders (server endpoints); the sync group must exist before endpoints can be attached to it. Finally, you add a server endpoint pointing at the Data1 path on VM1, which starts the actual namespace and content synchronization with share1. Installing the DFS Replication role service and installing the Storage Replica feature are unrelated technologies, DFS-R replicates between on-premises servers and Storage Replica performs block-level volume replication, neither of which is part of an Azure File Sync deployment, so both are correctly excluded from the sequence.

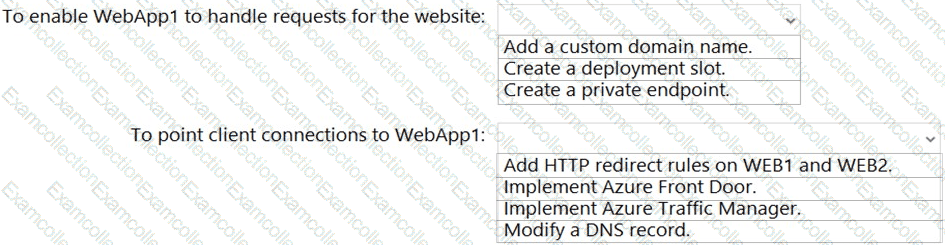

To enable WebApp1 to handle requests for the website: Add a custom domain name. To point client connections to WebApp1: Modify a DNS record.

For an Azure App Service web app to accept and correctly serve requests addressed to https://www.fabrikam.com rather than only its default *.azurewebsites.net hostname, the custom domain www.fabrikam.com must be added and bound to WebApp1 -- this is the specific configuration step that makes the app recognize and handle that custom hostname at all. Creating a deployment slot supports staged rollout and swap scenarios and does nothing to bind a custom domain, and creating a private endpoint provides private, VNet-restricted connectivity rather than public custom-domain handling, so neither accomplishes the stated goal. Once WEB1 and WEB2 are decommissioned per the migration plan, client traffic that currently resolves to those on-premises-facing web servers must instead be directed to WebApp1; since DNS is what resolves the www.fabrikam.com name to a specific endpoint, the DNS record for that hostname must be modified (typically to a CNAME record pointing at WebApp1 ' s default hostname, together with the domain-verification TXT record Azure requires before it will accept the custom domain binding). Azure Front Door and Azure Traffic Manager are global routing and load-balancing services meant for multi-region or multi-endpoint failover scenarios and are unnecessary complexity for redirecting a single custom domain to a single web app, and adding HTTP redirect rules on WEB1/WEB2 is not a viable option once those servers have been decommissioned. Therefore, adding a custom domain name to WebApp1 and then modifying the DNS record are the two required actions.

A Windows Server failover cluster requires a distinct IP address for each individual cluster node ' s network adapter, plus one additional IP address for the cluster ' s own network name resource -- the cluster access point that clients and management tools use to address the cluster as a single logical entity rather than any one specific node. Cluster3 will contain two physical nodes, Node1 and Node2, so at minimum one IP address is required for Node1 ' s network adapter and one for Node2 ' s network adapter. Beyond those two node-level addresses, the cluster core resource itself (the cluster name object and its associated IP address resource) requires one more address so that the cluster can be addressed and managed as a whole and so that any highly available roles hosted on the cluster (such as the file share role planned for Cluster3) can obtain the network identity they need to fail over between nodes. Adding these together -- one for Node1, one for Node2, and one for the cluster ' s own network name -- yields a minimum of three IP addresses required for Cluster3 ' s node and cluster roles. Fewer than three would leave either a node or the cluster itself without a usable network identity, and while additional IP addresses may be consumed by highly available roles later added to the cluster, three is the baseline minimum for the node and cluster roles themselves.

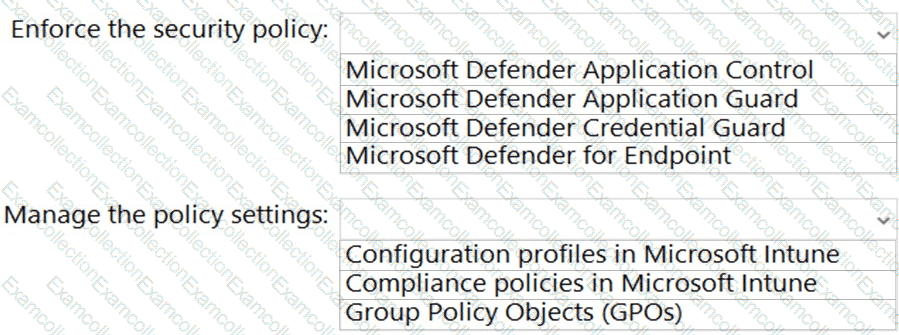

Enforce the security policy: Microsoft Defender Application Control. Manage the policy settings: Group Policy Objects (GPOs).

Windows Defender Application Control (WDAC) is the platform feature that enforces which applications are authorized to install or run on a Windows Server, directly meeting the stated requirement that only authorized applications can be installed or run on the servers in the forest. Microsoft Defender Application Guard isolates untrusted browsing sessions in a container and Microsoft Defender Credential Guard protects credential material from theft -- neither controls which applications are permitted to execute. Microsoft Defender for Endpoint is an endpoint detection-and-response platform that detects and responds to threats rather than enforcing a whitelist of permitted applications. Because the servers described are on-premises, domain-joined machines rather than Intune-managed, Microsoft Entra-joined devices, the WDAC policy settings here must be managed through Group Policy Objects distributed via AD DS, not through Intune. Configuration profiles in Microsoft Intune and compliance policies in Microsoft Intune are both cloud-management mechanisms that apply only to devices enrolled in and managed by Intune, which these on-premises, domain-joined servers are not. Therefore, WDAC is the enforcing service and Group Policy Objects are the correct management mechanism for these on-premises servers.

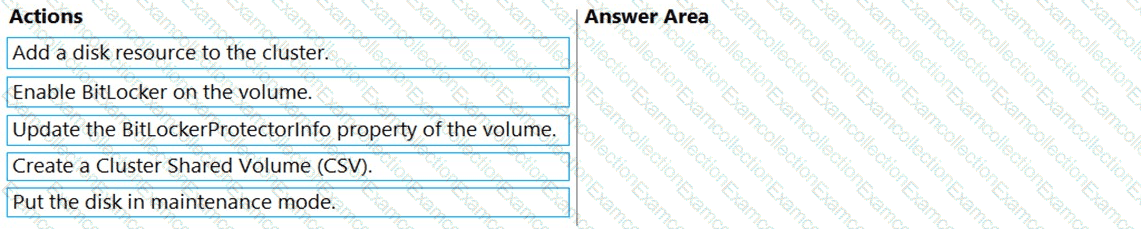

1. Add a disk resource to the cluster. 2. Create a Cluster Shared Volume (CSV). 3. Put the disk in maintenance mode. 4. Enable BitLocker on the volume. 5. Update the BitLockerProtectorInfo property of the volume.

BitLocker can only be enabled on a Cluster Shared Volume disk while that disk is taken offline to cluster I/O, so the CSV must exist and be placed into maintenance mode before encryption can be applied. The supported sequence begins by adding the disk resource to the cluster and converting it into a Cluster Shared Volume, since BitLocker-on-CSV support requires the disk to already be a CSV rather than a plain cluster disk. The disk is then put into maintenance mode, which takes it offline to the other cluster nodes so it can be safely encrypted without a node attempting to access it mid-operation. With the CSV disk offline in maintenance mode, BitLocker is enabled on the volume. Finally, the volume ' s BitLockerProtectorInfo property is updated so that Failover Clustering registers the unlock protector, allowing the volume to automatically unlock on every cluster node once maintenance mode ends and the CSV is brought back online. Performing these steps out of order either fails outright -- BitLocker cannot be enabled on a CSV disk that is still online and actively used by the cluster -- or leaves the other cluster nodes unable to bring the encrypted volume back online afterward, since they would lack the registered unlock protector. Therefore, the correct order is: add the disk resource, create the CSV, put the disk in maintenance mode, enable BitLocker, and update BitLockerProtectorInfo.
