IBM C1000-130 - IBM Cloud Pak for Integration V2021.2 Administration

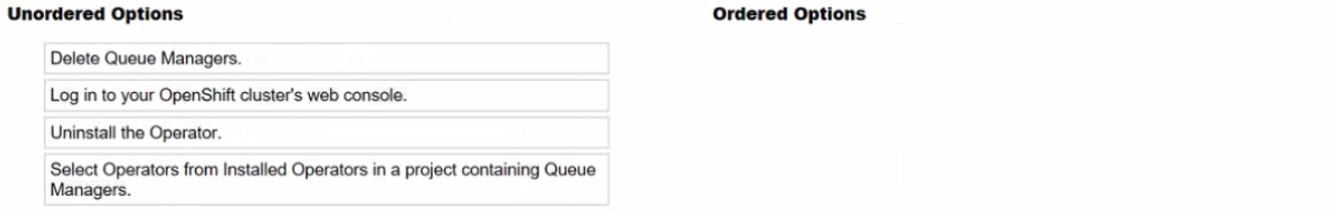

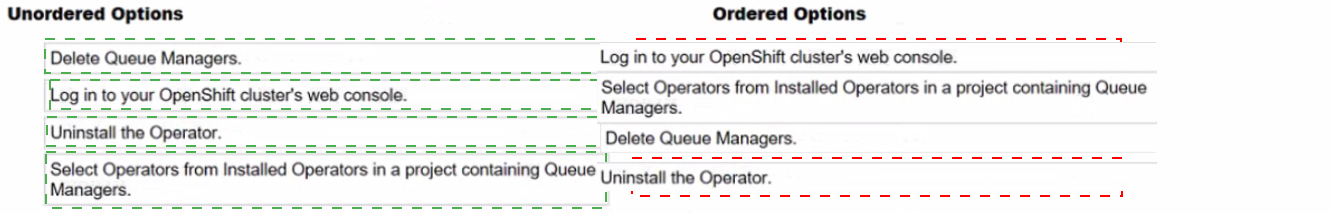

Correct Ordered Steps to Delete IBM MQ from IBM Cloud Pak for Integration (CP4I):

1️⃣ Log in to your OpenShift cluster's web console.

Access the OpenShift web console to manage resources and installed operators.

2️⃣ Select Operators from Installed Operators in a project containing Queue Managers.

Navigate to the Installed Operators section and locate the IBM MQ Operator in the project namespace where queue managers exist.

3️⃣ Delete Queue Managers.

Before uninstalling the operator, delete any existing IBM MQ Queue Managers to ensure a clean removal.

4️⃣ Uninstall the Operator.

Finally, uninstall the IBM MQ Operator from OpenShift to complete the deletion process.

To properly delete IBM MQ from IBM Cloud Pak for Integration (CP4I), the steps must be followed in the correct order:

Logging into OpenShift Web Console – This step provides access to the IBM MQ Operator and related resources.

Selecting the Installed Operator – Ensures the correct project namespace and MQ resources are identified.

Deleting Queue Managers – Queue Managers must be removed before uninstalling the operator; otherwise, orphaned resources may remain.

Uninstalling the Operator – Once all resources are removed, the MQ Operator can be uninstalled cleanly.

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM MQ in Cloud Pak for Integration

Managing IBM MQ Operators in OpenShift

Uninstalling IBM MQ on OpenShift

The command:

oc extract secret/platform-auth-idp-credentials --to=-

is used to retrieve and display the admin user credentials stored in the platform-auth-idp-credentials secret within an OpenShift-based IBM Cloud Pak for Integration (CP4I) deployment.

In IBM Cloud Pak Foundational Services, the platform-auth-idp-credentials secret contains the admin username and password used to authenticate with OpenShift and Cloud Pak services.

The oc extract command decodes the secret and displays its contents in plaintext in the terminal.

The --to=- flag directs the output to standard output (STDOUT), ensuring that the credentials are immediately visible instead of being written to a file.

This command is commonly used for recovering lost admin credentials or retrieving them for automated processes.

Why Option C (Displays the credentials of the admin user) is Correct:

A. Writes the OpenShift Container Platform credentials to the current directory. → Incorrect

The --to=- option displays the credentials, but it does not write them to a file in the directory.

To save the credentials to a file, the command would need a filename, e.g., --to=admin-creds.txt.

B. Generates Base64 decoded secrets for all Cloud Pak for Integration users. → Incorrect

The command only extracts one specific secret (platform-auth-idp-credentials), which contains the admin credentials only.

It does not generate or decode secrets for all users.

D. Distributes credentials throughout the Cloud Pak for Integration platform. → Incorrect

The command extracts and displays credentials, but it does not distribute or propagate them.

Credentials distribution in Cloud Pak for Integration is handled through Identity and Access Management (IAM) configurations.

Explanation of Incorrect Answers:

IBM Cloud Pak Foundational Services - Retrieving Admin Credentials

OpenShift CLI (oc extract) Documentation

IBM Cloud Pak for Integration Identity and Access Management

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

Within IBM Cloud Pak for Integration (CP4I) v2021.2, IBM MQ is a key messaging component that ensures reliable, secure, and auditable message delivery between applications and services. It is designed to facilitate enterprise messaging by guaranteeing message delivery, supporting transactional integrity, and providing end-to-end security features.

IBM MQ within CP4I provides the following capabilities:

Secure Messaging – Messages are encrypted in transit and at rest, ensuring that sensitive data is protected.

Auditable Transactions – IBM MQ logs all transactions, allowing for traceability, compliance, and recovery in the event of failures.

High Availability & Scalability – Can be deployed in containerized environments using OpenShift and Kubernetes, supporting both on-premises and cloud-based workloads.

Integration Across Multiple Environments – Works across different operating systems, cloud providers, and hybrid infrastructures.

Option A (Works with a limited range of computing platforms) – Incorrect: IBM MQ is platform-agnostic and supports multiple operating systems (Windows, Linux, z/OS) and cloud environments (AWS, Azure, Google Cloud, IBM Cloud).

Option B (A versatile messaging integration from mainframe to cluster) – Incorrect: While IBM MQ does support messaging from mainframes to distributed environments, this option does not fully highlight its primary function of secure and auditable messaging.

Option C (Cannot be deployed across a range of different environments) – Incorrect: IBM MQ is highly flexible and can be deployed on-premises, in hybrid cloud, or in fully managed cloud services like IBM MQ on Cloud.

IBM MQ Overview

IBM Cloud Pak for Integration Documentation

IBM MQ Security and Compliance Features

IBM MQ Deployment Options

Why the other options are incorrect:IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, workloads requiring authentication with Identity and Access Management (IAM) need an OAuth secret for secure access. One way to obtain this secret and register a workload is through the OperandConfig API file.

OperandConfig API is used in Cloud Pak for Integration to configure operands (software components).

It provides a mechanism to retrieve secrets, including the OAuth secret necessary for authentication with IBM IAM.

The OAuth secret is stored in a Kubernetes secret, and OperandConfig API helps configure and retrieve it dynamically for a registered workload.

Why Option D is Correct:

A. Extracting the ibm-entitlement-key secret. → Incorrect

The ibm-entitlement-key is used for entitlement verification when pulling IBM container images from IBM Container Registry.

It is not related to OAuth authentication or IAM registration.

B. Through the Red Hat Marketplace. → Incorrect

The Red Hat Marketplace is for purchasing and deploying OpenShift-based applications but does not provide OAuth secrets for IAM authentication in Cloud Pak for Integration.

C. Using a Custom Resource Definition (CRD) file. → Incorrect

CRDs define Kubernetes API extensions, but they do not directly handle OAuth secret retrieval for IAM registration.

The OperandConfig API is specifically designed for managing operand configurations, including authentication details.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration Identity and Access Management

IBM OperandConfig API Documentation

IBM Cloud Pak for Integration Security Configuration

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

jsonpath='{.status.channels[*].name}'

performs the following actions:

oc get packagemanifest → Retrieves the package manifest information for operators installed on the OpenShift cluster.

-n ibm-common-services → Specifies the namespace where IBM Common Services are installed.

ibm-common-service-operator → Targets the IBM Common Service Operator, which manages foundational services for Cloud Pak for Integration.

-o jsonpath='{.status.channels[*].name}' → Extracts and displays the available upgrade channels from the operator’s status field in JSON format.

The IBM Common Service Operator is part of Cloud Pak for Integration Foundational Services.

The status.channels[*].name field lists the available upgrade channels (e.g., stable, v1, latest).

This command helps administrators determine which upgrade paths are available for foundational services.

Why Answer A is Correct:

B. It displays the status and names of channels in the default queue manager. → Incorrect

This command is not related to IBM MQ queue managers.

It queries package manifests for IBM Common Services operators, not queue managers.

C. It retrieves a manifest of services packaged in Cloud Pak for Integration operators. → Incorrect

The command does not return a full list of services; it only displays upgrade channels.

D. It returns an operator package manifest in a JSON structure. → Incorrect

The command outputs only the names of upgrade channels in plain text, not the full JSON structure of the package manifest.

Explanation of Incorrect Answers:

IBM Cloud Pak Foundational Services Overview

OpenShift PackageManifest Command Documentation

IBM Common Service Operator Details

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

After successfully installing an OpenShift cluster, the most reliable way to confirm that the cluster is up and running is by checking the status of its nodes. This is done using the oc get nodes command.

The command oc get nodes lists all the nodes in the cluster and their current status.

If the installation is successful, the nodes should be in a "Ready" state, indicating that the cluster is functional and prepared for further configuration, including the installation of IBM Cloud Pak for Integration (CP4I).

Option A (Incorrect – which oc): This only verifies that the OpenShift CLI (oc) is installed on the local system, but it does not confirm the cluster installation.

Option B (Incorrect – Checking /.openshift_install.log): While the installation log may indicate a successful install, it does not confirm the operational status of the cluster.

Option C (Correct – oc get nodes): This command confirms that the cluster is running and provides a status check on all nodes. If the nodes are listed and marked as "Ready", it indicates that the OpenShift cluster is successfully installed.

Option D (Incorrect – OpenShift Admin Console Access): While the OpenShift Web Console can be accessed if the cluster is installed, this does not guarantee that the cluster is fully operational. The most definitive check is through the oc get nodes command.

Analysis of the Options:

IBM Cloud Pak for Integration Installation Guide

Red Hat OpenShift Documentation – Cluster Installation

Verifying OpenShift Cluster Readiness (oc get nodes)

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, the DataPower Gateway operator is responsible for managing DataPower Gateway deployments within an OpenShift environment. The correct answer is StatefulSet because of the following reasons:

Persistent Identity & Storage:

A StatefulSet ensures that each DataPowerService instance has a stable, unique identity and persistent storage (e.g., for logs, configurations, and stateful data).

This is essential for DataPower since it maintains configurations that should persist across pod restarts.

Ordered Scaling & Upgrades:

StatefulSets provide ordered, predictable scaling and upgrades, which is important for enterprise gateway services like DataPower.

Network Identity Stability:

Each pod in a StatefulSet gets a stable network identity with a persistent DNS entry.

This is critical for DataPower appliances, which rely on fixed hostnames and IPs for communication.

DataPower High Availability:

StatefulSets help maintain high availability and proper state synchronization between multiple instances when deployed in an HA mode.

Why is DataPowerService created as a StatefulSet?

Why are the other options incorrect?❌ Option A (DaemonSet):

DaemonSets ensure that one pod runs on every node, which is not necessary for DataPower.

DataPower requires stateful behavior and ordered deployments, which DaemonSets do not provide.

❌ Option B (Deployment):

Deployments are stateless, while DataPower needs stateful behavior (e.g., persistence of certificates, configurations, and transaction data).

Deployments create identical replicas without preserving identity, which is not suitable for DataPower.

❌ Option D (ReplicaSet):

ReplicaSets only ensure a fixed number of running pods but do not manage stateful data or ordered scaling.

DataPower requires persistence and ordered deployment, which ReplicaSets do not support.

IBM Cloud Pak for Integration Knowledge Center – DataPower Gateway Operator

IBM Documentation

IBM DataPower Gateway Operator Overview

Official IBM Cloud documentation on how DataPower is deployed using StatefulSets in OpenShift.

Red Hat OpenShift StatefulSet Documentation

StatefulSets in Kubernetes

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM Cloud Pak for Integration (CP4I) v2021.2, when integrating LDAP (Lightweight Directory Access Protocol) for authentication, an account lockout policy can be configured to enhance security.

The account lockout policy is designed to prevent brute-force attacks by temporarily or permanently restricting user access after multiple failed login attempts.

If a user enters incorrect credentials multiple times, the account is locked based on the configured policy.

The lockout can be temporary (auto-unlock after a period) or permanent (admin intervention required).

This prevents attackers from guessing passwords through repeated login attempts.

The policy's main function is to restrict access after repeated failed attempts, ensuring security.

It helps mitigate brute-force attacks and unauthorized access.

LDAP enforces the lockout rules based on the organization's security settings.

How the Account Lockout Policy Works:Why Answer D is Correct?

A. It warns the administrator if multiple login attempts fail. → Incorrect

While administrators may receive alerts, the primary function of the lockout policy is to restrict access, not just warn the admin.

B. It prompts the user to change the password. → Incorrect

An account lockout prevents login rather than prompting a password change.

Password change prompts usually happen for expired passwords, not failed logins.

C. It deletes the user account. → Incorrect

Lockout disables access but does not delete the user account.

Explanation of Incorrect Answers:

IBM Cloud Pak for Integration Security & LDAP Configuration

IBM Cloud Pak Foundational Services - Authentication & User Management

IBM Cloud Pak for Integration - Managing User Access

IBM LDAP Account Lockout Policy Guide

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

In IBM API Connect, an Authentication URL user registry is a type of user registry that allows authentication by delegating user verification to an external identity provider. This is typically used when API Connect needs to integrate with custom authentication mechanisms, such as OAuth, OpenID Connect, or SAML-based identity providers.

When configured, API Connect does not store user credentials locally. Instead, it redirects authentication requests to the specified external authentication URL, and if the response is valid, the user is authenticated.

The Authentication URL user registry is specifically designed to reference an external custom identity provider.

This enables API Connect to integrate with external authentication systems like LDAP, Active Directory, OAuth, and OpenID Connect.

It is commonly used for single sign-on (SSO) and enterprise authentication strategies.

Why Answer D is Correct:

A. It authenticates Developer Portal sites. → Incorrect

The Developer Portal uses its own authentication mechanisms, such as LDAP, local user registries, and external identity providers, but the Authentication URL user registry does not authenticate Developer Portal users directly.

B. It authenticates users defined in a provider organization. → Incorrect

Users in a provider organization (such as API providers and administrators) are typically authenticated using Cloud Manager or an LDAP-based user registry, not via an Authentication URL user registry.

C. It authenticates Cloud Manager users. → Incorrect

Cloud Manager users are typically authenticated via LDAP or API Connect’s built-in user registry.

The Authentication URL user registry is not responsible for Cloud Manager authentication.

Explanation of Incorrect Answers:

IBM API Connect User Registry Types

IBM API Connect Authentication and User Management

IBM Cloud Pak for Integration Documentation

IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

https://www.ibm.com/docs/SSMNED_v10/com.ibm.apic.cmc.doc/capic_cmc_registries_concepts.html

In IBM Cloud Pak for Integration (CP4I) v2021.2, which runs on Red Hat OpenShift, the component responsible for determining the placement of workloads (pods) on worker nodes is the Scheduler.

API Server (Option A): The API Server is the front-end of the OpenShift and Kubernetes control plane, handling REST API requests, authentication, and cluster state updates. However, it does not decide where workloads should be placed.

Controller Manager (Option B): The Controller Manager ensures the desired state of the system by managing controllers (e.g., ReplicationController, NodeController). It does not handle pod placement.

Etcd (Option C): Etcd is the distributed key-value store used by OpenShift and Kubernetes to store cluster state data. It plays no role in scheduling workloads.

Scheduler (Option D - Correct Answer): The Scheduler is responsible for selecting the most suitable node to run a newly created pod based on resource availability, affinity/anti-affinity rules, and other constraints.

When a new pod is created, it initially has no assigned node.

The Scheduler evaluates all worker nodes and assigns the pod to the most appropriate node, ensuring balanced resource utilization and policy compliance.

In CP4I, efficient workload placement is crucial for maintaining performance and resilience, and the Scheduler ensures that workloads are optimally distributed across the cluster.

Explanation of OpenShift Components:Why the Scheduler is Correct?IBM Cloud Pak for Integration (CP4I) v2021.2 Administration References:

IBM CP4I Documentation – Deploying on OpenShift

Red Hat OpenShift Documentation – Understanding the Scheduler

Kubernetes Documentation – Scheduler
