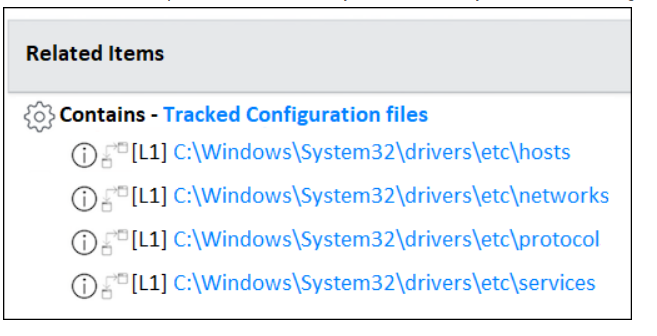

 The functionality shown in the image is related to the Tracked Configuration files feature of ServiceNow Discovery. This feature allows Discovery to track changes in configuration files on Windows and Unix hosts and store them as configuration items (CIs) in the CMDB1. To modify this functionality, such as adding or removing files to track, changing the file attributes to capture, or defining the CI relationships, one needs to edit the Discovery Pattern that is associated with the Tracked Configuration files classifier2. A Discovery Pattern is a series of operations that tell Discovery how to find and identify an application or a configuration file on a host3.

References:

1: Tracked Configuration files - Product Documentation: San Diego - ServiceNow

2: Tracked Configuration files pattern - Product Documentation: San Diego - ServiceNow

3: Patterns and horizontal discovery - Product Documentation: Tokyo - ServiceNow

Variables are used in discovery patterns to store and manipulate data that is collected or calculated during the discovery process. There are three kinds of variables used in discovery patterns12:

CI attributes: These are variables that correspond to the attributes of the configuration item (CI) type that the pattern is discovering. For example, name, serial_number, manufacturer, etc. CI attributes are used to populate the CI record in the CMDB with the information gathered by the pattern.

Temporary: These are variables that are created and used within the pattern, but are not stored in the CMDB. For example, $result, $output, $user_var, etc. Temporary variables are used to store and manipulate data such as the output of a command, the value of a parameter, or the result of a calculation.

Global: These are variables that are defined in the global scope and can be accessed by any pattern. For example, $mid, $target, $ip_address, etc. Global variables are used to store and access data that is common to all patterns, such as the MID Server, the target device, or the IP address.

References:

1: ServiceNow Discovery Documentation, Pattern Variables section

2: ServiceNow Discovery Overview, page 11

SNMP credentials are used by Discovery to communicate with devices that support the Simple Network Management Protocol (SNMP). SNMP credentials do not include a user name, just a password, called the community string. The default read-only community string for many SNMP devices is public, and Discovery will try that automatically. Enter the appropriate SNMP credentials if they differ from the public community string1.

References: 1: SNMP credentials - Product Documentation: Utah - Now Support Portal

Discovery uses the ping method to determine if a host IP is active or alive. Ping is a network utility that sends an ICMP echo request packet to a target IP address and waits for an ICMP echo reply packet. If the target IP address responds, it means that the host is active or alive12.

References:

1: ServiceNow Discovery Documentation, Discovery Process section

2: ServiceNow Discovery Overview, page 8

 CI reclassification is the process of changing the class of a CI in the CMDB based on the discovery data. It can be done manually or automatically, depending on the configuration settings. CI reclassification can result in data loss if the new class has fewer or different attributes than the original class, and the existing attribute values are not preserved or mapped to the new class. This can happen when a CI is switched to a different class hierarchy, such as from a Linux Server to a Windows Server, or when a CI is downgraded to a less specific class, such as from a Database to a Software Instance. Therefore, switching and downgrading have a higher chance of leading to lost data during CI reclassification.

References:

CI reclassification

Reclassify CIs

Configure automatic CI reclassification

For discovering Windows Servers, ServiceNow Discovery recommends using credentials that have a domain user account with local administrator access on the target servers. This level of access ensures that Discovery can successfully execute the necessary probes and sensors to collect comprehensive data about the server without being restricted by permission limitations. The other options either provide excessive permissions (like a domain administrator with sudo access) or insufficient privileges (like a standard domain user with read access).

The Discovery pattern log is a log that records the execution of a pattern during Discovery or Service Mapping1. It shows the success or failure of the individual pattern steps, as well as the input and output variables, the CI attributes and relationships, and the errors or warnings2. The ECC Queue is a table that displays the input and output messages from and to MID Servers3. It shows the payload of CI attributes and relationships, the Shazzam probe payload, and the relationships created, but not the success or failure of the individual pattern steps4. The success or failure of the individual pattern steps is specific to the Discovery pattern log and can be used to debug or troubleshoot the pattern execution2.

References: 1: Discovery pattern log 2: View the Discovery pattern log 3: ECC Queue 4: ECC Queue Processing and Debugging, with “Discovery - Sensors” used as an example

In ServiceNow Discovery, a horizontal discovery pattern refers to the logical set of steps that the Discovery process executes to find CI information across the network. Each step in a horizontal discovery pattern performs specific operations such as running probes, executing commands, or querying databases to gather information about the configuration items (CIs). It's about expanding the breadth of discovery across devices and applications, rather than going in-depth into a specific CI's details, which would be vertical discovery. Classifiers, credential depots, and port scanning tools are part of the discovery process but do not describe the horizontal discovery pattern itself.

The Put file operation allows the transfer of a file from the MID Server to a target1. This operation can be used to copy files from the MID Server to a target device, such as configuration files, scripts, or binaries2. The Put file operation requires the file path on the MID Server and the file path on the target as inputs2.

References:

1: Put file

2: Define discovery steps

The Debug Identification Section in Debug Mode allows you to specify the identification attributes of a CI that you want to debug. These attributes are used to find the CI in the CMDB and run the pattern on it. The identification attributes vary depending on the CI class, but for infrastructure patterns, the common ones are IP and Host Name. These attributes are also used by the horizontal discovery to identify CIs. AWS Endpoint and PID are not valid identification attributes for infrastructure patterns.

References: The explanation is based on the following sources:

Activate pattern Debug mode: This document explains how to activate the Debug mode and use the Debug Identification Section to debug a pattern.

ServiceNow Exam CIS-Discovery Topic 6 Question 9 Discussion: This discussion provides a similar question and answer about the Debug Identification Section in Debug Mode.
