AVIXA CTS - Certified Technology Specialist

The throw distance of a projector can be calculated using the throw ratio formula: Throw Distance=Throw Ratio×Screen Width\text{Throw Distance} = \text{Throw Ratio} \times \text{Screen Width}Throw Distance=Throw Ratio×Screen Width

Given: Throw Ratio=2.3\text{Throw Ratio} = 2.3Throw Ratio=2.3 Screen Width=144 in\text{Screen Width} = 144 \text{ in}Screen Width=144 in

Throw Distance=2.3×144\text{Throw Distance} = 2.3 \times 144Throw Distance=2.3×144 Throw Distance=331.2 in\text{Throw Distance} = 331.2 \text{ in}Throw Distance=331.2 in

Therefore, the projector should be placed approximately 331 inches (8413 mm) from the screen.

Subwoofers are designed to amplify the lowest frequencies, typically ranging from about 20 Hz to 200 Hz. These low-frequency sounds are crucial for producing deep bass tones in audio systems, enhancing the overall listening experience by providing a richer and fuller sound.

Knowledge of the overall room function as envisioned by the client provides a starting point for determining the space AV needs. Understanding the client's intended use of the room helps in specifying the appropriate AV components and designing a system that meets their requirements. Axis Technology Specialist documentation highlights the importance of aligning AV system design with the client's vision to ensure the functionality and usability of the space.

Top of Form

Bottom of Form

Maintaining AV operations involves ensuring that all system components are up to date and functioning correctly. One critical aspect is updating the control system firmware. Firmware updates often include performance improvements, security patches, and new features that can enhance the reliability and functionality of AV systems.

EDID (Extended Display Identification Data) is the protocol that allows sources (such as computers or media players) and displays (such as monitors or projectors) to communicate in order to ensure the display is sent the correct signal. EDID provides a way for the display to convey its capabilities (such as resolution, refresh rate, and color depth) to the source device, enabling the source to adjust its output to match these capabilities, thereby ensuring optimal display performance.

A public address (PA) system is designed to amplify and distribute sound across different zones or areas. Each zone can have its own set of microphones, amplifiers, and speakers to cater to specific needs, allowing for targeted announcements or audio distribution.

A program report is a written, non-technical narrative that explains system functionality. It outlines the operational aspects of the system in a way that is understandable to non-technical stakeholders, providing clarity on how the system will perform and meet the client's needs. Axis documentation includes program reports as part of their comprehensive project documentation to communicate system functionality effectively.

Projection screens should be positioned to avoid obstructing alarm indicators, clocks, and light switches, as these are critical elements within a room that need to remain accessible and visible. Ensuring they are not blocked helps maintain safety and usability within the space.

CTS Technology Specialist Reference

As per CTS guidelines, projection screen placement should consider accessibility and visibility of room elements critical to operation and safety, like alarms and controls.

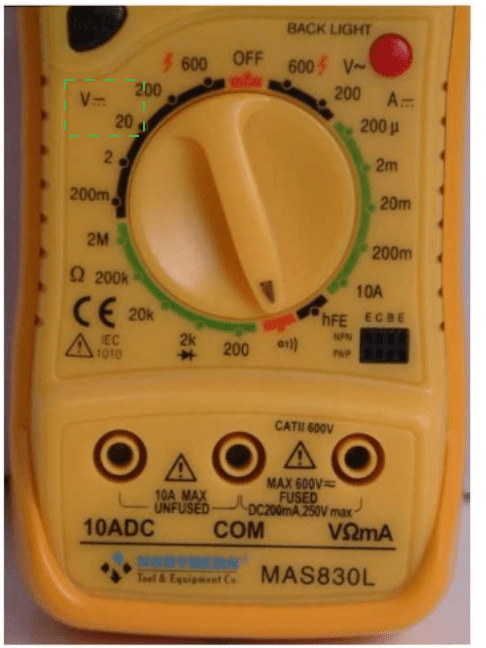

The correct setting is the section marked with “V⎓” (DC Voltage), specifically within the range that matches your expected DC power supply output, e.g., 20V under the “V⎓” section.

According to the AVIXA CTS Exam Guide, Chapter 6: Troubleshooting, checking if a DC power supply has failed requires measuring the DC output voltage. This involves setting your multimeter to the DC voltage (V⎓) range that covers the expected output.

From the guide:

“When testing a DC power source, use the DC voltage range on your digital multimeter. Begin with a higher range (e.g., 200V) to avoid damaging the meter, then narrow down for precision if needed.”

Avoid using resistance (Ω), AC voltage (V~), or current (A) ranges when checking voltage output.

During the needs analysis stage, understanding the client’s application is critical, as it defines how the AV system will be used. This information guides the design to ensure the system meets the functional requirements for the specific use case, such as conferencing, presentations, or entertainment.

CTS Technology Specialist Reference

The CTS guidelines on needs analysis emphasize determining the application as a foundation for tailoring the AV solution to fit client-specific operational needs and goals.
