The best immediate workaround is to patch the input directly to the output, bypassing the switcher. This allows the system to continue functioning while a more permanent solution is found. It ensures that the client experiences minimal downtime and disruption. Changing the power supply or replacing the switcher are also viable options, but they may take more time and resources. Calling the manufacturer for support can also be part of the solution process, but it doesn't provide an immediate workaround.

In a cardioid subwoofer array, phase shift is employed along with delay and equalization to control the directivity of the sound, focusing bass energy forward and minimizing it behind. Phase shifting alters the waveforms of sound signals, contributing to the cardioid pattern that reduces bass spill to unwanted areas.

CTS Technology Specialist Reference

The CTS materials on sound system design explain that phase manipulation, alongside delay, is essential for cardioid subwoofer arrays to control low-frequency dispersion effectively.

For a rear projection room, it is recommended to paint the room black. Black walls minimize reflections and ambient light, which can negatively impact the quality of the projected image. By reducing these reflections, the contrast and clarity of the projection are improved, providing a better viewing experience. While gray is also a common choice for minimizing light reflections, black is more effective for creating the optimal environment for projection purposes.

Top of Form

Bottom of Form

Before visiting the site, the new technician should review the project documentation to understand the system design, past modifications, and current status. This ensures they are well-prepared and familiar with the specifics of the installation.

CTS Technology Specialist Reference

According to CTS best practices, reviewing project documentation is critical for any technician assigned to an existing project to minimize errors and ensure continuity.

The main benefit of an externally managed AV/IT service is the cost reduction in operations through clear responsibilities. Externally managed services can streamline operations by clearly defining the roles and responsibilities of the service provider, which leads to more efficient management and utilization of resources. This approach can also provide specialized expertise and support, reducing the need for in-house staff and lowering overall operational costs.

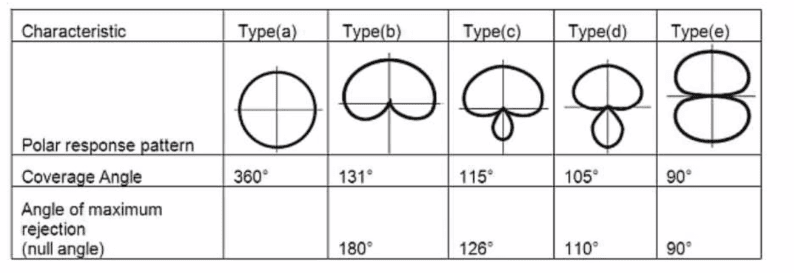

A cardioid microphone has a heart-shaped (or “cardioid”) pick-up pattern that captures sound primarily from the front while rejecting sound from the rear. The pattern shown for Type(b) aligns with a typical cardioid response, featuring a coverage angle of approximately 131°, which indicates its directional sensitivity towards the front and rejection from the back.

CTS References: AVIXA CTS Exam Guide, Chapter on Microphone Types and Polar Patterns; CTS Handbook, Section on Microphone Selection and Directional Patterns.

Subwoofers are generally not required for a PA system focused solely on speech reinforcement because they reproduce low-frequency sounds that are not necessary for intelligibility of spoken word. Speech reinforcement systems typically prioritize clarity in the mid and high frequencies.

CTS Technology Specialist Reference

The CTS curriculum states that speech reinforcement systems should prioritize mid and high frequencies, which are critical for voice clarity, while subwoofers are typically used in music reinforcement for low-frequency response.

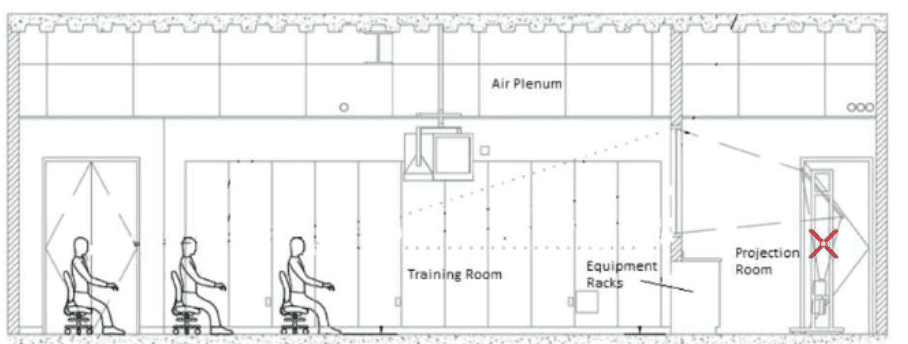

The correct answer is the Air Plenum area — the space above the ceiling tiles used for air circulation in HVAC systems.

According to NFPA 70: National Electrical Code (NEC) and referenced in the AVIXA CTS Exam Guide, cabling run through plenum spaces must meet stringent fire and smoke safety standards. This is because if a fire occurs, the plenum area can rapidly spread smoke and toxic fumes throughout a building.

From the CTS Exam Guide (5th Edition), under Chapter 2: Infrastructure, it states:

“Plenum-rated cable is required in spaces used for environmental air (plenum spaces), as these cables are designed with fire-retardant jackets that emit low smoke. Non-plenum cable cannot be used unless it is enclosed in a conduit rated for plenum use.”

— AVIXA CTS Exam Guide, Chapter 2, p. 42–44

The tip portion of the connector.

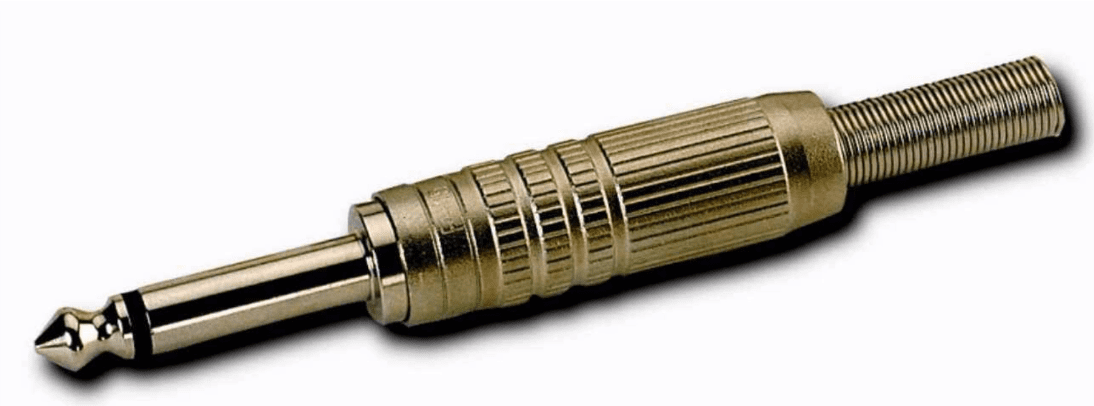

This is a 1/4-inch TS (Tip-Sleeve) connector, commonly known as an unbalanced mono plug. For these connectors, the tip is the portion responsible for carrying the signal, while the sleeve serves as the ground or return path. In audio applications, TS connectors are typically used for unbalanced signals, such as instrument cables for guitars.

The tip of the connector is at the very end, identifiable by the small section separated by an insulating ring. This section is where the signal travels.

The sleeve is the long metal section that connects to the ground.

CTS Technology Specialist Reference

The CTS materials on audio connectors detail how TS connectors carry signals, with the tip designated for signal and the sleeve for ground. Recognizing the signal-carrying part is crucial for proper AV connections and troubleshooting.

The amount of air that moves through the credenza is crucial because AV equipment generates heat during operation. Proper ventilation ensures that the equipment does not overheat, which can cause damage and impact performance. Overheating can void warranties as manufacturers typically specify operational temperature ranges and ventilation requirements. Ensuring adequate airflow is a common stipulation in AV equipment warranties. Proper ventilation helps maintain optimal operating conditions, thereby protecting the equipment and upholding warranty terms.
