EMC D-PVM-OE-01 - Dell PowerMax Operate v.2

Step by Step Comprehensive Detailed Explanation:

Dell PowerMax storage arrays utilize different device types for various purposes. Solutions Enabler (SYMCLI) and Unisphere for PowerMax are management tools that can interact with these device types. Here's a breakdown:

SRDF Thin Devices (RDF1 or RDF2):These devices are specifically used for SRDF (Symmetrix Remote Data Facility) replication. RDF1 devices represent the local copy of data in an SRDFrelationship, while RDF2 devices represent the remote copy. Both Solutions Enabler and Unisphere can manage these devices to configure and monitor SRDF replication.

Internal Thin Devices (Int+TDEV):These are thin provisioned devices that reside within the PowerMax storage array. They are used for general storage purposes and can be managed by both Solutions Enabler and Unisphere for tasks like provisioning, allocating capacity, and monitoring performance.

Thin Devices (TDEV):This is a general term for thin provisioned devices in PowerMax. Thin provisioning allows for efficient storage utilization by allocating capacity on demand.1Both Solutions Enabler and Unisphere can manage these devices.

Why other options are incorrect:

B. Thin BCV Devices (BCV+TDEV):BCV (Business Continuance Volume) devices are used for creating point-in-time copies for disaster recovery. While Solutions Enabler can manage BCV devices, Unisphere for PowerMax has limited functionality for managing them directly.

D. Data Devices (TDATs):TDATs are physical devices within the PowerMax array. While Solutions Enabler can interact with TDATs at a lower level, Unisphere for PowerMax primarily focuses on managing logical devices and storage groups.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of PowerMax devices and their management. It mentions the different device types and how they are used in the PowerMax environment.

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about Solutions Enabler commands for managing various device types, including SRDF devices, thin devices, and internal devices.

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help documentation for Unisphere for PowerMax explains how to manage different device types through the graphical user interface, including provisioning, monitoring, and configuring storage.

Step by Step Comprehensive Detailed Explanation:

When you install Unisphere for PowerMax on a Microsoft Windows host, it installs several services necessary for its operation. The two primary services that are active after installation are:

SMAS (Storage Management Agent Service):This service is responsible for communication between the Unisphere server and the PowerMax storage array. It handles tasks like collecting data, sending commands, and receiving alerts from the array.

smasdb:This service manages the local database used by Unisphere for storing configuration information, performance data, and other relevant information.

Why other options are incorrect:

A. SYMAPI and symrdfg:SYMAPI is a command-line interface tool, not a service. symrdfg is a service related to SRDF (Symmetrix Remote Data Facility) replication, which may not be active if SRDF is not configured.

B. SMASandGNS:GNS is not a standard service associated with Unisphere for PowerMax.

C. SMASandSTP:STP is not a standard service associated with Unisphere for PowerMax.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Installation Guide:This guide provides detailed instructions for installing Unisphere for PowerMax on different operating systems, including Windows. It also lists the services that are installed and their functions. You can find this document on the Dell Support website by searching for "Unisphere for PowerMax Installation Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help documentation for Unisphere may also provide information about the services it uses and their roles.

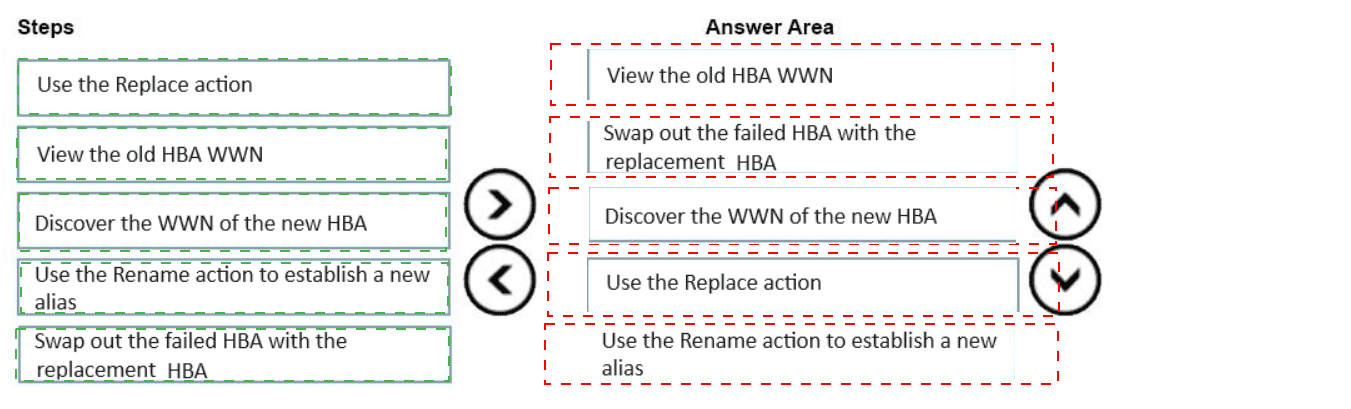

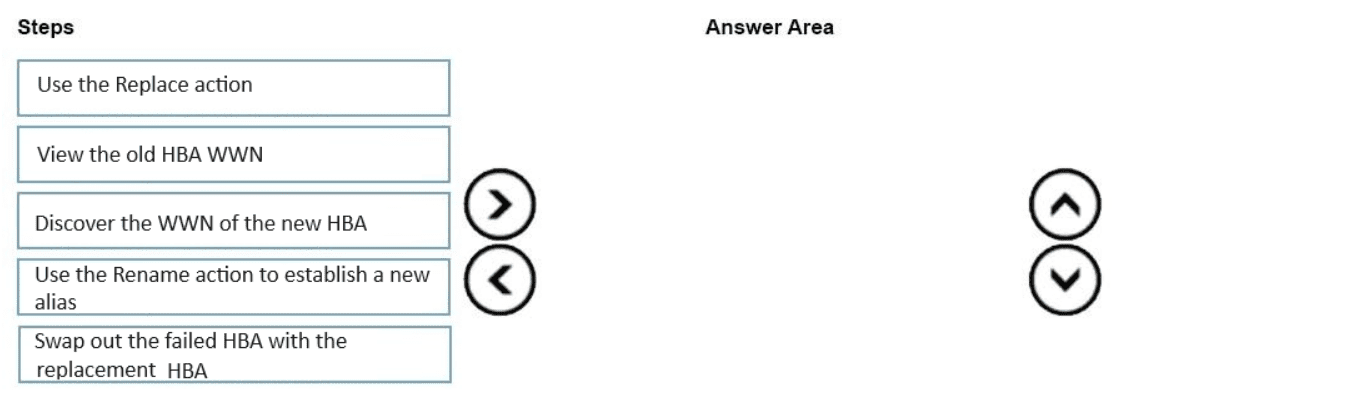

1.view old HBA WWN

2.swap out the old HBA

3.Discover the WWN

4.Use the replace action

5.Use the rename action

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), an "update" operation refers to a specific process where changes made on the target (R2) side are copied back to the source (R1) side. This is typically used in disaster recovery scenarios where:

Failover:A failover occurs, and the target (R2) becomes the active production site.

Data Modification:Data is modified or updated on the target (R2) while it's acting as the primary.

Update Operation:An "update" is initiated to synchronize the changes from the target (R2) back to the source (R1), ensuring that the source has the latest data.

This process is crucial for maintaining data consistency and ensuring a smooth transition back to the original production site after a failover event.

Why other options are incorrect:

A. process to retain the data on the target R2 side:This is not specific to an "update" operation. Data retention on the target is a general aspect of SRDF.

B. A process used to return to the original production site after a failover event:While an "update" is part of the failback process, it's not the entire process itself. Failback involves other steps like reversing replication direction and restoring host access.

D. A process that allows separate hosts to access the same data independently:This describes a different SRDF configuration (like Active/Active) and is not related to the "update" operation.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf update command used to initiate an update from R2 to R1. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "update" operation.

The Workload Planner then compares the two values to the maximum response time associated with its given service level. If both calculated values fall within (under) the service level defined response time band, the compliance state is STABLEhttps://www.dell.com/support/kbdoc/en-us/000022528/how-does-the-workload-planner-function
