During an RCM (Release Certification Matrix) upgrade escalation, the Delivery Manager is an optional resource. While not always required, the Delivery Manager can be involved to provide additional oversight and coordination if needed.

References:

Dell EMC RCM process documentation.

Project management escalation procedures.

ï‚· VxBlock Central

ï‚· Network

ï‚· Storage

ï‚· Compute

ï‚· Virtualization

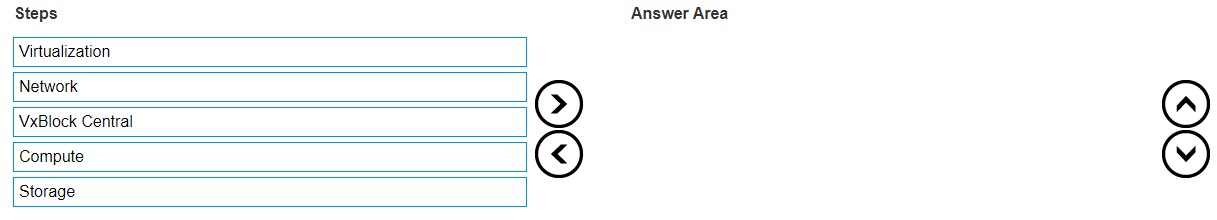

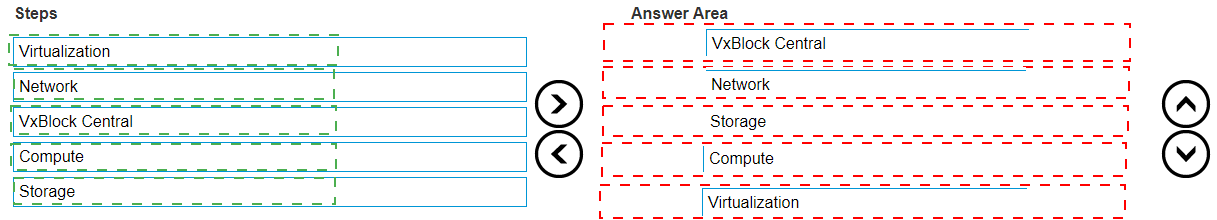

In the Dell EMC RCM (Release Certification Matrix) Workbook upgrade plan, the sequence of upgrading VxBlock components is designed to ensure system stability and minimize disruptions. Here’s the detailed reasoning for the correct sequence:

VxBlock Central:

Explanation: VxBlock Central is the management and orchestration layer of the VxBlock system. Upgrading this first ensures that the management tools are compatible with the new versions of the other components and can properly coordinate and monitor the upgrade process.

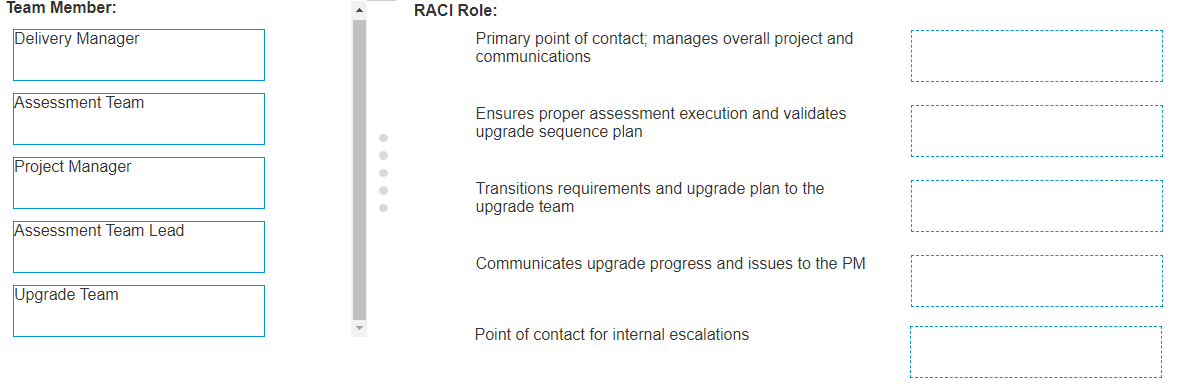

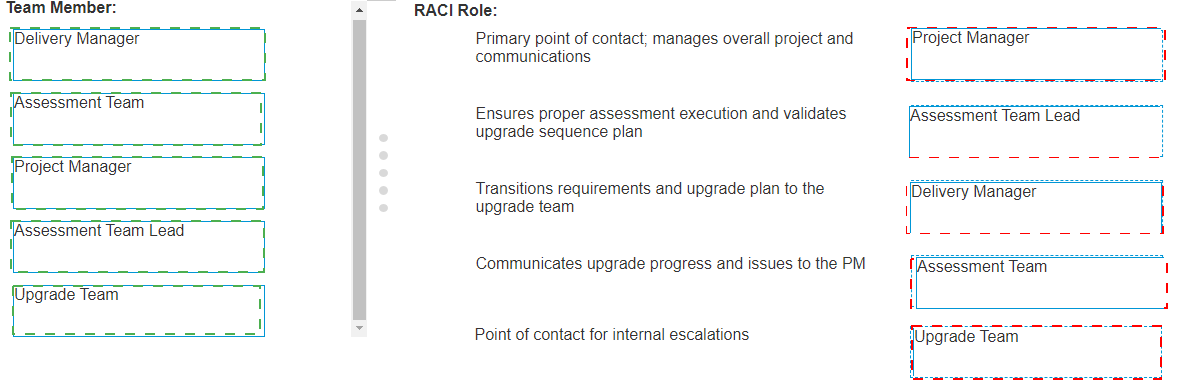

Match each team member with their RACI role as follows:

Project Manager: Primary point of contact; manages overall project and communications

Assessment Team Lead: Ensures proper assessment execution and validates upgrade sequence plan

Assessment Team: Communicates upgrade progress and issues to the PM

Delivery Manager: Transitions requirements and upgrade plan to the upgrade team

Upgrade Team: Point of contact for internal escalations

Project Manager: Primary point of contact; manages overall project and communications

The Project Manager is responsible for overseeing the entire project, coordinating all activities, and serving as the main point of contact for stakeholders.

Assessment Team Lead: Ensures proper assessment execution and validates upgrade sequence plan

The Assessment Team Lead oversees the assessment phase, ensuring that the evaluation is thorough and that the upgrade sequence is properly planned and validated.

Assessment Team: Communicates upgrade progress and issues to the PM

The Assessment Team members are responsible for executing the assessment tasks and reporting progress and any issues encountered to the Project Manager.

Delivery Manager: Transitions requirements and upgrade plan to the upgrade team

The Delivery Manager is responsible for ensuring that all requirements and the upgrade plan are effectively communicated and handed over to the upgrade team for execution.

Upgrade Team: Point of contact for internal escalations

The Upgrade Team handles the actual upgrade process and serves as the primary point of contact for any internal escalations that may arise during the upgrade.

References:

Dell EMC project management and RACI documentation.

Industry best practices for defining roles and responsibilities in a RACI matrix.

Understand ACI Fabric: ACI fabric policies are applied to manage and control the network traffic within the fabric1.

Identify Policy Application: Policies in ACI are applied between Endpoint Groups (EPGs), which are collections of network endpoints with common policy requirements1.

Recognize Policy Direction: These policies can be applied in a unidirectional or bidirectional manner, providing flexibility in controlling the flow of traffic between EPGs1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with Cisco’s guidelines on ACI fabric policies, which state that policies can be applied between two or more EPGs and can be either unidirectional or bidirectional1.

Understand VxLAN: VxLAN, or Virtual Extensible LAN, is a network virtualization technology that encapsulates Layer 2 Ethernet frames within Layer 3 UDP packets1.

Identify Encapsulation Process: This encapsulation allows for the creation of a virtualized Layer 2 network over an existing Layer 3 infrastructure, enabling greater scalability and flexibility in network design1.

Recognize VxLAN Functionality: By encapsulating Layer 2 frames in UDP packets, VxLAN extends Layer 2 networks over Layer 3 networks, which is particularly useful in cloud computing and data center environments1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this understanding of VxLAN, highlighting its role in network virtualization and the encapsulation process1.

Review PowerMax 8000 Specifications: The PowerMax 8000 is designed to support a dispersed configuration, allowing for flexibility in the physical placement of its components1.

Identify Maximum Dispersion: The maximum allowed dispersion between bricks in a PowerMax 8000 system is up to 25 meters1.

Understand Dispersion Considerations: This dispersion allows for the separation of individual or contiguous groups of system bays, providing options for physical layout within a data center1.

Reference Official Documentation: The Official Dell VxBlock Deploy Achievement document would align with this specification, ensuring that the system meets both performance and physical space requirements1.

Review the RCM Assessment Workbook: The RCM (Release Certification Matrix) Assessment Workbook is a tool used during the upgrade process of VxBlock systems1.

Understand the Workbook’s Purpose: Its primary use is to identify items and components within the VxBlock system that require remediation before an upgrade can be performed1.

Utilize the Workbook: By using the RCM Assessment Workbook, engineers can systematically review the current state of the system and pinpoint areas that need attention1.

Ensure Compliance: This step is crucial to ensure that all components meet the necessary standards and are compatible with the new RCM version1.

The Nexus 5000 series switches provide Fibre Channel (FC) connectivity between Cisco UCS hosts and the storage array in a Unified Network. The Nexus 5000 series is designed to support both Ethernet and FC traffic, making it suitable for Unified Fabric environments.

References:

Cisco Nexus 5000 series documentation.

Technical resources on Unified Network configurations.

Understand the role of VLANs: VLANs (Virtual Local Area Networks) are used to segment network traffic.They provide isolation between network segments at the data link layer (Layer 2) of the OSI model1.

Identify the need for isolation: vSwitch port groups are used to segregate network traffic for different virtual machines or services.To ensure that each port group’s traffic is isolated from the others, separate VLAN IDs are assigned1.

Assign unique VLAN IDs: Each vSwitch port group should be assigned a unique VLAN ID to maintain network isolation.This prevents traffic from one port group from being accessible to another1.

Configure the physical switch ports: The physical switch ports that the vSwitch is connected to must be configured to recognize the VLAN IDs used by the vSwitch port groups1.

Validate the configuration: After configuring VLAN IDs, it’s important to validate the configuration to ensure that the network isolation is functioning as intended1.

Identify the Correct Document: The Port Map is typically used to provide a visual representation of all the connections on a network switch, including those that have been recently upgraded1.

Understand the Purpose of a Port Map: A Port Map is a detailed diagram that shows the physical and logical connections to and from a network switch.It is an essential tool for network administrators to visualize the network topology and troubleshoot connectivity issues1.

Utilize the Port Map: After an upgrade, the Port Map can be referenced to verify that all connections have been correctly re-established and that the switch is functioning as expected within the network infrastructure1.
