Fortinet FCP_WCS_AD-7.4 - FCP - AWS Cloud Security 7.4 Administrator Exam

FortiSandbox Deployment:

FortiSandbox for AWS deploys new EC2 instances to create isolated environments where it can safely execute and analyze suspicious files. These instances run custom Windows and Linux virtual machines specifically configured for sandboxing (Option D).

Sandboxing Process:

The process involves sending potential malware to these isolated VMs, executing it, and monitoring its behavior to detect malicious activities. The results are then captured and analyzed to provide detailed threat intelligence.

Other Options Analysis:

Option A is incorrect because FortiSandbox for AWS operates entirely within the AWS environment and does not require an on-premises manager.

Option B is incorrect as the FortiSandbox manager is not installed on the AWS platform for managing on-premises instances.

Option C is incorrect because FortiSandbox requires sufficient resources to perform the actual sandboxing and analysis tasks.

References:

FortiSandbox for AWS Documentation: FortiSandbox

Sandboxing Concepts:Sandboxing

HA Event and Failover:

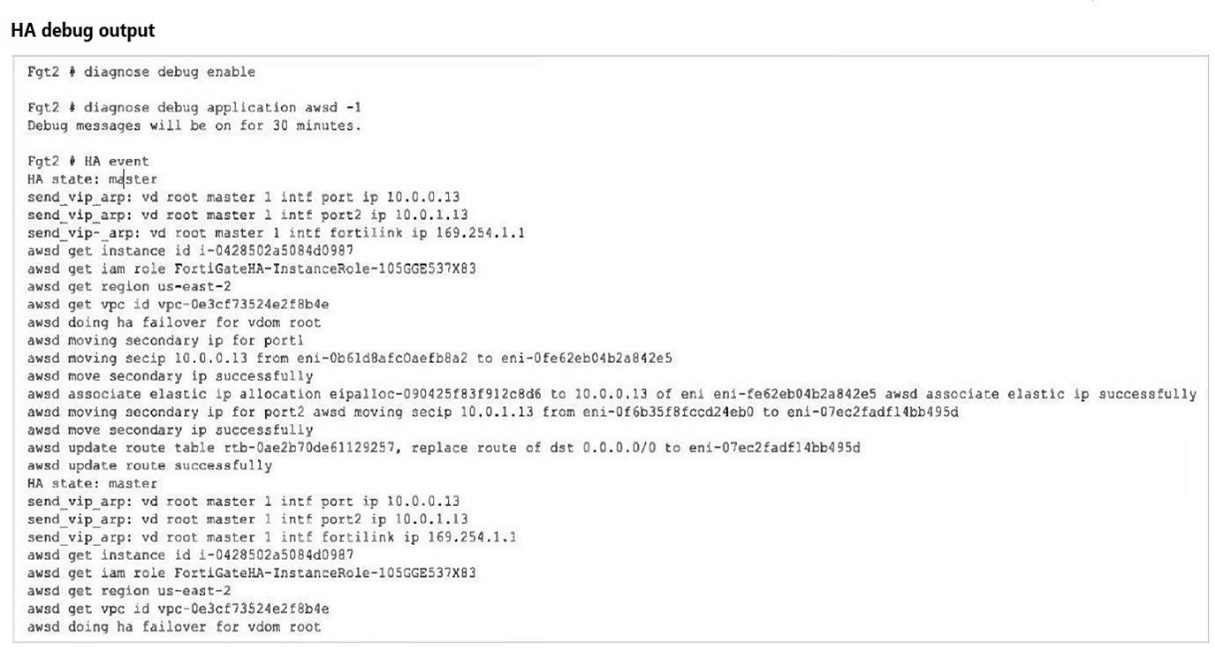

The debug output indicates that a failover event occurred and the secondary instance (Fgt2) is now taking over as the master.

Elastic IP Association:

The debug output shows the process of moving the Elastic IP (eipalloc-090425f83f912c8d6) to the new master instance. This involves associating the Elastic IP with the appropriate network interface (eni) of the new master.

Specific IP Address Association:

The Elastic IP is specifically associated with port1 of Fgt2. The message "associate elastic ip eipalloc-090425f83f912c8d6 to 10.0.0.13 of eni eni-0f6b35f8fccd24eb0" indicates that the Elastic IP is now linked to the primary IP address (10.0.0.13) on port1 of the new master.

Other Options Analysis:

Option A is incorrect because the routing table update details are not explicitly stated.

Option C is incorrect because the IP address association mentioned relates to an Elastic IP, not eni-0b61d8afc0aefb8a2.

Option D is incorrect because it specifically mentions port2 for the Elastic IP association, which is not indicated in the debug output.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation:Elastic IP

Understanding Gateway Load Balancer (GWLB):

GWLB is designed to distribute traffic across multiple appliances for both inbound and outbound traffic, providing scalability and high availability.

Traffic Load Balancing:

GWLB can send traffic to multiple FortiGate appliances for load balancing purposes, ensuring efficient use of resources (Option A).

Stateful Processing:

For stateful processing, GWLB ensures that traffic flows (both inbound and outbound) for a given connection are directed to the same FortiGate appliance. This maintains session integrity (Option B).

Preservation and Hashing of Traffic:

Options C and D are incorrect as they suggest incorrect behavior regarding traffic content preservation and hashing for data integrity, which are not primary functions of GWLB.

References:

AWS Gateway Load Balancer Documentation:AWS Gateway Load Balancer

FortiGate Integration with GWLB: Fortinet Documentation

Internet Gateway Requirement:

For an Elastic IP (EIP) to be assigned to an instance's primary ENI, the VPC must have an Internet Gateway (IGW) attached. The IGW enables the VPC to communicate with the internet, allowing the EIP to function properly (Option C).

Process of Assigning EIP:

Once the Internet Gateway is attached to the VPC, the EIP can be successfully assigned to the primary ENI of the FortiGate VM, providing it with internet access.

Other Options Analysis:

Option A is incorrect because the primary ENI is already in a public subnet.

Option B is not necessary and may not solve the issue without an attached Internet Gateway.

Option D is partially correct about the routing table but does not address the primary issue of needing an Internet Gateway.

References:

AWS Elastic IP Documentation:Elastic IP

AWS Internet Gateway:Internet Gateway

FortiGate Cloud-Native Firewall (CNF):

FortiGate CNF offers cloud-native firewall capabilities designed to provide network security within AWS. It integrates seamlessly with AWS services and offers advanced threat protection and traffic management (Option C).

Fortinet Managed Rules for AWS WAF:

Fortinet Managed Rules for AWS WAF provide pre-configured, updated security rules that protect web applications from common threats such as SQL injection and cross-site scripting. This offering simplifies the protection of web applications hosted on AWS (Option D).

FortiWeb Cloud:

FortiWeb Cloud is a Web Application Firewall (WAF) as a service that provides comprehensive protection for web applications hosted on AWS. It offers features such as bot mitigation, DDoS protection, and deep inspection of HTTP/HTTPS traffic (Option E).

Comparison with Other Options:

Option A (AWS WAF) is a native AWS service, not a Fortinet offering.

Option B (FortiEDR) is focused on endpoint detection and response, which is not specifically aimed at protecting web applications.

References:

FortiGate CNF Documentation: FortiGate CNF

Fortinet Managed Rules for AWS WAF:Fortinet AWS WAF Rules

FortiWeb Cloud Overview: FortiWeb Cloud

Implicit Deny Rule:

Similar to traditional firewall rule sets, FortiGate Cloud-Native Firewall (CNF) includes an implicit deny rule at the bottom of each policy set. This means any traffic that does not match an existing rule in the policy set is automatically denied (Option A).

Policy Set Creation:

When a new CNF instance is deployed, a new policy set is created specifically for that instance. This ensures that each CNF instance can have a tailored set of security policies based on the specific needs of the deployment (Option C).

Other Options Analysis:

Option B is incorrect because policy sets do not require manual synchronization; they are applied automatically once configured.

Option D is incorrect as a single CNF instance operates with a single policy set at a time.

References:

FortiGate CNF Documentation: FortiGate CNF

Firewall Policy Best Practices: Fortinet Policies

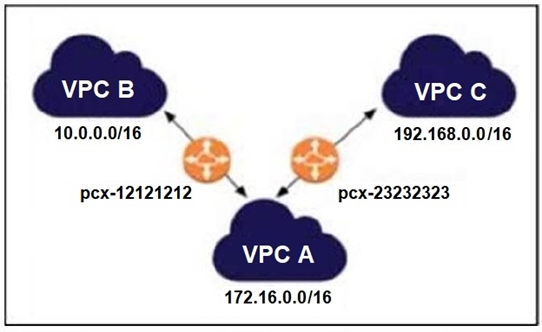

Understanding VPC Peering:

VPC peering connections allow instances in one VPC to communicate with instances in another VPC. Peering is a one-to-one relationship between two VPCs.

Transit Routing Limitation:

AWS VPC peering connections do not support transitive peering. This means that a packet originating in VPC B cannot be routed through VPC A to reach VPC C. Each pair of VPCs must have its own peering connection.

Routing Table Configuration:

Even if you add a route in the VPC A routing table for the 192.168.0.0/16 network, it won't allow VPC B to communicate with VPC C because of the non-transitive nature of VPC peering.

Comparison with Other Options:

Option A is incorrect because adding a route in VPC A does not overcome the limitation of non-transitive peering.

Option C is incorrect because associating pcx-23232323 with VPC B is not how VPC peering works.

Option D is incorrect because you can create a separate peering connection between VPC B and VPC C, which is the required approach for communication between these VPCs.

References:

AWS VPC Peering Guide:VPC Peering

Limitations of VPC Peering:AWS VPC Peering Limitations

VPC-Scoped Protection:

When deploying a FortiWeb VM inside a Virtual Private Cloud (VPC), the security and protection it offers are limited to the applications and traffic that pass through that specific VPC. This means that any applications outside this VPC will not benefit from the protection of FortiWeb VM (Option D).

Comparison with FortiWeb Cloud:

FortiWeb Cloud, being a cloud-native WAF-as-a-Service, can protect applications regardless of their VPC location, offering broader and more flexible protection capabilities.

Other Options Analysis:

Option A is incorrect because both FortiWeb VM and FortiWeb Cloud protect against OWASP Top 10 threats.

Option B is incorrect because FortiWeb VM does support zero-day protection.

Option C is incorrect as the performance of FortiWeb VM in applying advanced WAF protection is not inherently slower compared to FortiWeb Cloud.

References:

FortiWeb Overview: FortiWeb

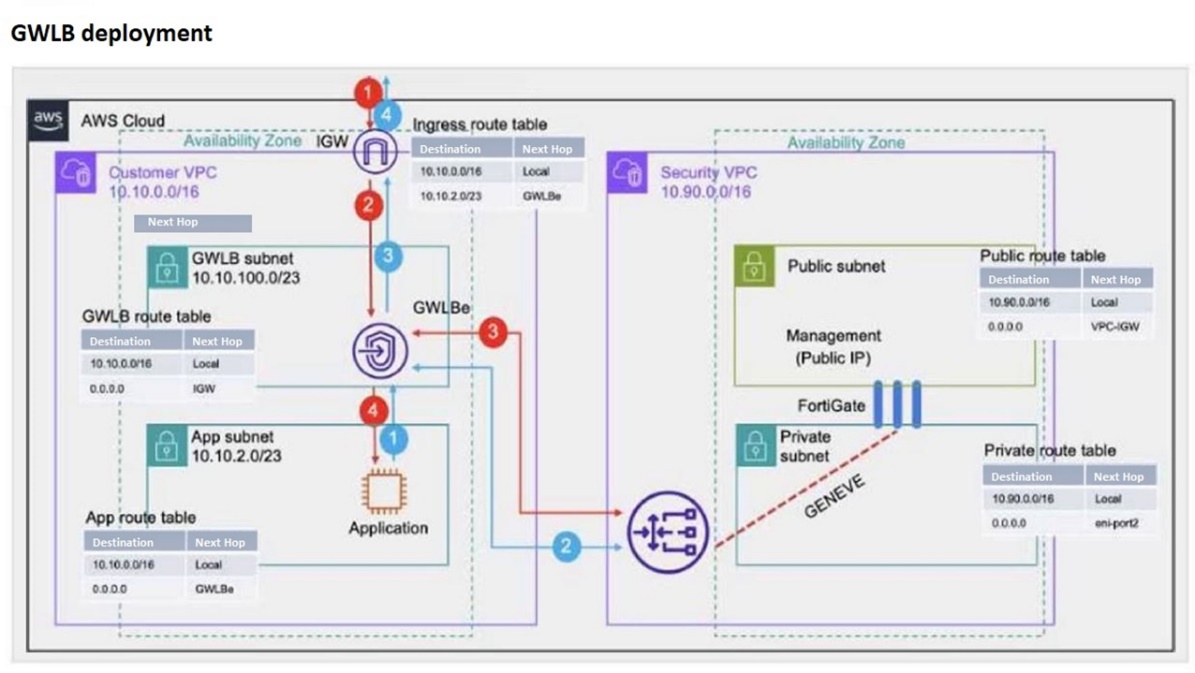

Traffic Direction through GWLB Endpoint:

The ingress route table directs inbound traffic to the GWLB through a GWLB endpoint (GWLBe). This endpoint is responsible for directing traffic to the Gateway Load Balancer for further processing (Option B).

GENEVE Encapsulation:

The GWLB encapsulates the inbound traffic using the GENEVE protocol. This encapsulated traffic is then sent to FortiGate instances for security inspection. The use of GENEVE ensures that the original traffic context is preserved and can be analyzed by FortiGate (Option D).

Other Options Analysis:

Option A is incorrect because GWLB does not forward traffic without encapsulation in its dedicated subnet.

Option C is incorrect as the inbound traffic is directed to the GWLB endpoint first, not directly to the application subnet.

References:

AWS Gateway Load Balancer Documentation:AWS GWLB

GENEVE Protocol Overview: GENEVE Protocol
