Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

Comprehensive Explanation: In STP (Spanning Tree Protocol), ports can be in several states, including:

Discarding: The port is not forwarding traffic, either because it is in a blocking state or not participating in active forwarding.

Listening: The port is processing BPDUs and is preparing to transition to either the learning or forwarding state. No data frames are forwarded during this state.

Forwarding: The port is actively forwarding traffic as part of the active network topology.

The "Disabled" state is not part of the STP protocol but rather represents a port that is administratively shut down or not participating in the STP process.

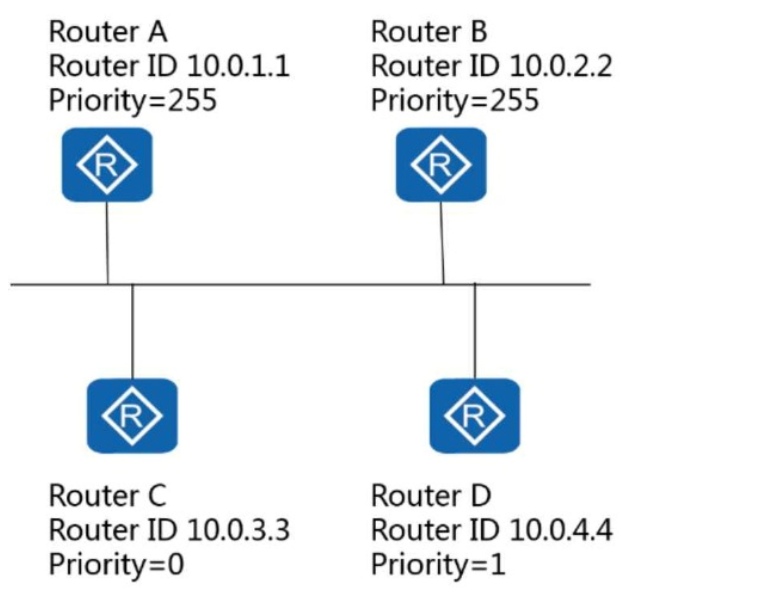

In OSPF, the Backup Designated Router (BDR) is selected based on the highest priority and, in case of a tie, the highest router ID. Given that Router D has the appropriate settings, it is designated as the BDR, providing backup for the DR (Designated Router) in this network configuration​.

An IPv4 packet consists of a header and a payload:

Total Length=Header Length+Payload Length\text{Total Length} = \text{Header Length} + \text{Payload Length}Total Length=Header Length+Payload Length

Given:

IPv4 header length = 20B

Total packet length = 1500B

Payload=1500B−20B=1480B\text{Payload} = 1500B - 20B = 1480BPayload=1500B−20B=1480B

Option A (Incorrect): 1520B is incorrect because it exceeds the total packet length.

Option B (Incorrect): 20B is just the header, not the payload.

Option C (Incorrect): 1500B includes the header, not just the payload.

Option D (Correct): 1480B is the correct payload size.

Thus, the correct answer is D (1480B).

An ARP (Address Resolution Protocol) packet includes several fields essential for mapping IP addresses to MAC addresses. The fields include:

Source Protocol Address: Identifies the IP address of the requesting device.

Source Hardware Address: Contains the MAC address of the source.

Hardware Type: Indicates the hardware type, typically Ethernet.

Operation Code: Specifies the operation (request or reply). These fields collectively allow devices to resolve IP addresses to physical MAC addresses, enabling direct communication within the local network​.

Detailed Explanation:

The subnet 200.200.200.200/30 allows two usable IP addresses, 200.200.200.201 and 200.200.200.202. These two addresses can communicate with each other directly, without the need for routing .

Detailed Explanation:MAC addresses that start with the first octet having the least significant bit (LSB) of the first byte set to 1 (such as 01-02-03-04-05-06) are multicast MAC addresses, and these cannot be assigned to a host's network interface card (NIC). Only unicast MAC addresses can be assigned to hosts​.

Comprehensive and Detailed Explanation:

RADIUS (Remote Authentication Dial-In User Service) is a widely used AAA protocol for:

Authentication (verifying user credentials).

Authorization (determining access level).

Accounting (logging user activity).

It uses UDP (ports 1812/1813 or 1645/1646) and is common in enterprise networks.

✅ Reference: HCIA-Datacom Security Guide – AAA & RADIUS Overview

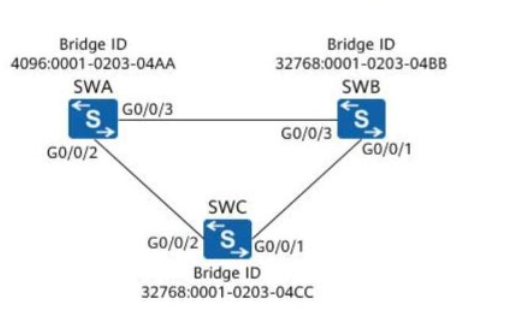

Comprehensive Explanation: SWA has the lowest Bridge ID and is the root bridge. In this topology, G0/0/2 of SWA and G0/0/1 of SWC are forwarding ports. Since G0/0/3 of SWB provides an alternate path to the root bridge, it will be placed in a blocking state to prevent network loops. The Spanning Tree Protocol ensures that only the most efficient path to the root bridge is active, and alternate paths are blocked until needed.

Detailed Explanation:

An edge port in RSTP (Rapid Spanning Tree Protocol) is designed to immediately transition to the forwarding state without participating in the spanning tree calculation. This allows for quicker convergence and is suitable for ports connected to end devices (not to other switches).
