Huawei H12-821_V1.0 - HCIP-Datacom-Core Technology V1.0

Comprehensive and Detailed Step-by-Step Explanation:

1. IPv6 and Neighbor Discovery Protocol (NDP):

In IPv4, a host usesARP (Address Resolution Protocol)to map an IP address to a MAC address for communication.

In IPv6,ARP is not used. Instead, IPv6 uses theNeighbor Discovery Protocol (NDP)for address resolution.

2. Why the Statement is FALSE:

IPv6 does not use ARP for resolving link-layer addresses.

IPv6 uses NDP, which operates through ICMPv6 messages to perform the equivalent function.

3. Summary:

The statement is FALSE because IPv6 uses NDP, not ARP, to obtain the link-layer address of the destination host.

Comprehensive and Detailed In-Depth Explanation:

SNMP (Simple Network Management Protocol) v3is a moresecureversion of SNMP, supportingauthentication and encryption.

If theNMS is not receiving SNMPv3 traps, possible causes include:

A. FALSE→ TheSNMP version mismatch does not affect traps; devices can send SNMPv2 traps even when using SNMPv3.

B. TRUE→ If theSNMPv3 password is incorrect, authentication will fail, and traps will not be processed by the NMS.

C. FALSE→ The size of packets sent by theNMSdoes not affectincoming SNMP trapsfrom the router.

D. TRUE→ Thecommunity namemust match on both theNMS and the router, or traps will be ignored.

📖Reference:Huawei HCIA-Datacom Study Guide, SNMPv3 Configuration and Authentication.

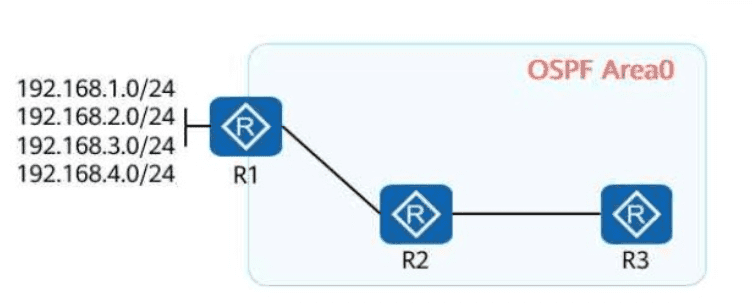

Goal Analysis:

Requirement:

The route to192.168.3.0/24must exist in R1's and R3's routing tables.

The route mustnot exist in R2's routing table.

This requires filtering to ensure the route is either:

Blocked on R2's routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2's routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1's and R3's routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported):This will prevent the route from existing in both R1 and R3, violating the stated requirement.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

To understand this question, let's first review the functional planes in network devices, particularly Huawei switches:

Control Plane:

The control plane is responsible for generating and maintaining routing tables and forwarding entries.

It uses protocols like OSPF, BGP, and RIP to exchange routing information with other network devices. Once the routing information is processed, it installs forwarding entries into the forwarding plane for actual packet forwarding.

On Huawei switches, the control plane is mandatory for building and updating the forwarding table. Without it, the data plane cannot forward traffic correctly.

Forwarding Plane (or Data Plane):

This plane handles the actual forwarding of packets based on the forwarding table created by the control plane.

The forwarding plane operates at high speed to ensure that traffic flows efficiently.

Monitoring Plane:

This plane is responsible for network management and monitoring. It gathers statistics and provides tools for troubleshooting and visibility.

In this case,the control plane provides the routing information and forwarding entries required for the data plane to perform packet forwarding.Therefore, the correct answer isB. Control plane.

ï‚· During WLAN roaming, the STA sends aReassociation Requestframe to the foreign AP to maintain connectivity. Association frames are used during initial connections, not roaming.

ï‚· APs with which a STA is associated before and after roaming can work on different channels, as roaming often occurs across channels in environments like multi-SSID or multi-channel setups.

Options C and D are false, as they contradict standard WLAN roaming procedures ​.

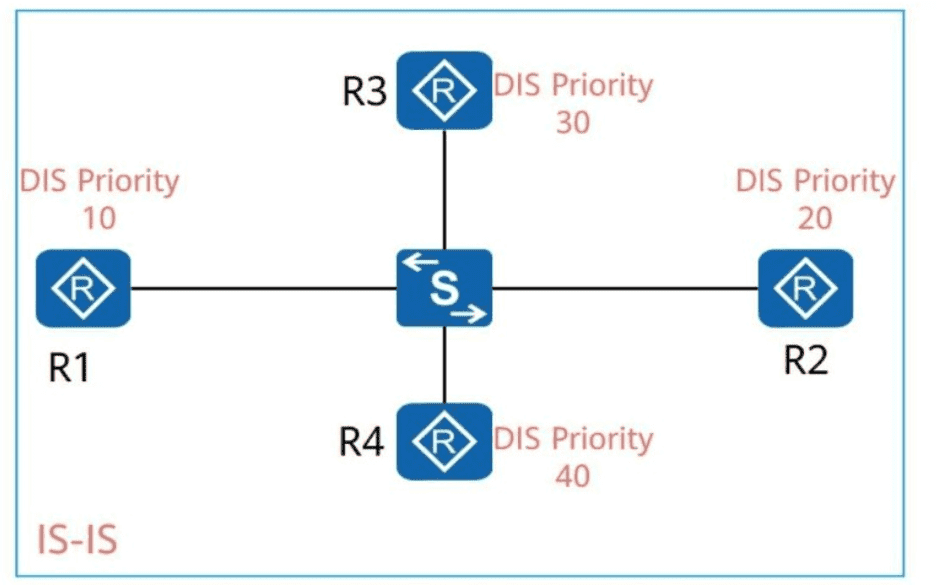

DIS Election in IS-IS:

In IS-IS, theDesignated Intermediate System (DIS)is elected on broadcast networks to reduce the number of LSAs exchanged and maintain the LSDB.

The DIS is elected based onpriority:

The router with thehighest priorityis elected as the DIS.

If priorities are equal, theSystem IDis used as a tie-breaker, and the router with thehighest System IDbecomes the DIS.

HCIP-Datacom-Core Technology Training Material (IS-IS DIS Election Mechanism)​​.

Given DIS Priorities:

R1: Priority = 10

R2: Priority = 20

R3: Priority = 30

R4: Priority = 40

R4 has the highest DIS priority of 40, which makes it the clear choice for DIS election.

Scenario Details:

Since all devices are started simultaneously, the DIS election process will follow the priorities without requiring a tie-breaker (System ID).

Conclusion:

The device with the highest DIS priority isR4, and it will be elected as the DIS.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

BGP (Border Gateway Protocol) uses specific message types to establish and maintain peer relationships between routers. The primary BGP messages involved during the establishment and maintenance of peer relationships are:

Open (D):

The Open message is the first message sent after a TCP connection is established between BGP peers.

It is used to exchange parameters such as the AS number, BGP version, hold time, and BGP identifier.

Keepalive (A):

After the Open message exchange, Keepalive messages are sent periodically to maintain the BGP session.

These messages confirm that the connection is still alive.

Update (C):

Update messages are used to exchange routing information after the peer relationship is established.

They contain information about network prefixes and their associated path attributes.

Hello (B):

Hello messages are not used in BGP. They are typically used in protocols like OSPF or IS-IS to establish and maintain neighbor relationships.

Thus, the correct answers areA (Keepalive),C (Update), andD (Open).

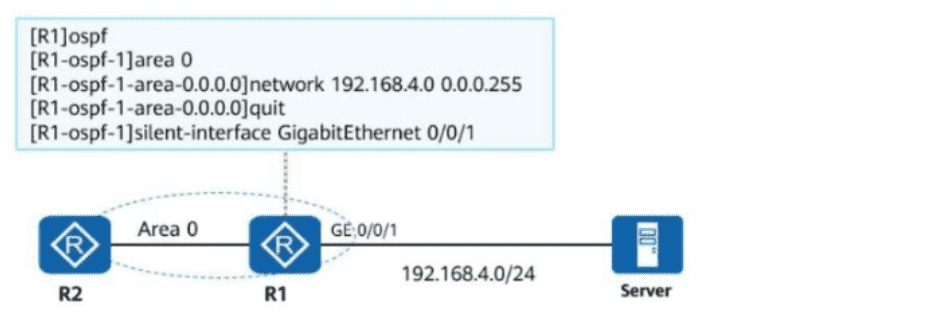

ï‚· Silent Interface Explanation

Thesilent-interfacecommand is used to prevent OSPF from sending or receiving OSPF packets on the specified interface (GE 0/0/1). This disables OSPF adjacency establishment and stops route advertisement for that interface.

ï‚· Network Observations

Statement A: R2 can access the server.This is correct, as the silent interface does not impact data traffic, only OSPF-related communication.

Statement B: GE 0/0/1 of R1 cannot send OSPF packets.Correct due to thesilent-interfaceconfiguration.

Statement C: The network segment to which GE 0/0/1 of R1 belongs cannot be advertised.This is correct, as the silent interface prevents route advertisement.

Statement D: GE 0/0/1 of R1 cannot accept OSPF packets.Correct, as the silent interface configuration blocks packet reception.

ï‚· HCIP-Datacom-Core Reference

OSPF interface command behavior is outlined in the configuration and lab examples sections​​.

ï‚· BGP Open Message Components

The Open message contains the following critical parameters:

Local AS Number: The autonomous system of the router.

Router ID: A unique identifier for the router.

Hold Time: The maximum time the router will wait for Keepalive or other messages from its peer.

ï‚· Incorrect Option

C. NLRI: Network Layer Reachability Information is not included in Open messages; it is carried in Update messages.

ï‚· HCIP-Datacom-Core Reference

The structure and contents of Open messages are explained in BGP protocol details​​.

When the router ID is configured in both the system view and the BGP view, the router ID in the BGP view takes precedence because BGP-specific configurations override global settings. This ensures that BGP operates with the most relevant configurations ​.
