Huawei H12-831_V1.0 - HCIP-Datacom-Advanced Routing & Switching Technology V1.0

Comprehensive and Detailed In-Depth Explanation:

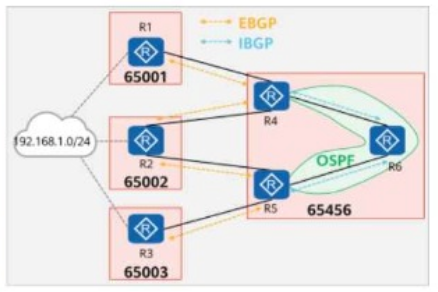

Understanding the BGP and OSPF Network Topology in the Question:

External Route Importation

R1, R2, and R3 import 192.168.1.0/24 into BGP from an external source.

This means R1, R2, and R3 will advertise this route to their EBGP and iBGP peers.

BGP Route Selection Criteria

BGP follows specific rules to determine the best path for a route. The most relevant factors here are:

Highest Local Preference (LOCAL_PREF) → Preferred

Shortest AS Path → Preferred

Lowest Origin Type (IGP < EGP < Incomplete) → Preferred

Lowest MED (Multi-Exit Discriminator) → Preferred

Oldest eBGP route (if paths are equal) → Preferred

Route Selection Analysis for Each Statement:

A. For 192.168.1.0/24, R5 preferentially selects the route received from R2. ✅ (Correct)

R5 is in AS 65456 and peers with R6 using iBGP.

Since R2 is a central router with direct connectivity to R5, it is the most preferred path compared to indirect paths from R1 or R3.

By default, R5 will prefer the path from R2 over others unless explicitly influenced by BGP attributes.

✅ Statement A is correct.

B. For 192.168.1.0/24, R4 preferentially selects the route received from R1. ❌ (Incorrect)

R4 and R5 use Loopback0 to establish iBGP with R6, meaning they receive BGP routes from multiple sources.

BGP prefers the shortest AS path, and there is no specific information indicating that R1’s path is the shortest for R4.

R4 may actually prefer another router's advertisement (e.g., R2 or R3) depending on AS path length and other attributes.

❌ Statement B is incorrect.

C. For 192.168.1.0/24, if the default local-preference 150 command is configured on R3, R5 preferentially selects the route received from R3. ✅ (Correct)

By default, BGP assigns a local-preference of 100.

If R3 sets local-preference to 150, it is higher than other routes (R1, R2).

BGP prefers the highest local-preference value, so R5 will prefer the route received from R3 if this attribute is set.

✅ Statement C is correct.

D. For 192.168.1.0/24, R6 preferentially selects the route received from R4. ❌ (Incorrect)

R6 is an iBGP peer of both R4 and R5.

BGP best-path selection depends on attributes like local-preference, AS-path, and MED.

There is no explicit information suggesting that R4’s advertisement is preferred over R5’s.

R6 may prefer R5’s route depending on attributes.

❌ Statement D is incorrect.

Final Conclusion:

✅ A. R5 preferentially selects the route received from R2.❌ B. R4 does not necessarily prefer R1’s route.✅ C. If R3 sets local-preference 150, R5 will prefer the route from R3.❌ D. R6 does not necessarily prefer R4’s route.

Thus, the correct answers are: A, C.

Comprehensive and Detailed In-Depth Explanation:

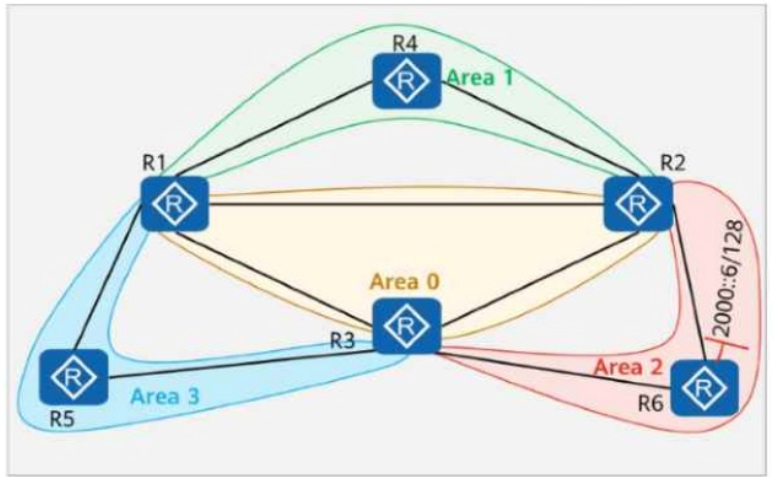

To determine the correct answers, we need to analyze OSPFv3 behavior and Inter-Area-Prefix LSAs (Type 3 LSAs).

1. Understanding OSPFv3 Inter-Area-Prefix LSAs (Type 3 LSAs)

Type 3 LSAs (Inter-Area-Prefix LSAs) are generated by an ABR (Area Border Router) to advertise networks between areas.

If a router in one area learns a prefix from another area, it generates a Type 3 LSA to advertise it further.

Stub areas (Area 1) do not allow external LSAs, including Type 3 LSAs for external routes.

NSSA areas (Area 3) accept external routes but redistribute them as Type 7 LSAs before being converted to Type 5 LSAs by an NSSA ABR.

2. Analyzing Each Answer Option:

✅ A. "The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 0." → TRUE

R6 has 2000::6/128 in Area 2.

R2 is the ABR that brings this prefix into Area 0 as a Type 3 LSA.

R1, being in Area 0, learns this LSA from R2.

Thus, this statement is correct.

❌ B. "The Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128 exists in Area 3." → FALSE

R1 is not an ABR for Area 3, so it does not generate an LSA for 2000::6/128 in Area 3.

Instead, R3 (the ABR between Area 0 and Area 3) would be responsible for propagating routes.

This statement is false.

❌ C. "The Inter-Area-Prefix-LSA that is generated by R2 and describes 2000::6/128 exists in Area 1." → FALSE

Area 1 is a stub area and does not accept external LSAs (including Type 3 LSAs from other areas).

R2 cannot generate and send a Type 3 LSA for 2000::6/128 into Area 1.

This statement is false.

✅ D. "The Inter-Area-Prefix-LSA that is generated by R3 and describes 2000::6/128 exists in Area 2." → TRUE

R3 is an ABR and learns 2000::6/128 from R2 (which originally learned it from R6 in Area 2).

Since Area 2 is a normal (non-stub, non-NSSA) area, Type 3 LSAs are allowed.

R3 generates and advertises this Inter-Area-Prefix-LSA for 2000::6/128 into Area 2.

Thus, this statement is correct.

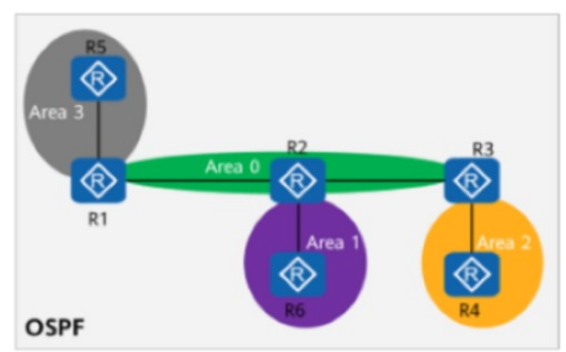

Comprehensive and Detailed In-Depth Explanation:In this OSPF network, we need to determine which router does not have the external route 10.0.5.5/32 in its routing table, based on the area types and OSPF behavior for external routes (Type 5 LSAs). Let’s break it down step by step:

Understanding the Network and Area Types:

The network has multiple areas: Area 0 (backbone area), Area 1 (common area), Area 2 (stub area), and Area 3 (Not-So-Stubby Area or NSSA).

Area 0 is the backbone area, connecting all other areas.

Area 1 is a common (regular) area, which allows all types of LSAs, including external routes (Type 5 LSAs).

Area 2 is a stub area, which does not allow external routes (Type 5 LSAs) to be propagated into it. Instead, a default route (0.0.0.0/0) is injected by the Area Border Router (ABR) to provide connectivity to external destinations.

Area 3 is an NSSA, which allows limited external routes (Type 7 LSAs, translated to Type 5 LSAs by the ABR) but can block Type 5 LSAs depending on configuration. However, NSSAs typically allow external routes originated within the NSSA to be advertised into Area 0 and other areas.

External Route Behavior (10.0.5.5/32):

R5, located in Area 3 (NSSA), imports an external route 10.0.5.5/32. In an NSSA, external routes are advertised as Type 7 LSAs within the NSSA and are translated to Type 5 LSAs by the ABR (e.g., R1 or another router connecting Area 3 to Area 0) before being flooded into Area 0 and other areas.

Type 5 LSAs (external routes) are flooded throughout the OSPF domain, except into stub areas and, in some cases, NSSAs (depending on configuration). However, stub areas block Type 5 LSAs entirely, replacing them with a default route.

Analyzing Each Router’s Area and Route Propagation:

R1: Located in Area 0, R1 is an ABR connecting Area 0 to other areas (e.g., Area 1 and Area 3). As an ABR, R1 receives the Type 7 LSA from R5 in Area 3, translates it to a Type 5 LSA, and floods it into Area 0 and other connected areas (except stub areas). Therefore, R1 will have the route 10.0.5.5/32 in its routing table.

R2: Located in Area 0, R2 is also in the backbone area and will receive the Type 5 LSA flooded from Area 0. Thus, R2 will have the route 10.0.5.5/32 in its routing table.

R3: Located in Area 2 (stub area), R3 does not receive Type 5 LSAs because stub areas block external routes. Instead, the ABR (likely R2 or another router connecting Area 2 to Area 0) injects a default route (0.0.0.0/0) into Area 2. Therefore, R3 will not have the specific route 10.0.5.5/32 in its routing table.

R4: Located in Area 2 (stub area), R4, like R3, is in a stub area and does not receive Type 5 LSAs. It relies on the default route injected by the ABR. Thus, R4 will not have the route 10.0.5.5/32 in its routing table.

R5: Located in Area 3 (NSSA), R5 originates the external route 10.0.5.5/32 and advertises it as a Type 7 LSA within Area 3. R5 will have this route in its routing table.

R6: Located in Area 1 (common area), R6 receives the Type 5 LSA flooded from Area 0 (via R1 or another ABR). Therefore, R6 will have the route 10.0.5.5/32 in its routing table.

Identifying the Router Without the Route:

The question asks which router does not have the route 10.0.5.5/32 in its routing table.

R3 and R4 are both in Area 2 (stub area), which blocks Type 5 LSAs. Therefore, neither R3 nor R4 will have the route 10.0.5.5/32.

R6 (Area 1, common area) and R2 (Area 0, backbone) will have the route, as will R1 (Area 0 and ABR) and R5 (Area 3, NSSA, originator).

The options provided are R6, R3, R4, and R2. Among these, R3 and R4 do not have the route, but we need to select one correct answer from the options. Given the typical focus of such questions on identifying a single router in a stub area, and considering the placement of R4 in the diagram (Area 2), R4 is the most likely answer, as it is clearly in the stub area and isolated from external routes.

Conclusion:

R4, located in Area 2 (stub area), does not have the route 10.0.5.5/32 in its routing table because stub areas block Type 5 LSAs, and only a default route is provided by the ABR.

Therefore, the correct answer is C (R4).

References (Based on HCIP-Datacom-Advanced Routing & Switching Technology Concepts):

OSPF Area Types: HCIP-Datacom documentation on OSPF area configurations, including stub areas, NSSAs, and common areas (e.g., Section on OSPF LSA Types and Area Restrictions).

External Route Propagation: HCIP-Datacom coverage of Type 5 and Type 7 LSAs, their flooding behavior, and restrictions in stub and NSSA areas (e.g., Chapter on Advanced OSPF Features).

ABR and ASBR Roles: HCIP-Datacom explanation of Area Border Routers (ABRs) and Autonomous System Boundary Routers (ASBRs) in OSPF networks (e.g., Section on Route Redistribution and External Route Handling).

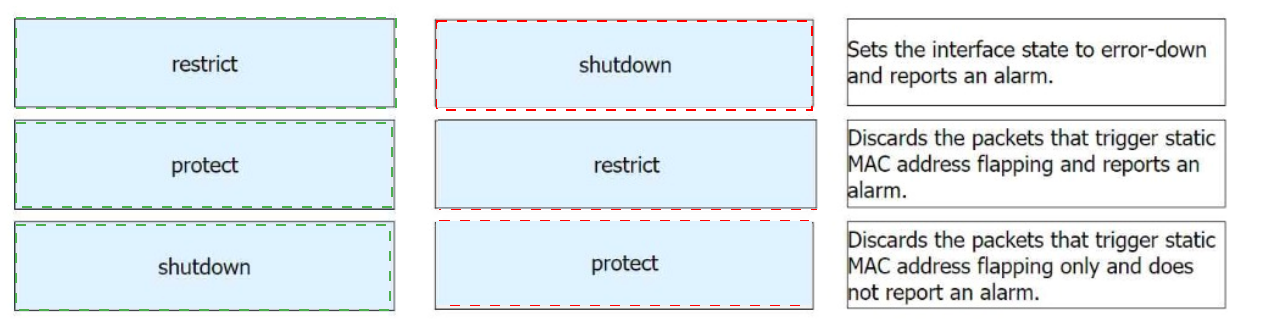

Restrict → Discards the packets that trigger static MAC address flapping and reports an alarm.

Protect → Discards the packets that trigger static MAC address flapping only and does not report an alarm.

Shutdown → Sets the interface state to error-down and reports an alarm.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding Port Security Modes

Port security is used to control access on a switch port based on MAC addresses. If a MAC address violation occurs (e.g., static MAC address flapping), the switch can take different actions based on the configured security mode.

Security Mode

Description

Restrict

Drops the violating packets and logs the violation by generating an alarm.

Protect

Drops the violating packets but does not generate an alarm.

Shutdown

Places the interface into error-disabled (error-down) state and logs an alarm.

2. Matching Each Security Mode with Its Operation

Protect Mode:

The switch drops the packets from the unauthorized MAC address.

No alarm is generated or logged.

Correct Mapping: "Discards the packets that trigger static MAC address flapping only and does not report an alarm."

Restrict Mode:

The switch drops the packets from the unauthorized MAC address.

An alarm is generated and logged in the system.

Correct Mapping: "Discards the packets that trigger static MAC address flapping and reports an alarm."

Shutdown Mode:

The switch shuts down the interface by placing it into the error-down state.

An alarm is generated and logged.

Correct Mapping: "Sets the interface state to error-down and reports an alarm."

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the DIS (Designated Intermediate System) in IS-IS

In IS-IS, the DIS (Designated Intermediate System) is similar to the DR (Designated Router) in OSPF.

Unlike OSPF, IS-IS does not use an election based on priority; instead, the router with the highest priority becomes the DIS.

If there is a tie in priority, the router with the highest MAC address on the interface becomes the DIS.

The DIS is responsible for generating additional LSPs (pseudonode LSPs) for the link and synchronizing the database between routers.

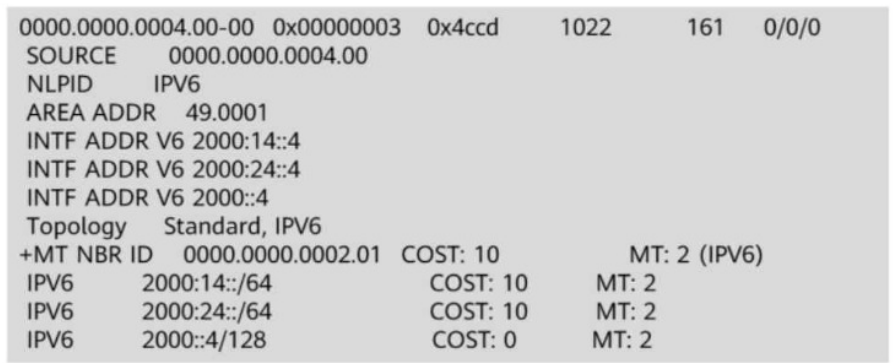

2. How to Identify If the Router Is the DIS from the LSP

In the given LSP output, there are NO pseudonode LSPs (LSPs ending with .01).

The DIS is responsible for creating pseudonode LSPs, which represent a multi-access network in the IS-IS topology.

If the router were the DIS, it would generate both its own LSP (ending in .00) and a pseudonode LSP (ending in .01).

Since we only see an LSP ending in .00, this confirms that the router is NOT the DIS.

3. Evaluating the Answer Choices

Option A (TRUE) – Correct:

Since no pseudonode LSP is present, the router is not the DIS.

This confirms that the statement is TRUE.

Option B (FALSE) – Incorrect:

If the router were the DIS, it would generate pseudonode LSPs, but they are missing from the output.

Therefore, the statement is NOT false.

Final Answer:

Answer: A (TRUE)

HCIP-Datacom-Advanced Routing & Switching Technology References:

IS-IS Designated Intermediate System (DIS) Selection Process

Pseudonode LSP Generation in Multi-Access Networks

IS-IS LSP Structure and Identification of DIS

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) NSSA LSA (Type 7 LSA) is used in Not-So-Stubby Areas (NSSA).

Generated by: An ASBR (Autonomous System Boundary Router) inside the NSSA area.

Purpose: Advertises external routes (outside the AS) inside the NSSA.

Conversion: When the LSA reaches an ABR, it gets converted to a Type 5 External LSA before being propagated to other OSPF areas.

Why is this needed? NSSA areas allow some external route advertisements but do not permit normal Type 5 LSAs, so they use Type 7 LSAs instead.

📖 Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPF NSSA LSA

Comprehensive and Detailed In-Depth Explanation:

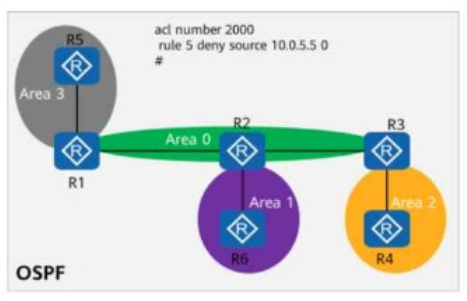

Understanding the OSPF Network Structure in the Question:

OSPF Areas & Routers:

Area 3: Contains R5 (which has loopback 10.0.5.5/32).

Area 1: Contains R6.

Area 2: Contains R4.

Area 0 (Backbone Area): Contains R1, R2, and R3 (which interconnect the other areas).

ACL 2000 Filtering Rule:

The ACL rule 2000 explicitly denies 10.0.5.5/32 from being imported.

The filter 2000 import command applies this filter to Area 0, preventing routes from Area 3 (including R5's loopback) from being learned by Area 0 routers (R1, R2, and R3).

Route Distribution Analysis:

R5 (Area 3):

R5 has 10.0.5.5/32 configured on its Loopback0.

Since OSPF is enabled, R5 advertises the route to R6 in Area 1.

R6 (Area 1) → R2 (Area 0, Backbone Router):

Without filtering, R6 would normally propagate 10.0.5.5/32 to R2 (since R2 is a backbone router in Area 0).

However, since ACL 2000 is applied in Area 0, R2 blocks this route from being imported.

Therefore, R2 does not learn 10.0.5.5/32.

R2 → R1 and R3 (Both in Area 0):

R2 would typically share any learned routes with R1 and R3 in Area 0.

But since R2 itself does not have 10.0.5.5/32, neither R1 nor R3 can receive it.

Thus, R1 and R3 also do not have 10.0.5.5/32 in their routing tables.

R4 (Area 2) is Unaffected:

Since R4 is in Area 2, it is not directly impacted by the filter applied in Area 0.

It can still receive the route via another path if redistribution is configured properly.

Final Conclusion:

R1, R2, and R3 do not have the 10.0.5.5/32 route due to the filter 2000 import command applied in Area 0.

R4 may still have the route since it is not affected by the filtering in Area 0.

Thus, the correct answer is:✅ R1, R3, R2 do not have the route 10.0.5.5/32 in their routing tables.

Comprehensive and Detailed In-Depth Explanation:

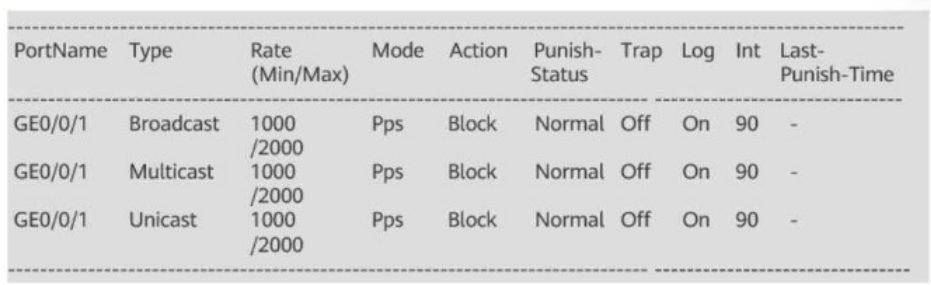

Understanding the Table and Traffic Suppression Configuration

Port Name

Type

Rate (Min/Max)

Mode

Action

Punish-Status

Trap

Log

Int

Last-Punish-Time

GE0/0/1

Broadcast

1000 / 2000

Pps

Block

Normal

Off

On

90

-

GE0/0/1

Multicast

1000 / 2000

Pps

Block

Normal

Off

On

90

-

GE0/0/1

Unicast

1000 / 2000

Pps

Block

Normal

Off

On

90

-

Key Observations from the Table:

Traffic suppression (or rate limiting) is configured on interface GE0/0/1 for broadcast, multicast, and unicast traffic.

Thresholds:

Min rate: 1000 pps (packets per second)

Max rate: 2000 pps

If the traffic exceeds the configured threshold (2000 pps), the action is to "Block".

The interface is still "Normal" (not shut down), meaning exceeding 2000 pps does not disable the port.

Logging is enabled (Log: On), but trapping (Trap: Off) is disabled.

Analysis of Each Answer Choice

A. "When the average rate of unknown multicast packets is 1500 pps, GE0/0/1 blocks the multicast packets." ❌ (False)

The blocking threshold for multicast is 2000 pps (Max rate).

If the rate is 1500 pps, it is still below the threshold, so traffic is not blocked yet.

❌ Statement A is incorrect.

B. "When the average rate of known unicast packets is 2500 pps, GE0/0/1 is shut down." ❌ (False)

The table does not indicate that exceeding the max threshold (2000 pps) shuts down the interface.

Instead, it simply blocks packets exceeding the rate limit.

The interface remains "Normal", meaning it is not shut down.

❌ Statement B is incorrect.

C. "After broadcast packets are blocked on GE0/0/1, broadcast packets are forwarded only when their average rate is lower than 1000 pps." ❌ (False)

The minimum rate is 1000 pps, but there is no indication that traffic resumes forwarding only when it drops below this rate.

The configuration only states blocking when exceeding 2000 pps, but does not enforce a strict reactivation at 1000 pps.

❌ Statement C is incorrect.

D. "The administrator configures traffic suppression on GE0/0/1 of the switch." ✅ (True - Correct Answer)

The table explicitly shows that a traffic suppression policy is applied to broadcast, multicast, and unicast packets on GE0/0/1.

This confirms that the administrator has configured traffic suppression (rate limiting) on this interface.

✅ Statement D is correct.

Final Conclusion:

✅ Correct Answer: D. The administrator configures traffic suppression on GE0/0/1 of the switch.

Comprehensive and Detailed In-Depth Explanation:

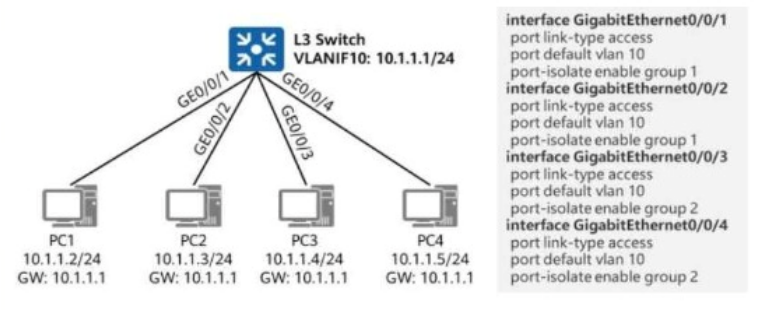

Understanding Port Isolation in the Network

Network Setup Details:

The switch is Layer 3, with VLANIF10 configured as 10.1.1.1/24 (gateway for all PCs).

All PCs are in VLAN 10 and use 10.1.1.1 as the default gateway.

Port isolation is enabled on switch interfaces, dividing them into two groups:

Group 1 (PC1 & PC2): GigabitEthernet0/0/1 and GigabitEthernet0/0/2

Group 2 (PC3 & PC4): GigabitEthernet0/0/3 and GigabitEthernet0/0/4

Port Isolation Behavior:

Ports within the same isolation group CAN communicate with each other.

Ports from different isolation groups CANNOT communicate directly.

All devices CAN still communicate with the L3 switch (10.1.1.1), which acts as the gateway.

Ping Analysis from PC1 (10.1.1.2)

Destination IP

Device

Connected Port

Isolation Group

Ping Result from PC1

10.1.1.3

PC2

GigabitEthernet0/0/2

Group 1

✅ Can Ping

10.1.1.4

PC3

GigabitEthernet0/0/3

Group 2

❌ Cannot Ping

10.1.1.5

PC4

GigabitEthernet0/0/4

Group 2

❌ Cannot Ping

10.1.1.1

L3 Switch (Gateway)

N/A

Not Isolated

✅ Can Ping

Which IPs Cannot be Pinged from PC1?

PC3 (10.1.1.4) and PC4 (10.1.1.5) are in a different isolation group (Group 2), so PC1 cannot reach them directly.

PC2 (10.1.1.3) is in the same isolation group (Group 1), so PC1 can ping it.

PC1 can ping the gateway (10.1.1.1) because the switch is Layer 3 and forwards traffic.

Thus, the correct answers are: A. 10.1.1.3 and D. 10.1.1.4.

Final Conclusion:

✅ PC1 CAN ping:

10.1.1.3 (PC2, same isolation group)

10.1.1.1 (Gateway, L3 Switch)

❌ PC1 CANNOT ping:

10.1.1.4 (PC3, different isolation group)

10.1.1.5 (PC4, different isolation group)

Thus, the correct answer is: A. 10.1.1.3 and D. 10.1.1.4.
