HP HPE0-S59 - HPE Compute Solutions

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

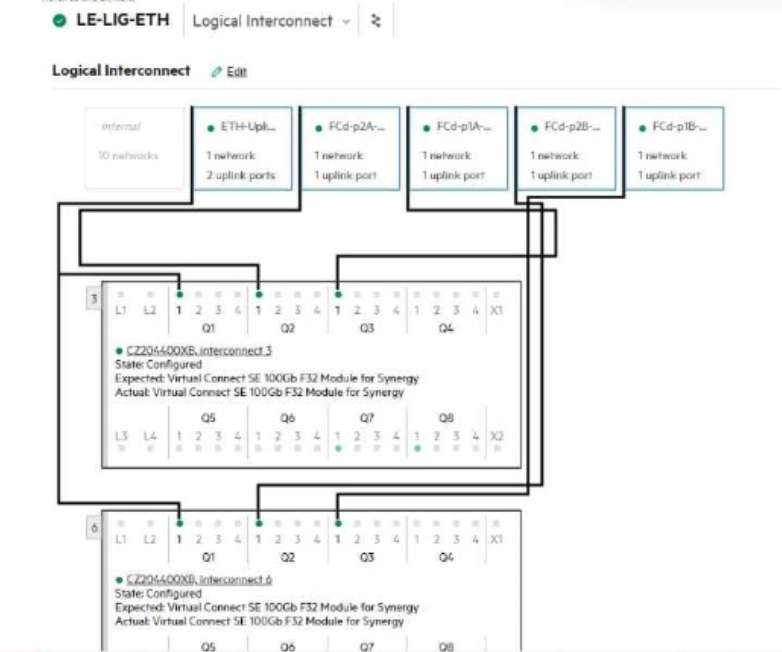

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module ' s performance and utilization, providing valuable insights for managing the Fibre Channel network.

In an HPE Synergy environment, a logical enclosure represents a management domain that groups multiple Synergy frames and their associated compute, storage, and fabric resources. Given the setup with 3 HPE Synergy 12000 Frames and the specified components, the customer must create at least two logical enclosures to effectively manage all compute nodes and resources across multiple frames. This ensures proper resource allocation, management, and redundancy.

The Rack Management Controller (RMC) is a critical component for configuring nPartitions (nPars) in HPE Superdome systems. The RMC provides the necessary control and management interfaces to define and manage nPars, ensuring proper allocation of resources and isolation of workloads.

HPE Compute Ops Management (COM) , part of the HPE GreenLake cloud platform, allows for centralized management of BIOS settings and Workload Profiles across a fleet of servers. When implementing custom profiles, the interaction between the hardware (BIOS) and the Operating System (OS) is a critical architectural consideration.

OS vs. BIOS Conflict: Modern operating systems (such as Windows Server, VMware ESXi, and various Linux distributions) have built-in power management and performance scaling features. If the OS is configured to manage " P-States " or " C-States " (standard processor power/performance states), it will override the settings defined in the BIOS Workload Profile.

The " Required Setup " (Option D): For a BIOS/Workload profile to be effective, the administrator must ensure that the OS Power Management is set to a mode that defers to the BIOS (often called " BIOS Match " or " Static High Performance " within the OS settings). If the OS attempts to control these settings, the benefits of the custom profile applied via COM may be negated, or the server may exhibit inconsistent performance.

HPE Workload Profiles: These are pre-defined sets of BIOS settings optimized for specific tasks (e.g., Virtualization - Max Performance, Low Latency, etc.). When applying a Custom profile through COM, you are essentially fine-tuning these variables. Ensuring the OS is not " fighting " the BIOS for control is a prerequisite for a stable, optimized deployment.

Why other options are incorrect:

Option A: While starting from factory defaults can provide a clean baseline, it is not a technical requirement. The profile applied via COM will overwrite existing settings regardless of their current state.

Option B: Custom profiles can be easily created using the HPE GreenLake/COM GUI . While the API is available for automation, it is not a " required part of the setup. "

Option C: While most modern features require UEFI, specifically configuring " Optimized UEFI mode " via the local iLO interface is not the primary requirement for applying a COM profile; COM itself is designed to handle these configurations remotely once the server is onboarded.
