HP HPE0-V14 - Building HPE Hybrid IT Solutions (Rev. 19.41)

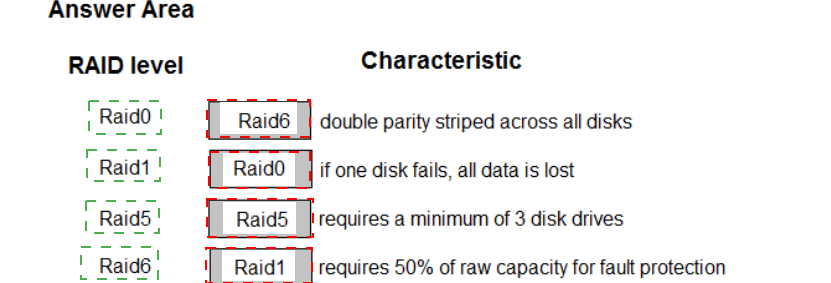

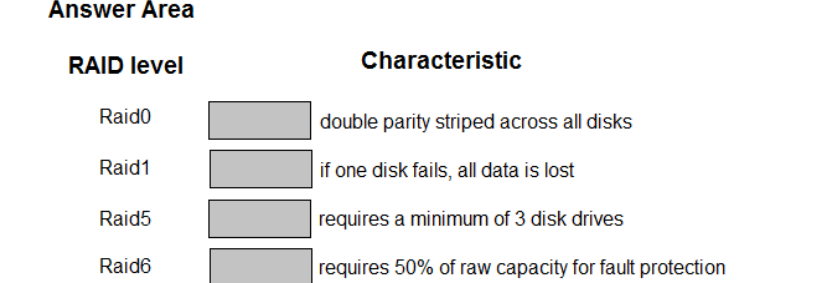

Match each characteristic to the appropriate RAID level.

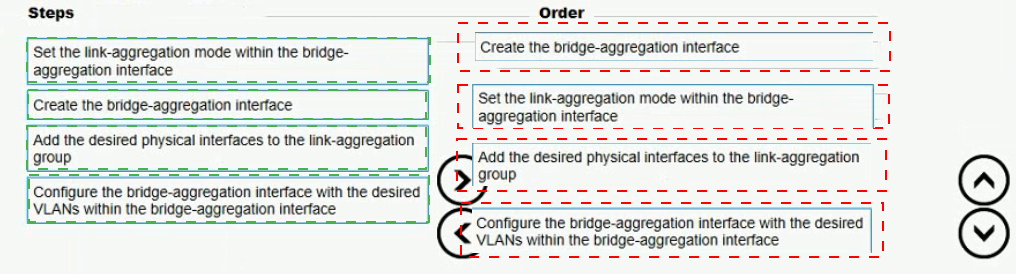

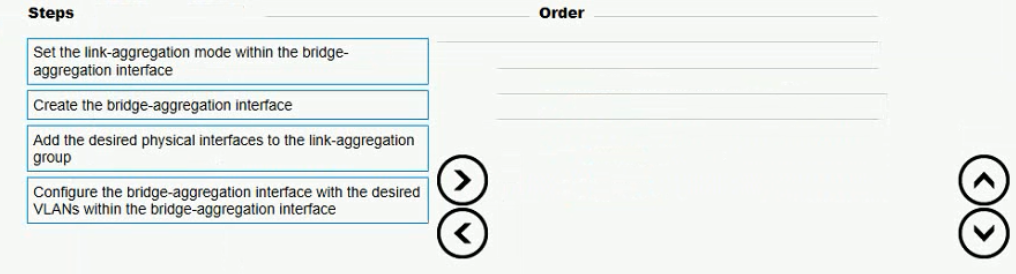

You need to create a dynamic bridge-aggregation group on a FlexFabric switch to ensure the ports are automatically configured with the applicable bridge-aggregation interface configuration

Drag the steps on the left Into their appropriate order in the answer area on the right.

A customer plans to use HPE ProLiant servers for line-of-business applications. They want to configure the servers to increase reliability.

Which workload profile should the customer use?

A customer is subject to regulatory requirements and their data is highly sensitive.

Which HPE Smart Array feature addresses their need for an level of security for data stored inside their server?

Read the question, and then refer to the exhibit.

display interface Ten-GigabitEthernet 1/0/1 Ten-GigabitEthernet1/0/1 Current state: Administratively DOWN Line protocol state: DOWN IP packet frame type: Ethernet II, hardware address: d894-03fb-793d Description: Ten-GigabitEthernet1/0/1 Interface Bandwidth: 10000000 kbps Loopback is not set Media type is stack wire, port hardware type is STACK_SFP_PLUS Unknown-speed mode, unknown-duplex mode Link speed type is autonegotiation, link duplex type is autonegotiation Flow-control is not enabled Maximum frame length: 10000 Allow jumbo frames to pass Broadcast max-ratio: 100% Multicast max-ratio: 100% Unicast max-ratio: 100% PVID: 1 MDI type: Automdix Port link-type: Trunk VLAN Passing: 10, 20 VLAN permitted: 10, 20 Trunk port encapsulation: IEEE 802.1q Port priority: 0 Last link flapping: 0 hours 0 minutes 18 seconds Last clearing of counters: Never Peak input rate: 78 bytes/sec, at 2011-03-31 04:55:57 Peak output rate: 15 bytes/sec, at 2011-03-30 23:00:57 Last 300 second input: 0 packets/sec 67 bytes/sec - % Last 300 second output: 0 packets/sec 14 bytes/sec - % Input (total): 62670 packets, 8565340 bytes 0 unicasts, 0 broadcasts, 62670 multicasts, 0 pauses Input (normal): 62670 packets, - bytes 0 unicasts, 0 broadcasts, 62670 multicasts, 0 pauses Input: 0 input errors, 0 runts, 0 giants, 0 throttles 0 CRC, 0 frame, - overruns, 0 aborts – ignored, - parity errors Output (total): 3707 packets, 1294835 bytes 0 unicasts, 0 broadcasts, 3707 multicasts, 0 pauses Output (normal): 3707 packets, - bytes 0 unicasts, 0 broadcasts, 3707 multicasts, 0 pauses Output: 0 output errors, - underruns, - buffer failures 0 aborts, 0 deferred, 0 collisions, 0 late collisions 0 lost carrier, - no carrier

A customer added a new switch to their network. They connected it using interface Ten-GigabitEthernet 1/0/1. They are using VLAN 10 and 20 for the devices in their network.

The new switch was fully operational. Then, the customer experienced a power failure later that day and could not reach any device on the new switch after the power returned.

From the output in the exhibit, would could be the issue?

A customer is planning to deploy a new Top of Rack solution. They plan to use a stacking technology that meets the following requirements:

Support for Multi Chassis Link Aggregation in an active-active mode.

The control plane must not be a single point of failure.

Rapid Fail-over. Unified Management.

They require a maximum of two switches per stack.

Which stacking technology meets the customer’s requirements?

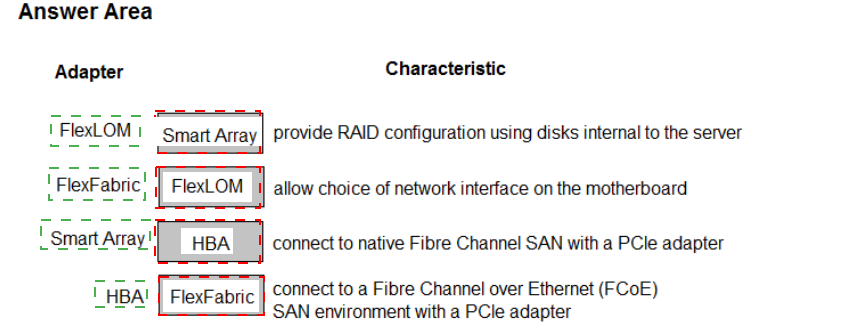

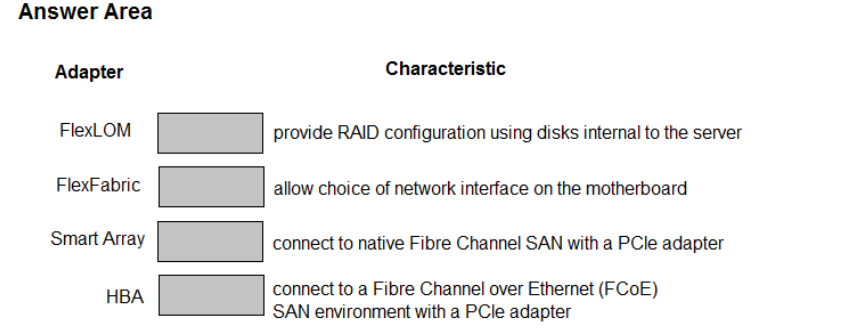

Match each adapter to its characteristic.

Which solution should you recommend to a customer for basic file and print services?

Which protocol verifies that the ports in common between two switches have compatible settings and removes the likelihood of a misconfigured aggregated link?

A customer is planning to deploy a branch office server rack. The environment will have the following requirements:

Single rack with 20 HPE ProLiant DL360 Gen10 Servers.

Each Server will have 6 x 10G SFP+ Ports.

Each Server will have a dedicated iLO port.

The customer requires that only two switches be used.

The customer requires separate control planes.

Which switch configuration can meet these requirements?
