HP HPE6-A72 - Aruba Certified Switching Associate Exam

HP HPE6-A72 Premium Access     Download Demo
Page: 3 / 4
Total 105 questions

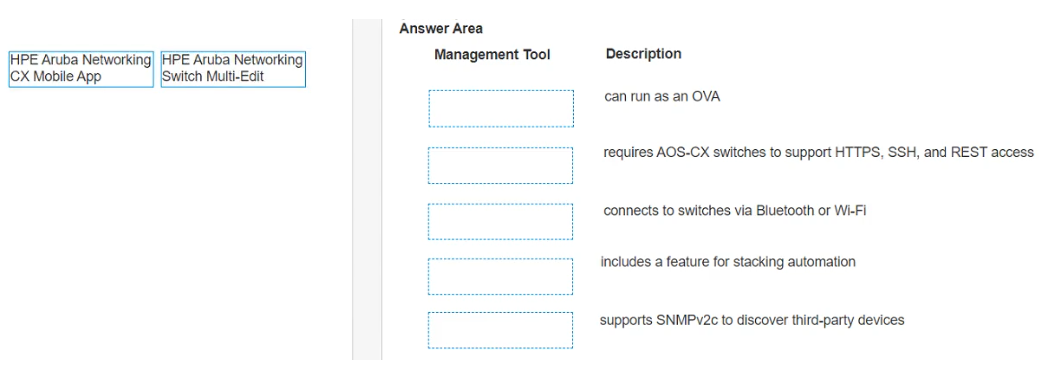

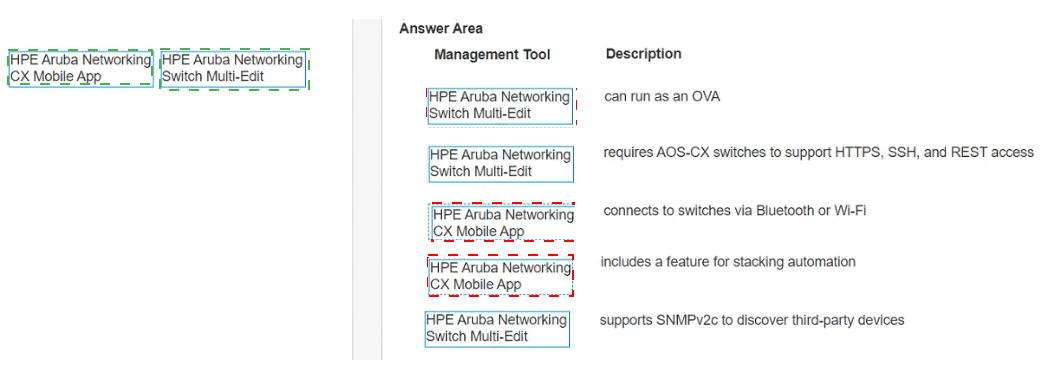

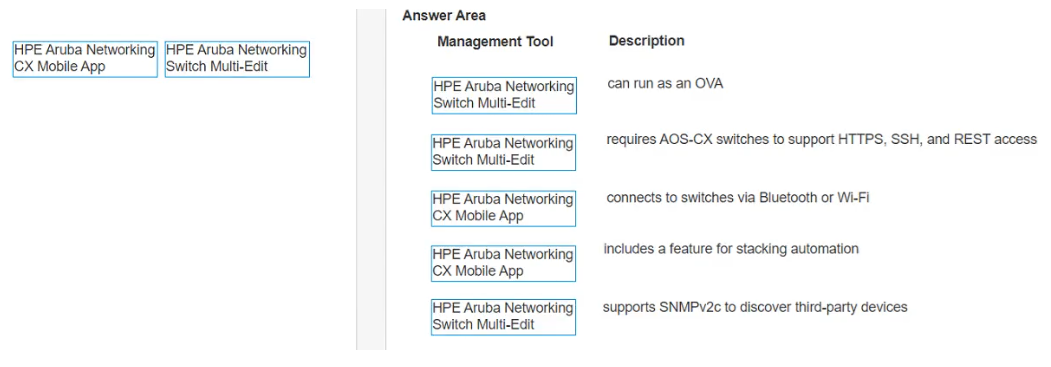

Match each description to the correct management tool tor AOS-CX.

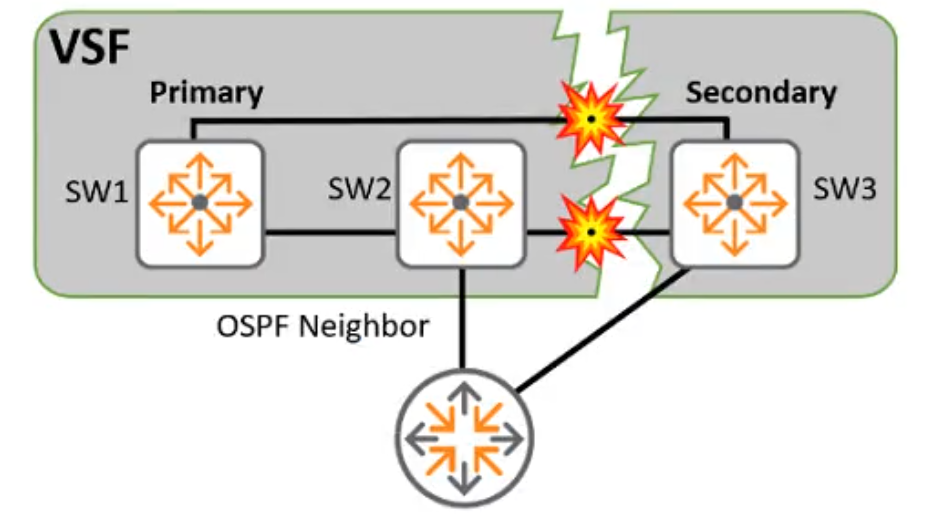

Refer to the exhibit.

All switches shown are CX 6300M. The links connecting SW3 to both SW1 and SW2 are broken. Multi-Active Detection has not been enabled. What are two results? (Select two.)

A.

A re-election will occur upon repairing the disabled links between SW2 and SW3. The switch with the highest priority will reclaim the Master role with the lowest bridge mac-address acting the tie-breaker

B.

The OSPF adjacency between the OSPF neighbor and the VSF stack switches SW2 and SW3 will remain up. Packets destined for SW3 that are received on SW2 are discarded.

C.

The stack will split with SW1 remaining an active VSF Master and SW3 becoming another active VSF Master. Switch 2 will remain a VSF member switch.

D.

Only the OSPF adjacency between SW3 and the OSPF neighbor will fail. All routed traffic will be redirected to SW2 instead.

E.

The stack will split resulting in SW1 remaining an active VSF Master and SW3 disabling all ports. SW2 will automatically take the VSF Standby role.

Which two statements accurately describe the features of NetEdit? (Choose two.)

A.

NetEdit can be used to configure and validate any third-party device that supports SSH and REST access.

B.

NetEdit includes trial licensing for up to 10 nodes.

C.

NetEdit can perform configuration and compliance validation.

D.

NetEdit supports viewing and editing multiple devices using a single deployment plan.

E.

NetEdit can run on a mobile device using Android or Apple IOS.

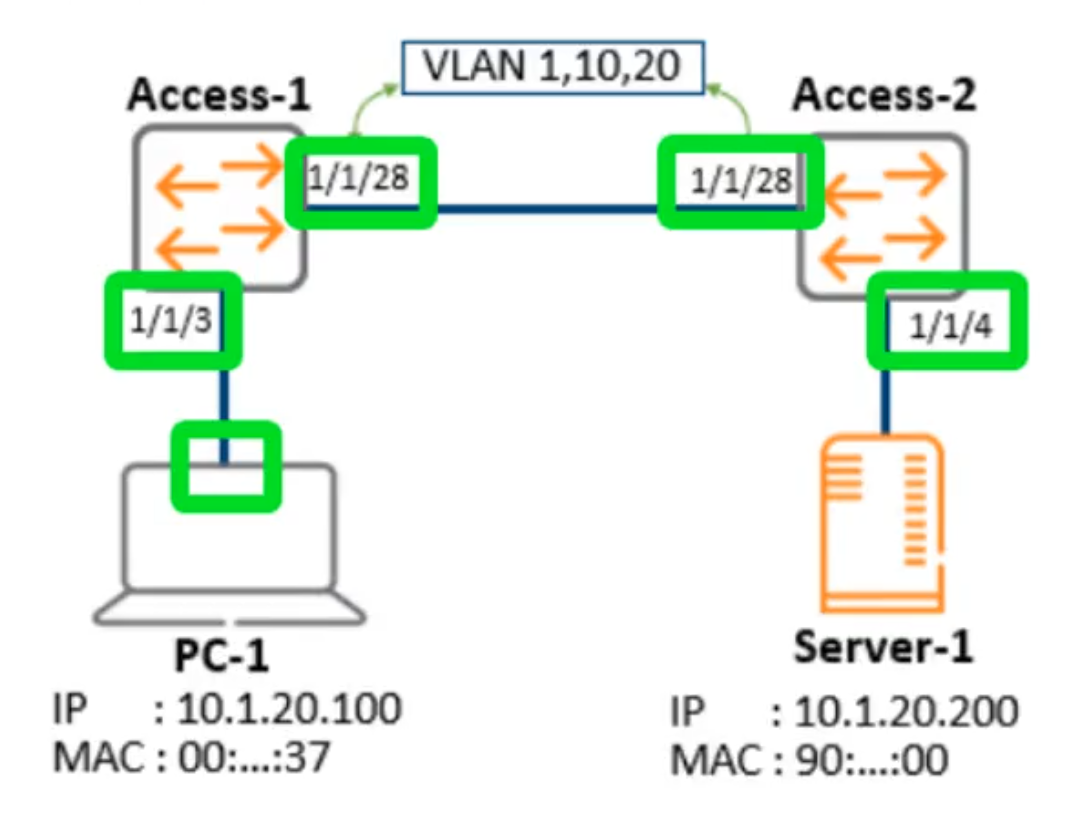

Review the exhibit.

Which ports should be configured as access ports? Click in the green box to make your selection. (Select two.)

Interface 1/1/1 is up

Admin state is up

Link transitions: 1

Description: TO_PC-1

Hardware: Ethernet, MAC Address: 00:11:22:33:44:55

MTU 1500

Type 1GbT

Full-duplex

qos trust none

Speed 1000 Mb/s

Auto-negotiation is on

Flow-control: off

Error-control: off

MDI mode: MDIX

VLAN Mode: access

Access VLAN: 1111

Which command will produce the above output?

A.

show interface vlan 1111

B.

show interface 1/1/1

C.

show interface gigabit 1/1/1

D.

show vlan 1111

What is a benefit of choosing a 3-Tier design with routing at the Aggregation layer?

A.

Better Core router performance by offloading processing

B.

Shifting endpoint access to the Aggregation layer from the Access layer

C.

Using access control lists (ACLs) at the Core to improve performance

D.

Connecting WAN/MPLS and Data center access to the Aggregation layer

Which option correctly describes a WAN network?

A.

a group of computer resources that communicates between geographically separate location

B.

the connection between two separate buildings in the same campus

C.

a network of devices over long distances but limited to within a single ISP

D.

compute resources that are networked locally over wireless

Refer to the exhibit.

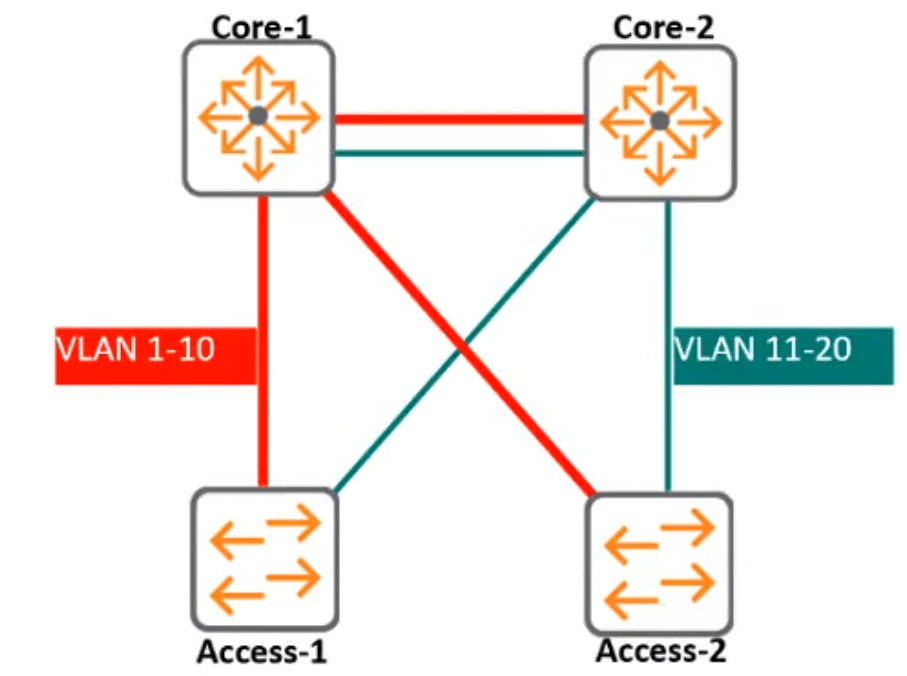

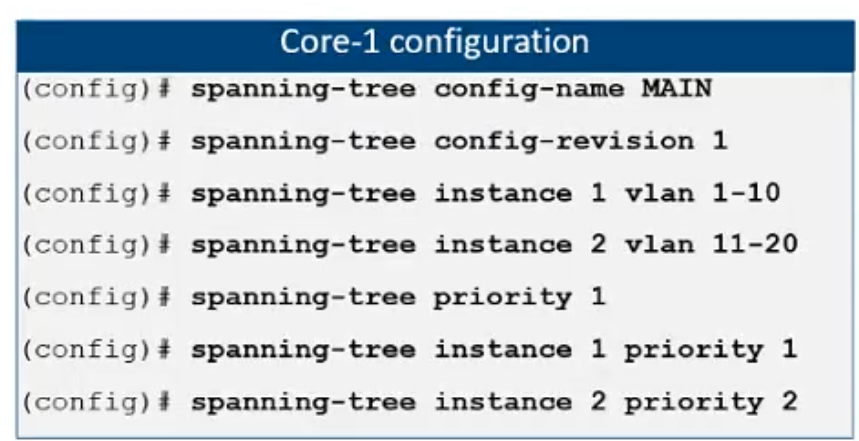

Refer to the diagram where all switches are CX 6300Ms. Which MSTP configuration should be applied to Core-2 in order for Core-2 to join the domain as the primary for Instance 2 and secondary for Instance 1?

A.

A close-up of words Description automatically generated

B.

A black text on a white background Description automatically generated

C.

A black text on a white background Description automatically generated

D.

A black text on a white background Description automatically generated

Core#configure terminal

Core(config)#vrf Green

Core(config-vrf)#exit

Core(config)#

Core(config)#interface vlan 50

Core(config-if-vlan)#?

Given the configuration on theCOREswitch shown above, what command would follow to assign the switched virtual interface (SVI) vlan 50 to the VRF created?

A.

Core(config-if-vlan)# vrf attach Green

B.

Core(config-if-vlan)# ip vpn-instance Green

C.

Core(config-if-vlan)# ip vrf forwarding Green

D.

Core(config-if-vlan)# routing-context Green vrf

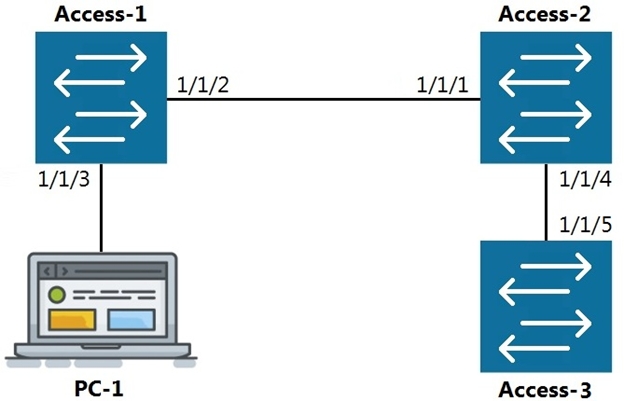

Refer to the exhibit.

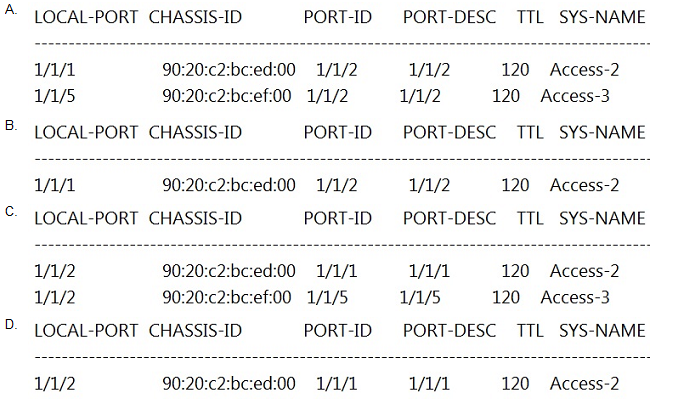

The command show LLDP neighbor-info gets typed into Access-1. All switches are Aruba OS-CX switches. What is the output of this command?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
