HP HPE6-A73 - Aruba Certified Switching Professional Exam

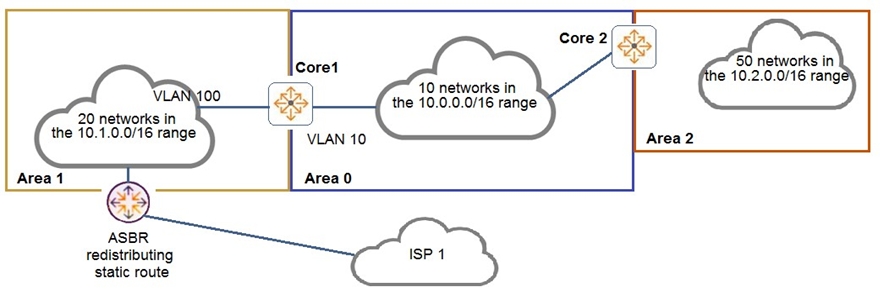

Examine the network topology.

The network is configured for OSPF with the following attributes:

Core1 and Core2 and ABRs

Area 1 has 20 networks in the 10.1.0.0/16 range

Area 0 has 10 networks in the 10.0.0.0/16 range

Area 2 has 50 networks in the 10.2.0.0/16 range

The ASBR is importing a static route into Area 1

Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area

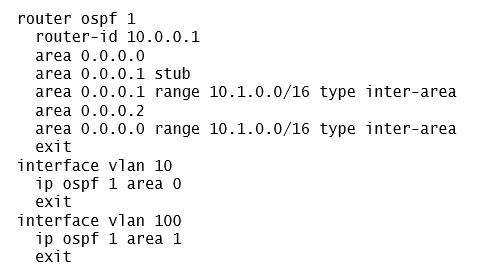

Here is the OSPF configuration performed on Core1:

Based on the above information, what is correct?

An administrator of a large campus network needs a solution that will provide root cause analytics to quickly identify problems so that they can quickly be fixed.

Which AOS-CX switch feature should the administrator utilize to help with root cause analytics?

A company has implemented 802.1X authentication on AOS-CX access switches, where two ClearPass

servers are used to implement AAA. Each switch has the two servers defined. A network engineer notices the following command configured on the AOS-CX switches:

radius-server tracking user-name monitor password plaintext aruba123

What is the purpose of this configuration?

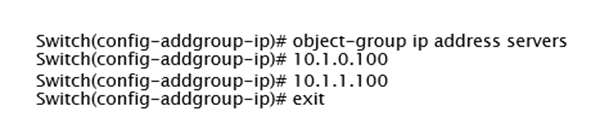

Examine the following AOS-CX switch configuration:

Which access control entries would allow web traffic to the web servers 10.1.0.100 and 10.1.1.100?

How does an administrator install a script and create an agent and actions for the Network Analysis Engine running on AOS-CX switches?

What must a network administrator implement in order to run an NAE script on an AOS-CX switch?

An administrator in a company of 349 users has a pair of AOS-CX switches with connections to external

networks. Both switches are configured for OSPF. The administrator wants to import external routes on both switches, but assigns different seed metrics to the routes, as well as imports them as external type-1 routes.

What is the best way for the administrator to accomplish this?

An administrator is defining a VSX LAG on a pair of AOS-CX switches that are defined as primary and

secondary. The VSX LAG fails to establish successfully with a remote switch; however, after verification, the remote switch is configured correctly. The administrator narrows down the problem to the configuration on the AOS-CX switches.

What would cause this problem?

An administrator will be deploying HPE Aruba Networking Switch Multi-Edit Software to manage an Aruba solution. What does Switch Multi-Edit Software support?

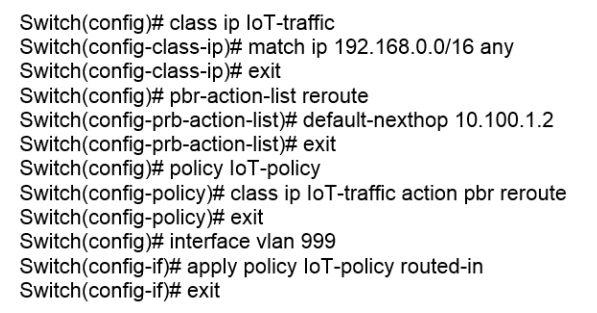

Examine the following AOS-CX configuration:

Based on this configuration, which statement is correct regarding IoT traffic?
