MuleSoft MCIA-Level-1-Maintenance - MuleSoft Certified Integration Architect - Level 1 MAINTENANCE

Explanation

CloudHub object store should be in same region where the Mule application is deployed. This will give optimal performance.

Before learning about Cache scope and object store in Mule 4 we understand what is in general Caching is and other related things.

WHAT DOES “CACHING” MEAN?

Caching is the process of storing frequently used data in memory, file system or database which saves processing time and load if it would have to be accessed from original source location every time.

In computing, a cache is a high-speed data storage layer which stores a subset of data, so that future requests for that data are served up faster than is possible by accessing the data’s primary storage location. Caching allows you to efficiently reuse previously retrieved or computed data.

How does Caching work?

The data in a cache is generally stored in fast access hardware such as RAM (Random-access memory) and may also be used in correlation with a software component. A cache’s primary purpose is to increase data retrieval performance by reducing the need to access the underlying slower storage layer.

Caching in MULE 4

In Mule 4 caching can be achieved in mule using cache scope and/or object-store. Cache scope internally uses Object Store to store the data.

What is Object Store

Object Store lets applications store data and states across batch processes, Mule components, and applications, from within an application. If used on cloud hub, the object store is shared between applications deployed on Cluster.

Cache Scope is used in below-mentioned cases:

● Need to store the whole response from the outbound processor

● Data returned from the outbound processor does not change very frequently

● As Cache scope internally handle the cache hit and cache miss scenarios it is more readable

Object Store is used in below-mentioned cases:

● Need to store custom/intermediary data

● To store watermarks

● Sharing the data/stage across applications, schedulers, batch.

If CloudHub object store is in same region where the Mule application is deployed it will aid in fast access of data and give optimal performance.

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

Explanation

Types of logging:

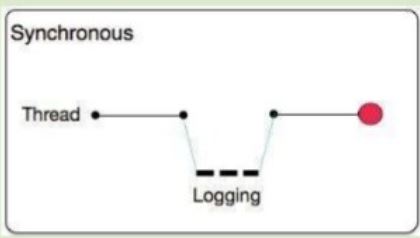

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

● The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

● Performance degrades because of synchronous logging

● Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

● If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

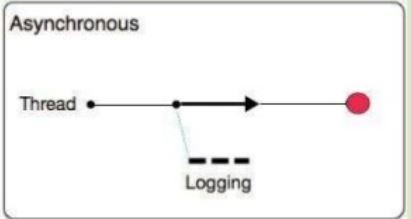

B) Asynchronous:

● The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

● Substantial improvement in throughput and latency of message processing

● Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

● The disadvantage of asynchronous logging is error handling.

● If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event
