MuleSoft MCIA-Level-1 - MuleSoft Certified Integration Architect - Level 1

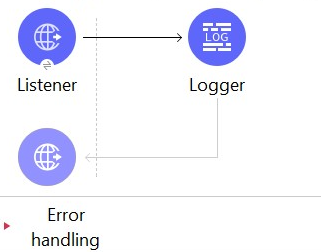

In Mule applications, different components are handled by specific thread pools to optimize performance and resource utilization.

HTTP Listener: This component handles incoming HTTP requests and is managed by the Shared Selector Pool. The Shared Selector Pool is responsible for handling non-blocking IO operations efficiently.

Logger: The Logger component is lightweight and does not perform CPU-intensive operations. It is managed by the CPU_LITE thread pool, which is designed for lightweight CPU operations.

This separation ensures that IO-bound operations do not block CPU-bound operations, maintaining optimal performance and responsiveness in the application.

References:

MuleSoft Threading and Thread Pools

MuleSoft HTTP Listener Documentation

=========================

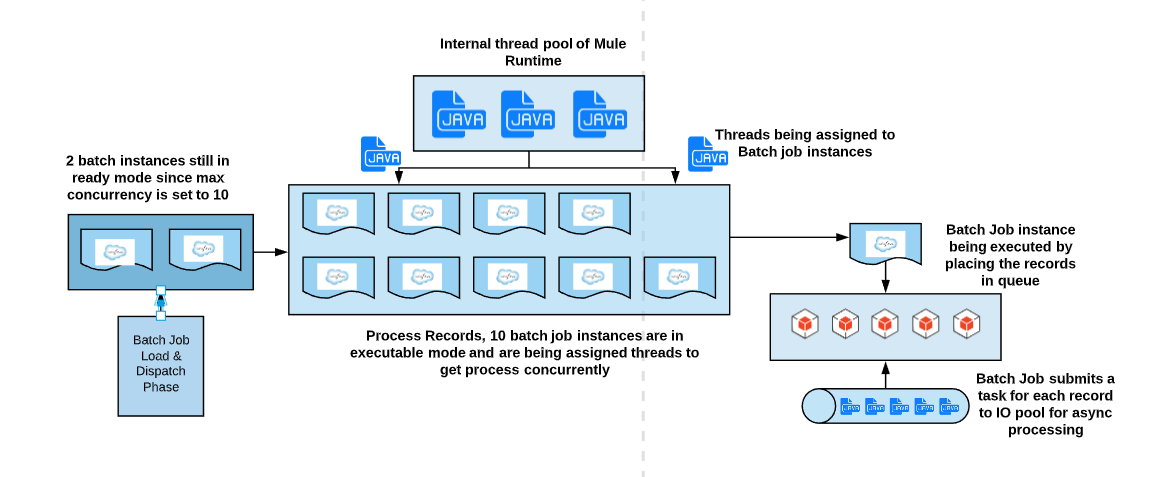

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

The Kubernetes controller is implementing horizontal scalability by adding another pod replica in response to increased application load. Horizontal scaling involves adding more instances of a service or application to handle the increased load, as opposed to vertical scaling, which would involve adding more resources (CPU, RAM) to a single instance. Horizontal scaling is a key feature of cloud-native applications and is supported by Kubernetes to ensure high availability and performance.

References:

Kubernetes Horizontal Pod Autoscaling

Understanding Horizontal vs. Vertical Scaling

Explanation

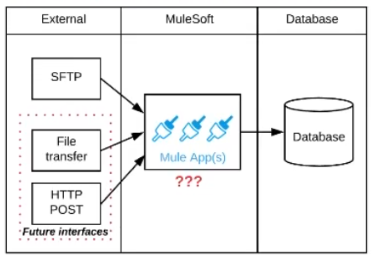

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

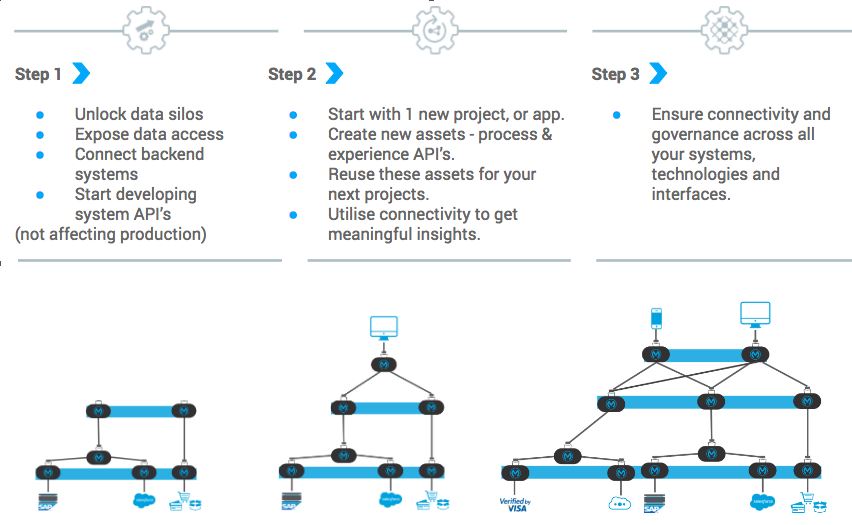

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

When using a non-persistent object store in MuleSoft, the state data is stored in memory rather than on disk. This means that if a server crashes, all data stored in the non-persistent object store will be lost because it does not survive a server restart or crash. Non-persistent object stores are typically used for temporary data that does not need to be retained across application restarts. Therefore, in an environment where an API is maintaining its state using a non-persistent object store, a server crash will result in the loss of that state data.

References:

MuleSoft Documentation on Object Store

Explanation

Below Anypoint Connectors support transactions ● JMS – Publish – Consume ● VM – Publish – Consume ● Database – All operations

Explanation

Correct answer is It is not possible to store logs for 2 years in CloudHub deployment. External log management system is required. CloudHub has a specific log retention policy, as described in the documentation: the platform stores logs of up to 100 MB per app & per worker or for up to 30 days, whichever limit is hit first. Once this limit has been reached, the oldest log information is deleted in chunks and is irretrievably lost. The recommended approach is to persist your logs to a external logging system of your choice (such as Splunk, for instance) using a log appender. Please note that this solution results in the logs no longer being stored on our platform, so any support cases you lodge will require for you to provide the appropriate logs for review and case resolution
