Fortinet NSE6_WCS-7.0 - Fortinet NSE 6 - Cloud Security 7.0 for AWS

Invalid Credentials:

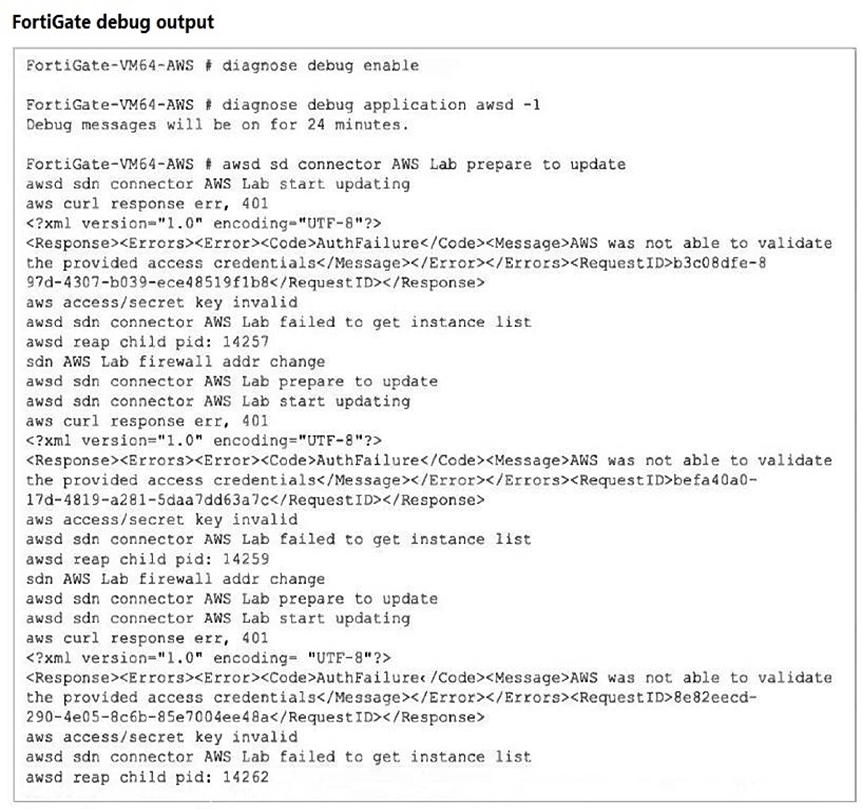

The debug output shows an "AuthFailure" error, indicating that AWS was not able to validate the provided access credentials. This usually points to incorrect or invalid AWS access or secret keys configured in the AWS Lab SDN connector (Option C).

Clock Skew:

Another common reason for authentication failures in AWS API calls is a clock skew between the FortiGate device and AWS. AWS requires that the system time of the client making the API call is synchronized with its own time, within a small margin. If there is a significant time difference, AWS will reject the credentials (Option B).

Other Options Analysis:

Option A is incorrect because the AWS API supports XML version 1.0.

Option D is incorrect as the error message does not indicate an issue with connecting on port 401.

Option E is incorrect because the error is related to authentication, not the absence of instances.

References:

AWS API Authentication: AWS API Security

FortiGate AWS Integration Guide: FortiGate AWS Integration

Understanding the Requirement:

The organization needs to connect a data VPC to the on-premises infrastructure with high bandwidth.

The solution should avoid multiple connections between sites.

Transit Gateway Connect:

Transit Gateway Connect is designed to integrate with SD-WAN networks and provides scalable bandwidth using GRE tunnels.

It simplifies hybrid cloud connectivity by allowing high bandwidth connections without the need for multiple physical connections.

Benefits of Transit Gateway Connect:

Supports scalable bandwidth through GRE tunnels.

Facilitates seamless integration with on-premises and cloud environments.

Reduces complexity by avoiding the need for multiple VPN connections.

Comparison with Other Options:

Option A (Transit VPC with IPSec) is not preferred due to complexity and potential limitations in bandwidth scalability.

Option B (Internet Gateway) is not suitable for private, high-bandwidth connections.

Option C (Transit Gateway multicast) does not address the requirement for high bandwidth in a hybrid cloud setup.

References:

AWS Transit Gateway Documentation: AWS Transit Gateway Connect

Hybrid Cloud Connectivity: AWS Hybrid Cloud

Instance Metadata Traffic:

VPC flow logs do not capture traffic to and from the link-local address 169.254.169.254, which is used for accessing instance metadata (Option A).

DHCP Traffic:

DHCP traffic is not captured by VPC flow logs. This is because DHCP relies on broadcast and multicast traffic, which is excluded from flow logs (Option B).

Security Monitoring:

VPC flow logs can be used as a security tool to monitor the traffic that is reaching the instances. By analyzing the flow logs, administrators can detect suspicious activities and troubleshoot connectivity issues (Option D).

Other Considerations:

Option C is incorrect because flow logs do capture traffic to the reserved IP address of the default VPC router.

Option E is incorrect as VPC flow logs do not provide real-time log streams but rather capture data at intervals and deliver them to CloudWatch or S3.

References:

AWS VPC Flow Logs Documentation: VPC Flow Logs

AWS Networking and Security: AWS Security Monitoring

Understanding Fortinet HA CloudFormation Template:

The Fortinet High Availability (HA) CloudFormation template is used to automate the deployment and configuration of FortiGate instances in AWS.

Staging and Bootstrapping FortiGate:

Staging involves preparing the necessary configuration files and resources needed for deployment.

Bootstrapping is the process of automatically configuring FortiGate instances upon deployment.

S3 Bucket Requirement:

The configuration files required for staging and bootstrapping are typically stored in an S3 bucket.

Since the deployment is in the Ohio (US-East-2) region, it is recommended to host the S3 bucket in the same region to minimize latency and ensure regional compliance.

Comparison with Other Options:

Option A is incorrect because while an S3 bucket is required, it should be in the same region (US-East-2).

Option B is incorrect as the template does not automatically create the S3 bucket.

Option D is incorrect as DynamoDB is not used for staging and bootstrapping in this scenario.

References:

Fortinet Documentation: FortiGate on AWS

AWS S3 Documentation: AWS S3

Web Application Name:

When onboarding a web application to be protected by FortiWeb Cloud, you need to provide a name for the web application. This helps in identifying and managing the application within the FortiWeb Cloud console (Option B).

DNS Records:

To ensure that traffic to your web application is correctly routed through FortiWeb Cloud, you must create DNS records in the domain server that hosts your application. This ensures that requests are directed to FortiWeb Cloud for inspection and protection (Option C).

Other Considerations:

Option A (Waiting for the EC2 instance) is incorrect as it is not a necessary step for onboarding a web application to FortiWeb Cloud.

Option D (Enabling a CDN) is not a mandatory step for onboarding but can be part of a broader strategy for improving performance and protection.

References:

FortiWeb Cloud Documentation: FortiWeb Cloud

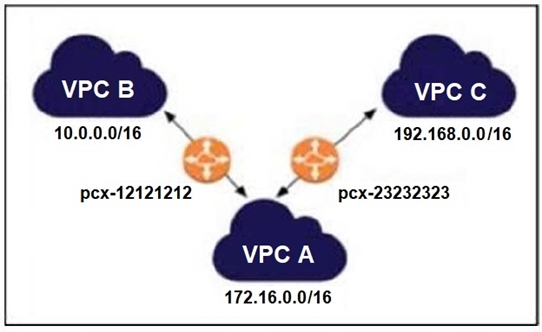

Understanding VPC Peering:

VPC peering connections allow instances in one VPC to communicate with instances in another VPC. Peering is a one-to-one relationship between two VPCs.

Transit Routing Limitation:

AWS VPC peering connections do not support transitive peering. This means that a packet originating in VPC B cannot be routed through VPC A to reach VPC C. Each pair of VPCs must have its own peering connection.

Routing Table Configuration:

Even if you add a route in the VPC A routing table for the 192.168.0.0/16 network, it won't allow VPC B to communicate with VPC C because of the non-transitive nature of VPC peering.

Comparison with Other Options:

Option A is incorrect because adding a route in VPC A does not overcome the limitation of non-transitive peering.

Option C is incorrect because associating pcx-23232323 with VPC B is not how VPC peering works.

Option D is incorrect because you can create a separate peering connection between VPC B and VPC C, which is the required approach for communication between these VPCs.

References:

AWS VPC Peering Guide: VPC Peering

Limitations of VPC Peering: AWS VPC Peering Limitations

Implicit Deny Rule:

Similar to traditional firewall rule sets, FortiGate Cloud-Native Firewall (CNF) includes an implicit deny rule at the bottom of each policy set. This means any traffic that does not match an existing rule in the policy set is automatically denied (Option A).

Policy Set Creation:

When a new CNF instance is deployed, a new policy set is created specifically for that instance. This ensures that each CNF instance can have a tailored set of security policies based on the specific needs of the deployment (Option C).

Other Options Analysis:

Option B is incorrect because policy sets do not require manual synchronization; they are applied automatically once configured.

Option D is incorrect as a single CNF instance operates with a single policy set at a time.

References:

FortiGate CNF Documentation: FortiGate CNF

Firewall Policy Best Practices: Fortinet Policies

Web Filtering:

FortiGate for AWS offers advanced web filtering capabilities, which allow organizations to control and monitor web access. This feature complements AWS's native security services by providing granular control over web traffic (Option B).

OSPF over IPSec:

FortiGate for AWS can establish dynamic routing protocols such as OSPF (Open Shortest Path First) over IPSec tunnels. This capability enhances network routing flexibility and security, which is not natively provided by AWS (Option C).

Secure SD-WAN with Application Visibility:

FortiGate for AWS provides Secure SD-WAN functionality, offering enhanced application visibility and traffic management. This is a significant addition to AWS's networking services, optimizing application performance and security (Option E).

Comparison with Other Options:

Option A (Higher VPN throughput) is not specifically enhanced by FortiGate as compared to AWS native services.

Option D (Advanced dynamic routing) is partially covered under OSPF over IPSec but is not as specific as the other chosen options.

References:

FortiGate for AWS Documentation: FortiGate on AWS

AWS Networking and Content Delivery: AWS Networking

FortiGate Cloud-Native Firewall (CNF):

FortiGate CNF offers cloud-native firewall capabilities designed to provide network security within AWS. It integrates seamlessly with AWS services and offers advanced threat protection and traffic management (Option C).

Fortinet Managed Rules for AWS WAF:

Fortinet Managed Rules for AWS WAF provide pre-configured, updated security rules that protect web applications from common threats such as SQL injection and cross-site scripting. This offering simplifies the protection of web applications hosted on AWS (Option D).

FortiWeb Cloud:

FortiWeb Cloud is a Web Application Firewall (WAF) as a service that provides comprehensive protection for web applications hosted on AWS. It offers features such as bot mitigation, DDoS protection, and deep inspection of HTTP/HTTPS traffic (Option E).

Comparison with Other Options:

Option A (AWS WAF) is a native AWS service, not a Fortinet offering.

Option B (FortiEDR) is focused on endpoint detection and response, which is not specifically aimed at protecting web applications.

References:

FortiGate CNF Documentation: FortiGate CNF

Fortinet Managed Rules for AWS WAF: Fortinet AWS WAF Rules

FortiWeb Cloud Overview: FortiWeb Cloud
