Paloalto Networks SD-WAN-Engineer - Palo Alto Networks SD-WAN Engineer

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes a hierarchical QoS model (typically based on Hierarchical Token Bucket or similar shaping algorithms) to manage bandwidth contention.

Guaranteed Bandwidth: The "Platinum" class (used for Real-Time voice/video) is assigned a guaranteed bandwidth percentage (floor) in the QoS profile. This ensures that even if "Gold" (Transactional) or "Silver" (Bulk) traffic is trying to consume 100% of the link, the scheduler reserves the specific portion (e.g., 30%) for Platinum traffic, preventing starvation.

Shaping, not Policing: Unlike simple policing which drops excess traffic hard, the ION device shapes the egress traffic. If the link is congested, the scheduler delays the lower-priority packets (buffering) to allow the high-priority Platinum packets to exit immediately.

Why not Strict Priority (A)? While Platinum behaves like a priority queue, pure Strict Priority can completely starve lower queues if the high-priority traffic is misbehaving or voluminous. Prisma SD-WAN typically uses bandwidth guarantees (floors) and limits (ceilings) to ensure fair sharing while protecting critical apps.

In a Data Center (DC) deployment, the ION device typically peers with a core router via Border Gateway Protocol (BGP) to exchange reachability information between the SD-WAN fabric and the legacy corporate network.2 When the ION is configured to learn only a default route ($0.0.0.0/0$) from the core, the entire SD-WAN fabric relies on this single BGP-learned route to reach internal resources not directly connected to the ION.

The primary risk in this design is network isolation caused by a BGP misconfiguration or a "soft failure" on the core router. If the BGP session stays "Up" but the core router stops advertising the default route due to a configuration error, the ION device will remove the route from its routing table. Without a valid path to the core, the branch sites connected to the DC ION will lose connectivity to all data center resources.

To mitigate this, the recommended best practice is to add a static default route with a higher Administrative Distance (AD) pointing to the core peer IPs.3 This acts as a "floating static route." Under normal operations, the BGP-learned default route (typically with an AD of 20 for eBGP) remains active in the routing table. If the BGP advertisement fails, the static route with the higher AD (e.g., 250) becomes active. This ensures that the ION device maintains a persistent gateway toward the core infrastructure, preventing total fabric isolation and providing a fail-safe mechanism while the BGP peering issue is remediated. While BFD (Option A) helps with fast peer failure detection, it does not solve the issue of a missing prefix advertisement. Static route redundancy provides the necessary architectural "safety net" for the data center's reachability.

In a Prisma SD-WAN deployment, the routing of traffic between branches and Data Centers (DCs) relies on the proper synchronization between the AppFabric (the overlay) and the local routing protocols (the underlay/LAN side). In this scenario, the branch can successfully reach DC1, indicating the branch ION is correctly participating in the fabric. However, traffic to DC2 (10.2.2.22) is failing.

The DC2 site has the site prefix 10.2.2.0/23 configured. In Prisma SD-WAN, defining a site prefix informs the Controller that this specific subnet "belongs" to that site, causing the Controller to advertise reachability for this prefix to all other ION devices in the fabric. Consequently, when the branch ION (192.168.1.123) attempts to reach 10.2.2.22, it correctly identifies DC2 as the destination and encapsulates the traffic toward the DC2 ION.

The bottleneck occurs once the packet arrives at the DC2 ION. While the ION is advertising the branch subnet (192.168.1.0/24) to the DC Core (ensuring the return path), the ION itself must know how to forward the incoming traffic from the branch to the internal DC network. If the DC2 ION does not have a specific route in its local routing table for the 10.2.2.0/23 subnet pointing to the DC Core's internal interface, the packet will be dropped.

According to Palo Alto Networks best practices for Data Center ION deployment, a static default route (0.0.0.0/0) should be configured on the ION device pointing toward the DC Core’s next-hop IP address. This ensures that any traffic received from the AppFabric destined for internal DC resources—which are not directly connected to the ION—is successfully handed off to the core switching fabric for final delivery. Adding this default route (Option A) resolves the reachability issue by providing the "last-hop" routing instruction within the DC.

In the Prisma SD-WAN ecosystem, ION (Instant-On Network) devices are categorized based on their performance capabilities, throughput, and their specific role within the network architecture—namely, whether they function as a Branch device or a Data Center (DC) device.2 The "Branch Gateway" designation typically refers to high-capacity hardware or virtual instances designed to handle complex routing, massive throughput, and high-density connectivity requirements found in large branch offices or regional hubs.

The devices listed in option D represent the high-performance tier of the ION family. The ION 9200 and ION 5200 are flagship hardware appliances designed for large-scale deployments, offering multi-gigabit throughput and extensive port density.3 The ION 3200 serves as a robust mid-to-high range branch solution.4 The ION 7116V is a high-capacity virtual appliance (part of the 7000 series) designed to provide flexible, software-defined gateway capabilities in virtualized environments or public clouds (like AWS, Azure, or GCP).

Specifically, these models support advanced features such as Layer 3 hardware forwarding, integrated switching (in certain sub-models), and the processing power required to run deep packet inspection (DPI) for application-based path selection at scale. While smaller units like the 1200 series are excellent for small-to-medium branches, the 9200, 3200, 5200, and 7116V are the primary workhorses for organizations requiring "Gateway" class performance to manage heavy traffic loads and maintain high availability in a Prisma SD-WAN fabric.

Comprehensive and Detailed Explanation

For a successful Zero Touch Provisioning (ZTP) experience, the ION device must be able to obtain an IP address and reach the internet immediately upon boot-up.

According to Palo Alto Networks hardware guides, the Controller Port (often labeled specifically as "CONTROLLER" on models like the ION 3000/7000/9000) is pre-configured to act as a DHCP client by default. It is the preferred interface for the initial "call home" process.

However, for smaller desktop models (like the ION 1000/2000/1200 series) or scenarios where a dedicated management network is not available, the device firmware is also configured to attempt DHCP client requests on Port 1 (often labeled as Internet 1 or simply 1).

Connecting the ISP circuit to any random port (like Port 4 or a LAN port) will not work for ZTP because those interfaces are not pre-configured as DHCP clients in the factory default state. Therefore, the installer must ensure the internet uplink is connected to either the dedicated Controller port or Port 1/Internet 1 to ensure the device can resolve the controller FQDN and download its configuration.

Comprehensive and Detailed Explanation

According to the Prisma SD-WAN Performance Policy Default Behavior documentation, the default action configured for applications (including real-time media) when a path experiences poor performance (violates the SLA thresholds for latency, jitter, or packet loss) is to Move Flows.

The Prisma SD-WAN ION device continuously monitors the health of all available paths. If the active path for a media application degrades and fails to meet the specified SLA, the default policy dictates that the traffic should be steered (moved) to an alternate, compliant path that meets the performance criteria.

While Forward Error Correction (FEC) is a powerful feature available in Prisma SD-WAN to mitigate packet loss for real-time applications, it is an optional action that must be explicitly enabled or configured within the performance policy rules. It is not the default action in the base system configuration; the primary default mechanism for handling performance issues is to leverage the multi-path fabric to switch to a better link.

Comprehensive and Detailed Explanation

Prisma SD-WAN separates real-time visibility from historical summarization.

Reports (C): The Reports section is the dedicated engine for generating historical summaries. Administrators can create custom report templates (e.g., "Monthly Executive Summary") that include specific widgets like "Top Applications by Volume," "Site Availability," or "Circuit Utilization." Crucially, this feature allows for Scheduling, where the system automatically generates the PDF report at a set interval (e.g., first day of the month) and emails it to a distribution list.

Activity Charts (A) / Media Analytics (B): These provide interactive, visual graphs for ad-hoc analysis but are not designed for generating downloadable, scheduled PDF summaries for management.

Flow Browser (D): This is for deep-dive troubleshooting of individual sessions, not for high-level aggregate reporting.

The Prisma SD-WAN (ION) device includes a native, application-aware Zone-Based Firewall (ZBFW) that provides comprehensive security within the branch without the mandatory requirement for additional hardware.2 The fundamental principle of this architecture is the grouping of interfaces and sub-interfaces into logical Security Zones.3 Once these zones are defined (e.g., LAN, WAN, Guest, IoT), the administrator can create security policies that govern the traffic permitted to flow between them.4

Unlike traditional routers that rely on stateless Access Control Lists (ACLs) which are difficult to manage and lack application visibility, the Prisma SD-WAN ZBFW is stateful and application-aware.5 This means it can apply granular control over North-South traffic (flows moving between the LAN and the WAN/Internet) and East-West traffic (flows moving between different segments within the LAN, such as from a Guest zone to a Corporate zone).6

By using security zones, an ION device can ensure that even if two local networks are connected to the same physical appliance, they remain completely isolated unless a specific policy explicitly allows communication. This "Zero Trust" approach at the branch edge allows organizations to segment vulnerable devices (like IoT) from critical internal resources and strictly control how users access the internet or the corporate data center.7 The ZBFW works in tandem with the global controller to ensure that security postures are consistent across all branch locations, eliminating the complexity of manual ACL management at each site.8

In the Prisma SD-WAN (Instant-On Network) management framework, administrators can customize how events are handled and prioritized across different sites through Event Policies. An organization that requires "elevated incident notifications" for a critical site like its headquarters needs a way to differentiate those alerts from standard branch notifications in the management portal and integrated third-party tools.

The most direct and effective method to achieve this is by configuring an Event Policy Rule specifically for the headquarters site. Within the incident policy framework, administrators can create rules that match specific resources—in this case, the headquarters site—and apply an action to set the priority. Priority levels typically range from P1 (highest) to P5 (lowest).1 By setting these to the highest level (P1), any generated incident for that site will immediately stand out on the dashboard as a high-priority event.

This approach is superior to other options because it changes the inherent importance of the alert within the Prisma SD-WAN logic itself. For example, a "WAN Link Down" event at a small retail branch might be a P3, but the same event at the HQ could be elevated to a P1 via a custom policy rule. This elevation ensures that the Network Operations Center (NOC) is alerted more urgently and that external integrations, such as ServiceNow or PagerDuty, receive the correct priority mapping for immediate escalation. Options such as aggressive SLA thresholds (Option B) only increase the frequency of alerts, not necessarily their notification priority, while global syslog or SNMP settings (Options A and D) lack the site-specific granularity required for this use case.

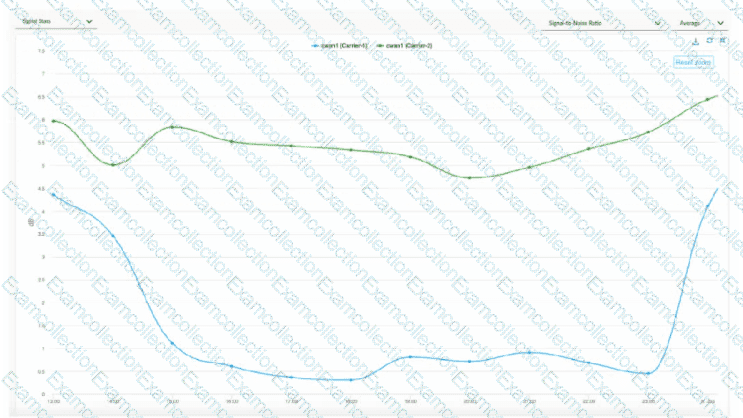

To ensure the stability and performance of the SD-WAN fabric, Prisma SD-WAN provides granular visibility into the health of each Instant-On Network (ION) appliance. While the solution is primarily application-defined, monitoring the underlying physical and system resources of the hardware or virtual instance is critical for proactive maintenance and troubleshooting.

At the individual device level, administrators can monitor system resource utilization, which includes CPU usage, memory (RAM) consumption, and disk space availability.1 High CPU or memory usage can indicate that the device is reaching its throughput limits or that a specific process (such as deep packet inspection) is overtaxing the system. Disk utilization is monitored to ensure there is sufficient space for local logs and system operations.

Beyond internal system health, interface-level metrics are essential. This includes monitoring interface bandwidth utilization to identify bottlenecks on WAN or LAN ports. Crucially, operational performance is also assessed through error and discard counters on each interface. High error rates or frequent packet discards often signal physical layer issues (like bad cabling), duplex mismatches, or upstream provider congestion. While VPN status and application flows are vital for network-wide visibility, the core health of an ION device is defined by these foundational system and interface metrics.

Monitoring these specific parameters allows network engineers to distinguish between an application performance issue caused by network latency and one caused by a local hardware resource constraint.
