A site survey is the formal process used to determine the required number, placement, and configuration of wireless access points (APs). Security+ SY0-701 states that site surveys measure RF propagation, identify dead zones, account for building materials, detect interference sources, and evaluate coverage overlap. This information allows network engineers to deploy the fewest APs necessary while still ensuring full coverage.

Although heat maps (C) are generated as a result of a site survey, they are visualization tools—not the actual survey process. A signal locator (A) is not a standardized tool in wireless planning. WPA3 (B) is a wireless security protocol and has no impact on access point planning or coverage optimization.

A full site survey ensures optimal AP placement to balance coverage, performance, and cost—exactly the concern described in the scenario.

Thus, the correct answer is D: Site survey.

A diagram of a computer AI-generated content may be incorrect.

Step 1: Understand Requirements & Security Principles

Requirements:

Customer-facing payment application (PCI DSS compliance applies)

Hosted on third-party cloud (e.g., AWS)

Must segment public-facing and internal resources

Needs to be scalable and resilient

Must have strong security controls

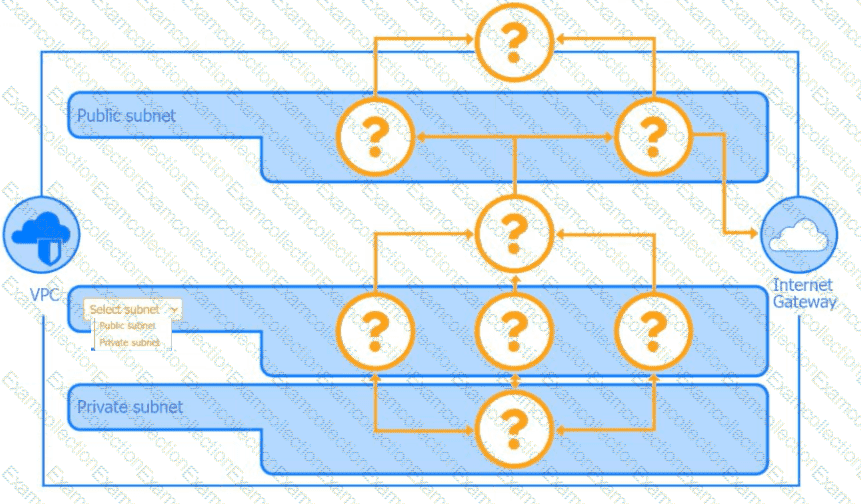

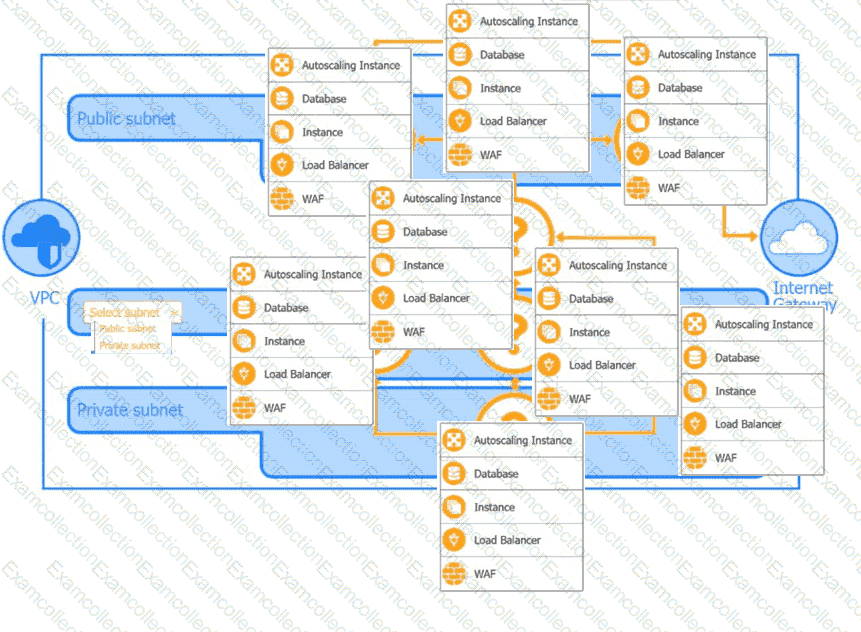

Step 2: Design the High-Level Network Layout

Core Components:

VPC (Virtual Private Cloud): Isolates your environment from other tenants in the cloud.

Subnets:

Public subnet: For resources that must communicate with the internet.

Private subnet: For internal resources, NOT directly exposed to the internet.

Step 3: Place Resources in Appropriate Subnets

Public Subnet:

Internet-facing Load Balancer (LB): Distributes traffic to application servers.

Web Application Firewall (WAF): Protects against web exploits.

Autoscaling Instances: EC2 (or VM) servers running your web front-end, automatically scaling as traffic grows.

Private Subnet:

Application servers: Back-end logic, not exposed to internet directly.

Database: Sensitive data storage, only accessible by application servers.

Internal Load Balancer: Manages traffic among app servers.

WAF: Can be used internally as well for defense-in-depth.

Step 4: Add Connectivity and Security Controls

Internet Gateway: Allows resources in public subnet to communicate with the internet.

NAT Gateway: Allows outbound internet traffic from private subnet without exposing private IPs.

Security Groups: Firewalls at the instance level; allow only necessary traffic (e.g., LB to web server, web server to DB).

Network ACLs: Subnet-level firewalls for additional control.

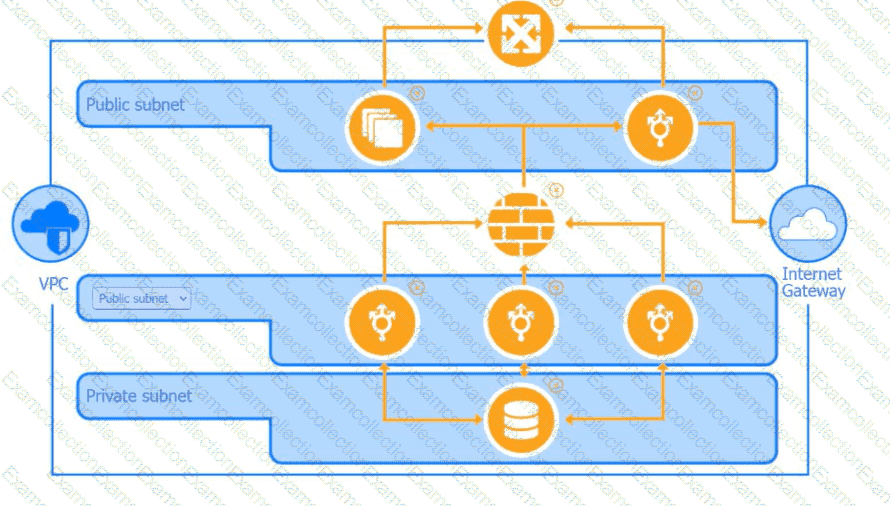

Step 5: Network Diagram Explanation (Based on Your Images)

Public Subnet (Top Layer)

Load Balancer

Accepts HTTPS traffic from customers.

Sends only necessary HTTP/HTTPS to web servers in public subnet.

WAF (Web Application Firewall)

Sits in front of Load Balancer.

Filters malicious requests (SQLi, XSS, etc.).

Autoscaling Group

Multiple web servers for redundancy and scalability.

Placed in public subnet to respond to traffic spikes.

Private Subnet (Bottom Layer)

Application Servers

Receive requests from public subnet’s load balancer.

Not directly exposed to the internet.

Database

Only accessible from application servers, never public.

Security groups restrict all inbound traffic except from app servers.

Internal Load Balancer

Balances requests to application servers.

Step 6: Flow of Data (Step-by-Step)

Client - > Internet Gateway - > WAF - > Load Balancer (Public Subnet):Customers initiate connections to your app over the internet.

Load Balancer - > Autoscaling Web Servers (Public Subnet):Load balancer routes requests to available web servers.

Web Servers - > Application Logic (Private Subnet):Web servers pass necessary requests to the internal application servers.

App Servers - > Database (Private Subnet):Application servers query/update customer payment data in the database.

Outbound (NAT Gateway):App servers may need to access updates or external APIs—use NAT Gateway for secure outbound connections.

Step 7: Security Best Practices

Security Groups: Only allow necessary ports (e.g., 443 for HTTPS to LB, 3306 for MySQL between app server and DB).

Network ACLs: Add another layer of subnet-level restrictions.

Encryption: Use HTTPS for all external connections, encrypt data at rest and in transit (TLS, disk encryption).

IAM Roles/Policies: Principle of least privilege for accessing resources.

Monitoring/Logging: Enable VPC flow logs, cloud service logs, and application logging.

Patch Management: Automate patching for OS and applications.

Backups: Regular, secure backups of critical data.

Step 8: Compliance Considerations

For payment applications (PCI DSS):

Isolate cardholder data environment (CDE).

Strong access controls (multi-factor authentication, role separation).

Regular vulnerability assessments and penetration testing.

Retain logs for auditing.

Step 9: Draw the Architecture (Summary)

Internet Gateway: Allows inbound/outbound internet access.

Public Subnet: WAF, Load Balancer, Autoscaling group.

Private Subnet: App servers, DB, internal LB.

NAT Gateway: Outbound access for private resources.

Security Groups/ACLs: Control all traffic flows.

Monitoring/Logging: Enabled at all levels.

Bonus: Sample Security Group Rules

Web Server (Public Subnet):

Inbound: 443 (HTTPS) from Internet

Outbound: 80/443 to App Servers

App Server (Private Subnet):

Inbound: 80/443 from Web Servers

Outbound: 3306 (MySQL) to Database

Database (Private Subnet):

Inbound: 3306 from App Servers

Outbound: None (unless replication required)

References to Security+ Domains

1.0 General Security Concepts: Principle of least privilege, defense in depth.

2.0 Threats, Vulnerabilities, Mitigations: WAF, segmentation, patching.

3.0 Security Architecture: Network segmentation, secure design.

4.0 Security Operations: Monitoring, logging, response.

5.0 Security Program Management: Compliance, policy.

Web-filtering effectiveness heavily relies on content categorization to correctly identify and block access to malicious or inappropriate websites. If users are still visiting malicious links, it is likely that the categorization database or configuration needs updating or correction.

Intrusion prevention systems (A) protect against network attacks but do not filter web content by category. Encryption (C) is unrelated to web filtering, and DNS services (D) assist with domain resolution but do not directly categorize content.

Proper configuration and maintenance of content categorization are essential to effective web filtering, as emphasized in the Security Operations domain of SY0-701【6:Chapter 12†CompTIA Security+ Study Guide】.

AWeb Application Firewall (WAF)is designed toprotect web applications from attackssuch asCross-Site Scripting (XSS)by filtering and monitoring HTTP traffic between the internet and a web application.

Next-Generation Firewalls (NGFW) (A)provide advanced network security but are not specifically designed to protect web applications from XSS attacks.

Unified Threat Management (UTM) (B)provides multiple security functions but lacks the specialized application-layer protection needed to mitigate XSS.

Network Access Control (NAC) (D)controls device access to the network but does not prevent web-based attacks.

AWAF is the best solutionfor protecting web servers fromXSS, SQL injection, and other web-based threats.

An Incident Response Plan (IRP) is the most relevant document because the scenario is about detective and corrective activities after or during security events. Phishing, social engineering, and business email compromise are incident categories that require predefined escalation paths, containment actions, communication steps, evidence handling, and recovery procedures. SDLC focuses on secure software development, not operational response. BCP focuses on maintaining business operations during disruption, and AUP defines acceptable user behavior. The IRP tells security teams how to detect, analyze, contain, eradicate, and recover from incidents. For Security+, this aligns directly with incident response preparation and operational procedures for common attack types.

Applying the latest OS updates, patches, and endpoint definitions is the most effective way to prevent known exploits, which are attacks leveraging previously discovered vulnerabilities for which fixes are available.

To mitigate the risk of sensitive data being exfiltrated from the environment, the IT manager should implement a Data Loss Prevention (DLP) solution. DLP monitors and controls the movement of sensitive data, ensuring that unauthorized transfers are blocked and potential data breaches are prevented.

XDR (Extended Detection and Response) is useful for threat detection across multiple environments but doesn ' t specifically address data exfiltration.

SPF (Sender Policy Framework) helps prevent email spoofing, not data exfiltration.

DMARC (Domain-based Message Authentication, Reporting & Conformance) also addresses email security and spoofing, not data exfiltration​​.

The log entries clearly show an attacker attempting to access sensitive system files by manipulating the filename parameter. The use of ../../../ is a classic indicator of a directory traversal attack, also called path traversal. This technique is used to move outside the intended web directory and access restricted locations on the server’s filesystem.

In this case, the attacker is attempting to read:

/etc/passwd — contains user account information

/etc/shadow — contains hashed password entries and is even more sensitive

The CompTIA Security+ SY0-701 exam describes directory traversal as an attack where unvalidated user input allows navigation to system directories, often using sequences like ../ to bypass file path restrictions. This is exactly what is shown in the logs.

File injection (A) would involve inserting malicious files or code, not reading system files.

Privilege escalation (B) requires exploiting a system to gain higher privileges, not just reading files.

Cookie forgery (D) involves manipulating session cookies and does not match the observed behavior.

Because the attacker is using path traversal patterns to access protected files, the correct answer is C. Directory traversal.

Full disk encryption (A)ensures that data stored on the device is protected even if the device is physically stolen. This is a fundamental security control for end-user devices, especially laptops and mobile devices, to prevent data breaches.

Endpoint protection (D)refers to anti-malware, antivirus, and host-based firewall solutions that safeguard end-user devices from malware, ransomware, and unauthorized access.

These measures are explicitly referenced in theCompTIA Security+ SY0-701exam objective2.2: Given a scenario, apply security concepts in support of organizational risk mitigationunderDevice hardening.

Management review is a critical step in the change management process. Before implementing any design change, management reviews help evaluate the potential impact, security implications, and alignment with organizational goals and policies. This review ensures that the change is justified, risks are understood, and proper approvals are obtained.

Load testing is a performance test, maintenance notifications are communication steps, and procedure updates are documentation activities — all important but generally occur after management has approved the change.

The significance of management involvement in change governance is a foundational concept in the Security Program Management and Oversight domain of the SY0-701 exam【6:Chapter 16†CompTIA Security+ Study Guide】.

A screenshot of a computer AI-generated content may be incorrect.

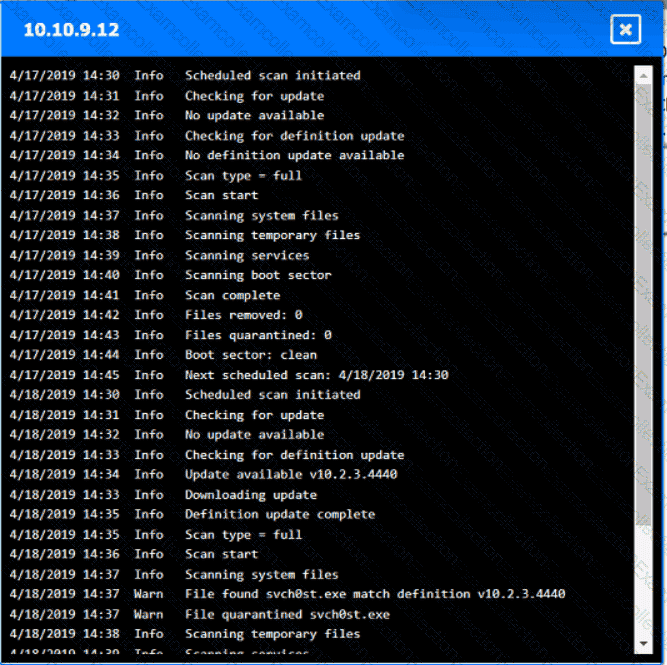

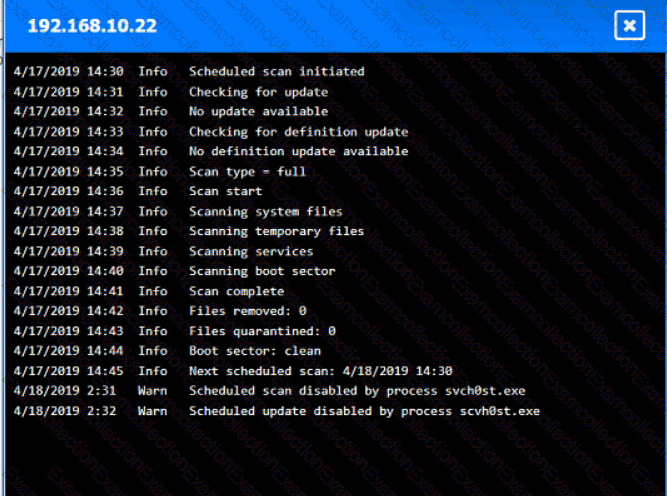

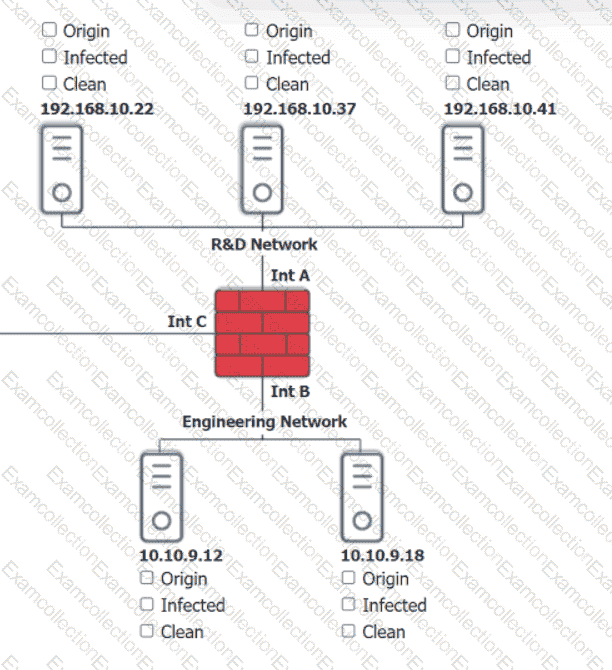

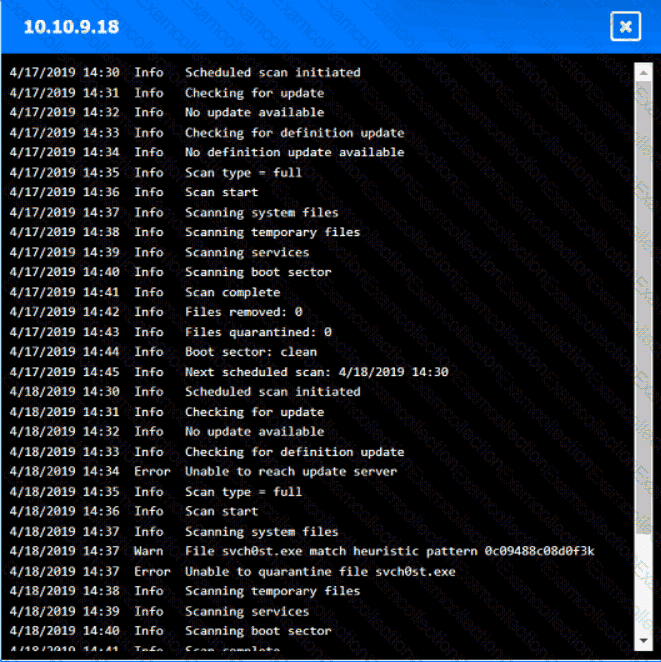

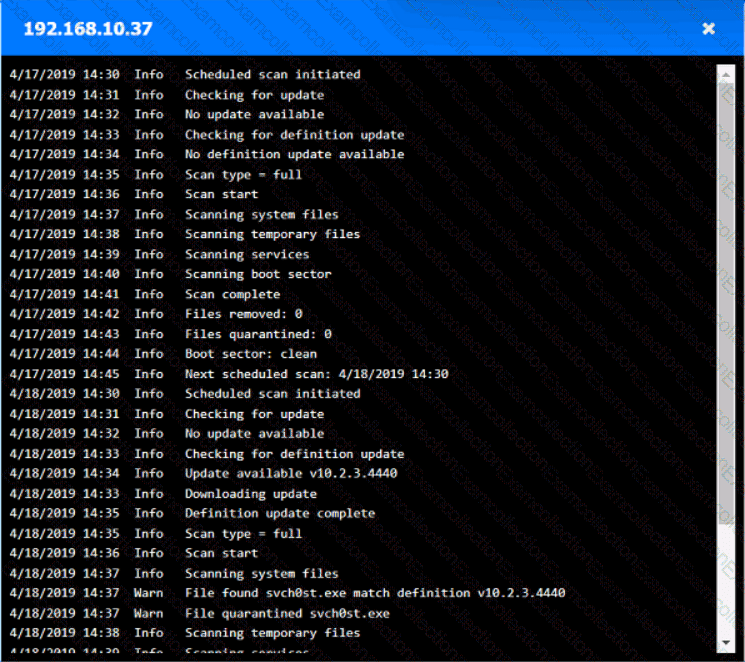

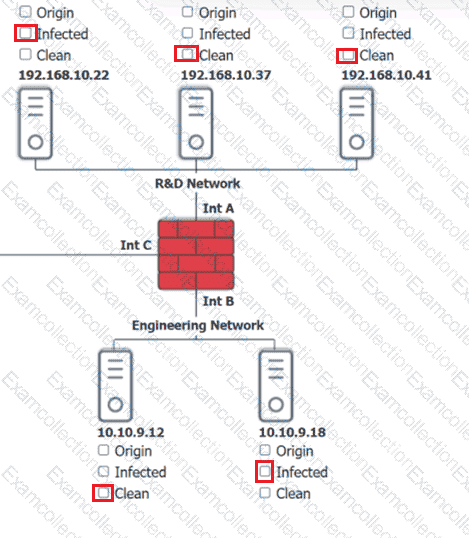

Based on the logs, it seems that the host that originated the infection is 192.168.10.22. This host has a suspicious process named svchost.exe running on port 443, which is unusual for a Windows service. It also has a large number of outbound connections to different IP addresses on port 443, indicating that it is part of a botnet.

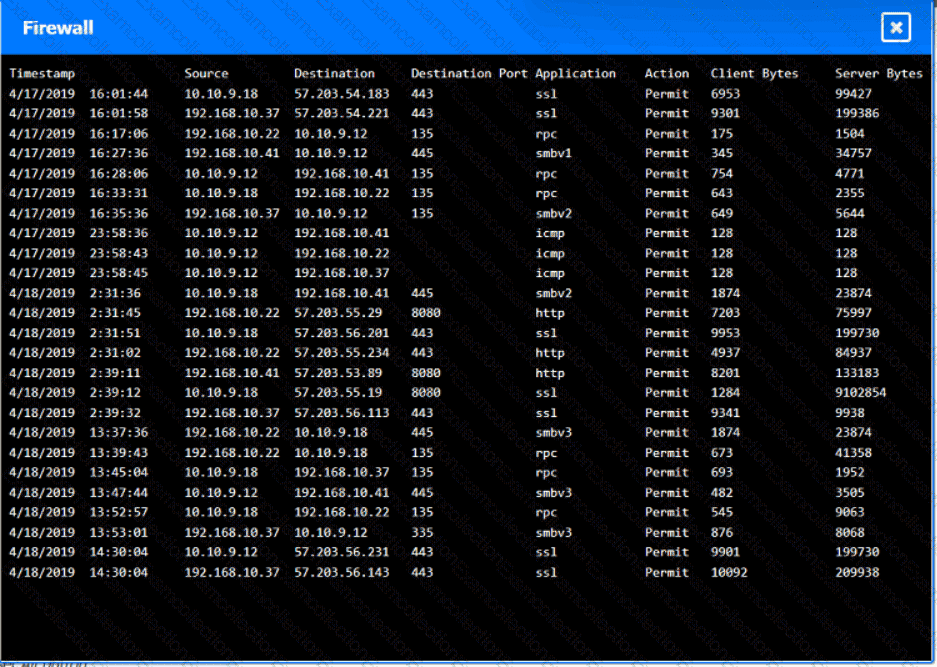

The firewall log shows that this host has been communicating with 10.10.9.18, which is another infected host on the engineering network. This host also has a suspicious process named svchost.exe running on port 443, and a large number of outbound connections to different IP addresses on port 443.

The other hosts on the R & D network (192.168.10.37 and 192.168.10.41) are clean, as they do not have any suspicious processes or connections.

When layoffs occur, disgruntled employees pose a significant insider threat risk. Training supervisors to identify signs of disgruntlement and manage employees empathetically helps reduce insider threat risks by addressing issues before they escalate. Supervisors act as the first line of defense in recognizing behavioral changes and intervening.

Immediately disabling accounts (A) may cause operational issues if done prematurely; monitoring with DLP (C) is reactive and less proactive than awareness; raising awareness about social engineering (D) targets external threats more than insider risks.

This approach is part of insider threat awareness and workforce management in Security Program Management【6:Chapter 16†CompTIA Security+ Study Guide】.

The final step in the incident response process is " Lessons learned. " This step involves reviewing and analyzing the incident to understand what happened, how it was handled, and what could be improved. The goal is to improve future response efforts and prevent similar incidents from occurring. It ' s essential for refining the incident response plan and enhancing overall security posture.

References = CompTIA Security+ SY0-701 study materials, particularly in the domain of incident response and recovery​​.

Smishing is a type of phishing attack that uses text messages or common messaging apps to trick victims into clicking on malicious links or providing personal information. The scenario in the question describes a smishing attack that uses pretexting, which is a form of social engineering that involves impersonating someone else to gain trust or access. The unknown number claims to be the company’s CEO and asks the employee to purchase gift cards, which is a common scam tactic. Vishing is a similar type of attack that uses phone calls or voicemails, while phishing is a broader term that covers any email-based attack. References: CompTIA Security+ Study Guide: Exam SY0-701, 9th Edition, page 771; Smishing vs. Phishing: Understanding the Differences2

The best answer is C. Execute the file in a sandbox.

A sandbox is an isolated environment used to safely run suspicious files and observe their behavior without risking production systems. In this case, the analyst only used antivirus scanning, which may miss new, obfuscated, or previously unknown ransomware. By executing the file in a sandbox, the analyst could have observed malicious behaviors such as:

file encryption attempts

process spawning

registry changes

network beaconing

suspicious system modifications

This makes sandboxing a much better method for analyzing potentially malicious files than relying only on signature-based antivirus.

Why the other options are incorrect:

A. Review the file in a code editor.This might help in limited cases, but many malicious files are compiled, packed, or obfuscated. It is not a reliable primary analysis method.

B. Monitor the file connections with netstat.Netstat only shows network connections and would not fully reveal ransomware behavior, especially if the malware acts locally before making network connections.

D. Retrieve the file hash and check with OSINT.Hash reputation checks can help identify known malware, but they do not detect new or modified ransomware samples that do not yet appear in threat intelligence sources.

From the SY0-701 perspective, suspicious files should be analyzed using dynamic analysis in a sandbox to identify behavior that static tools may miss. That is why C is the best answer.

The scenario describes a situation where a user unknowingly triggers an unwanted action, such as changing their password, by clicking a malicious link. This is indicative of a Cross-Site Request Forgery (CSRF) attack, where an attacker tricks the user into executing actions they did not intend to perform on a web application in which they are authenticated.

References = CompTIA Security+ SY0-701 study materials, particularly in the domain of web application security and common attack vectors like CSRF​​.

Change management is the formal process designed to control, document, approve, and track modifications to systems, internal processes, assets, and security controls. This control mechanism helps prevent unauthorized or unintended changes that could introduce vulnerabilities or disrupt operations.

Playbooks are documented procedures for responding to incidents, incident response manages security incidents, and acceptable use policies define acceptable user behavior but do not directly control changes.

By enforcing proper change management, organizations maintain the integrity and security of their infrastructure, which is a critical topic covered in the Security Program Management and Oversight domain of SY0-701【6:Chapter 16†CompTIA Security+ Study Guide】

The correct answer is B. Code signing.

Code signing uses a digital signature to verify the authenticity and integrity of software, scripts, drivers, or compiled binaries. If a compiled binary is signed, the production environment can verify that the binary came from a trusted source and has not been modified since it was signed.

This supports integrity because any unauthorized change to the binary would invalidate the signature.

Why the other options are incorrect:

A. Input validation

Input validation helps prevent attacks such as injection, cross-site scripting, and malformed input attacks. It does not verify the integrity of compiled binaries.

C. SQL injection

SQL injection is an attack technique, not a security measure.

D. Static analysis

Static analysis reviews source code or binaries without executing them. It can help identify vulnerabilities before deployment, but it does not provide ongoing integrity verification of compiled binaries in production.

Therefore, the best answer is code signing.

The best answer is C. Apply aggregation.

In Security+ logging and monitoring concepts, log aggregation means collecting logs from multiple systems and centralizing them in one place, often for use by a SIEM or another monitoring platform. This improves the speed and efficiency of searches because analysts do not need to query many separate devices or locations individually. Centralized logs are much easier to index, correlate, and search quickly.

Why the other options are not the best choice:

A. Conduct deduplicationDeduplication reduces repeated data and may save storage space, but it is primarily a storage-efficiency method. It does not directly provide the best improvement for fast searching across logs.

B. Conduct archivingArchiving is used for long-term retention, but archived logs are usually moved out of readily searchable live storage. This would not support the requirement for the shortest search time frame.

D. Apply compressionCompression saves storage capacity, but compressed logs may require decompression or additional processing before review. This does not best support the need for the fastest searches.

From a Security+ perspective, when the goal is rapid log review, correlation, and search performance, aggregation is the strongest answer because it supports centralized monitoring and efficient analysis of live logs over the retention period.
