UiPath UiPath-SAIAv1 - UiPath Specialized AI Associate Exam (2023.10)

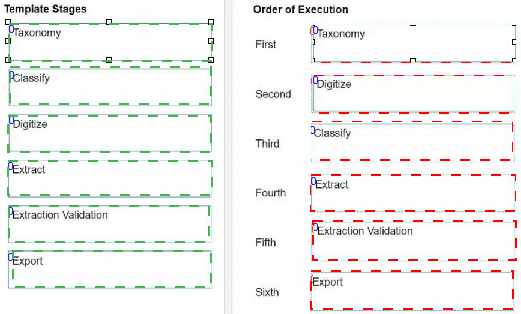

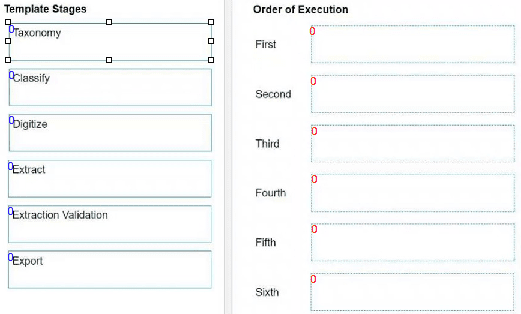

The correct execution order of the Document Understanding template stages is:

Taxonomy

Digitize

Classify

Extract

Extraction Validation

Export

Comprehensive and Detailed Explanation: The Document Understanding template stages are based on a document processing flowchart that follows these steps:

First, you need to define the Taxonomy of the document types and fields that you want to process and extract information from. This is done using the Taxonomy Manager in UiPath Studio1.

Next, you need to Digitize the input documents, which can be in various formats such as PDF, image, or text. This is done using the Digitize Document activity, which converts the documents into a machine-readable format and performs OCR if needed2.

Then, you need to Classify the digitized documents into the predefined document types in your taxonomy. This is done using the Classify Document Scope activity, which can use various classifiers such as Keyword Based Classifier, Machine Learning Classifier, or Intelligent Form Extractor3.

After that, you need to Extract the relevant information from the classified documents based on the fields in your taxonomy. This is done using the Data Extraction Scope activity, which can use various extractors such as Regex Based Extractor, Machine Learning Extractor, or Form Extractor.

Next, you need to perform Extraction Validation to review and correct the extracted information, either manually or automatically. This is done using the Present Validation Station activity, which can use either the Validation Station or the Action Center for human-in-the-loop validation.

Finally, you need to Export the validated information to the desired output location, such as a file, a database, or a queue. This is done using the Export Extraction Results activity, which can use various exporters such as Excel Exporter, CSV Exporter, or Queue Item Exporter.

Recall is a metric that measures the proportion of all possible true positives that the model was able to identify for a given concept1. A true positive is a case where the model correctly predicts the presence of a concept in the data. Recall is calculated as the ratio of true positives to the sum of true positives and false negatives, where a false negative is a case where the model fails to predict the presence of a concept in the data. Recall can be interpreted as the sensitivity or completeness of the model for a given concept2. For example, if there are 100 verbatims that should have been labelled as ‘Request for information’, and the model detects 80 of them, then the recall for this concept is 80% (80 / (80 + 20)). A high recall means that the model is good at finding all the relevant cases for a concept, while a low recall means that the model misses many of them.

In UiPath Document Understanding Cloud APIs, the Generative Classifier is used to classify documents by leveraging a generative AI model. To classify a document as either an "Invoice" or a "Receipt," a POST request must be sent to the /api/framework/projects/{projectId}/classifiers/generative_classifier/classification endpoint. The body of this request should contain prompts specifying the classification types (in this case, "Invoice" and "Receipt") along with their corresponding descriptions. This allows the model to correctly classify incoming documents based on these predefined prompts.

For further reading, refer to:

UiPath Document Understanding API Documentation: Cloud API for Classification

Generative Classifier APIs: UiPath Classification APIs

To enable a remote knowledge worker to validate the extracted data from documents in Action Center, the automation workflow needs to include the following activities12:

Create Document Validation Action: This activity creates an action of type Document Validation in Orchestrator Action Center, and returns an action object as output. The action object contains the information needed to resume the workflow after the human validation is completed. The input properties of this activity include the action details, such as title, priority, catalog, and folder, and the document validation data, such as the document object model, the document text, the taxonomy, and the automatic extraction results.

Wait for Document Validation Action and Resume: This activity suspends the execution of the workflow until the human validation is done in Action Center, and then resumes it with the updated extraction results. The input property of this activity is the action object obtained from the Create Document Validation Action activity. The output property is the validated extraction results, which can be used for further processing or exporting.

The Machine Learning Extractor utilizes machine learning models to effectively extract data from documents, especially when dealing with varying structures or formats within the same document type. This capability is crucial in scenarios where documents do not follow a strict template and have variations in their layout or content organization. The extractor can be trained to understand these variations and accurately extract the needed information.

The Machine Learning Extractor is a data extraction tool that uses machine learning models to extract data from various types of documents, such as invoices, receipts, or forms. It is especially useful when the same document type has multiple layouts or formats, as it can learn and infer the values for the targeted fields, even from documents and layouts it has never seen before1.

The Machine Learning Extractor can be used with one of UiPath’s public Document Understanding endpoints, which provide generic models for certain document types, or with custom trained machine learning models hosted in AI Center, which can be tailored to specific use cases. The Machine Learning Extractor can be configured and trained using the Data Extraction Scope activity in UiPath Studio2.

Comprehensive and Detailed Explanation From Exact Extract:

In UiPathIntegration Service, aconnectionis the secure authentication configuration between UiPath and an external application (like Salesforce, ServiceNow, etc.). These connections rely onAPI authentication mechanismssuch as OAuth 2.0 or API Keys depending on the connector.

They are used to enable data exchange between RPA processes and external systems.

UiPath Documentation Reference:Integration Service – Connections

===========

According to the UiPath documentation portal1, the Automation Suite installer is a single package that enables the deployment of the full UiPath Automation Platform in the environment of choice, whether on-premises or in the cloud. The Automation Suite installer contains all the components and dependencies required for the installation, such as the infrastructure, the orchestrator, the AI Center, the Action Center, the Insights, the Test Suite, and the Document Understanding. The Automation Suite installer also supports multi-node deployment with automatic scaling and built-in high availability, as well as easy monitoring, configuration, and upgrade options1. Therefore, option C is the correct answer, as it describes the features and benefits of the Automation Suite installer. Option A is incorrect, as it refers to the UiPath Automation Cloud, which is a different offering that does not require an installer. Option B is incorrect, as it describes a manual installation process that is not enabled by the Automation Suite installer. Option D is incorrect, as it confuses the Automation Suite installer with the installUiPathAS.sh script, which is a separate file that is used to launch the installer wizard2.

The correct pipeline configuration for creating a new model version that includes both the initial 1000 pages and the newly labeled 800 pages is to run a Full pipeline. This ensures that the model is fully retrained with all available data (1800 pages in total). The evaluation dataset should remain the 100 pages to gauge the model's performance after retraining. This approach maximizes the model's learning by incorporating all labeled data while allowing for evaluation against a known dataset.

When migrating a schema from Document Manager to a Modern Project, UiPath will override any existing schema associated with the document type if you attempt to import a new schema. This behavior is confirmed in UiPath's handling of document types and schema imports, where the new schema will replace the old one, ensuring that the latest version is applied to the project. This helps maintain consistency in schema configurations during migrations, especially when schemas are updated or need to be standardized
