LPI 101-500 - LPIC-1 Exam 101, Part 1 of 2, version 5.0

systemd, Upstart, and SysV init are all init systems used within Linux systems. An init system is the first process executed by the kernel at boot time, which has a process ID (PID) of 1, and is responsible for starting and managing all other processes on the system. Different init systems have different features, advantages, and disadvantages. Some of the most common init systems are:

systemd: A relatively new and modern init system that aims to provide a unified and efficient way of managing system and service states. It is compatible with SysV and LSB init scripts, and supports features such as parallel processing, socket activation, logging, job scheduling, and more. It is the default init system for many popular Linux distributions, such as Fedora, Debian, Ubuntu, Arch Linux, and others12.

Upstart: An event-based init system developed by Ubuntu as a replacement for SysV init. It starts and stops system tasks and processes based on events, such as hardware changes, network availability, filesystem mounting, etc. It is a hybrid init system that uses both SysV and systemd scripts, and supports features such as parallel processing, dependency tracking, logging, and more. It is the default init system for some older versions of Ubuntu, and some other Linux distributions, such as Linux Mint and Chrome OS12.

SysV init: A mature and traditional init system that follows the System V (SysV) design of Unix operating systems. It uses a series of runlevels to define the state of the system, and executes scripts in the /etc/rc.d or /etc/init.d directories according to the current runlevel. It is simple and stable, but lacks some features of modern init systems, such as parallel processing, event handling, dependency tracking, etc. It is still used by some Linux distributions, such as Slackware, Gentoo, and others12.

References: 1: 6 Best Modern Linux ‘init’ Systems (1992-2023) - Tecmint 2: 10 Best Linux init systems as of 2023 - Slant.

The quiet kernel parameter instructs the kernel to suppress most boot messages, except for critical errors12. The quiet parameter can be added to the GRUB_CMDLINE_LINUX_DEFAULT variable in the /etc/default/grub file and then run sudo update-grub to apply the changes3. The quiet parameter can also be used in combination with other parameters, such as splash, to enable a graphical boot screen4.

The other options in the question are not valid or do not have the same functionality as the quiet parameter:

silent: There is no such kernel parameter in Linux.

verbose=0: This parameter is used to set the verbosity level of the kernel messages, but it does not suppress them completely. The valid values for this parameter are from 0 (quiet) to 7 (debug)5.

nomesg: This parameter is used to disable all kernel messages on the console, including the emergency ones. This parameter is not recommended for normal use, as it can hide critical errors and prevent troubleshooting.

References:

1: Getting the Kernel Command-Line Parameters | Baeldung on Linux 2: How to mute kernel messages at startup in Arch Linux? 3: boot - How to turn off the filesystem check message which occures while booting - Ask Ubuntu 4: [How to enable a graphical boot screen on Ubuntu 18.04 LTS - LinuxConfig.org] 5: [Kernel parameters - ArchWiki] : [Linux Kernel Parameters - SysTutorials]

The command that would disconnect the users and allow you to safely execute maintenance tasks on a disk partition is telinit 112. The telinit command is used to change the runlevel of the system, which is a mode of operation that defines what processes and services are running3. The runlevel 1, also known as single-user mode, is a mode that allows only the root user to log in, and disables all network services and graphical interfaces4. This mode is useful for performing system maintenance and recovery tasks, such as repairing a disk partition5.

The other options in the question are not correct because:

B. shutdown -r now: This command would reboot the system immediately, without disconnecting the users gracefully or allowing you to do any maintenance tasks.

C. killall -9 inetd: This command would kill the inetd process, which is a daemon that manages network services. This would not disconnect the users who are already logged in, and it would not stop other processes that might interfere with the maintenance tasks.

D. /bin/netstop --maint: There is no such command in Linux.

E. /etc/rc.d/init.d/network stop: This command would stop the network service, which would disconnect the users who are logged in remotely, but not the ones who are logged in locally. It would also not stop other processes that might interfere with the maintenance tasks.

References:

1: How to Change Runlevels (targets) in SystemD - Tecmint 2: How to Boot into Single User Mode in CentOS/RHEL 7 - Tecmint 3: Runlevel - Wikipedia 4: Single-user mode - Wikipedia 5: How to Repair a Corrupted Linux File System - Linux.com : [shutdown(8) - Linux manual page] : [inetd(8) - Linux manual page] : [How to Start/Stop or Enable/Disable firewalld on CentOS 7 - Tecmint]

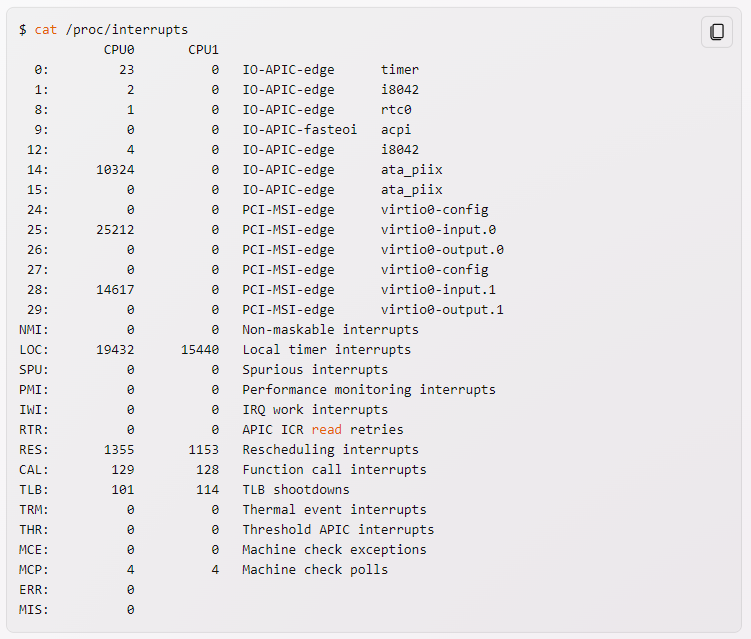

The file that you should check within the /proc tree to learn which IRQs are being used by which kernel drivers is /proc/interrupts1 Comprehensive Explanation: The /proc/interrupts file is a virtual file that provides information about the number and type of interrupts per CPU per I/O device12. It displays the IRQ number, the number of that interrupt handled by each CPU core, the interrupt type, and a comma-delimited list of drivers that are registered to receive that interrupt12. For example, the following output shows the contents of /proc/interrupts on a system with two CPUs and several devices:

The first column shows the IRQ number, followed by one column for each CPU core showing the number of interrupts handled by that core. The last column shows the interrupt type and the driver name. Some interrupt types are:

IO-APIC-edge: An edge-triggered interrupt from the I/O Advanced Programmable Interrupt Controller (APIC), which is a hardware device that handles and distributes interrupts.

IO-APIC-fasteoi: A fast end-of-interrupt from the I/O APIC, which means that the interrupt is acknowledged early to allow nesting interrupts.

PCI-MSI-edge: A Message Signaled Interrupt (MSI) from the Peripheral Component Interconnect (PCI) bus, which is a hardware bus that connects devices to the system. MSI is a method of sending interrupts using special messages instead of dedicated lines.

NMI: A Non-Maskable Interrupt, which is a hardware interrupt that cannot be ignored by the CPU and usually indicates a critical error.

LOC: A Local timer interrupt, which is a periodic interrupt generated by a local APIC on each CPU core for scheduling purposes.

RES: A Rescheduling interrupt, which is a type of inter-processor interrupt (IPI) that is sent to a CPU core to force it to reschedule its current task.

To check if a new ethernet card might be conflicting with another device, you can look for the driver name of the ethernet card in the /proc/interrupts file and see if it shares the same IRQ number with another device. If so, you can try to change the IRQ assignment of the devices or use the smp_affinity file to control which CPU cores can handle the interrupt12.

References:

1: 4.3. Interrupts and IRQ Tuning - Red Hat Customer Portal 2: What are the non-numeric IRQs in /proc/interrupts?

The /proc/ directory is a virtual filesystem that provides a view of the kernel’s data structures and parameters. It contains information about processes, hardware, memory, modules, and other aspects of thesystem. The files in /proc/ are not stored on disk, but are generated on the fly by the kernel when they are accessed. Therefore, any changes to files in /proc/ are immediately recognized by the kernel and affect its behavior. For example, writing a value to /proc/sys/kernel/hostname will change the system’s hostname without rebooting. The files in /proc/ are not all read-only; some of them can be modified by the root user or by processes with the appropriate permissions. The files in /proc/ are readable by any user, unless restricted by the kernel or by the mount options. References: LPI Linux Essentials - 1.101.2, LPI Linux Administrator - 102.3

The wall command is a command-line utility that displays messages to all logged-in users on the terminal12. The wall command takes the following basic syntax:

$ wall OPTION { file | message }

The OPTION can be one of the following:

-n or --nobanner: Suppress the banner (the header line with the hostname, date, and time) from the output. This option can only be used by the root user.

-v or --version: Display version information and exit.

-h or --help: Display help message and exit.

The file or message argument is the source of the message to be displayed. If a file is specified, the wall command will read the message from the file. If a message is specified, the wall command will read the message from the standard input. The message can be terminated by pressing Ctrl+D.

The other commands in the options are not valid or do not have the same functionality as the wall command:

bcast: There is no such command in Linux.

mesg: This command is used to control write access to the terminal. It does not send messages to other users.

print: This command is used to print files or data to a printer. It does not send messages to other users.

yell: There is no such command in Linux.

References:

1: How to Send a Message to Logged Users in Linux Terminal - Tecmint 2: How to Send Broadcast Messages to Users in Linux Terminal

The commands init 1 and telinit 1 both bring a system running SysV init into a state in which it is safe to perform maintenance tasks. This state is also known as single-user mode or runlevel 1, where only the root user can log in and no network services are running. The command shutdown -R 1 now is incorrect, because it reboots the system instead of entering single-user mode. The command shutdown -single now is invalid, because the -single option does not exist for the shutdown command. The command runlevel 1 is also invalid, because runlevel is a command that displays the current and previous runlevels, not a command that changes the runlevel. References:

1: SysVinit - ArchWiki

2: Linux: How to write a System V init script to start, stop, and restart my own application or service - nixCraft

3: sysvinit - Gentoo wiki

The usual way to pass this change to the kernel from the boot loader is to pass init=/bin/sh on the kernel parameter line12. The init kernel parameter is used to specify the program that is run as the first process after the kernel is loaded3. By default, this program is /sbin/init, which is responsible for starting and managing other processes and services4. However, by passing init=/bin/sh, the kernel will run /bin/sh instead, which is a shell program that allows the user to execute commands interactively or from a script5. This way, the user can bypass the usual initialization process and run /bin/sh as the root user, which can be useful for troubleshooting or recovery purposes12.

The other options in the question are not correct because:

A. Start in runlevel 1: This option would not bypass the /sbin/init program, but rather instruct it to start the system in single-user mode, which is a mode that allows only the root user to log in, and disables all network services and graphical interfaces. To start in runlevel 1, the user would need to pass single or 1 on the kernel parameter line, not init=/bin/sh.

C. Pass /bin/sh on the kernel parameter line: This option would not work, because the kernel would not recognize /bin/sh as a valid parameter and would ignore it. The kernel only accepts parameters that have a specific format, such as name=value or name.flag3. To specify the init program, the user would need to use the init= prefix, as in init=/bin/sh3.

D. Pass start=/bin/sh on the kernel parameter line: This option would also not work, because the kernel does not have a start parameter. The user would need to use the init parameter, as in init=/bin/sh3.

References:

1: How to pass arguments to a Linux kernel init= bootparam? - Unix & Linux Stack Exchange 2: kernel parameter init=/bin/bash not working? (RHEL7, RHCSA test) - Unix & Linux Stack Exchange 3: The kernel’s command-lineparameters — The Linux Kernel documentation 4: [init - Wikipedia] 5: [sh - Wikipedia] : [Single-user mode - Wikipedia] : How to Change Runlevels (targets) in SystemD - Tecmint

The program that is run after the BIOS completes its tasks is the bootloader12. The bootloader is a small program that loads the operating system into memory and executes it. The bootloader can be located in the Master Boot Record (MBR) of the first hard disk or the boot sector of a partition for BIOS systems, or in an .efi file on the EFI System Partition for UEFI systems12. The bootloader can also display a menu to allow the user to choose from different operating systems or kernel versions to boot12.

The other options in the question are not correct because:

B. The inetd program: This is a program that listens for incoming network connections and launches the appropriate service for them. It is not involved in the boot process3.

C. The init program: This is a program that is executed by the kernel as the first user-space process. It is responsible for starting and managing other processes and services. It is not run by the BIOS.

D. The kernel: This is the core of the operating system that controls everything in the system. It is loaded and executed by the bootloader, not by the BIOS.

References:

1: The Linux Booting Process - 6 Steps Described in Detail - freeCodeCamp.org 2: Guide to the Boot Process of a Linux System - Baeldung 3: [inetd - Wikipedia] : [init - Wikipedia] : [Linux kernel - Wikipedia]
