Brocade 170-010 - Brocade Certified vRouter Engineer

Which operation allows a firewall to understand complex protocols and pass related traffic automatically?

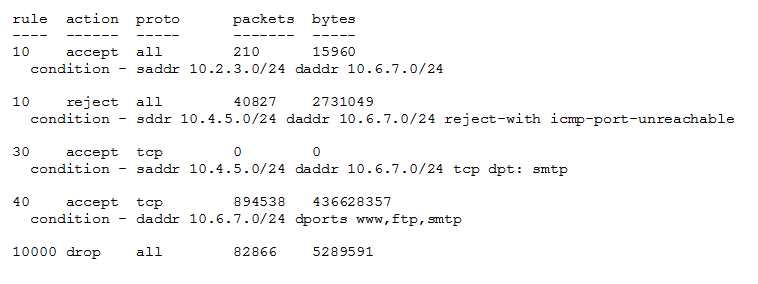

Some of your internal users are complaining that they can't get to the mail server at 10.6.7.22.

Looking at the firewall rulebase in the exhibit, what is the problem?

Which three commands can display rule details, such as protocols and ports? (Choose three.)

Which two command lines can you use to search the Brocade Vyatta vRouter log files? (Choose two.)

vyatta@VYA1:~$ show ip route

Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP

O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

> - selected route, * - FIB route, p - stale info

Gateway of last resort is 172.24.42.1 to network 0.0.0.0

S *> 0.0.0.0/0 [1/0] via 172.24.42.1, eth0

C *> 127.0.0.0/8 is directly connected, lo

C *> 172.24.42.0/24 is directly connected, eth0

O 192.168.12.0/24 [110/1] is directly connected, eth2, 00:02:53

C *> 192.168.12.0/24 is directly connected, eth2

O 192.168.13.0/24 [110/1] is directly connected, eth3, 00:02:53

C *> 192.168.13.0/24 is directly connected, eth3

O *> 192.168.23.0/24 [110/2] via 192.168.12.2, eth2, 00:01:31

*> [110/2] via 192.168.13.3, eth3, 00:01:31

O 192.168.101.0/24 [110/1] is directly connected, eth1, 00:02:53

C *> 192.168.101.0/24 is directly connected, eth1

O *> 192.168.128.0/24 [110/2] via 192.168.12.2, eth2, 00:01:10

O *> 192.168.129.2/32 [110/11] via 192.168.12.2, eth2, 00:01:10

O *> 192.168.130.2/32 [110/11] via 192.168.12.2, eth2, 00:01:10

O *> 192.168.131.2/32 [110/11] via 192.168.12.2, eth2, 00:01:10

O *> 192.168.160.0/24 [110/2] via 192.168.13.3, eth3, 00:01:31

O *> 192.168.161.3/32 [110/11] via 192.168.13.3, eth3, 00:01:31

O *> 192.168.162.3/32 [110/11] via 192.168.13.3, eth3, 00:01:31

O *> 192.168.163.3/32 [110/11] via 192.168.13.3, eth3, 00:01:31

vyatta@VYA1:~$

Which three routes will the device originate into the OSPF network? (Choose three.)

vyatta@vyatta:~$ show system login users

Username Type Tty From Last login

operator vyatta hvc0 Mon Jun 17 18:34:25 2013

vyatta vyatta pts/0 10.224.7.101 Wed Jun 19 20:47:39 2013

vyatta@vyatta:~$

Based on the output, which statement is true?

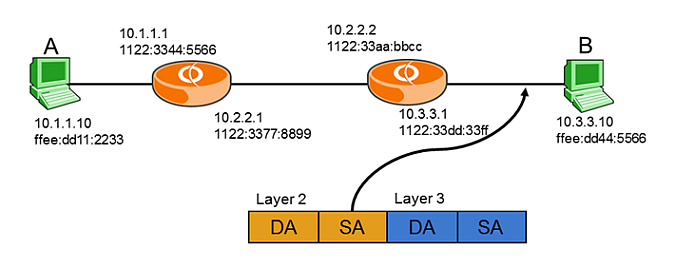

Data is being transmitted from host A to host B.

If you were to capture a frame at the point indicated in the exhibit, what would the source MAC address be?

Given the address 172.16.99.65 and a mask of 255.255.240.0, what is the subnet number?

Which three statements about the configuration file are true? (Choose three.)

Which two elements must you configure in your Brocade Vyatta vRouter to register your software license? (Choose two.)
