Citrix 1Y0-204 - Citrix Virtual Apps and Desktops 7 Administration exam

The Logon Performance report in Citrix Director provides insights into the various stages of the logon process and can help identify which stage is causing the delay. It includes details such as Brokering, VM Start, HDX Connection, Authentication, and Interactive Session times, allowing administrators to pinpoint the bottleneck in the logon process.

 Profile streaming ensures that only the files and folders that a user needs are downloaded to the VDA during logon and logoff. This reduces logon and logoff times and allows users to access their profiles in the event of network interruptions or VDA failures1

1: https://docs.citrix.com/en-us/profile-management/current-release/configure/profile-streaming.html

The Control layer contains the Site database in a Citrix Virtual Apps and Desktops Architecture model. The Site database stores the running site configuration, plus the current session state and connection information. The Access layer contains the components that users need to connect to their apps and desktops, such as StoreFront and Citrix Gateway. The User layer contains the user profiles, policies, and data. The Resource layer contains the machines that host the apps and desktops, such as VDAs and hypervisors

 Folder redirection is a feature of Microsoft Windows and can be used with Profile Management. It allows folders, such as Application Data or Documents, to be saved (redirected) to a network location. The contents of the folders are stored in the redirected location and not included within the user profile, which therefore reduces in size. This can improve the logon times for users with large Documents folders1

1: Plan folder redirection with Profile Management

Citrix Studio is the management console that allows administrators to provide customized permissions, including adding applications to junior administrators1.

According to the Citrix documentation1, the Citrix ADC SDX appliance allows administrators to upgrade the Citrix ADC instances on an individual basis, without affecting the other instances or the SDX appliance. This allows the instances to run different firmware versions and provides flexibility and convenience for the administrator.

Without a bound SSL certificate, the SSL virtual server cannot establish secure connections and will be in a DOWN state.

According to the Citrix documentation, “To enable SSL offloading for a virtual server, you must bind an SSL certificate to the virtual server.”

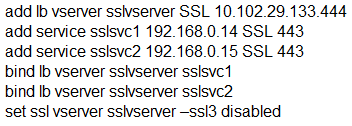

The image you sent shows the configuration commands for setting up an SSL virtual server and services. However, there is no command to bind an SSL certificate to the virtual server.

Therefore, the correct answer is D. The SSL Certificate is NOT bound to the virtual server.

https://docs.citrix.com/en-us/citrix-adc/13/ssl/ssl-offload-howto.html

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the expression CLIENT.SSL.CLIENT_CERT.VALID_NOT_AFTER.EQ(GMT2020) checks whether the client certificate is valid until the specified date (GMT2020). The other expressions are either incorrect or irrelevant for this requirement.

According to the Create machine catalogs document from Citrix Virtual Apps and Desktops 7 2308, MCS adds the machines to Active Directory, which creates unique identities. MCS creates the number of VMs specified in the wizard, with two disks defined for each VM. In addition to the two disks per VM, a master is also stored in the same storage location. The identity disk is one of the two disks per VM, and it is used to store the Active Directory identity and other unique information for each VM. The identity disk is 16 MB in size and is created for each VM regardless of the disk type selected for the catalog.
