Cisco 200-301 - Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1

EtherChannel mode on creates a static port channel without using a negotiation protocol. That means the switch bundles the selected physical interfaces unconditionally, provided the local interface parameters are compatible. No LACP or PAgP packets are exchanged. Mode active is LACP and actively attempts to negotiate. Mode auto is PAgP passive behavior, and desirable is PAgP active negotiation. The question says without using a negotiation protocol, so the only correct choice is on. Cisco CCNA v1.1 Network Access includes EtherChannel configuration and the difference between static, LACP, and PAgP modes. In production, static EtherChannel must be used carefully because the switch does not protect you from all mismatches the same way a negotiation protocol can. Both sides must be configured consistently. For exam purposes, the keyword is unconditional. If the bundle is formed manually and no LACP/PAgP negotiation is sent or received, the Cisco IOS command uses channel-group mode on.

This item is the same STP concept as the previous one: root port selection begins with the lowest total path cost to the root bridge. A switch evaluates each possible path toward the root and selects the port that gives the lowest cumulative STP cost. If multiple ports tie on cost, the switch then applies the STP tie-breakers in order. It compares the lowest neighbor bridge ID, then the lowest neighbor port ID, and finally the lowest local port ID if needed. The exam often repeats this rule because engineers must troubleshoot blocked links by understanding exactly why a port was selected. Cisco CCNA 200-301 v1.1 Network Access includes spanning-tree operation, root bridge behavior, and root port selection. The first criterion is not local port ID or neighbor information. Those are secondary tie-breakers. The correct first criterion is the lowest path cost to the root bridge.

The verified answer is D. Server virtualization allows multiple operating systems to run independently on one physical host. A hypervisor abstracts CPU, memory, storage, and network resources so each VM behaves like a separate machine. Cisco CCNA 200-301 v1.1 places this skill in Network Fundamentals, where the exam expects a working understanding of how the feature behaves on real Cisco networks, not just a memorized command. VRF and virtual device contexts virtualize network functions, not general-purpose operating systems on a host computer. In production, this distinction matters because a misapplied command or design choice usually creates an outage, a security gap, or unnecessary troubleshooting noise. The correct choice matches the control-plane, data-plane, wireless, security, or services behaviour described in the scenario and should be preferred over options that merely sound related.

The correct response is D. The listed choice that matches FHRP operation is the exchange of multicast hello messages between routers. Those hello messages let routers negotiate active, standby, master, or backup roles for a shared default-gateway function. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. The better conceptual purpose is gateway redundancy, but among these options the multicast hello behaviour is the FHRP-specific answer. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

A Layer 2 switch floods a frame with an unknown destination MAC address out all ports in the same VLAN except the port where the frame entered. That behavior is not a fault; it is normal Ethernet switching. The switch learns from the source MAC address of incoming frames, not from the unknown destination. If the destination MAC is already in the MAC address table, the frame is forwarded only out the associated port. If it is missing, the switch must treat the traffic as unknown unicast and flood within the VLAN so the destination has a chance to receive it. The switch does not drop the frame just because the destination is unknown, and it does not send it only to the CPU for learning. Cisco CCNA v1.1 Network Access covers switching fundamentals, including MAC learning, forwarding, filtering, and flooding. The decisive detail is the VLAN boundary: flooding is limited to the same VLAN and excludes the ingress port.

A floating static route must have a higher administrative distance than the primary route. That is what keeps it out of the routing table while the primary route is valid. If the primary route fails, the routing table process removes the better route and installs the backup static route with the higher AD. Option A states that behavior correctly. If the backup route had a lower administrative distance, it would become preferred immediately and would not act as a backup. Raising the primary route’s distance is not the normal design; the route intended to float is the one configured with the higher distance. The default-information originate command is for advertising a default route into a routing protocol, not for installing a floating static backup. This is core CCNA 200-301 v1.1 IP Connectivity: floating statics provide deterministic fallback when a dynamic route or primary static route disappears. Reference: Cisco IOS static routing and administrative-distance selection.

The verified answer is A. A DHCP client is a host configured to request addressing information automatically. It initiates DHCP discovery and receives an address lease plus options such as gateway and DNS. Cisco CCNA 200-301 v1.1 places this skill in IP Services, where the exam expects a working understanding of how the feature behaves on real Cisco networks, not just a memorized command. The server assigns addresses, DNS resolves names, and a statically configured router is not a DHCP client function. In production, this distinction matters because a misapplied command or design choice usually creates an outage, a security gap, or unnecessary troubleshooting noise. The correct choice matches the control-plane, data-plane, wireless, security, or services behaviour described in the scenario and should be preferred over options that merely sound related.

The data plane is responsible for forwarding traffic. In traditional devices, the data plane is distributed across the network devices themselves, even when the control and management functions are centralized or influenced by a controller. The control plane decides paths and builds tables; the data plane uses those tables to switch or route packets. The management plane handles configuration, monitoring, and administrative access. A policy plane may describe intent or business policy in some architectures, but it is not the forwarding plane. Cisco CCNA 200-301 v1.1 Automation and Programmability tests software-defined architecture at a conceptual level. The most important separation is that controller-based networking can centralize control while forwarding still occurs on the devices. The plane that is distributed and responsible for traffic forwarding is the data plane. Therefore, D is correct.

Use A for this item. The global spanning-tree portfast default command makes access ports transition to forwarding immediately when endpoints connect. PortFast is intended for host-facing access ports so DHCP and initial connectivity are not delayed by STP listening and learning behaviour. In Cisco CCNA 200-301 v1.1, Network Access questions frequently test the practical boundary between similar features: what the feature does, where it is configured, and what problem it is meant to solve. The trunk PortFast command is for special trunk edge cases, and disabling PortFast would not meet the requirement. A clean way to validate the answer is to map the wording of the scenario to the actual device function. If the feature supplies addressing, forwarding, authentication, trunking, route selection, or controller communication, the answer must match that function exactly rather than a nearby protocol name.

Answer D is the technically correct selection. In a lightweight AP deployment, the wireless LAN controller handles WLAN policy and forwards authentication requests to the AAA server. The AP provides radio access, but the WLC controls the client WLAN configuration and authentication path in the controller-based architecture. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. A RADIUS server validates credentials, while TACACS+ is mainly used for device administration; the AP is not the controlling device in this model. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

A router installs the best route by applying two major rules: longest prefix match and administrative distance. Prefix length is considered first when routes describe different destination scopes; the more specific prefix wins for destinations inside that range. When routes have the same prefix length but come from different routing sources, the route with the lower administrative distance is preferred. In the answer set, the OSPF route to 10.0.0.0/30 is chosen over competing routes to the same /30 because OSPF has a better administrative distance than RIP and iBGP. The EIGRP host route to 10.0.0.1/32 is also installed because it is a more specific route to that single host. Cisco CCNA 200-301 v1.1 IP Connectivity requires engineers to interpret routing tables using these exact rules. The OSPF /16 is broader and does not replace a more specific /30 for matching destinations. The route table can contain both a network route and a host route when their prefixes differ.

The correct response is C and E. A Cisco router acting as a DHCP server must have a DHCP address pool and can use manual bindings when specific addresses must be reserved. The pool defines the scope of addresses and options that clients receive; bindings tie a known client identifier or MAC-related value to an address when deterministic assignment is required. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. Relay-agent information and smart-relay support relay behaviour, and a database agent is optional persistence rather than the core server configuration being tested. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

In a two-tier campus design, the core and distribution functions are collapsed into one layer. That collapsed core provides aggregation, Layer 3 boundaries, routing between access-layer blocks, and policy enforcement that would otherwise sit at the distribution layer. The access layer attaches users and endpoints; it is not the collapsed core ' s role. Marking interesting traffic can occur as part of QoS policy, but it is not the defining architectural function. Applying security policies may happen in some designs, but the answer that best describes collapsed-core responsibility is enforcing routing policies. Cisco CCNA 200-301 v1.1 Network Fundamentals expects candidates to compare two-tier and three-tier architectures. In small and medium campus networks, a collapsed core reduces complexity by combining distribution and core into the same devices. The key function in the answer set is routing-policy enforcement. Therefore, A is the best answer.

In controller-based networking, the southbound API is the interface between the controller and the network devices it manages. The controller uses southbound communication to discover devices, collect operational data, push configuration, and influence forwarding behavior. Cisco CCNA 200-301 v1.1 separates this from northbound APIs, which are used by applications, orchestration tools, or business systems to communicate with the controller. The answer cannot be overlay or underlay because those terms describe logical and physical network transport designs, not API direction. Northbound is also wrong because it faces upward toward applications, not downward toward routers, switches, and access points. Common southbound technologies include NETCONF, RESTCONF, gNMI, and in SDN discussions, OpenFlow. The safest exam model is directional: northbound equals application-to-controller, while southbound equals controller-to-device. Since edge devices are the managed infrastructure, the API used to interact with them is southbound.

JSON is commonly used to describe structured data and it supports arrays. A JSON object is written as name-value pairs enclosed in braces, while an array is an ordered list enclosed in brackets. This makes JSON compact and easy for REST APIs, scripts, controllers, and network automation tools to exchange data. Cisco CCNA 200-301 v1.1 includes JSON because network programmability often requires reading API responses from systems such as Cisco DNA Center or device controllers. Option A describes markup-style languages such as XML or HTML, which use angle brackets and tags. Option D is backwards because XML is usually more verbose than JSON. Option C is too vague; JSON can be stored, but the defining exam feature here is its structured representation, including arrays. A fast way to recognize JSON is to look for curly braces, quoted keys, colons between keys and values, and square brackets when multiple values are grouped.

A CPU ACL on a Cisco Wireless LAN Controller restricts management-plane traffic destined to the controller itself. That is the feature used when management access must be limited to specific source networks. The CPU ACL is applied to traffic handled by the controller CPU, such as SSH, HTTPS, Telnet, SNMP, or other management access depending on platform support and configuration. TACACS+ and RADIUS are AAA services; they authenticate or authorize users but do not by themselves filter which source networks can reach the controller management plane. A Flex ACL applies to client data traffic in FlexConnect designs, not to controller management access. Cisco CCNA v1.1 Security Fundamentals expects the distinction between access control and authentication. If the requirement says restrict management access from specific networks, the security control must filter management-plane packets before login is even considered. On a WLC, that points to the CPU ACL.

A Layer 3 EtherChannel using an open-standard negotiation protocol requires LACP and a routed port-channel interface. LACP uses active and passive modes; active actively negotiates the bundle. PAgP modes such as auto and desirable are Cisco-proprietary, so they do not meet the open-standard requirement. Static mode on does not use a negotiation protocol at all, so it also fails the question wording. After the physical interface is placed into the channel group with mode active, the port-channel itself must be converted to a routed interface with no switchport and assigned an IP address. Cisco CCNA 200-301 v1.1 Network Access includes EtherChannel, and the important distinction is whether the bundle is Layer 2 or Layer 3. A Layer 2 EtherChannel uses switchport mode commands, often trunking. A Layer 3 EtherChannel behaves like a routed interface. Therefore, B selects LACP, and E creates the routed port-channel with IP addressing.

The verified answer is B. A port security violation can place a switchport into the err-disabled state. In shutdown violation mode, the switch disables the interface to stop unauthorized MAC address use. Cisco CCNA 200-301 v1.1 places this skill in Network Access, where the exam expects a working understanding of how the feature behaves on real Cisco networks, not just a memorized command. Latency, an administratively shut interface, or an unplugged cable do not describe the err-disable trigger in the question. In production, this distinction matters because a misapplied command or design choice usually creates an outage, a security gap, or unnecessary troubleshooting noise. The correct choice matches the control-plane, data-plane, wireless, security, or services behaviour described in the scenario and should be preferred over options that merely sound related.

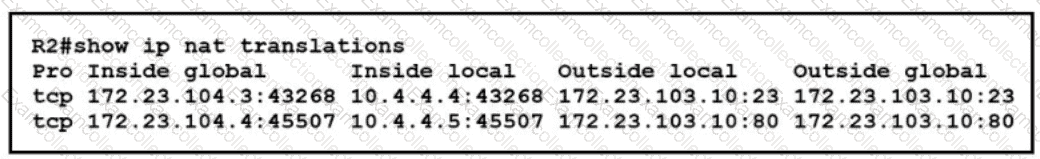

In a NAT translation table, the source address seen after inside-to-outside translation is the inside global address. The inside local address is the private address assigned to the internal host. The inside global address is the translated address that represents that internal host to the outside network. In the exhibit-based answer set, 172.23.104.4 is the address used as the translated source, so D is correct. This question is easy to miss if NAT terms are treated as labels instead of traffic direction. For outbound traffic, NAT changes the source from the inside local value to the inside global value. For return traffic, NAT reverses the operation and maps the destination back to the inside local host. Cisco CCNA v1.1 IP Services includes NAT concepts and configuration, so candidates must know inside local, inside global, outside local, and outside global. The tested idea is not merely public versus private; it is which translated field is used as the packet source.

When Link Aggregation is enabled on a Cisco Wireless LAN Controller, the controller ' s distribution ports operate as a single logical bundle toward the switch. A key operational point is that client traffic can pass as long as at least one physical member link in the bundle is functional. The design improves redundancy and aggregate capacity without requiring each WLAN or AP manager function to be tied to a separate physical port. The switch side must be configured consistently for the supported aggregation mode, but the exam statement being tested here is the resiliency behavior: one working physical port can keep traffic moving. The incorrect choices either imply that two or more active ports are mandatory just to pass client traffic, or describe bandwidth loss in a way that is not the defining LAG behavior. Cisco CCNA 200-301 v1.1 Network Access includes WLC connectivity concepts because AP and client traffic depend on controller uplink design. The correct statement is that one functional physical port is enough to pass client traffic.
