Cisco 200-301 - Implementing and Administering Cisco Solutions (200-301 CCNA) v1.1

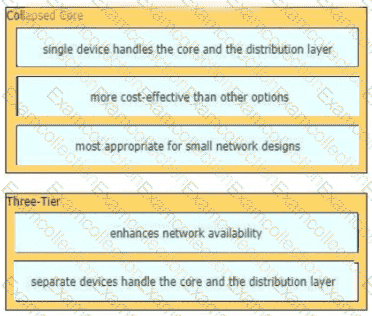

The correct response is the displayed drag-and-drop mapping. Network architecture characteristics distinguish two-tier, three-tier, spine-leaf, WAN, SOHO, and cloud designs. The correct mapping depends on where devices attach, where aggregation occurs, how redundancy is built, and whether the design optimizes campus access, data-center east-west traffic, or remote connectivity. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. The distractors normally mix access, distribution, core, and data-center terms, so matching function to layer is the safest method. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

The correct response is B. VRRP provides default-gateway redundancy on a LAN by allowing multiple routers to share a virtual gateway. Hosts use the virtual IP address as their default gateway while one router acts as master and another can take over during failure. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. VRRP does not exchange routing tables, stop Layer 2 loops, or provide generic load balancing to distant destinations. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

Answer D is the technically correct selection. Virtual machines are operating system instances decoupled from the physical server hardware. The hypervisor presents virtual CPU, memory, disk, and NIC resources so multiple VMs can run on one host. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. The VM does not manage host resources itself, and the physical server can run multiple OS instances concurrently through virtualization. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

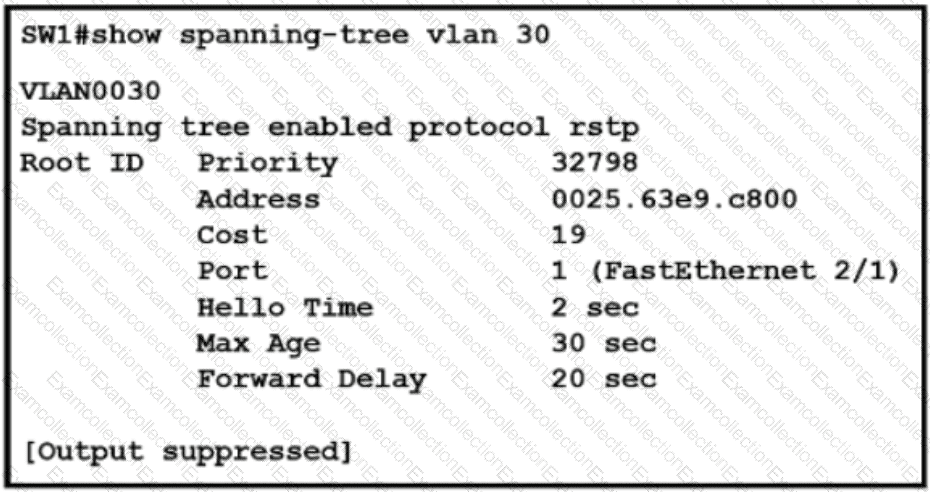

The exhibit indicates Rapid PVST+ operation and shows FastEthernet 2/1 as the root port. In spanning-tree output, the protocol mode tells you whether the switch is running classic PVST+ or the rapid variant. Rapid PVST+ is Cisco ' s per-VLAN implementation of 802.1w rapid spanning tree behavior, giving faster convergence than traditional 802.1D STP. The root port is the switch port with the lowest-cost path toward the root bridge. A non-root switch has one root port per spanning-tree instance; the root bridge itself has no root port. A designated port is selected per segment to forward traffic away from the root. Cisco CCNA 200-301 v1.1 Network Access expects engineers to identify root bridge, root port, designated port, and STP mode from show command output. Since the output identifies Rapid PVST+ and FastEthernet 2/1 as the root-facing interface, C and E are the correct conclusions.

An engineer is configuring data and voice services to pass through the same port. The designated switch interface fastethernet0/1 must transmit packets using the same priority for data when they are received from the access port of the IP phone. Which configuration must be used?

A)

B)

C)

D)

A. Option A

B. Option B

C. Option C

D. Option D

Answer: A

Private IPv4 address ranges allow different organizations to reuse the same internal address space without creating global internet conflicts. RFC 1918 reserves 10.0.0.0/8, 172.16.0.0/12, and 192.168.0.0/16 for private use. These addresses are not meant to be routed on the public internet. That reuse is one reason enterprises, homes, labs, and cloud networks can all use addresses such as 10.1.1.0 internally. When private hosts need internet access, NAT or another translation design is normally required. Cisco CCNA 200-301 v1.1 includes private addressing and NAT under IP Services because these concepts appear constantly in enterprise networks. The wrong answers imply that private addressing provides direct external reachability or removes the need for NAT, which is exactly backwards. Private addressing conserves public IPv4 space and avoids the need for every internal host to consume a globally unique address. Therefore, A correctly states the function.

Answer A is the technically correct selection. OM3 and OM4 are both multimode fiber types with a 50-micron core. OM4 supports higher bandwidth and longer distances for some speeds, but both share the 50/125-micron multimode physical profile. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. A 9-micron core is single-mode fiber, and 62.5-micron describes older multimode categories. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

The correct response is C. FHRPs improve availability by providing automatic default-gateway redundancy. If the active gateway fails, another router can take over the virtual IP and MAC so hosts keep using the same default gateway. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. They do not primarily reduce management overhead, reduce ARP, or perform proportional load balancing in every implementation. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

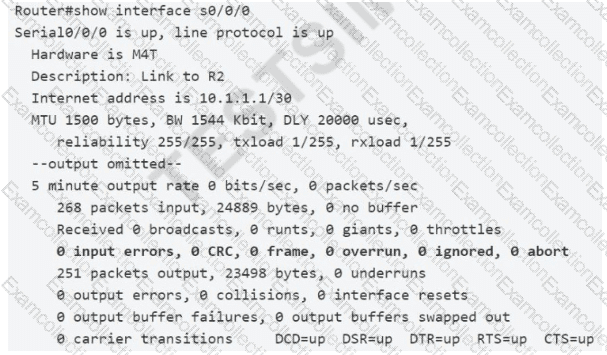

A frame that fails the Ethernet Frame Check Sequence is counted as a CRC error and also contributes to input errors. The FCS field is the Ethernet trailer’s error-detection value; the receiver recalculates the value and compares it with the frame’s received FCS. If the values do not match, the frame is considered corrupted and is discarded. Cisco interface counters commonly report that condition under CRC, while the broader input errors counter includes CRC and other receive-side problems such as runts, giants, frame errors, overrun, ignored, and no-buffer conditions. Runts and giants are size-related counters, not the direct result of the FCS failure described in the question. The frame counter is not the best paired answer here. In CCNA 200-301 v1.1 Network Fundamentals, this maps to Ethernet operation and interface troubleshooting. The verified answers are D and E: CRC and input errors. Reference: Cisco interface counter interpretation and Ethernet FCS behavior.

Dynamic ARP Inspection mitigates man-in-the-middle attacks that rely on ARP spoofing or ARP poisoning. In an ARP poisoning attack, the attacker sends false ARP messages so victims associate the attacker ' s MAC address with a legitimate IP address, such as the default gateway. Traffic is then redirected through the attacker. DAI counters this by validating ARP packets, usually against the DHCP snooping binding database, and dropping invalid ARP messages on untrusted ports. It is not a worm, malware scanner, or DDoS control. Cisco CCNA 200-301 v1.1 Security Fundamentals tests DAI as a campus access-layer protection because ARP itself has no built-in authentication. The mitigation works best when DHCP snooping is enabled and trusted ports are limited to infrastructure links. The attack category that best fits ARP spoofing is man-in-the-middle, since the attacker positions itself between communicating devices. Therefore, D is correct.

To make a switch always win the STP root election for VLAN 750, configure the lowest possible bridge priority for that VLAN. Cisco STP priorities are configured in increments of 4096, and priority 0 is the lowest configurable value. The command spanning-tree vlan 750 root primary is convenient, but it calculates a priority intended to beat the current root at the time the command is entered. It is not as absolute as setting priority 0. Several listed numeric values are invalid or too high to guarantee root status. Cisco CCNA 200-301 v1.1 Network Access tests this because root bridge placement is a core switching design control. A switch becomes root by having the lowest bridge ID, and priority is compared before MAC address. Setting the VLAN priority to 0 gives the switch the strongest possible election position for VLAN 750. The command that best guarantees root status is spanning-tree vlan 750 priority 0.
